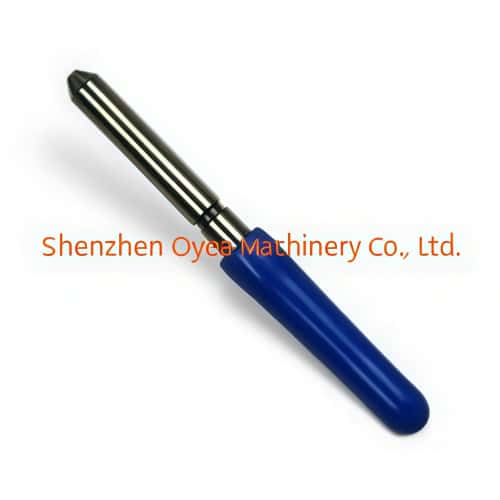

Summa 391-358 D Series Drag Cutter Plotter Knife Blades Supplies Replacement Compatible Accessories

Summa 391-358 are 55°sandblasted film and thick carbide cutter blades designed specifically for Summa engraving machines These blades are developed for high-load, thick-film hard materials, and feature an extremely hard and wear-resistant cutting edge. Enquire now

Description

Summa 391-358 55° Thick Materials Drag Knife Blade Supplies Replacement Compatible Accessories

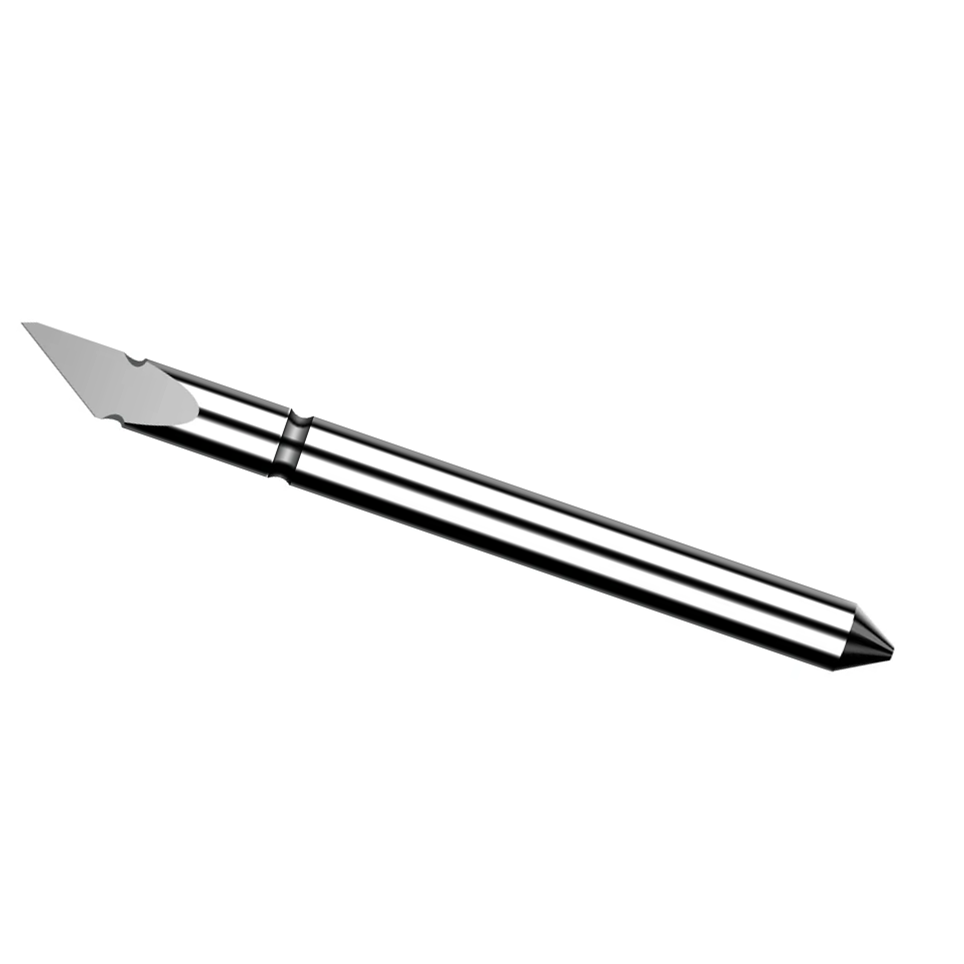

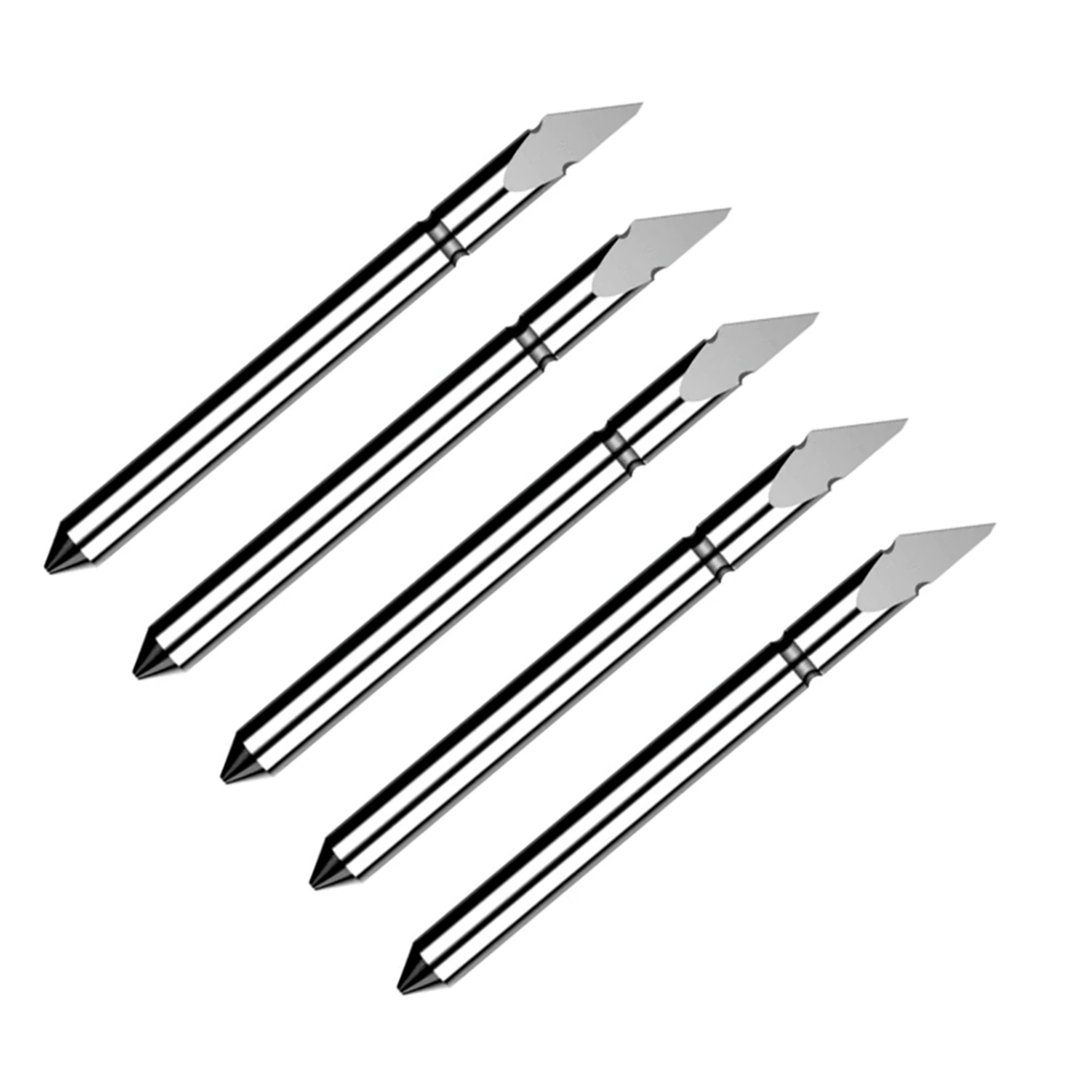

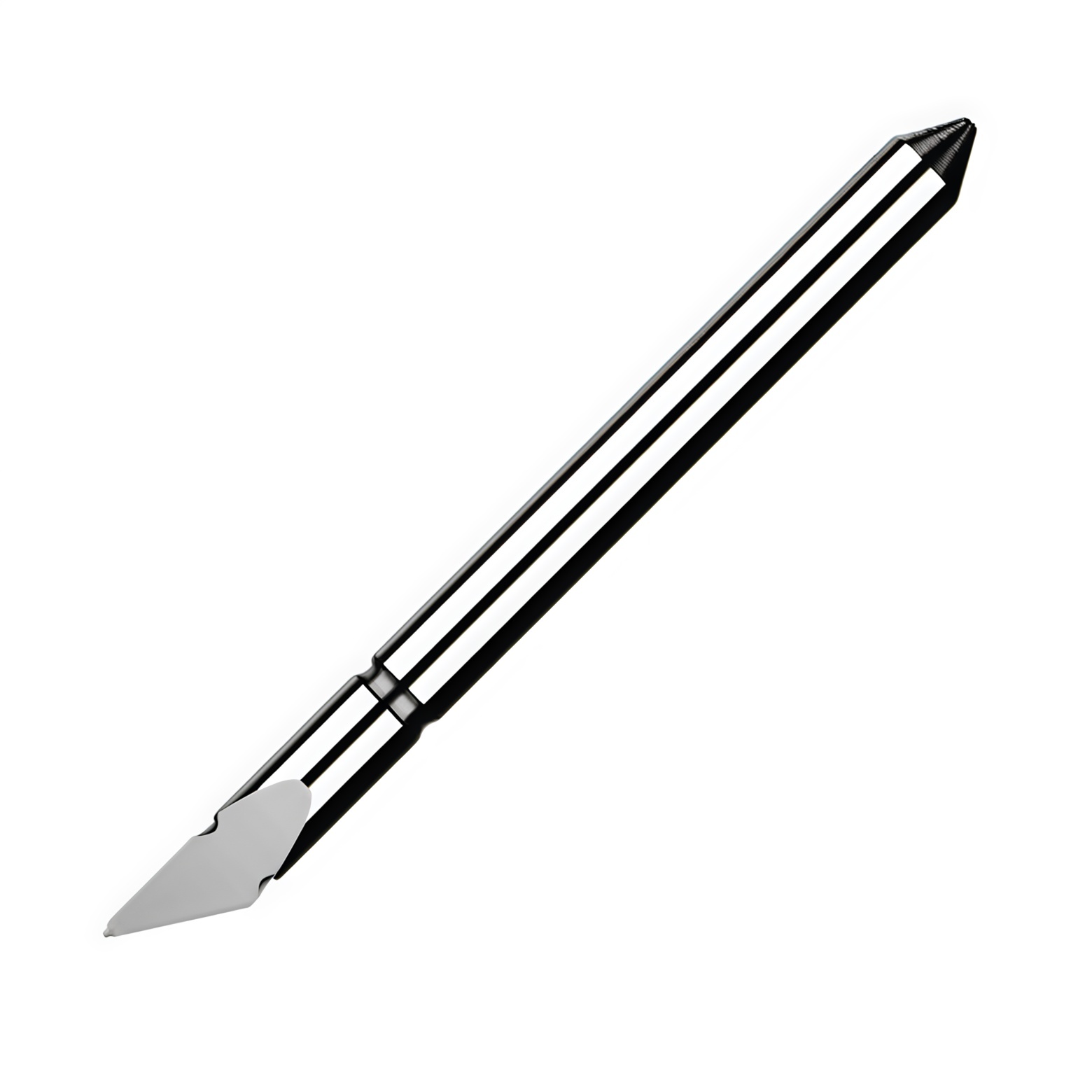

Summa 391-358 D Series Drag Cutter Plotter Knife Blades

Description

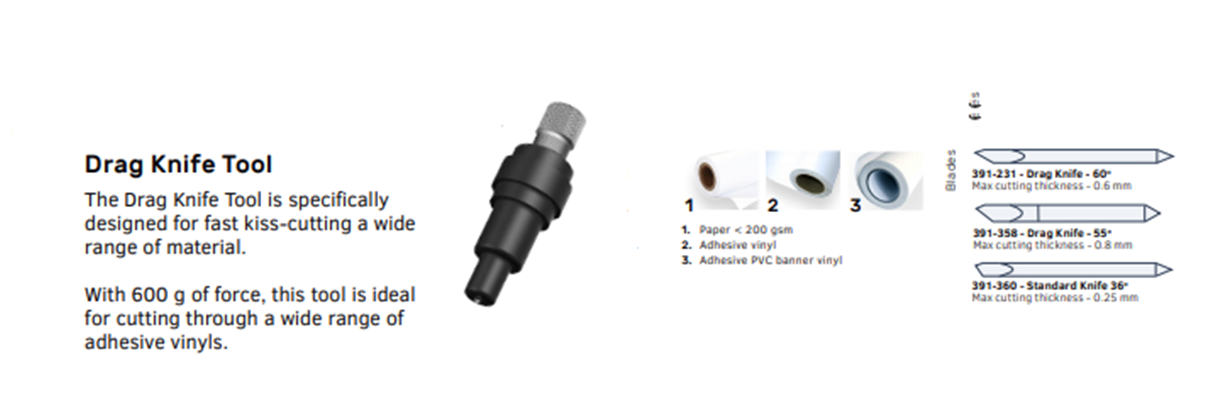

Drag knife blades swivel around corners while staying pressed in the material when cutting.

Features

Perfect for sandblast applications.
Thick Materials Blade Holder (391-363) Required

Specifications

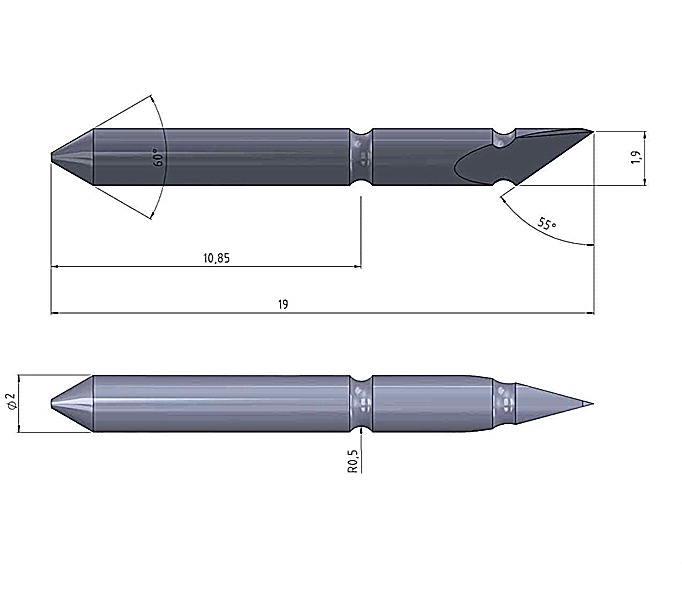

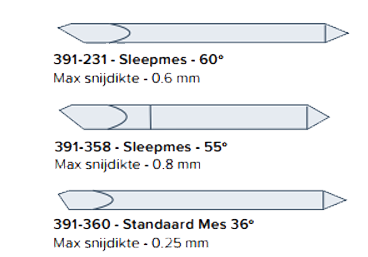

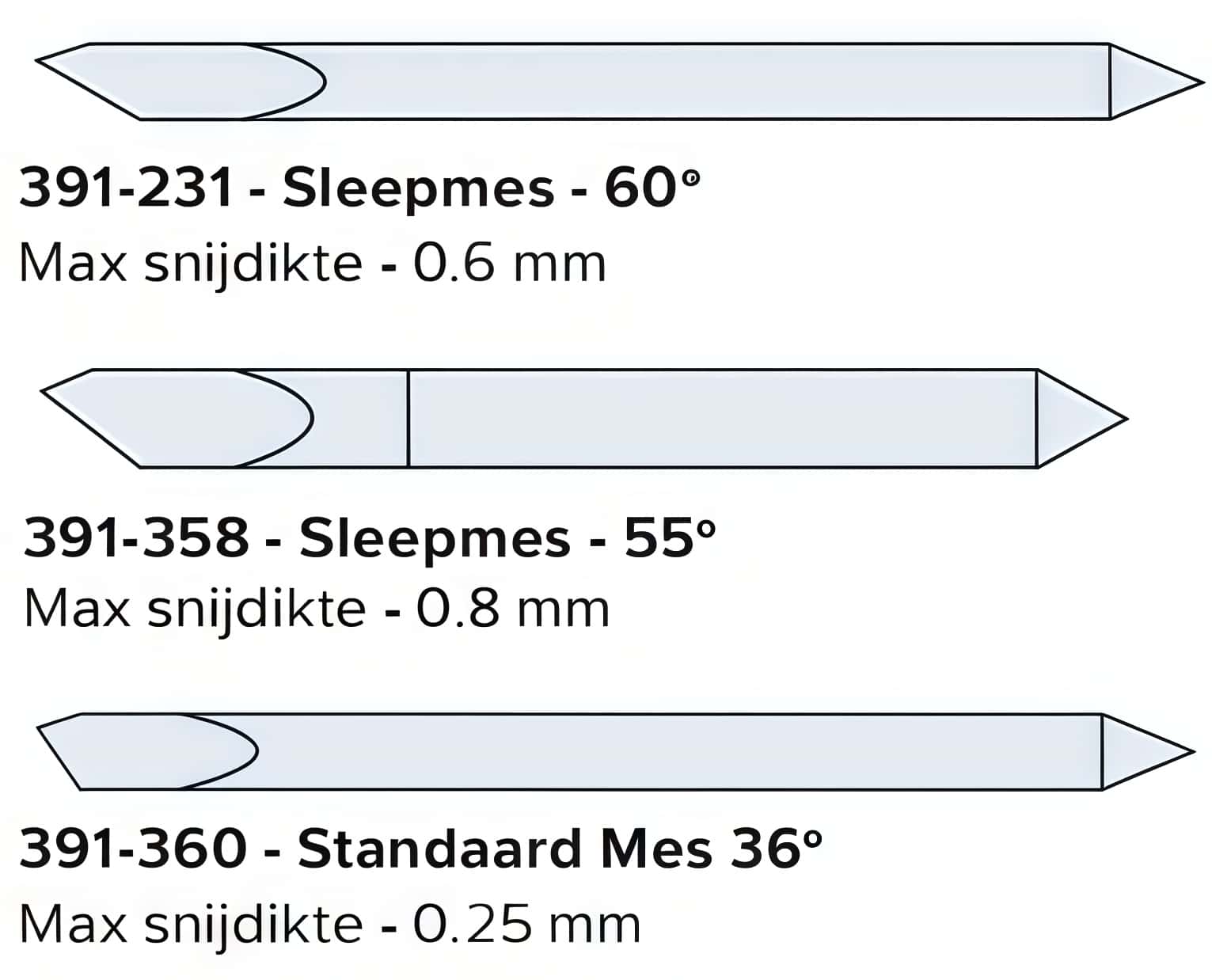

Cuts material up to .03″ (.8mm) thick.

Tool head hardware compatibility (very important)

because391-358The blade's shank diameter reaches 2.0 mm , which cannot be fitted into a standard 1.5 mm black drag bar holder.

It must be used with a special tool holder : It needs to be used with Summa's official gold/pure copper thick material special tool holder (original part number: 391-363 / current part number: 9TL89-67033 corresponding to the thick material version ).
Applicable models : Fully compatible with the entire SummaCut series (such as D60, D120, D160, etc.) as well as all models using the drag head system, such as the S One series and S Class 2 D series
