SUMMA 500-9830 500-0830 F Series - POT Pneumatic Oscillating Tool Knives Blades

Description

SUMMA 500-9830 500-0830 F Series - POT Pneumatic Oscillating Tool Knives Blades

SUMMA 500-9830,SUMMA 500-0830,SUMMA F Series Knives,SUMMA POT Blades,SUMMA F Series Blades,SUMMA Pneumatic Blades,SUMMA Tool,SUMMA Blades

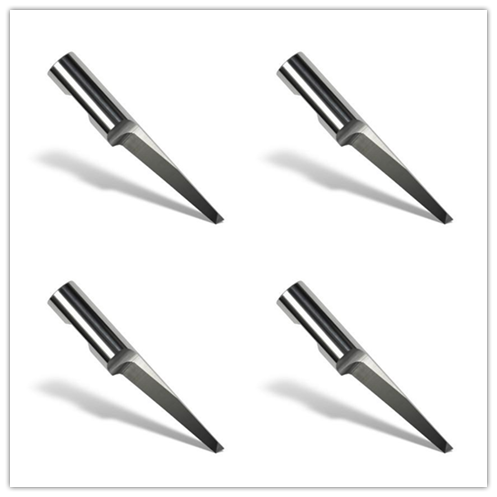

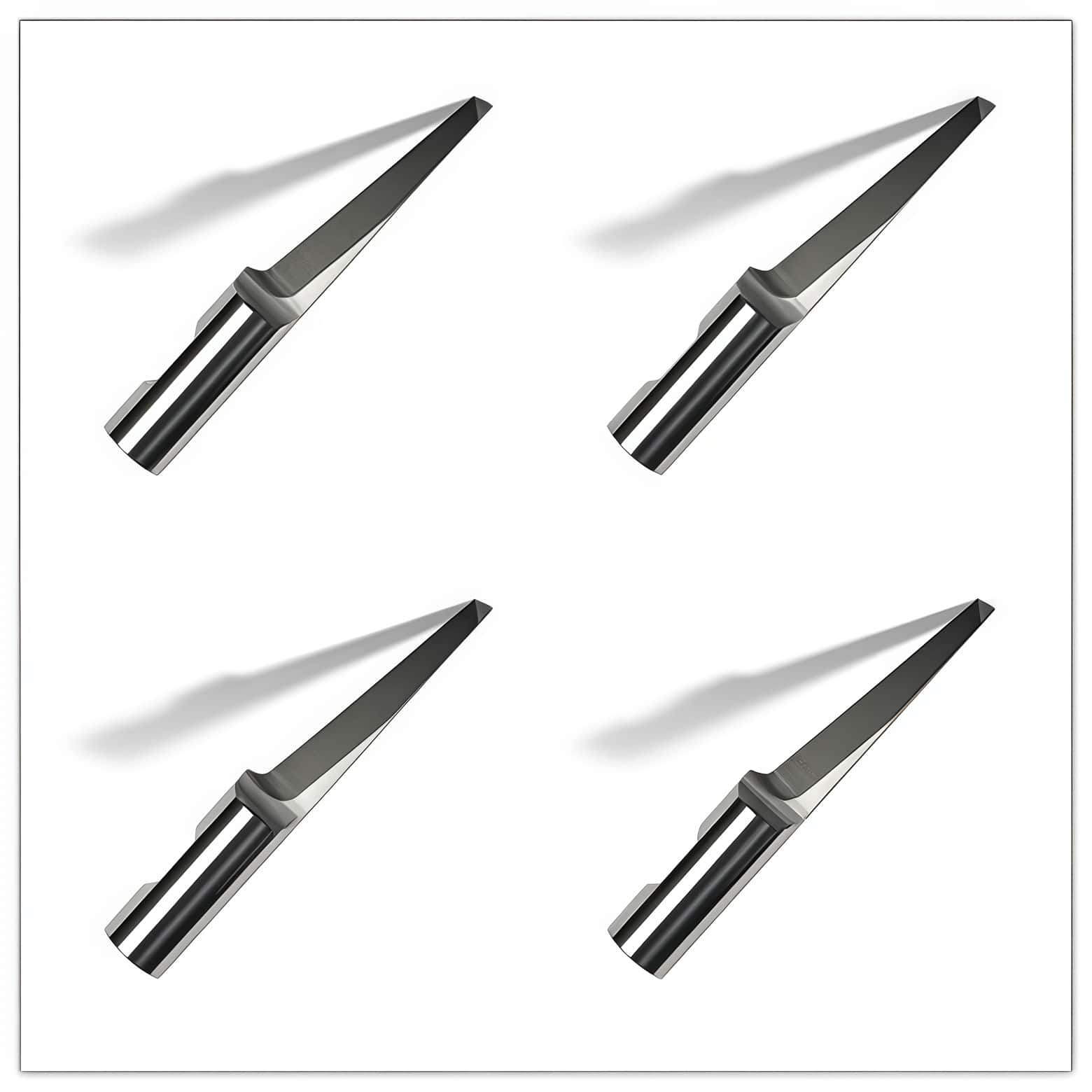

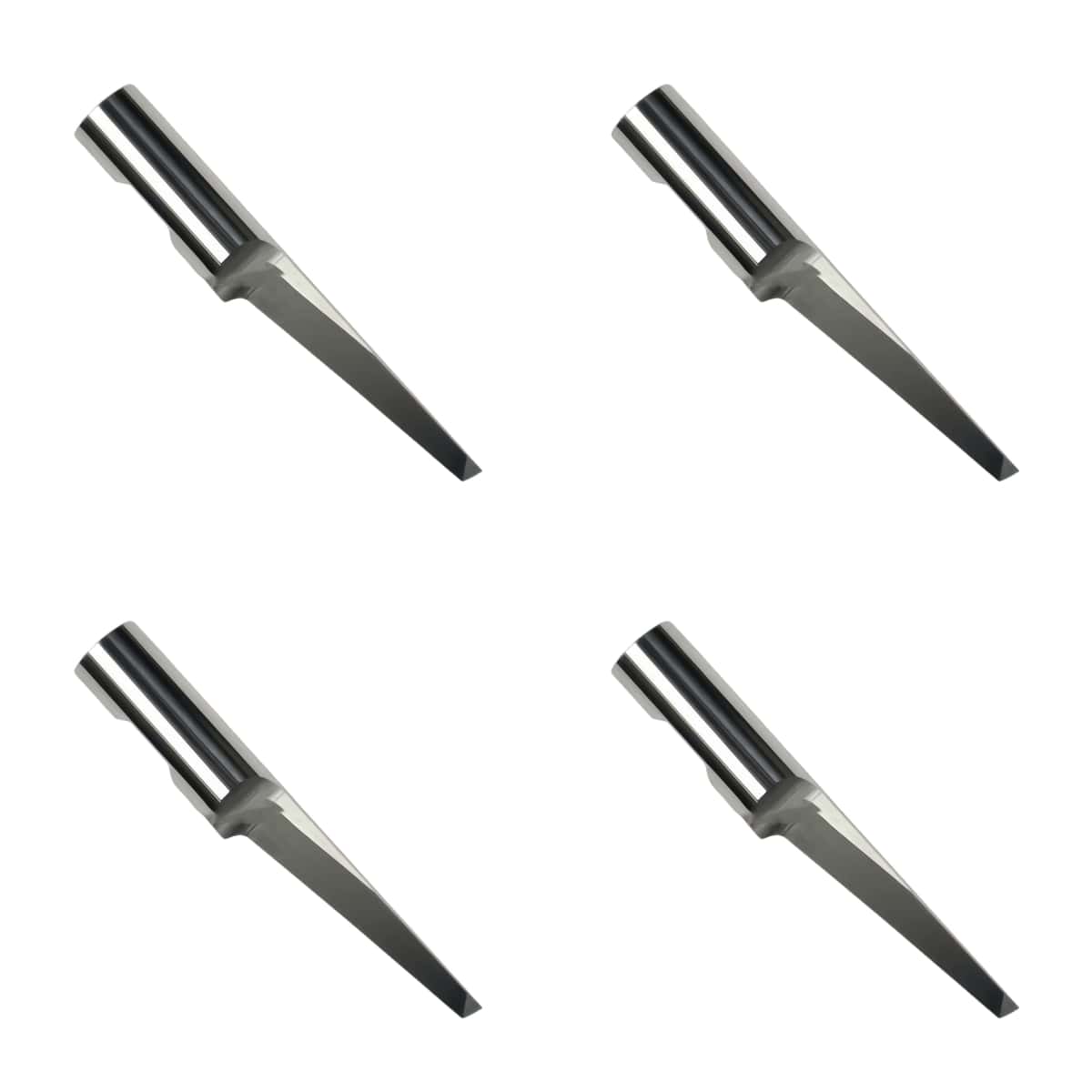

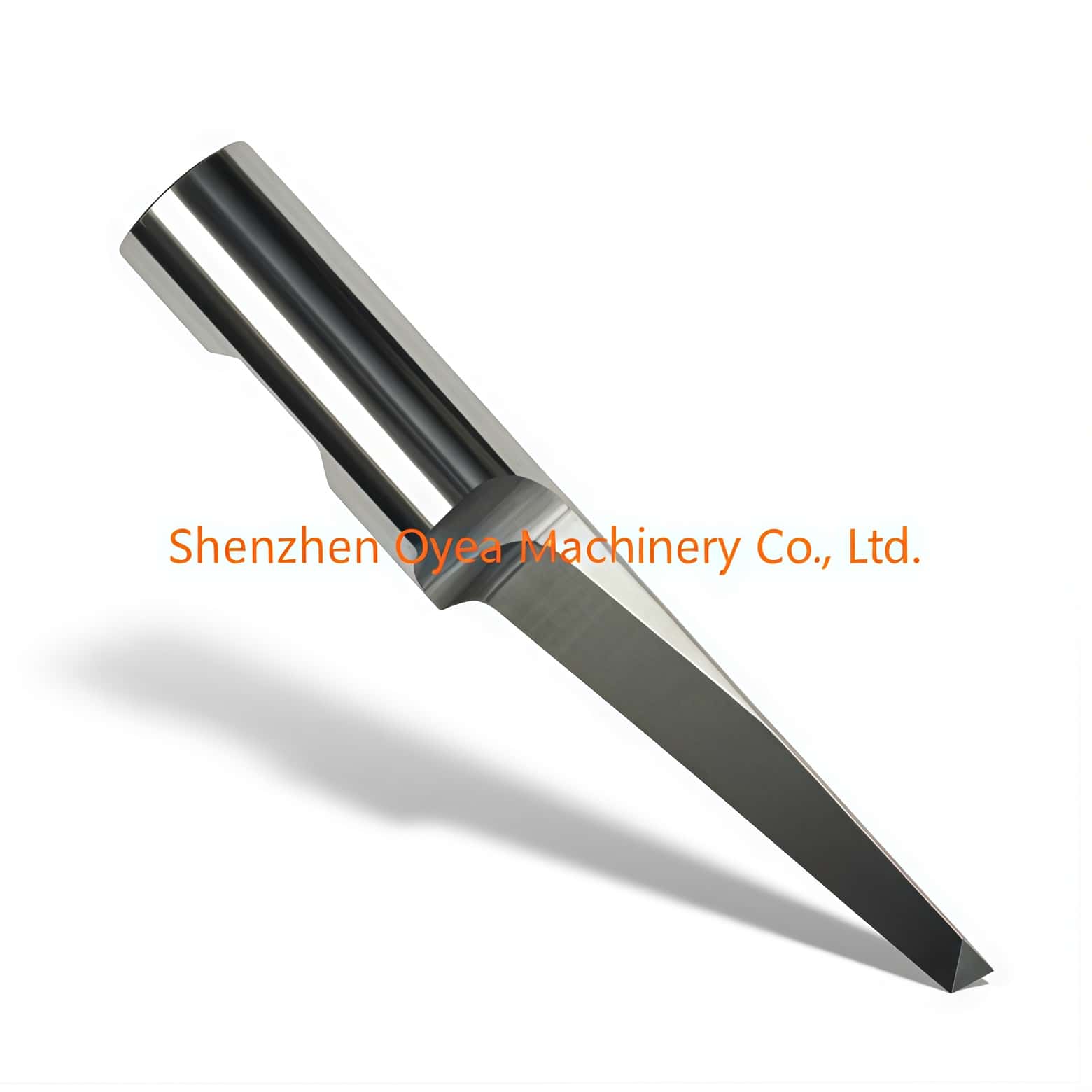

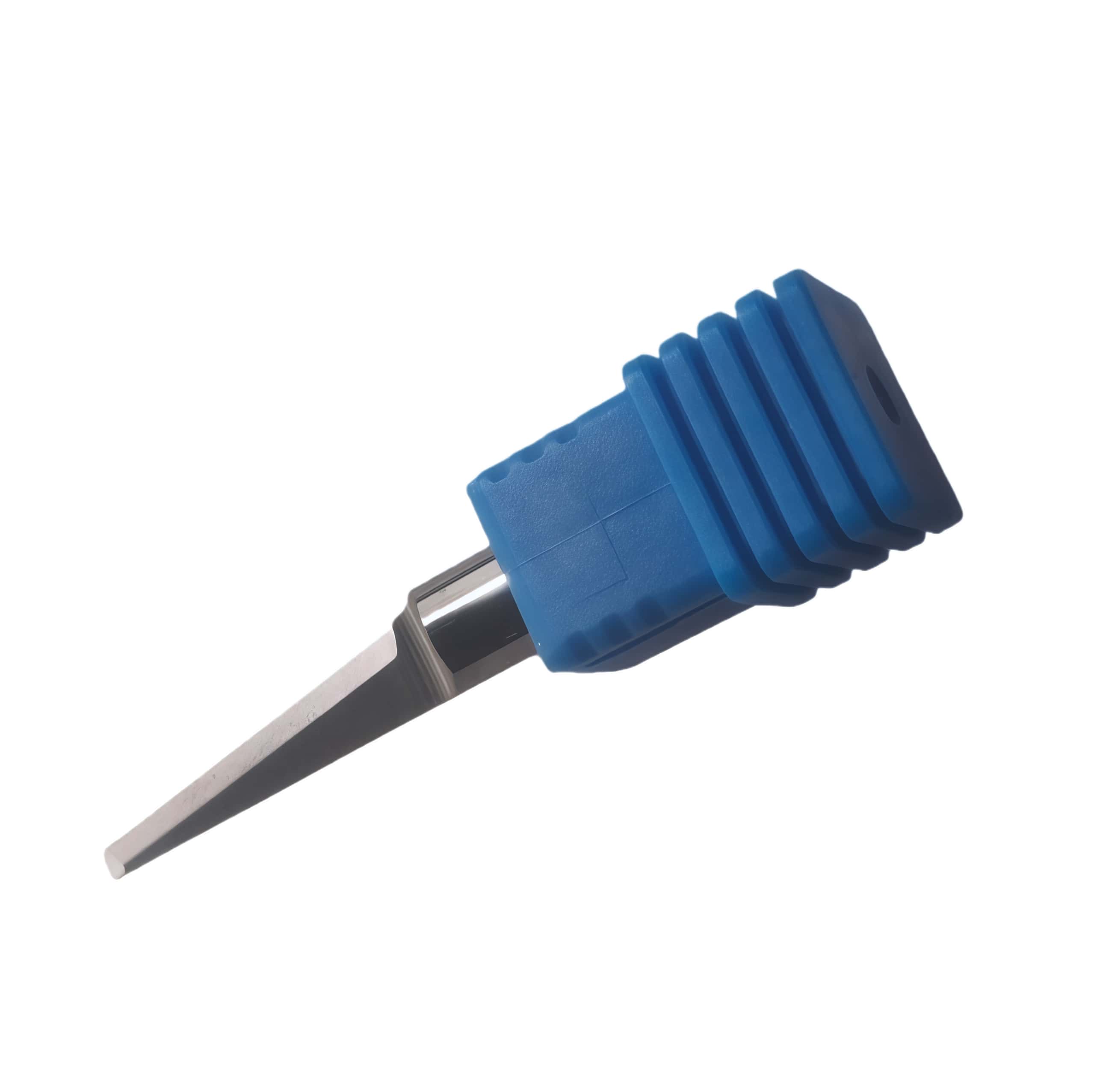

Summa 500-9830 (often referenced interchangeably in manufacturing catalogs as 500-0830) is a high-performance Flat Point Pneumatic Oscillating Tool (POT) Knife Blade engineered exclusively for Summa F Series flatbed cutters. Powered by compressed air, this blade operates within a heavy-duty, high-impact module that tackles thick, tough, or dense substrates that standard electronic oscillating tools struggle to pierce.

Key Technical Specifications

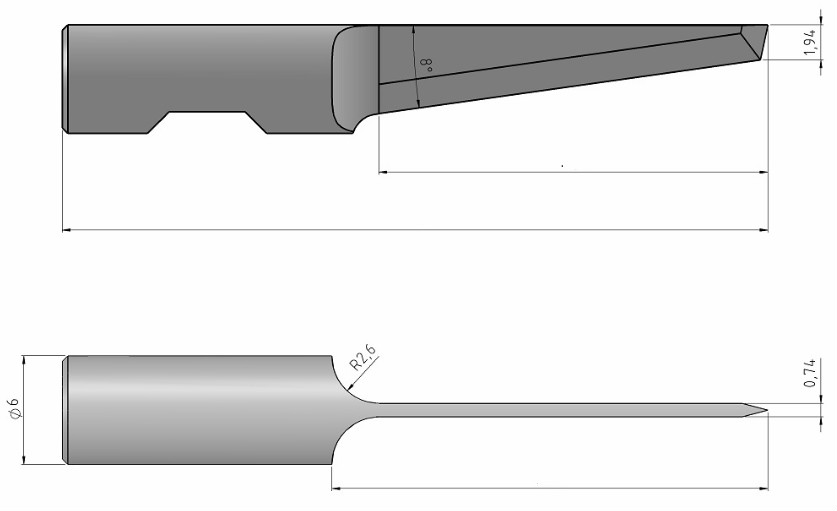

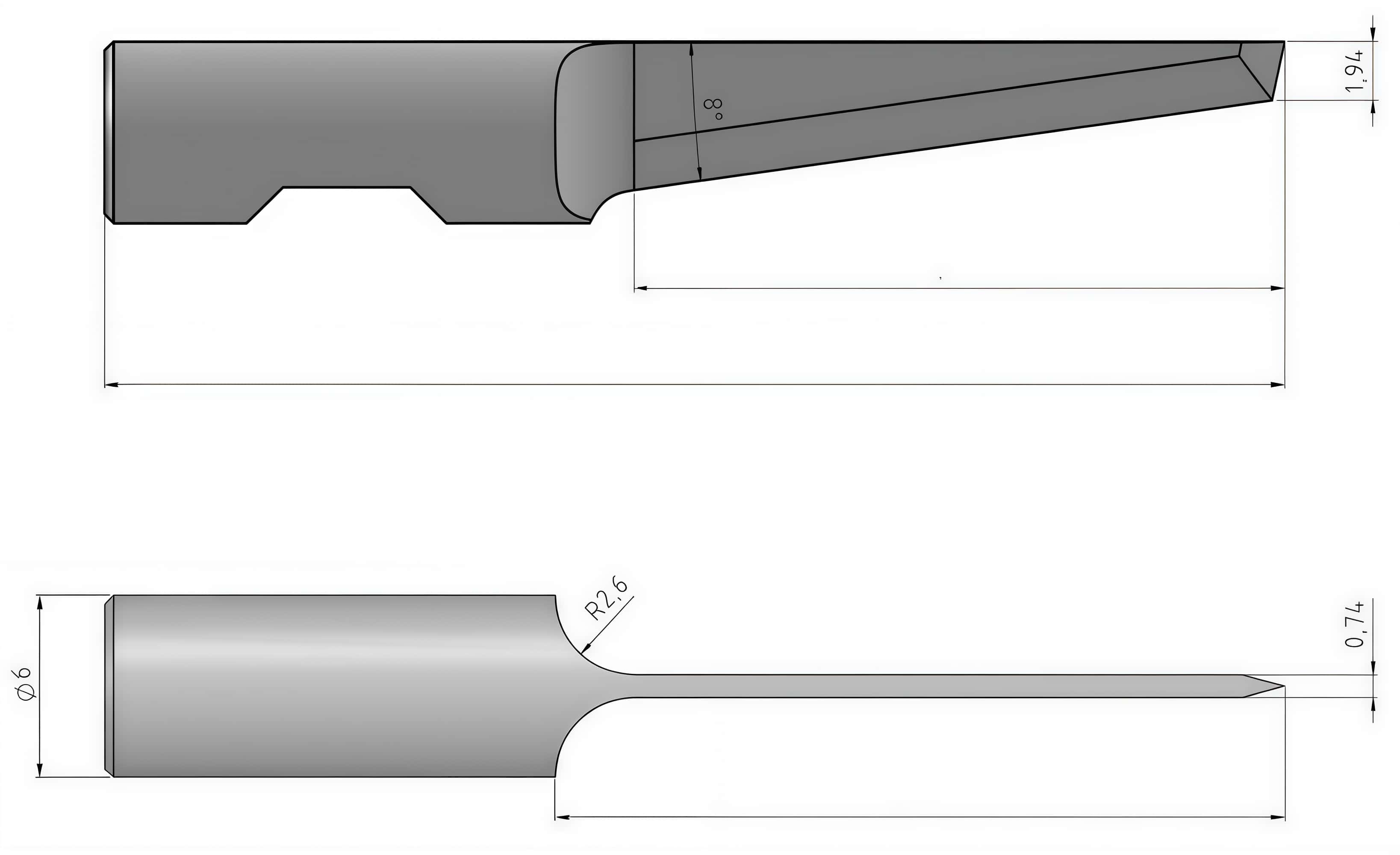

Blade Geometry: Flat Point profile designed to minimize overcut while providing optimal tracking accuracy through dense material.
Dimensions: L20 (20mm blade height length) with a T0.63 (0.63mm thickness) shank.
Mounting Type: 6.00mm Round Stock / Shank featuring a flat Weldon alignment notch to lock securely into the POT chuck.
Maximum Cutting Depth: Up to 18 mm (0.71") deep.
Optimal Speed Parameter: Recommended base speed of 200 mm/sec depending on density.

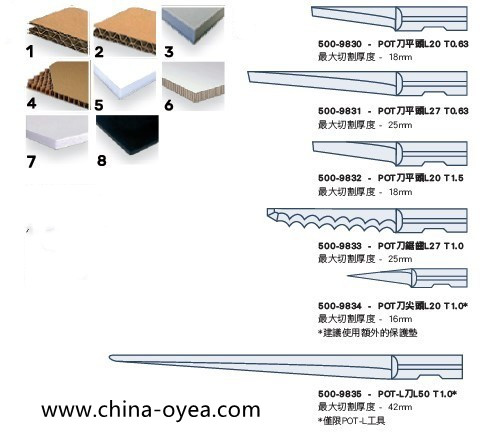

Ideal Material Applications

Honeycomb Board: Slices through rigid structural sandwich panels (such as Re-board and Falconboard) with minimal internal friction.
Heavy Corrugated Cardboard: Cuts cleanly through thick multi-wall corrugated fluting without crushing or denting the outer liner.
Extruded Polystyrene & Foam Boards: Delivers perfectly vertical, straight edges on dense paper-faced and plastic foam materials.
Industrial Rubber & Gaskets: Smoothly cuts through dense elastomer sheets at modulated speeds.

Tool Module Compatibility

Machine Compatibility: All Summa F Series Flatbed Cutters (including F1612, F1432, F1832, and F3232).
Tool Compatibility: Requires the Pneumatic Oscillating Tool (Part #500-9350). (Note: It is not long enough for the POT-Long [POT-L] tool, which relies on 50mm blades like the 500-9835).

Equivalent to: Summa 500-9830, MultiCam 84-00193-BT-57220, AXYZ B1031l-20, MultiCam 003612-MC142022

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
