Summa 500-9835 500-0835 F-Series Pneumatic Oscillating(Pot)Knives Knife Blades Shop

CHINA BT-572050 XK3050-ORP Summa 500-9835 (factory designation 500-0835) is an extra-long, flat-point tungsten carbide knife blade designed exclusively for the Pneumatic Oscillating Tool - Long (POT-L) on Summa F Series flatbed cutters Enquire now

Description

Summa 500-9835 500-0835 F-Series Pneumatic Oscillating(Pot)Knives Knife Blades Shop

Summa 500-9835,Summa 500-0835,Summa 500-9835 Knife,Summa 500-0835 Knife,Summa 500-9835 Blade,Summa 500-0835 Blade,Summa Round Shank Knife Blades,SUMMA blade

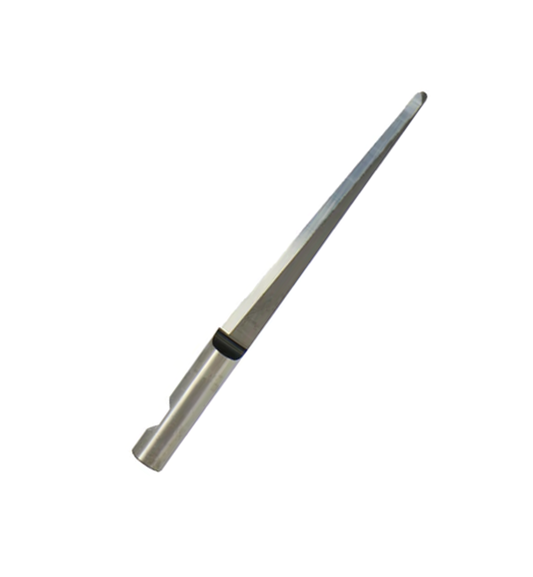

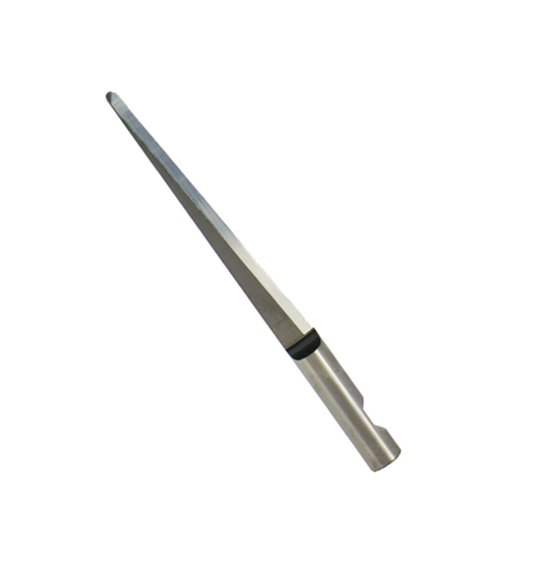

Summa 500-9835 (factory designation 500-0835) is an extra-long, flat-point tungsten carbide knife blade designed exclusively for the Pneumatic Oscillating Tool - Long (POT-L) on Summa F Series flatbed cutters. While standard POT blades are limited to a 20mm or 27mm length, this specialized 50mm blade provides the massive vertical reach needed to process ultra-thick, soft, or fibrous substrates.

Tool Compatibility Alert

Hardware Limit: This blade cannot be used with the standard POT module (part 500-9350).
It requires the POT-L tool module (part 500-9358), which features a deeper chuck housing and a highly calibrated 8 mm vertical stroke cycle designed to handle 50mm knives without shaking out of balance.

Core Blade Technical Specifications

Industrial datasheets for the Summa 500-9835 Round Shank Knife Blade define the exact dimensional tolerances required for high-frequency cutting:

Blade Profile: Flat point, single-edge long oscillating knife.

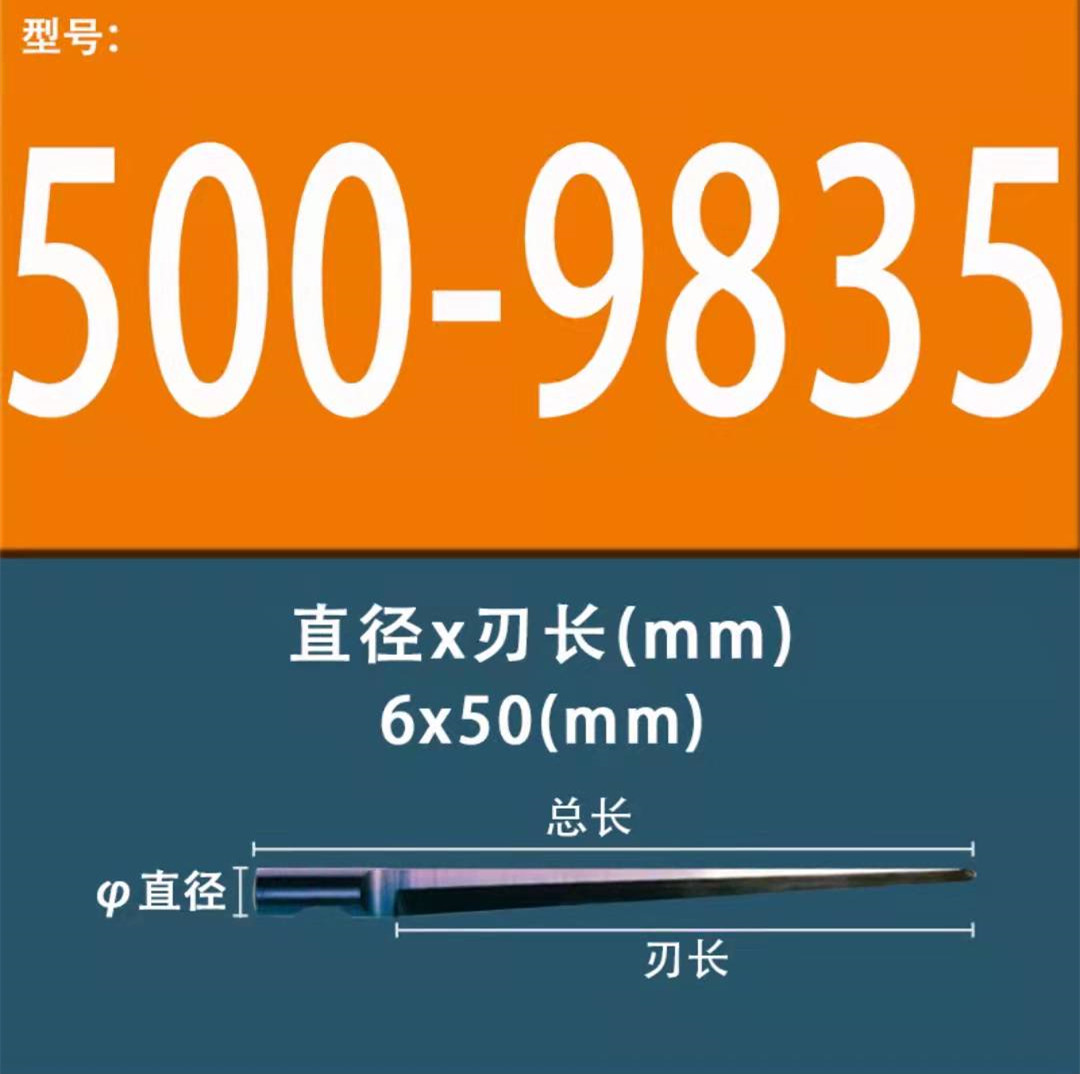

Cutting Length (L): 50 mm.
Overall Blade Length: 76 mm.
Blade Thickness (T): 1.00 mm (strengthened core prevents long-blade bending).
Mounting Shank: Ø 6 mm round Weldon shank.

Maximum Cutting Depth: Clears a massive 42 mm (1.67") maximum thickness.
Minimum Material Boundary: Optimized for substrates with a minimum thickness of 20 mm to maintain down-force tracking stability.
Target Materials: High-density triple-wall corrugated cardboard, heavy honeycomb packaging panels, soft packaging foams, acoustic/insulation panels, thick Re-board, and industrial rubber sheets.
Protection Requirement: Due to the extreme 42 mm depth capability, it is highly recommended to install an extra protection mat over your standard cutting surface to safeguard the conveyor bed from deep-plunge gouges.

equivalent to: MultiCam 84-00193-BT-572050, Summa 500-9835, Summa 500-0835, AXYZ B1041L-50

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
