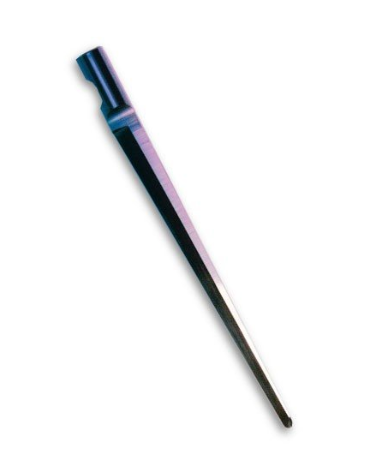

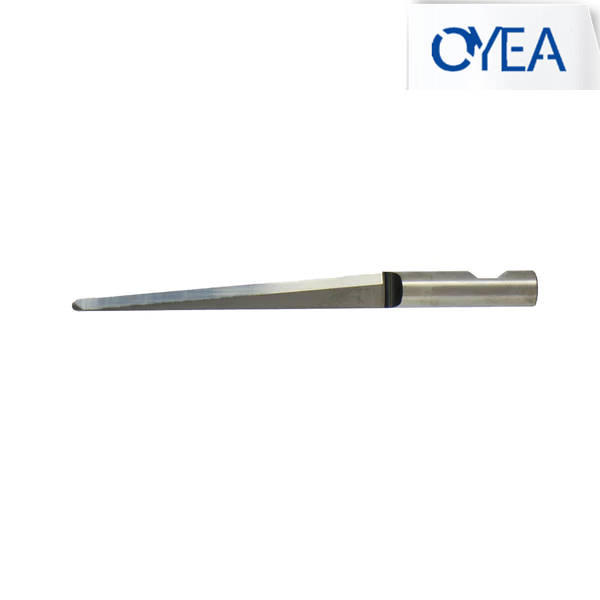

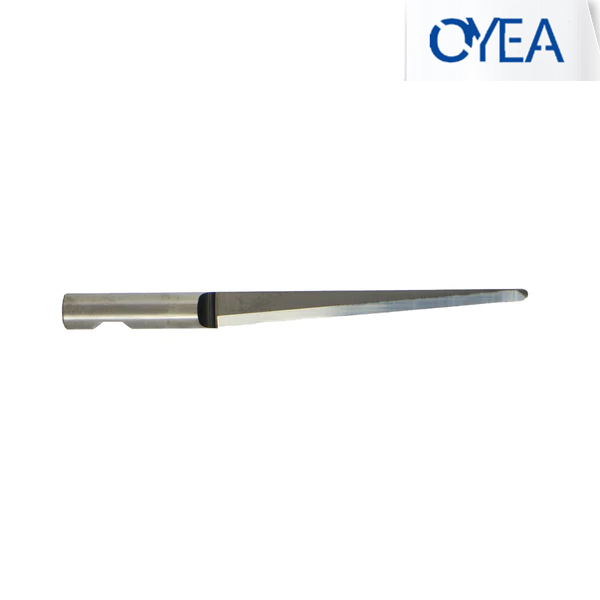

Axyz Bt-572050 B1041l-50 Solid Tungsten Carbide Round Shank Knife Blades

AXYZ BT-572050 (B1041L-50) solid carbide round shank single-edged vibrating insert is a high-end industrial-grade tool designed specifically for AXYZ CNC cutting machines (especially models equipped with vibrating head modules). Enquire now

Description

Axyz Bt-572050 B1041l-50 Solid Tungsten Carbide Round Shank Knife Blades

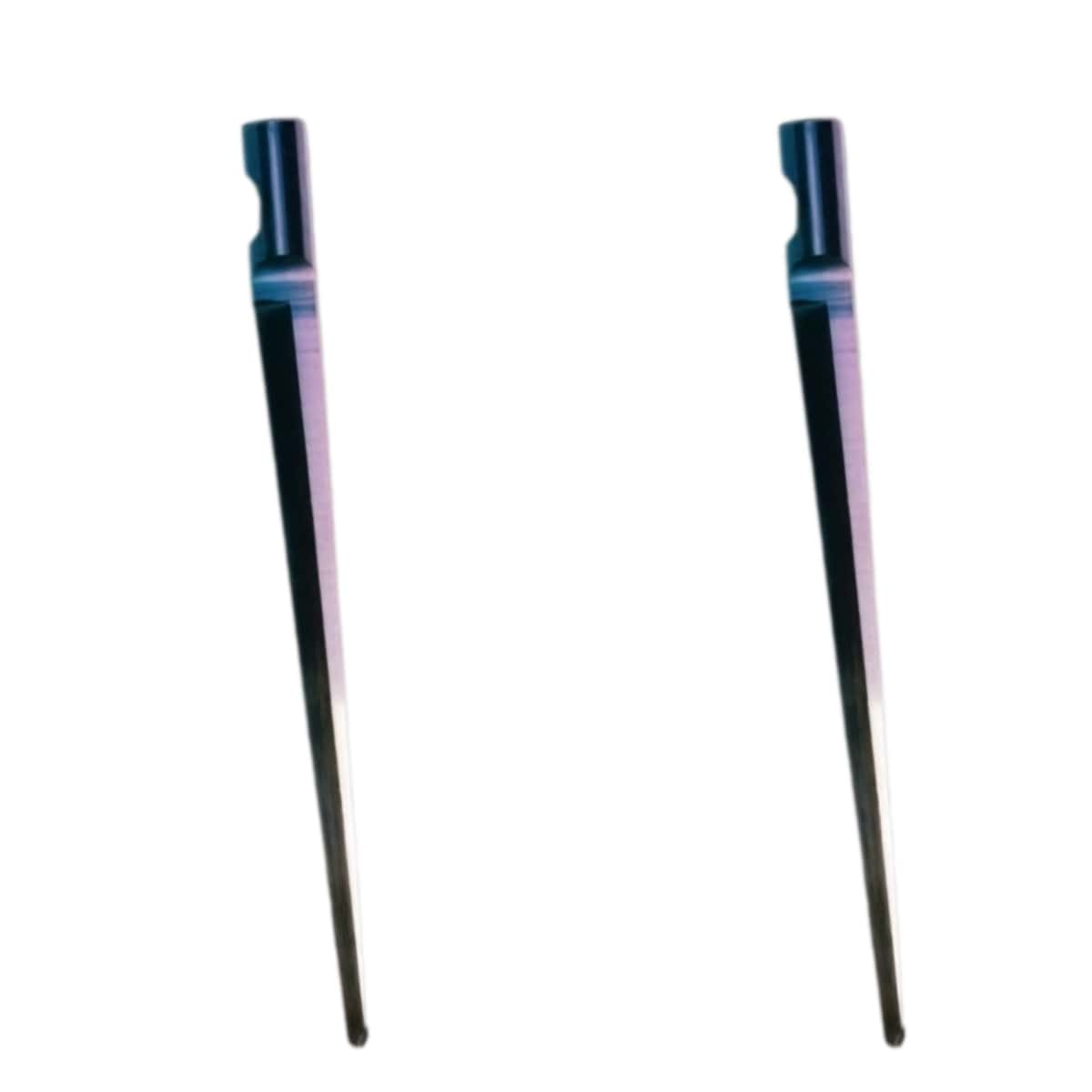

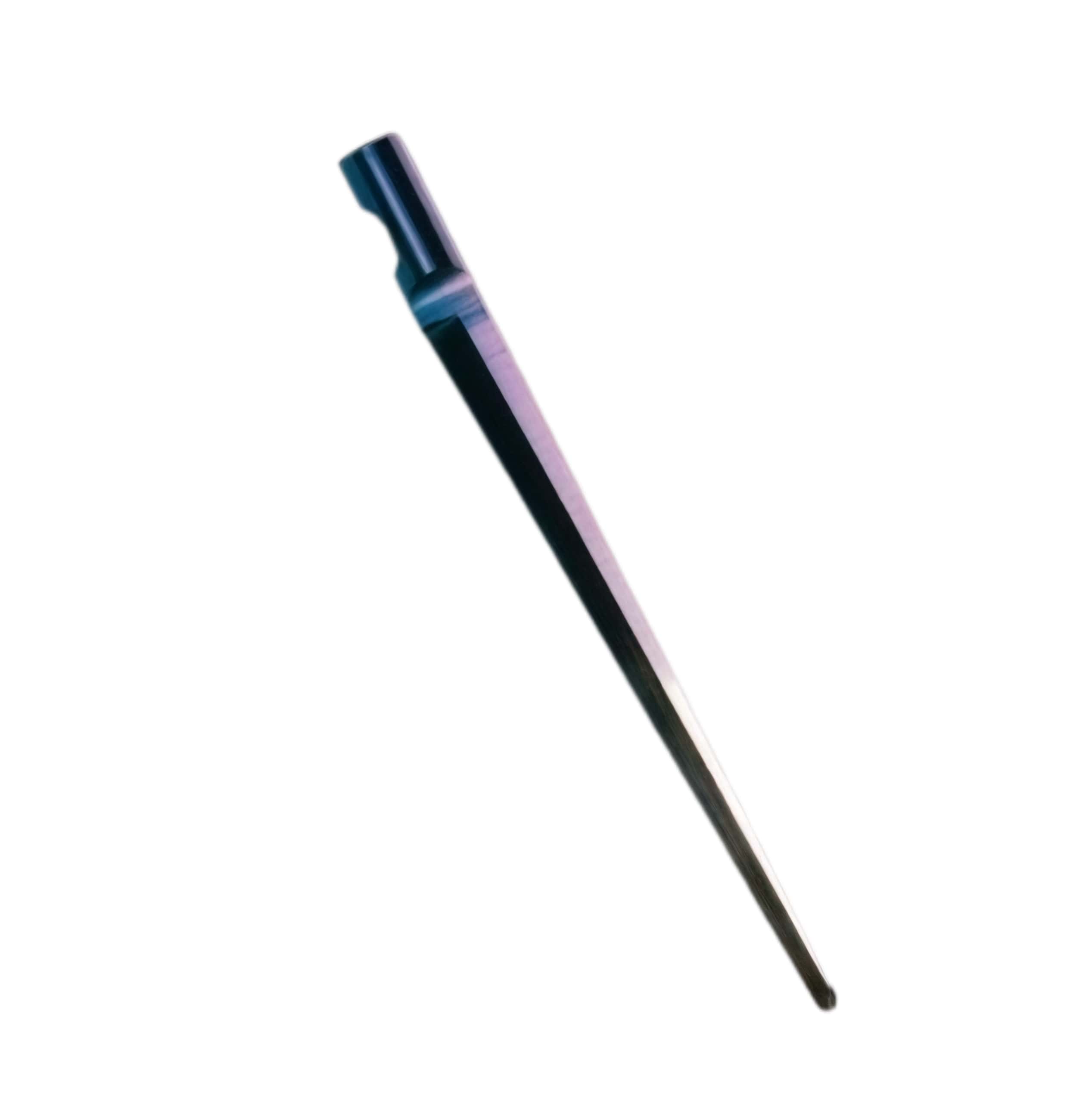

Axyz BT-572050 B1041L-50 Round Shank Point Knife Blades

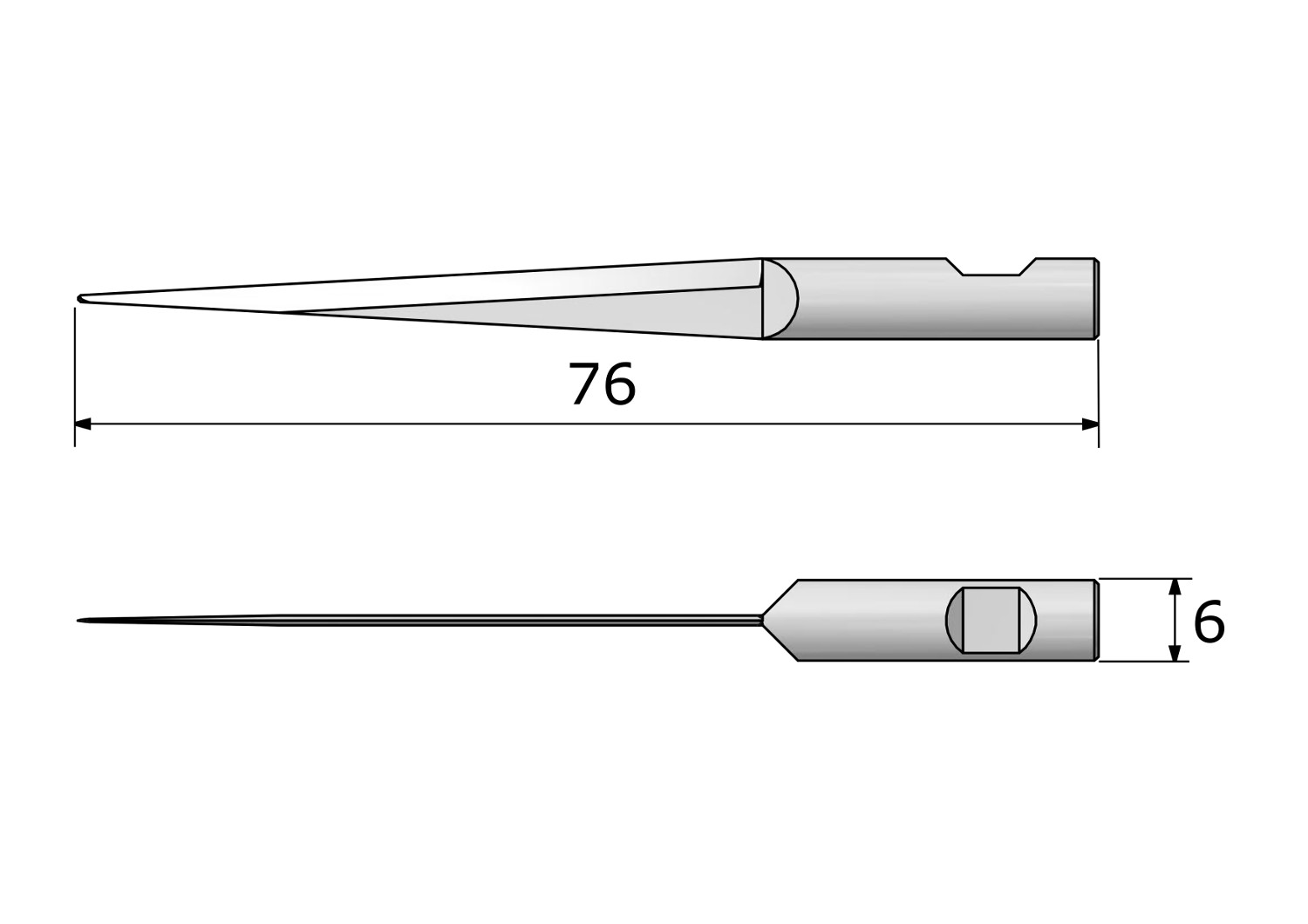

AXYZ BT-572050 / B1041L-50 is a micrograin solid tungsten carbide vibrating/oscillating knife blade engineered for medium-reach, high-precision cutting on CNC finishing systems. It features a 6.0 mm round shank with an alignment flat and a pointed single-edge profile, providing clean cuts and fast plunging into semi-rigid and flexible substrates

Core Specifications and Design

Shank type : Round shank, which can be seamlessly installed in CNC vibratory tool heads that are compatible with this standard.
Blade tip shape : pointed/rounded tip, this design is specifically optimized for piercing and smooth cutting of soft materials.
Cutting depth : 50mm specification, suitable for processing medium-thickness materials with a certain thickness or volume.
Material : Typically made of high-performance tungsten carbide, which has extremely high wear resistance, bending rigidity and long-lasting sharpness.

Applicable cutting materials

Thanks to its 50mm depth design and round shank tip structure, this insert is widely used for machining the following materials:

Honeycomb cardboard, thick corrugated cardboard
Soft rubber, foam plastic (foam).
Thick leather, flexible sealing gasket material
Other low- or medium-density soft industrial materials

equivalent to: MultiCam 84-00193-BT-572050, Summa 500-9835, Summa 500-0835, AXYZ B1041L-50

Axyz BT-572050 BT-57270 BT-57290 BT-572100 BT-572115 Solid Tungsten Carbide Round Shank Knife Blades Overview

Comparison of specifications and parameters for the entire series

Blade model	AXYZ official code	Maximum effective depth of cut (Max Depth)	Total blade length (OAL)	cutting edge geometry	Core applicable thickness range
BT-572050	B1041L-50	50.0 mm	~76.0 mm	Single-edged, rounded tip, cutting angle ~81°	Medium thickness materials: 10mm - 50mm
BT-57270	B1041L-70	70.0 mm	~88.0 mm	Single-edged, rounded tip, cutting angle ~87°	30mm - 70mm thick sheet
BT-57290	B1041L-90	90.0 mm	~106.0 mm	Single-edged, with an extended rigid back.	50mm - 90mm ultra-thick foam/laminated material
BT-572100	B1041L-100	100.0 mm	~115.0 mm	Single-edged, heavy-duty impact-resistant optimized	70mm - 100mm Giant Cushioning Pack
BT-572115	B1041L-115	115.0 mm	~130.0 mm	Single-edged, flagship-level ultra-deep cutting	90mm - 115mm extra-large industrial insulation/thermal insulation material
