Esko Kongsberg 6 8mm Super Sharp Up Cut Milling & Router Bits Production Manufacturing

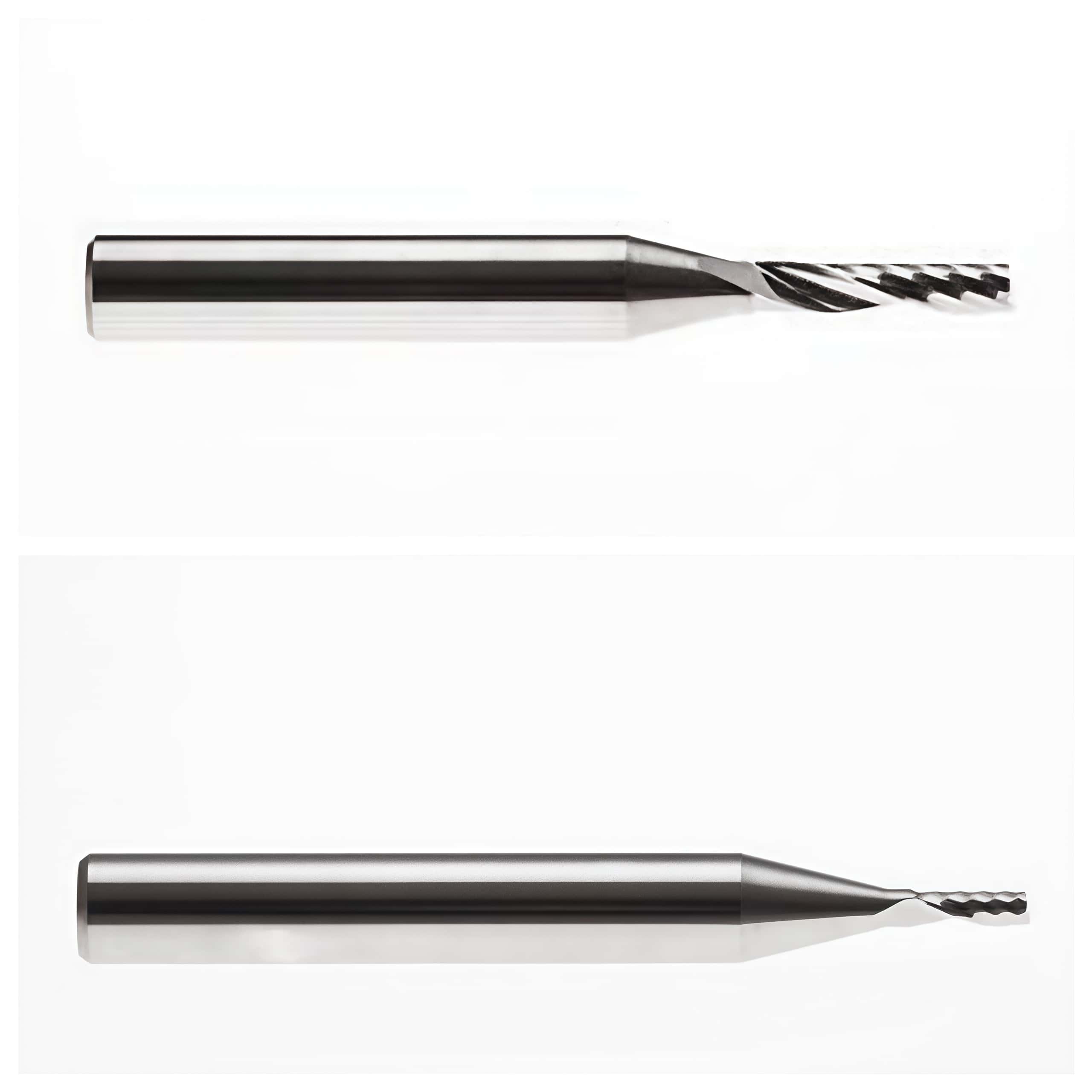

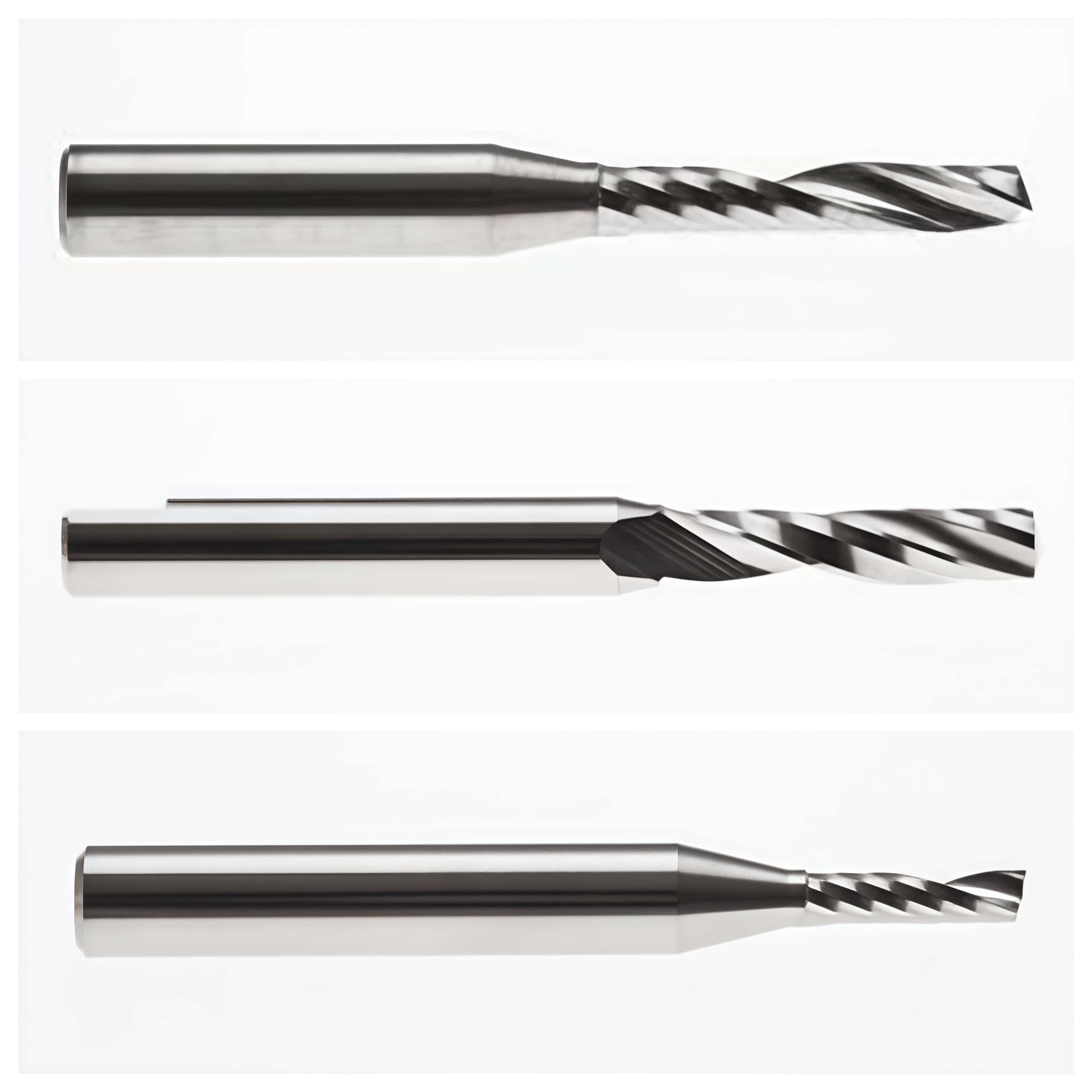

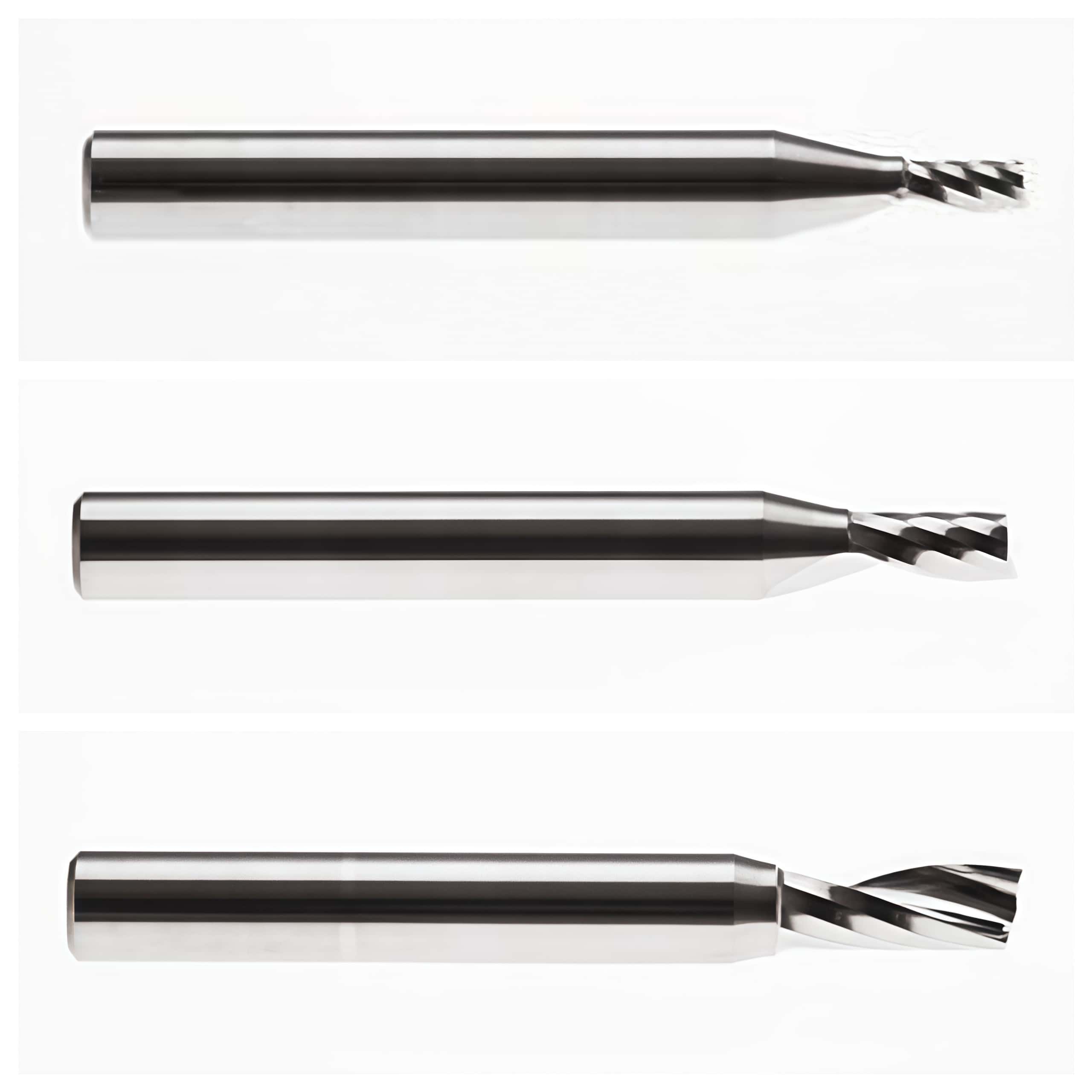

Esko Kongsberg Solid Tungsten Carbide 6mm and 8mm Super Sharp Up-Cut Milling & Router Bits.Unlike down-cut bits, Up-Cut (BIT-AUS) single-flute bits pull the chips upward out of the cut cavity. This provides optimal chip evacuation, making them the absolute industry standard for cutting thicker Acryl… Enquire now

Description

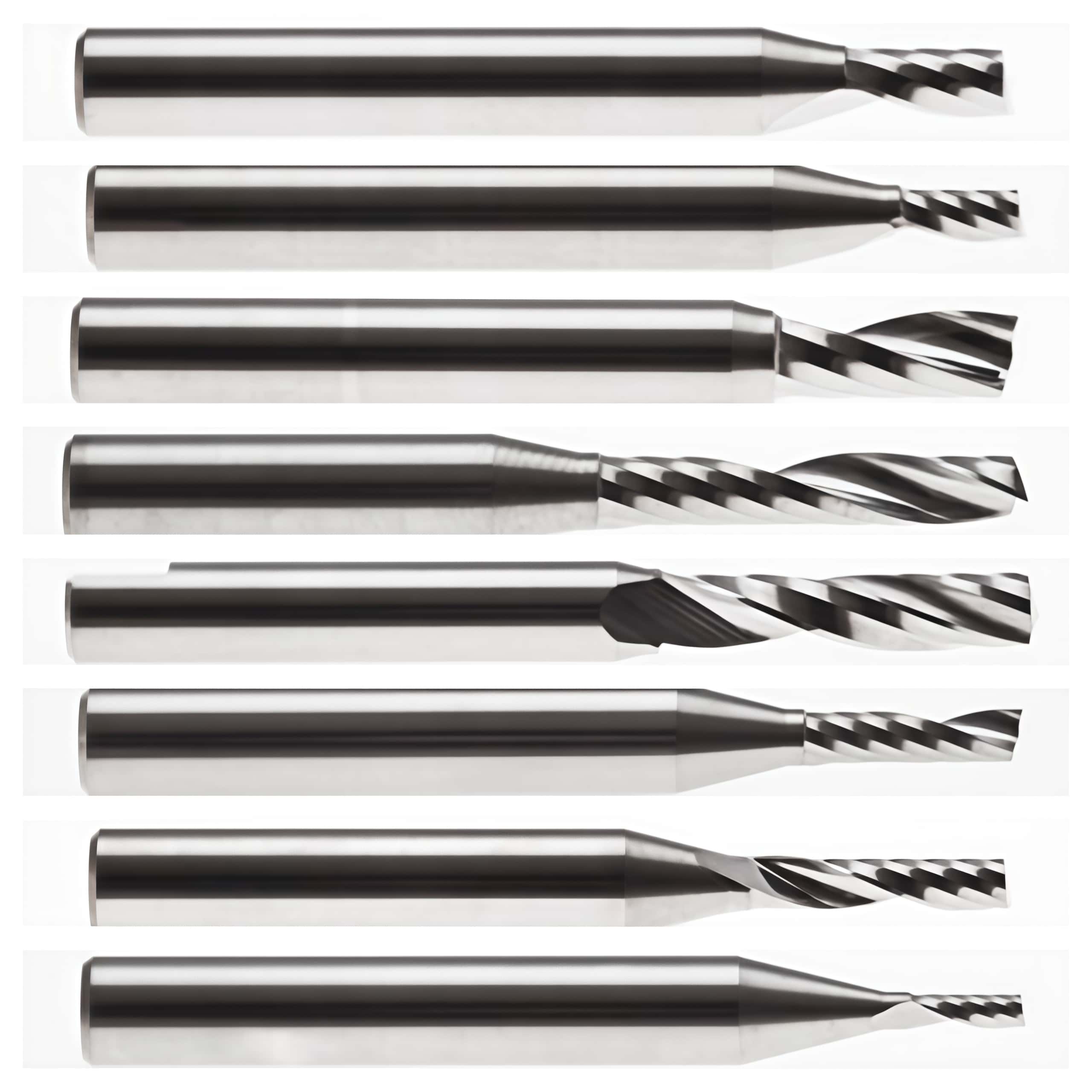

Esko Kongsberg 6 8mm Super Sharp Up Cut Milling & Router Bits Production Manufacturing

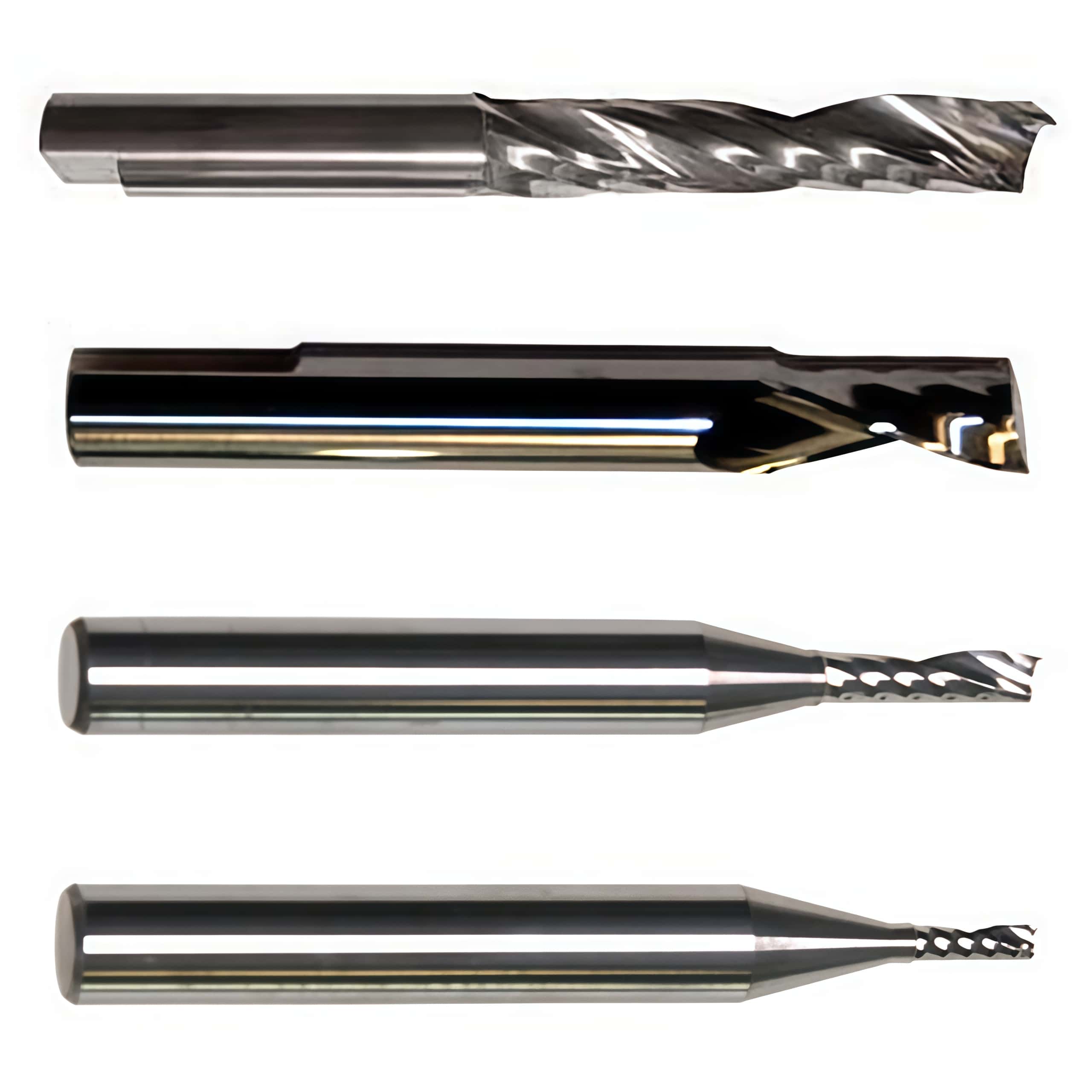

Esko Kongsberg Milling & Router Bits(6 And 8mm Super Sharp, Up Cut)-Production Manufacturing Supply

	BIT-AUS06-2006-50 G42437897
	BIT-AUS06-3006-50 (i-8008) G42445916
	BIT-AUS06-3011-50 (i-8005) G42437889
	BIT-AUS06-3014-50 G42458992
	BIT-AUS06-3022-50 G42449439
	BIT-AUS06-4008-50 (i-8011) G42445924
	BIT-AUS06-4022-50 G42442665
	BIT-AUS06-5012-50 G42451047
	BIT-AUS06-5022-58 G42443762
	BIT-AUS06-6012-50 G42451054
	BIT-AUS06-6022-58 G42442707
	BIT-AUS06-6032-64 G42438069
	BIT-AUS06-4012-50 G42437848
	BIT-AUS08-8042-76 G42454561
	BIT-AUS08-8055-90 G42454579

The provided list details the production manufacturing part numbers and technical codes for Esko Kongsberg 6mm and 8mm Super Sharp, Up-Cut single-flute milling and router bits. Constructed from high-grade solid tungsten carbide, these large-shank bits are engineered for heavy-duty, high-volume production on Kongsberg flatbed cutting tables equipped with MultiCUT-HP (3kW) or High-Speed Milling Units (1kW).

Manufacturing Feed & Speed Guidelines

To maintain edge clarity and prolong tool life during production runs, adhere to these operational baselines within your i-cut Production Console:

Acrylic / PMMA: Maintain high spindle speeds (35,000 to 45,000 RPM) combined with a rapid, steady feed rate (\(2\) to \(4\text{ meters/min}\)). If the feed rate is too slow, the acrylic will melt and weld to the single-flute channel.
8mm Heavy-Duty Routing (BIT-AUS08): These large tools require the high torque of the 3kW High-Power Milling Unit. Drop the RPM down to 18,000 to 24,000 RPM but increase feed rates dramatically to optimize chip load and avoid overheating.
