Esko Kongsberg Bit-Aus06-2006-50 (Part Number G42437897) Solid Carbide Spiral End Mill
Esko/Kongsberg BIT-AUS06-2006-50 (G42437897 / 42437897) is a high-end , ultra-sharp, single-edged, top-discharge solid carbide (tungsten steel) spiral end mill designed specifically for digital flatbed cutting machines (such as the Kongsberg C/X series) . Enquire now
Share this:
 Facebook  Twitter  LinkedIn  Google+  Addthis
Esko Kongsberg Bit-Aus06-2006-50 (Part Number G42437897) Solid Carbide (Tungsten Steel) Spiral End Mill

Esko Kongsberg Bit-Aus06-2006-50 (Part Number G42437897) Solid Carbide (Tungsten Steel) Spiral End Mill

Esko/Kongsberg BIT-AUS06-2006-50 (G42437897 / 42437897) ultra-sharp, single-edged, top-discharge solid carbide (tungsten carbide) spiral end mill designed specifically for Kongsberg digital flatbed cutting machines (such as the C/X series)..
This tool belongs to the AUS series (Acrylic Ultra Sharp). Its cutting edge is extremely finely mirror-ground and polished, which effectively prevents heat-melted material from sticking to the tool during plastic processing, and produces a crystal-smooth, polish-free edge when cutting rigid plastics.

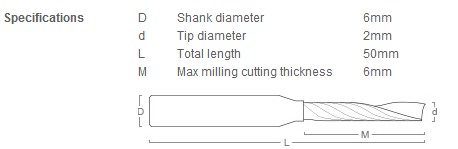

Core Technical Parameters
  • Official part number : G42437897 / 42437897
  • Tool model : BIT-AUS06-2006-50
  • Tip Diameter : 2.0 mm
  • Flute Length / Maximum Cutting Thickness : 6.0 mm
  • Shank Diameter : 6.0 mm
  • Total Length : 50.0 mm
  • Geometric shapes : Single Flute, Spiral, Up-Cut
  • Speed range : Up to 60,000 RPM (recommended for use with a high-speed spindle)
Best applicable materials
Because of its small cutting diameter (2.0mm), this tool is best suited for high-precision engraving, hollowing, or small-radius circular cutting of medium-to-high hardness rigid plates with a thickness of less than 5mm .
  • Acrylic/PMMA : Clear cut surface, non-stick to knife.
  • Engineering plastics (PC / PETG / PVC / ABS) : Burr-free, with smooth edges.
  • Aluminum-plastic composite panel (ACM / Dibond) : Smooth chip removal and not easily broken.
  • High-density fiberboard (MDF/hardwood) : Suitable for fine advertising signage processing.


OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
If you have more questions to know ,please contact us .
Tel:+86-0769-88014625
Phone Number:+86-18823852826
Email:  info@china-oyea.com
            1659590865@qq.com
Web: www.china-oyea.com
We warmly welcome every customer to send us drawings for making customized product.  Contact with us ,you will get more than what you can !
