Esko Kongsberg 6mm Wood Double Flute Milling & Router Bits

Esko Kongsberg 6mm Wood Double Flute Milling & Router Bits on a Kongsberg digital cutting table, using Double-Flute (Z2) router bits is essential.While single-flute bits excel at routing plastics by avoiding heat buildup, wood fibers require two cutting edges to ensure proper chip fragmentation, bal… Enquire now

Description

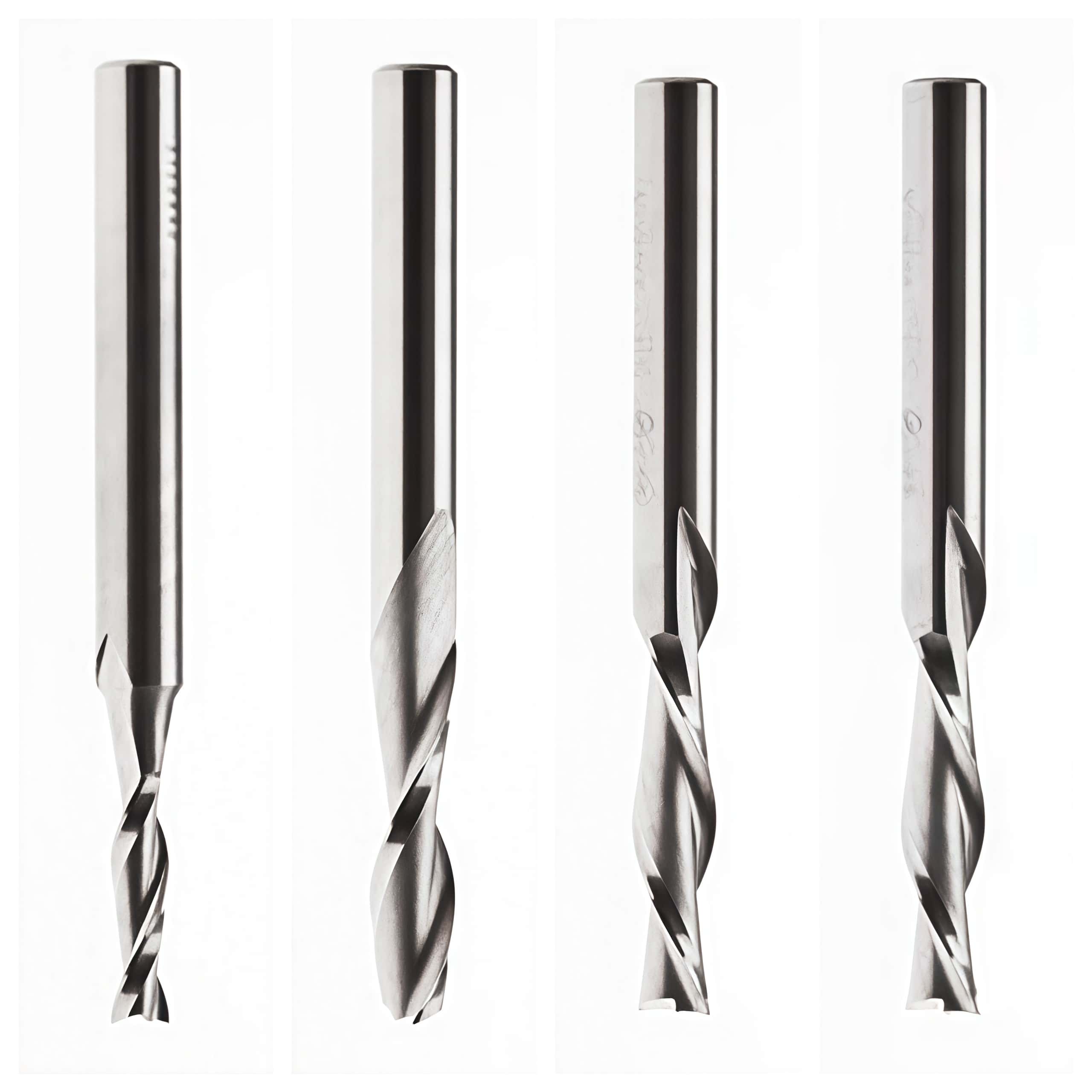

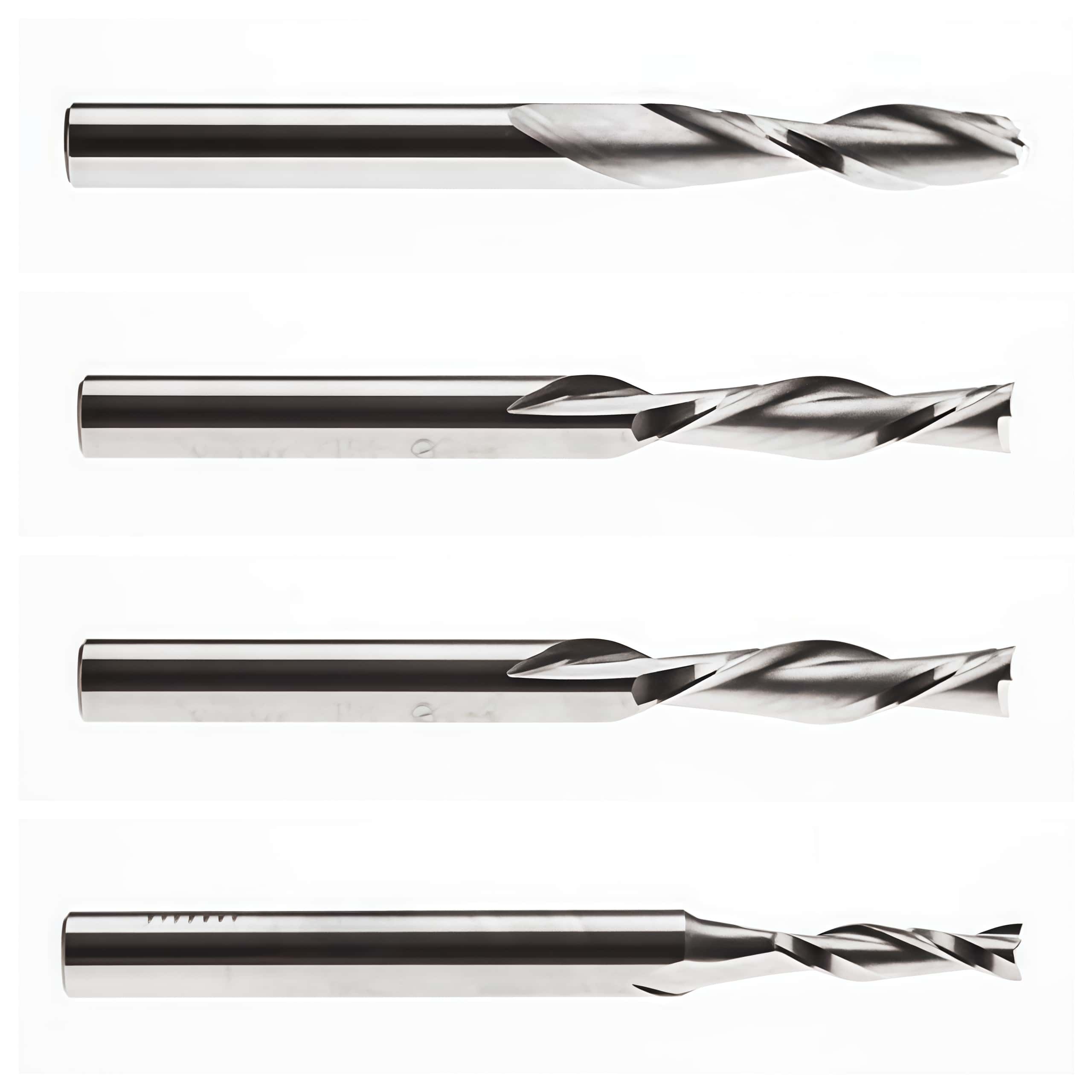

Esko Kongsberg 6mm Wood Double Flute Milling & Router Bits

This is the official product blueprint for the Esko Kongsberg Premium 6mm Wood Double-Flute (Z2) Solid Carbide Milling & Router Bits you listed.

Esko segments these industrial bits into two distinct families: WDD (Wood Down-Cut / i-57xx series) and WUD (Wood Up-Cut / i-52xx series). Using two flutes balances high feed rates with clean chip fragmentation, making them ideal for challenging wood grains and composite fibers.

	BIT-WDD06-6025-64 (i-5712) G42458778
	BIT-WDD06-4016-64 (i-5710) G42458760
	BIT-WUD06-4016-64 (i-5210) G42458497
	BIT-WUD06-6025-64 (i-5212) G42458752

Part Number & Esko ID	OEM Code	Direction	Shank (D)	Tip Dia. (d)	Flute Length (M)	Total Length (L)	Primary Target Materials
BIT-WDD06-4016-64 (i-5710)	G42458760	Down-Cut	6 mm	4 mm	16 mm	64 mm	Thin laminated veneers, plywood 4mm, and detailed fine engraving.
BIT-WDD06-6025-64 (i-5712)	G42458778	Down-Cut	6 mm	6 mm	25 mm	64 mm	Thick Melamine, laminated MDF, and furniture panels up to 22mm.
BIT-WUD06-4016-64 (i-5210)	G42458497	Up-Cut	6 mm	4 mm	16 mm	64 mm	Intricate nesting layouts, tight pocketing, and deep blind slots.
BIT-WUD06-6025-64 (i-5212)	G42458752	Up-Cut	6 mm	6 mm	25 mm	64 mm	High-speed perimeter nesting of raw MDF, HDF, and construction plywood.

Down-Cut vs. Up-Cut Selection Guide

Down-Cut (BIT-WDD / i-5710 & i-5712)

These tools feature a reversed spiral that forces wood fibers downward into the vacuum table matrix.

The Big Benefit: It completely eliminates splintering, fuzzing, or tear-outs on the top surface of the board.

Best For: Processing pre-laminated boards, high-end wood veneers, painted MDF, or multi-layered plywood panels where the top surface must remain pristine.

Operational Note: Keep a close eye on deep passes; because the chips are pushed down, they can pack tightly into narrow grooves if your dust collector brush is worn.

Up-Cut (BIT-WUD / i-5210 & i-5212)

These tools feature a traditional right-hand helix that pulls waste material upward into the extraction hood.

The Big Benefit: Excellent chip clearing capabilities. It draws heat and sawdust away from the cut line instantly, extending the lifetime of the bit.

Best For: Rapid sheet nesting, structural components, raw MDF parts, or deep pocketing where trapping sawdust would cause friction and burn marks.

Operational Note: It yields a clean finish on the bottom surface, but may slightly fray the top grain on lower-grade plywood panels.
