Atom 01039904 01039596 Flashcut Hv1600 Solid Tungsten Carbide Oscillating Knife Blades

China Atom 01039904 (compatible/alternative model 01039596) is a high-precision tungsten carbide (hard alloy) vibrating insert designed specifically for Atom FlashCut HV1600 and HV1400 series automated CNC prototyping/CNC cutting machines Enquire now

Description

Atom 01039904 01039596 Flashcut Hv1600 Solid Tungsten Carbide Oscillating Knife Blades

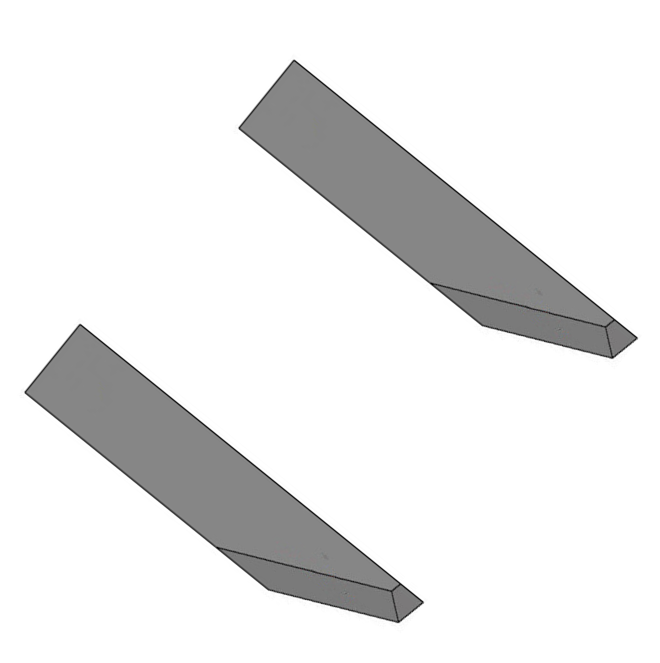

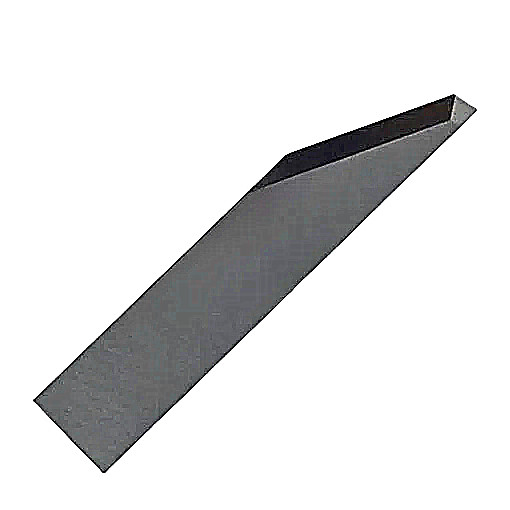

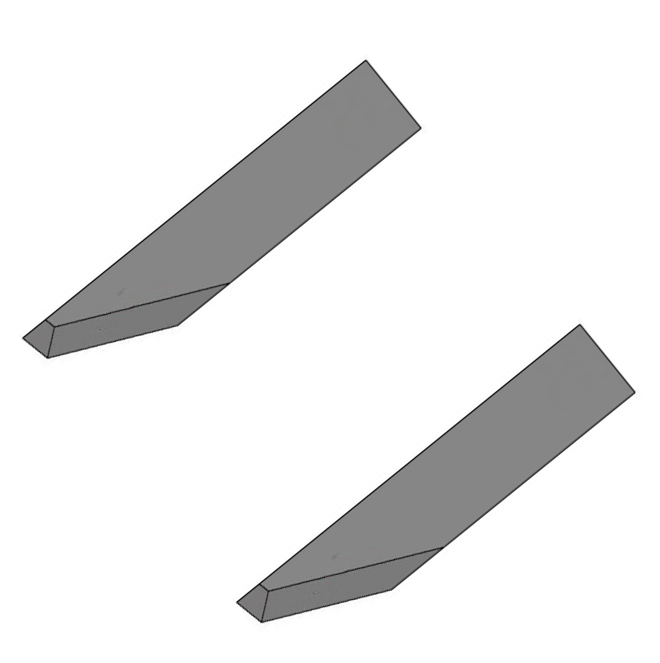

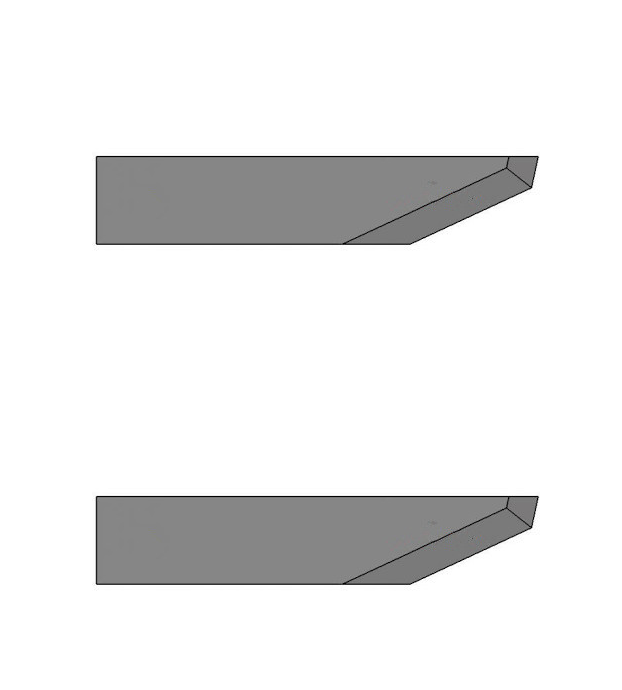

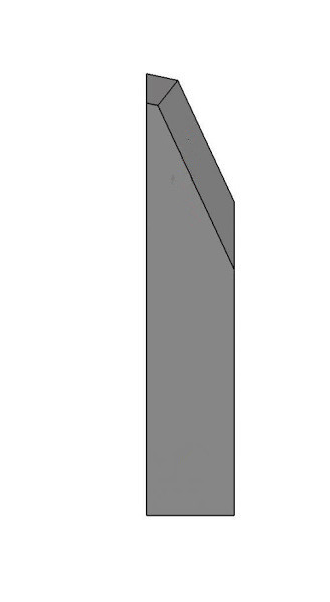

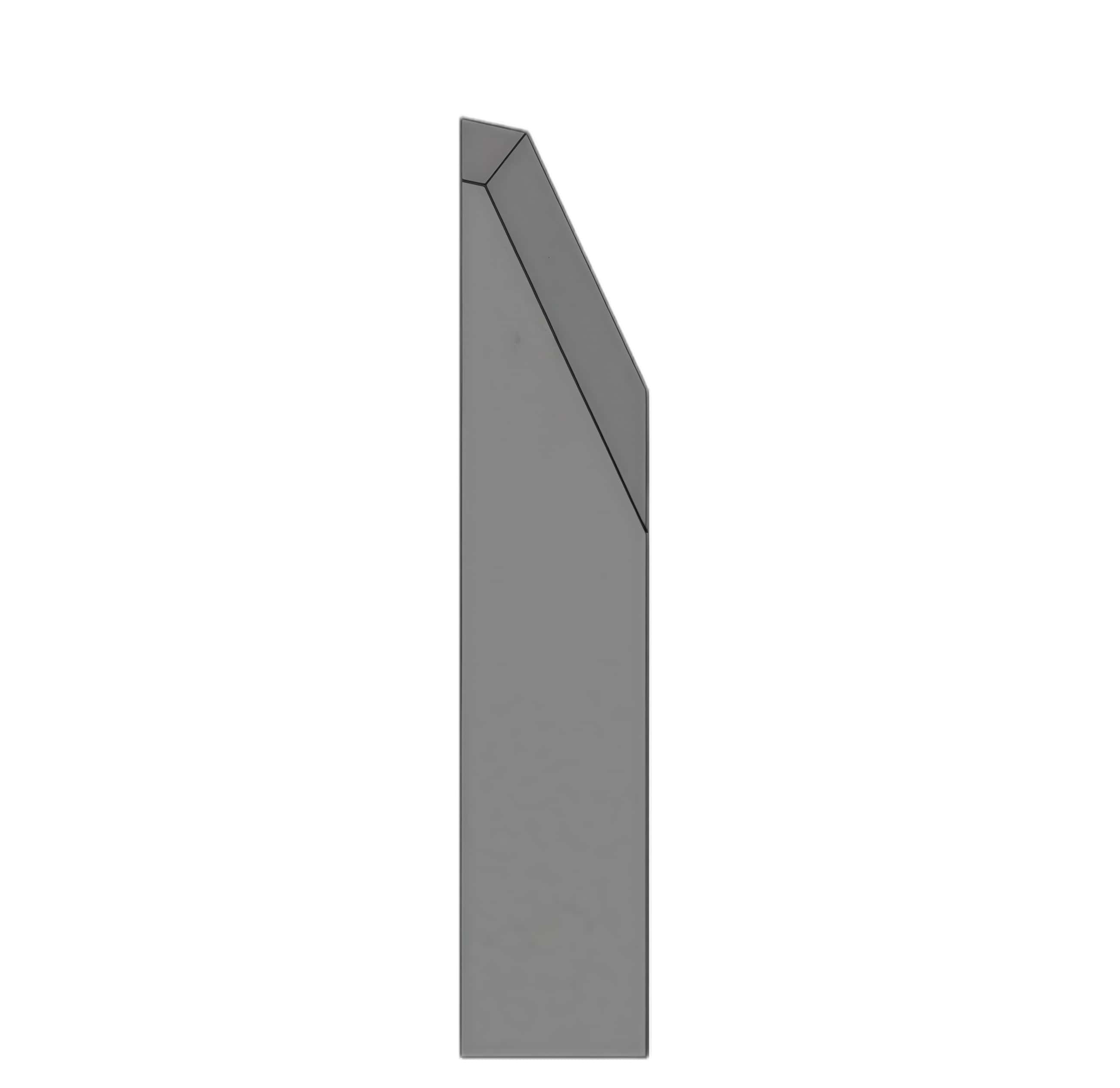

Atom 01039904(Equivalent to the alternative or associated cross-number 01039596) is a high-precision carbide oscillating knife blade specifically designed for Atom Flashcut series (especially those equipped with HV1600 or HV1400 smart tool heads) digital automatic cutting machines .

The geometry of this blade model has been deeply optimized for specific multi-layered synthetic materials and natural leather, ensuring high rigidity of the blade tip and smoothness of the cut during extremely high-frequency reciprocating vibrations

Cutting depth approx. 6 mm
no. 01039904 / (HV1600)
Angle: 25°/12°
CUTTER BRAND
Atom
ANGLE
25°-12°
KNIFE HEIGHT
28,00 mm
THICKNESS
0,63 mm
MAX. CUTTING DEPTH
10,00 mm
KNIFE TYPE
Flat, Oscillating blade

MATERIALS
Aramid fibers, Carbon fibers, Corrugated cardboard, Felt, Foam board, Leather, Polyester fabric

REPLACEMENT
Yes

KNIFE/BLADE MOUNTING
flat 0,63 mm

Maintenance and Installation Recommendations

Tool holder cleaning : Before tightening 1.0mm thick HV1600 inserts, be sure to clean any debris from the chuck. Forcing installation into a legacy tool holder with impurities or improper tightening can cause slight tool head vibrations, resulting in jagged edges on the cut or even chipping the tool tip.
Removing Adhesive : When cutting sticky composite materials or synthetic rubber, adhesive can easily accumulate on the blade surface. If you notice increased cutting resistance, first clean the tungsten carbide blade with a specialized solvent; do not assume the blade is unusable.

Available tools	Angles	Description	Code
	25°- 12°	Fabrics up to 12mm thick, cutting edge 1.5mm	01039596 (HV1400) 01039904 (HV1600)
