Atom knives/atom slitting knife blades/carbide razor blades/atom blades / leather cutting blades/hard metal（hm )carbide oscillating knife blade

Atom Knives,Atom,Atom Blades,Atom Knife,Atom Knife Blades
Atom Flashcut cutting tables rely heavily on high-frequency oscillating tool heads. These systems demand industrial-grade tungsten carbide knife blades capable of withstanding rapid reciprocating vertical vibrations.
Because Atom machines are primarily engineered for dense, heavy-duty manufacturing fields—such as footwear, leather goods, automotive gaskets, and technical composites—the blades are ground to incredibly specific geometric tolerances to handle tough stress loads without shattering.

The Multi-Generation Tool Head Distinction (HV1400 vs. HV1600)When cross-referencing or sourcing replacement parts, you will notice that Atom part numbers are strictly grouped by the tool chuck generation of your Flashcut FLEX, TWINS, or EASY series tables. The exact same blade angle and profile often carries two distinct SKU prefixes depending on the head design:HV1400 Tooling Series: Typically features a flat 0.64mm mounting shank thickness. This is the legacy standard for many classic Flashcut static tables.HV1600 Tooling Series: Standardizes on a beefier, heavy-duty 1.0mm flat mounting shank. This thickness is engineered to manage the intense force of newer pneumatic and electric high-frequency oscillating heads cutting thick rubber or multi-ply composites.
01033858 Blade                                  01030911 Blade                                          01039896 Blade
01030910 Blade                                   01039892 Blade                                          01039999 Blade
0103A858 Blade                                  0103B858 Blade                                          R/9999-0911 Blade
01040356 Blade                                   01030728 flat blade oscillating                   01030729 flat blade oscillating
01030730 flat blade oscillating             01030731 flat blade oscillating                   01030773 flat blade oscillating
01030774 flat blade oscillating             01030782 flat blade oscillating                    01030793 flat blade oscillating
01030910 flat blade oscillating             01033310 Blade Wheel - 28mm                  01033375 Blade
01033840 flat blade oscillating             01033841 flat blade oscillating                    01046251 Blade
01040073 Blade                                   01040357 Blade                                          01039907 Blade
01033925 Blade                                   01045556 Blade                                          01040075 Blade
01040074 Blade                                   01R43856 Blade                                         01039893 Blade
01606750 Atom rotary blade                01060676 Atom rotary blade                       01060217 Atom rotary blade
01060215 Atom rotary blade                01045231 Atom rotary blade                       01060214 Atom rotary blade
01060216 Atom rotary blade                01060218 Atom rotary blade                       01060219 Atom rotary blade
01060220 Atom rotary blade                01060465 Atom rotary blade

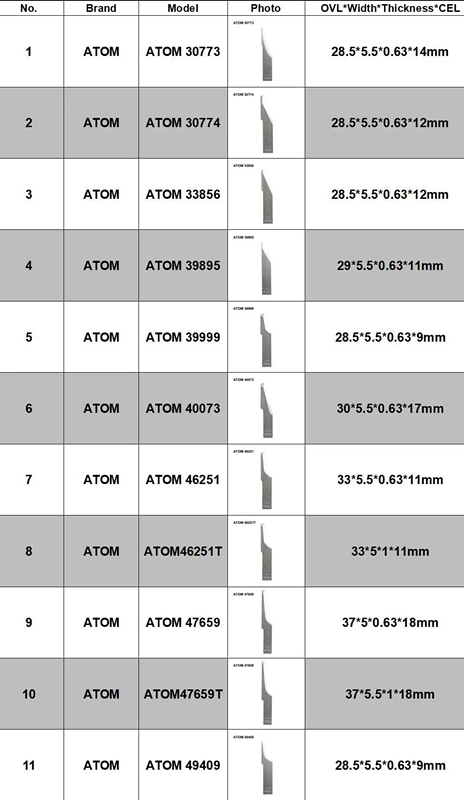

Highly Demanded Atom Part Profiles

Premium aftermarket blade manufacturers like Shenzhen Oyea replicate these exact dimensions in ultra-hard cemented carbide:

Official OEM Part Number

Tool Chuck Compatibility

Blade Layout & Geometry

Maximum Cutting Depth

Target Materials

01033856

HV1400 Chuck

Dual sharp cutting edges, flat 1.0mm tip width, 65°/25° angle.

~12mm to 14mm

Apparel textiles, furniture leathers, and thin shoe components.

01030773

HV1600 Chuck

Flat 1mm mounting, 5.5mm blade width, ground to a robust 75° angle.

~11mm

Industrial gasket rubber, dense foam core, thick footwear outsoles.

01039999

HV1600 Chuck

Double-edged asymmetric bevel (11° to 15° profile).

~15mm to 20mm

Intricate nesting shapes, multi-ply carbon fiber, and corrugated fiberboards.

01033375

Specialty Drag Module

Double-edged flat stock drag blade.

N/A (Drag Only)

Precision scoring, thin plastics, paperboard, and template vinyls.



Critical Installation and Wear Indicators
  1. Shank Seating Alignment: Ensure your chuck is fully cleared of debris before locking down an Atom blade. If a 1.0mm HV1600 blade is forced into a loose or over-tightened legacy chuck, it will cause microscopic tool head vibration, resulting in jagged cuts or immediate blade tip fracture.
  2. Delamination Checks: When processing sticky composite prepregs or synthetic rubber sheets, adhesive buildup along the flat edge mimics a dull blade. Clean the carbide with an approved solvent before assuming the edge is shot.

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
