Zund R17 Router Bit 3910717 Oem Solid Carbide Spiral Milling Bits
Zund R17 Milling & Router Bits (3910717) are designed for seamless compatibility with Zund routing systems, making them an ideal solution for production, manufacturing, and wholesale supply needs. Perfect for ensuring precision and efficiency, these bits are available for purchase, replacement, or b… Enquire now
Share this:
 Facebook  Twitter  LinkedIn  Google+  Addthis

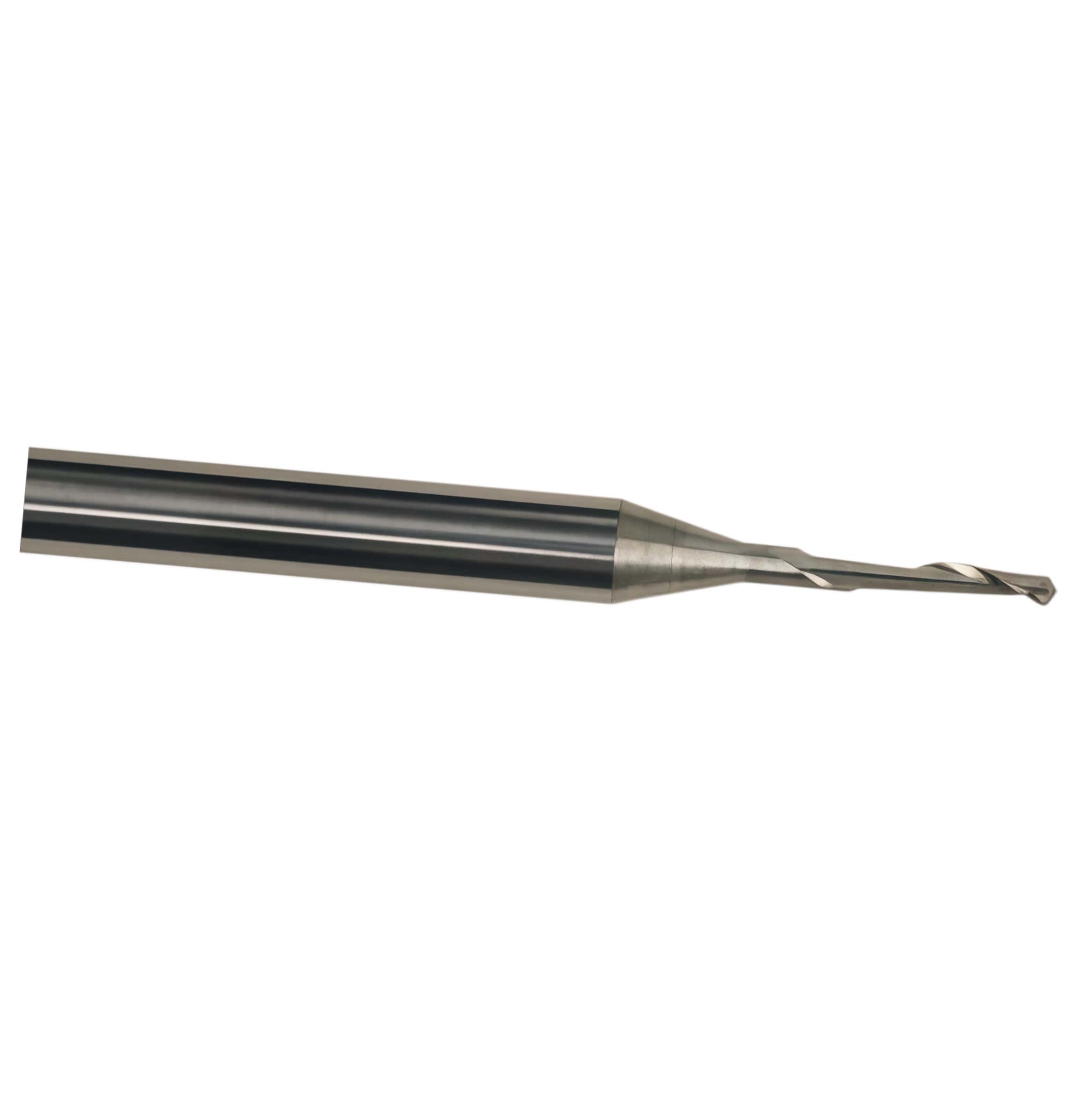

Zund R17 Router Bit 3910717 Oem Solid Carbide Spiral Milling Bits
Zund R17 Router Bit 3910717 Oem Solid Carbide Spiral Milling Bits

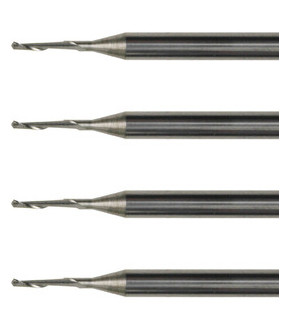

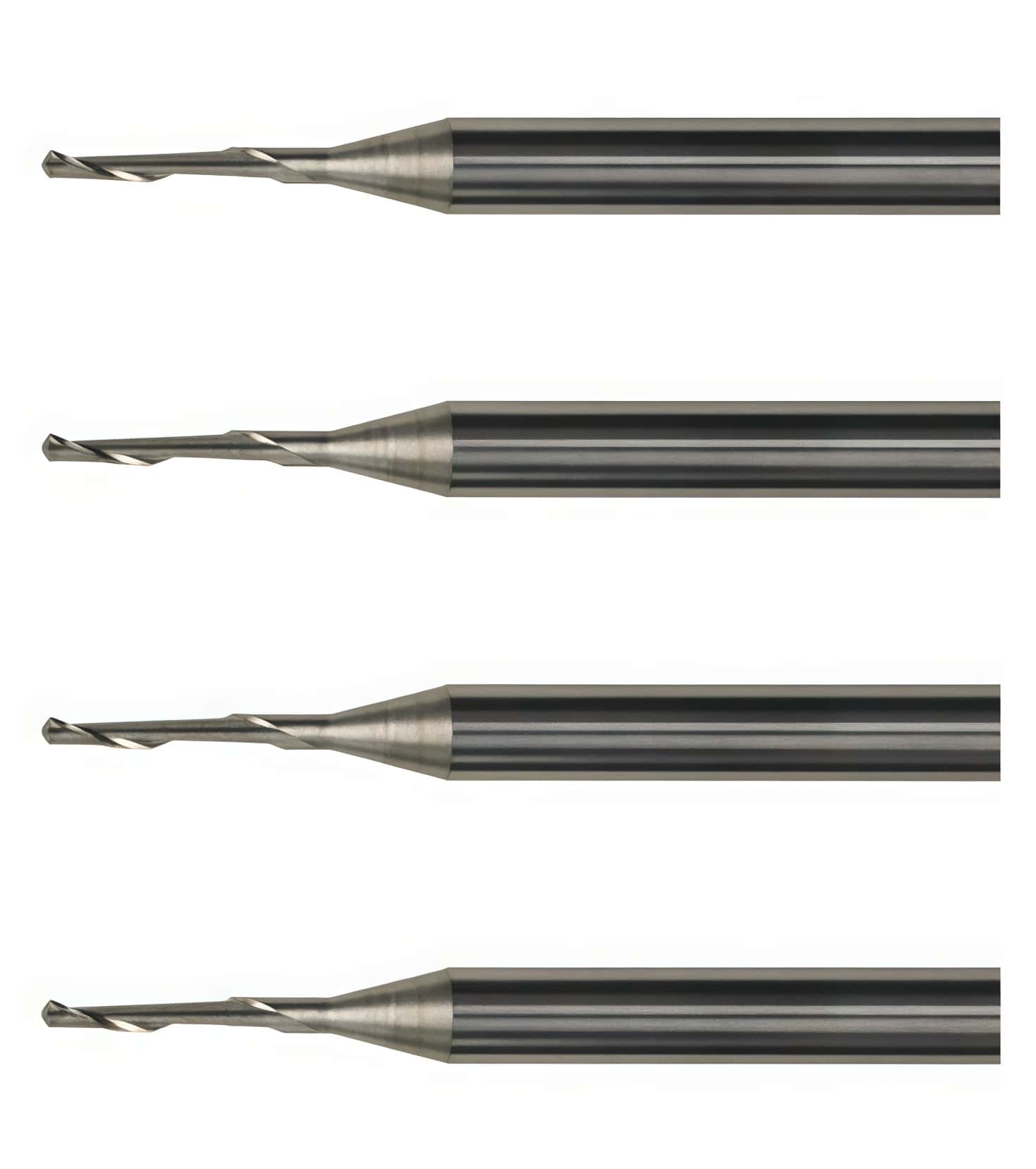

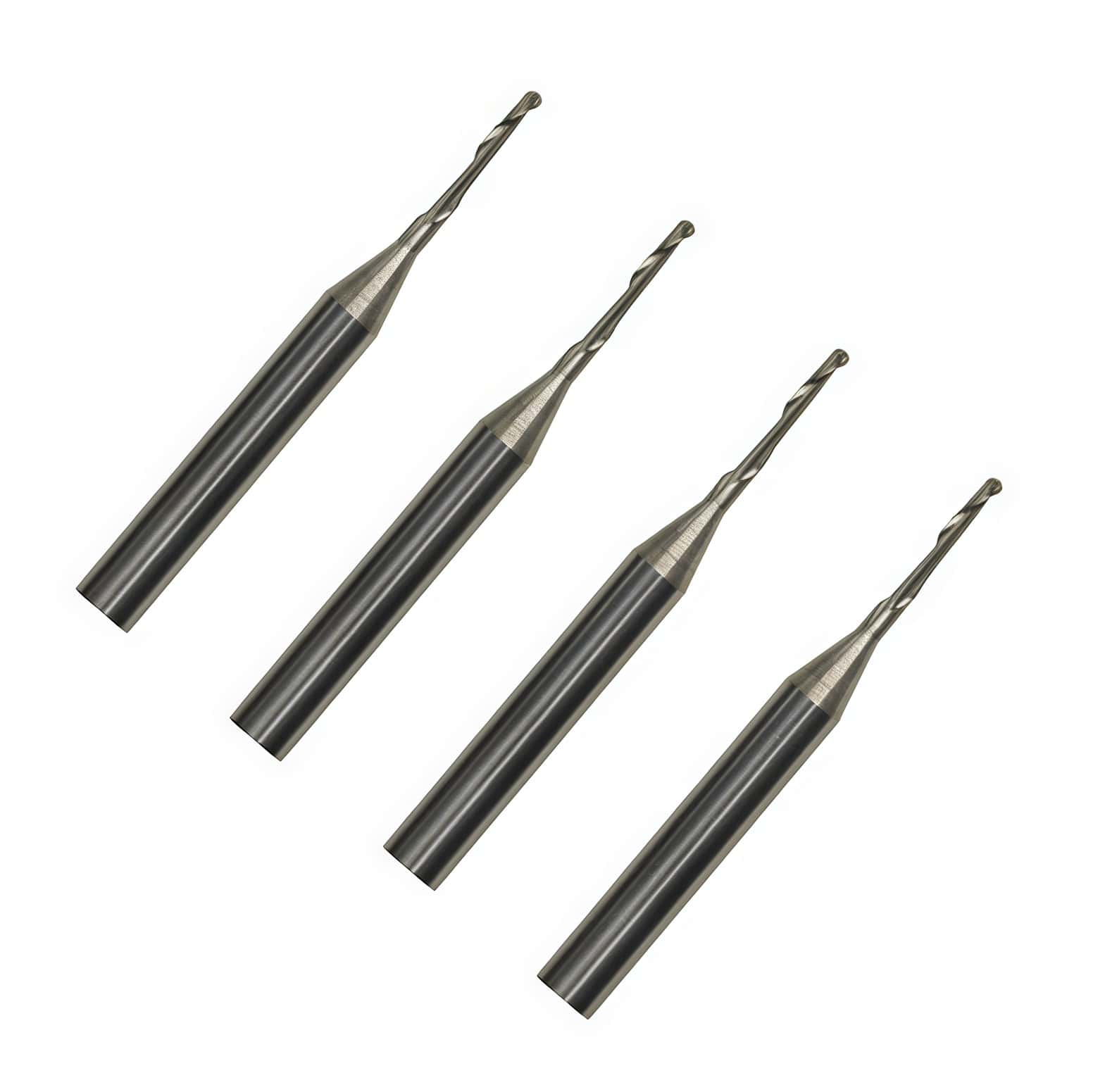

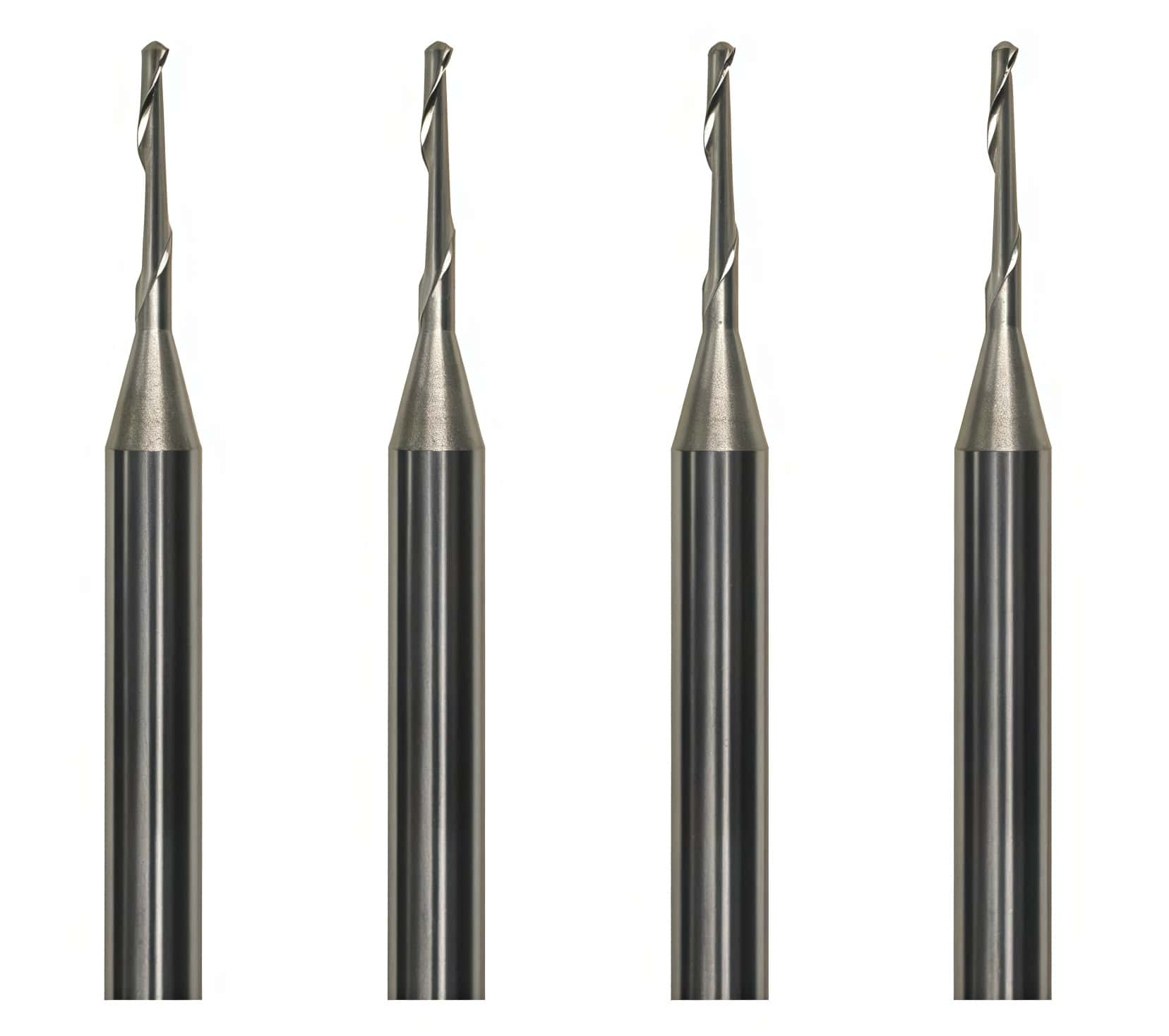

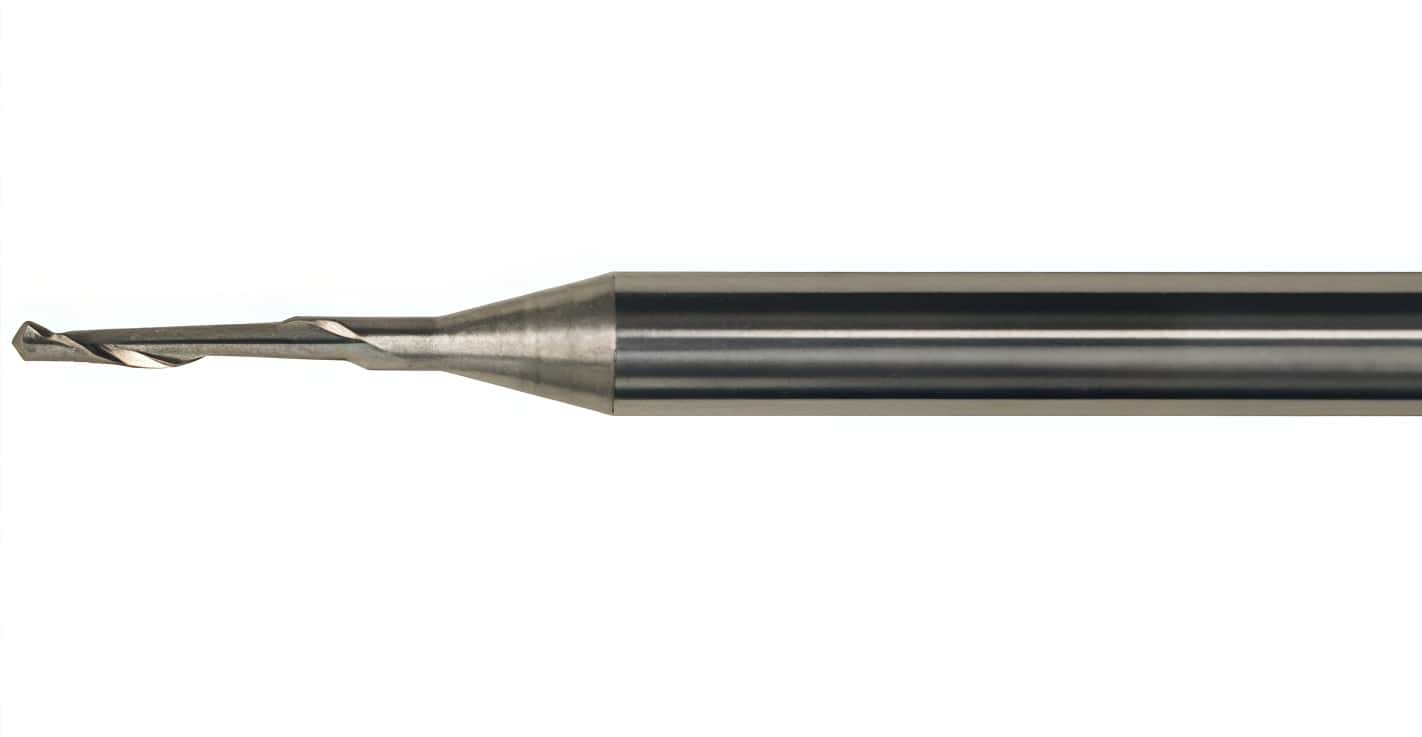

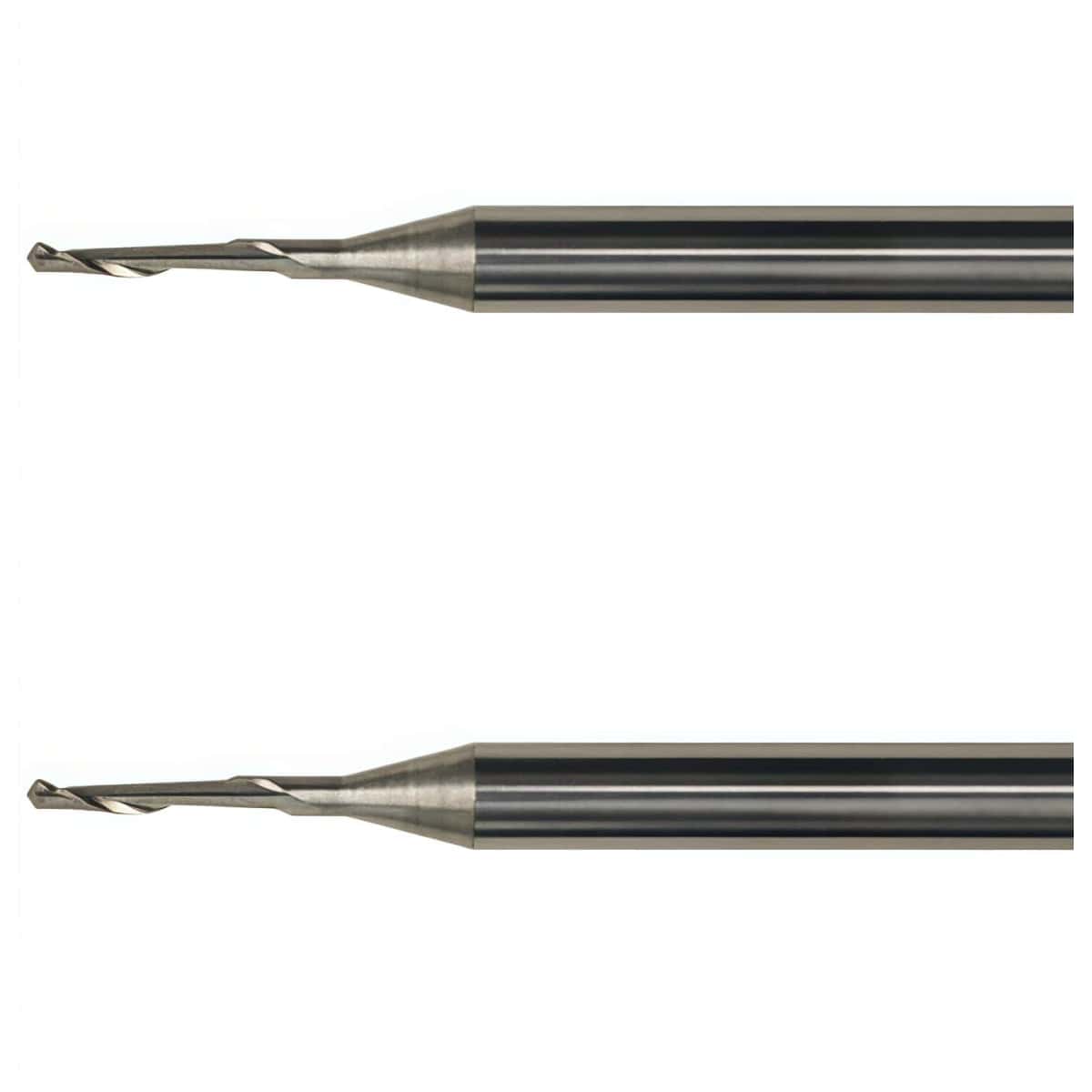

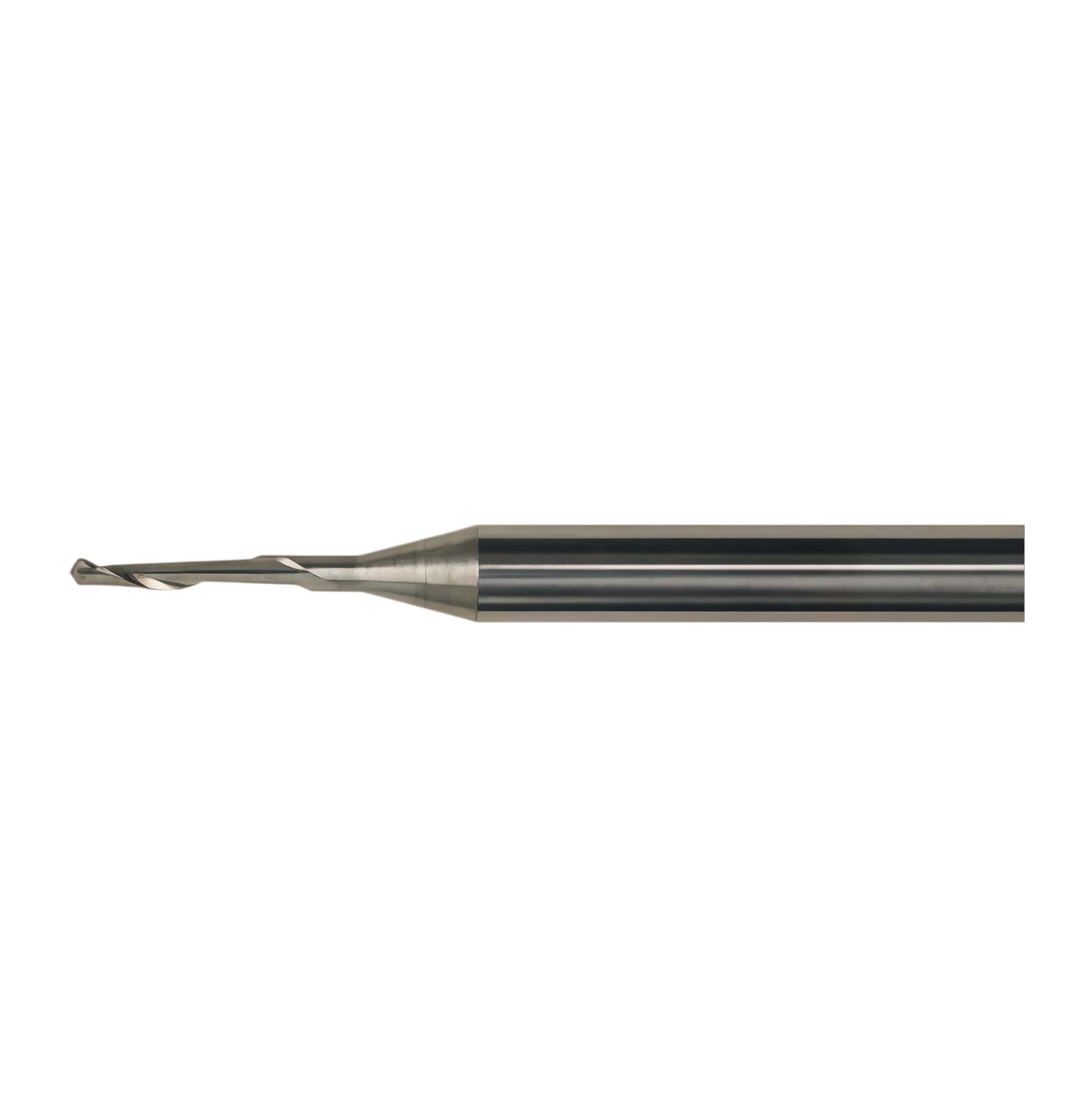

The Zund R17 Router Bit (Item Number 3910717) is an OEM solid carbide spiral milling bit engineered for automated flatbed systems. This variant features a narrow 1.5 mm cutting edge diameter, making it a key mid-range choice for detail-oriented routing, small radii, and precision engraving.

Core Technical Specifications
The R17 utilizes a single-flute ("O-Flute") configuration to safely eject chips from grooves without melting thermoplastic workpieces:
  • Routing Diameter (Cut Ø): 1.5 mm
  • Max Routing Depth: 6.0 mm
  • Shank Diameter: 1/8" (3.175 mm)
  • Total Length: 38 mm
  • Number of Cutting Edges: 1 Flute (Up-cut / Right-hand twist)

Material Compatibility
With its 1.5 mm cutting profile and 6 mm depth threshold, this bit provides clean, burr-free edges on:
  • Plastics & Synthetics: Highly effective for thin Acrylic (PMMA), Polycarbonate, Expanded PVC (Forex), and delicate engineering plastics.
  • Composites: Intricate engraving or profiling on thin Aluminum Composite Materials (ACM / Dibond).
  • Wood Products: Fine, shallow routing on Medium-Density Fiberboard (MDF) and thin plywood.

Spindle & Module Integration
The R17 runs on multiple generations of Zund automated hardware:
  • Compatible Spindles: Purpose-built for the high-speed PN 150W / 450W spindles and the Universal Routing Tool (URT).
  • Supported Cutting Tables: Fully compatible with the automated tool management architecture of the Zund G3, S3, and D3 digital cutters.

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
Zund R17 Router Bit 3910717 Oem Solid Carbide Spiral Milling Bits
