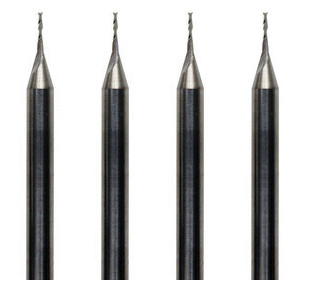

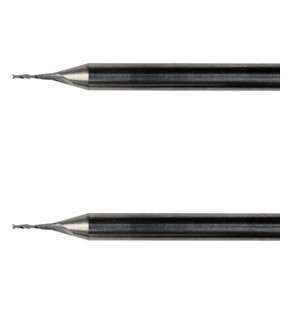

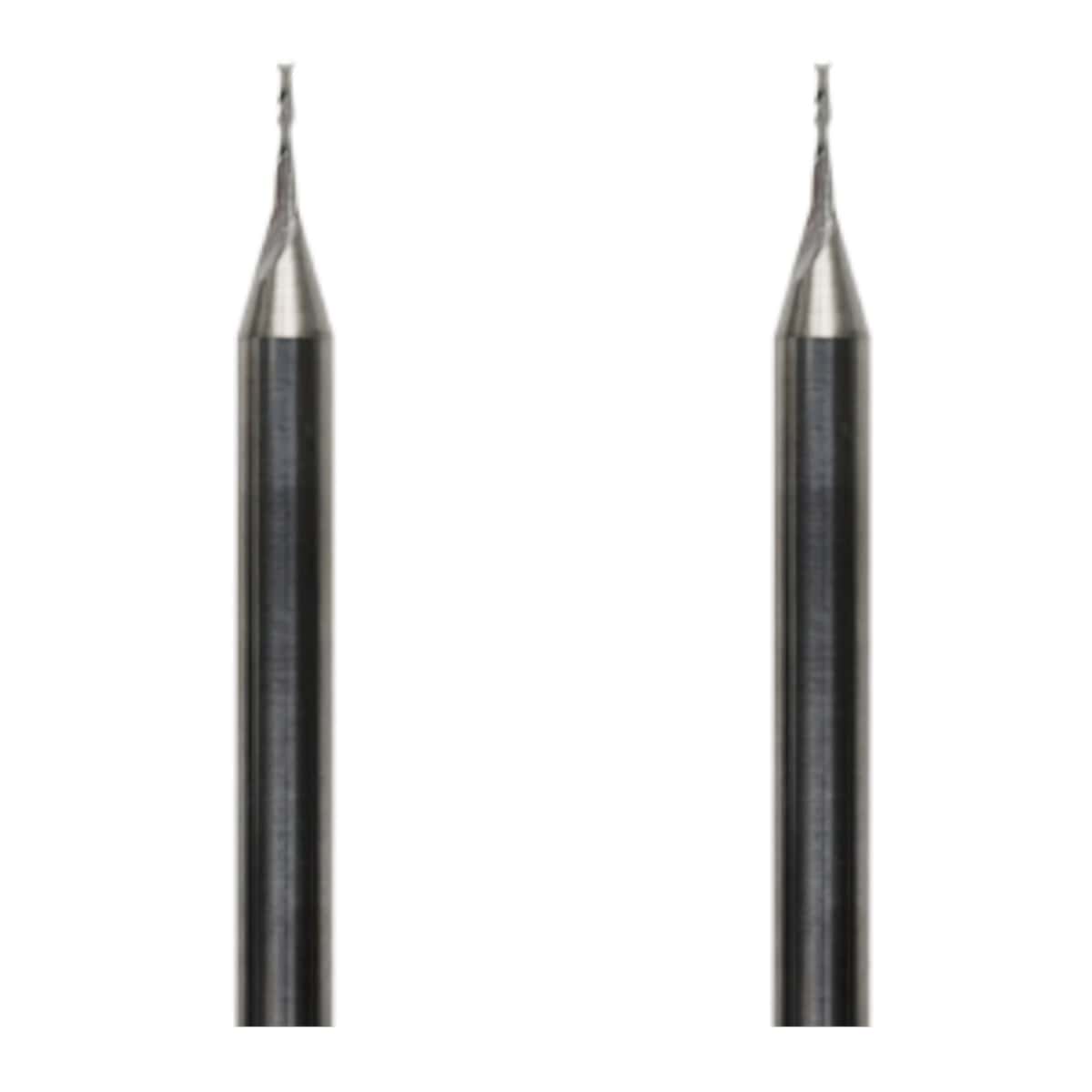

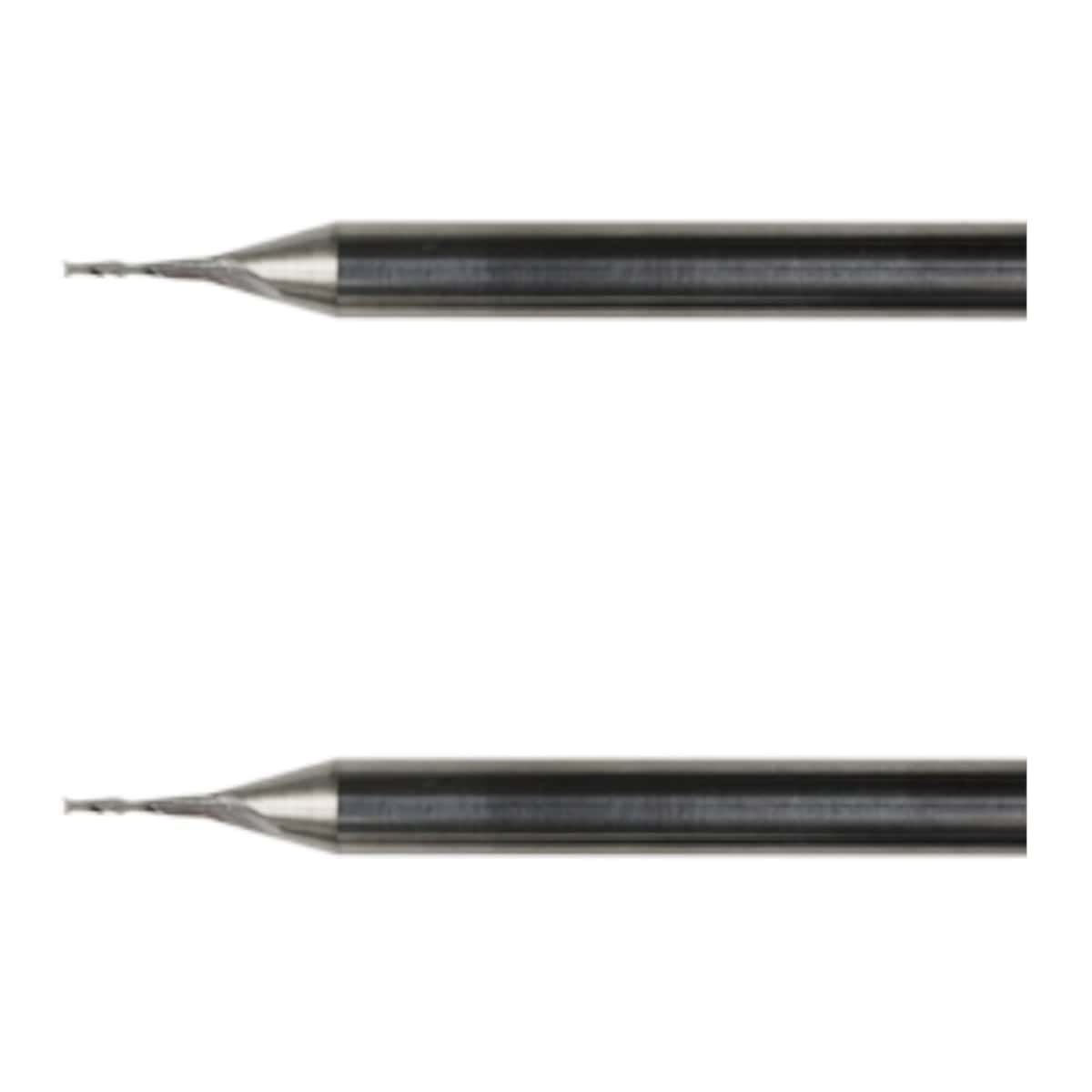

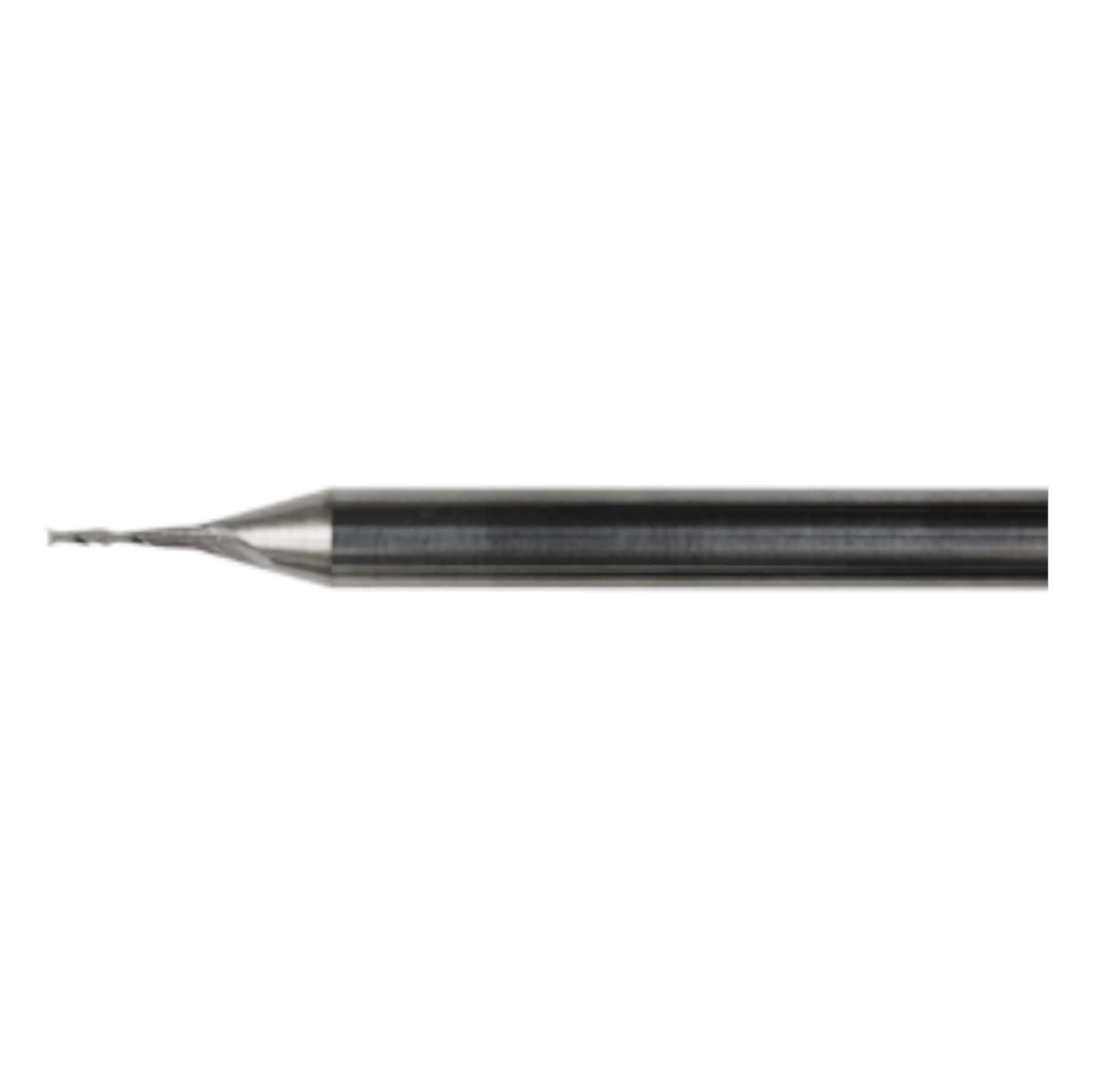

Zund Milling & Router Bits R25(3910705)

The Zund R25 CNC Router Bit (Part Number: 3910705) is a highly precise micro-milling solid carbide tool designed for fine-detail engraving, intricate profiling, and slotting on Zund digital flatbed cutting systems.


Critical Specifications
  • Routing Diameter (Cut Ø): 0.6 mm
  • Routing Depth (Max Cut Length): 3.0 mm
  • Shank Diameter: 1/8 inch (3.175 mm)
  • Overall Length: 38 mm
  • Number of Flutes (Cutting Edges): 2 edges
  • Maximum Rotation Speed: 80,000 RPM
  • Twist Direction: Right-hand twist (Up-cut)

Recommended Materials & Applications
Because of its ultra-thin 0.6 mm cutting diameter, the R25 bit is built exclusively for delicate, rigid board operations:
  • Primary Materials: PMMA/Acrylic (Perspex), polycarbonates, hard plastics, and soft aluminum alloys.
  • Best Uses: Micro-engraving text, milling narrow channels, sharp-cornered inlay tracing, and processing fragile electronic or industrial plastic sheets.

Operation & Handling Tips
  • Spindle Compatibility: The 1/8-inch shank requires an appropriate high-frequency spindle collet or adapter sleeve, standard on Zund’s 150W and 450W Universal Routing Tools (URT).
  • Fragility Warning: A 0.6 mm cutting edge snaps easily under excessive mechanical load. Ensure your feed rates are precisely tuned, maintain high RPMs (closer to its 80k maximum limit), and utilize your system's vacuum or air blast to instantly clear microscopic chips from the channel.
