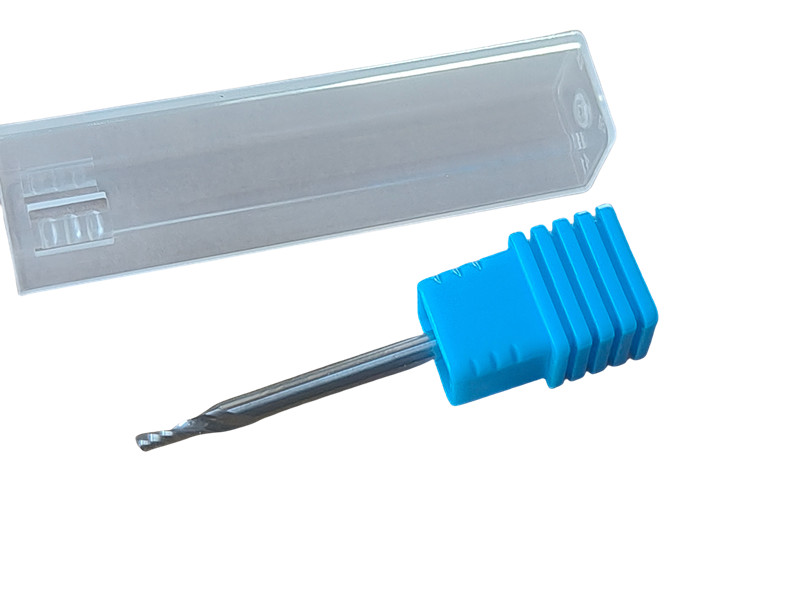

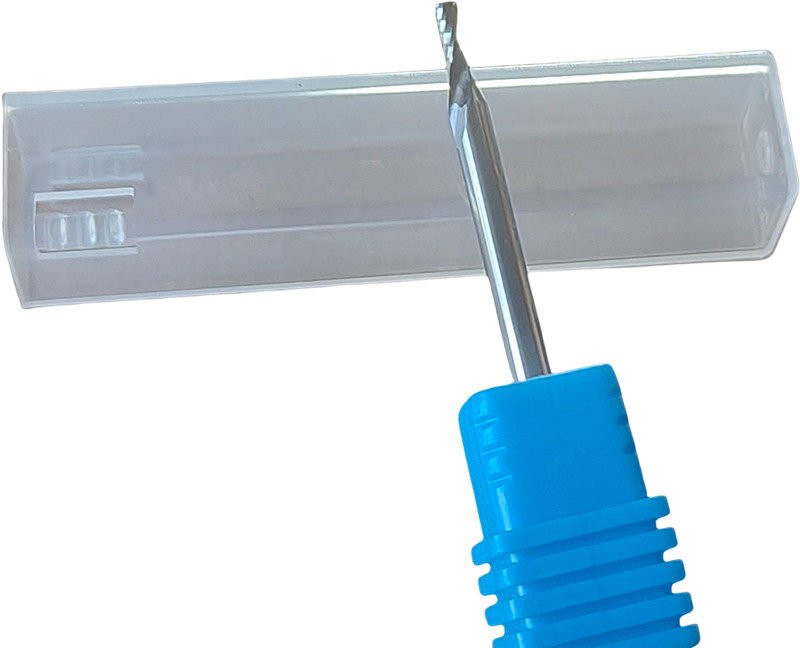

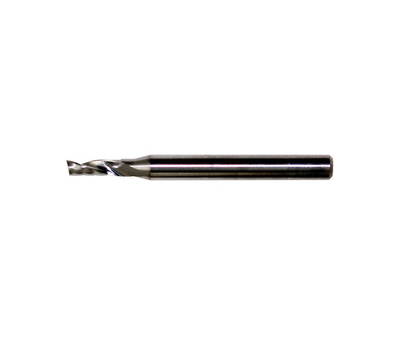

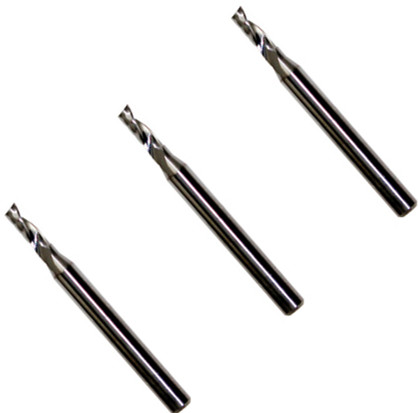

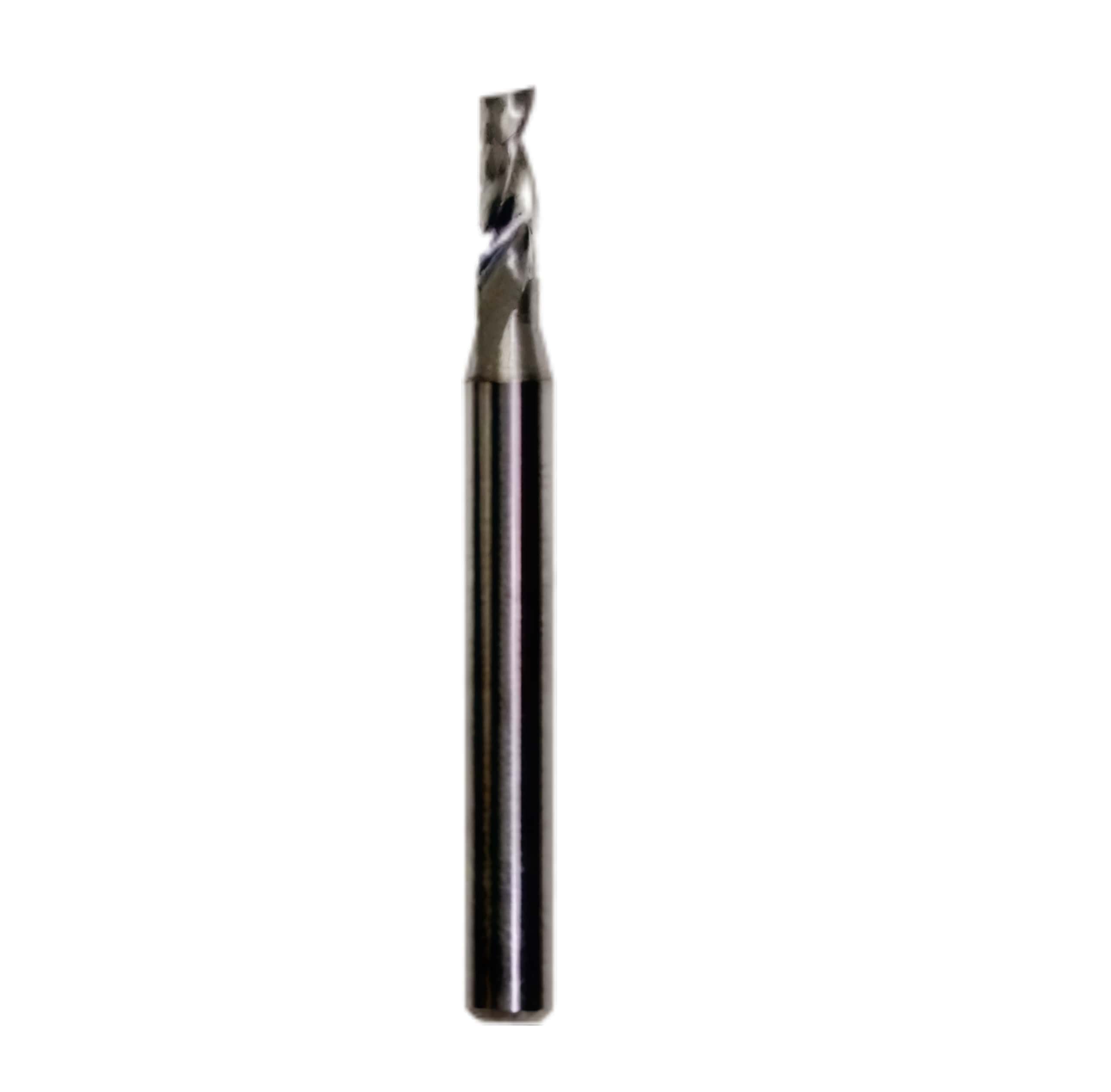

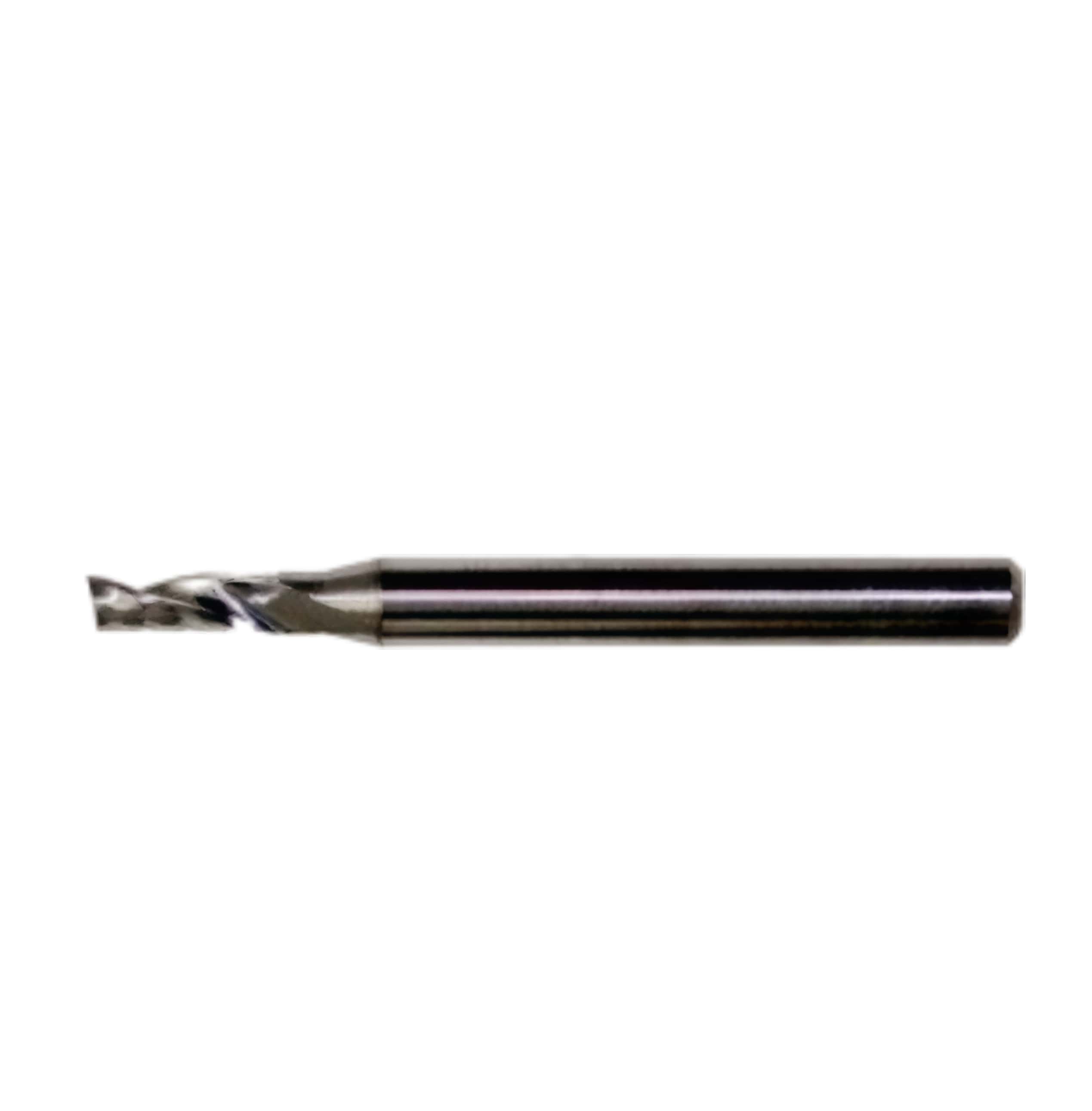

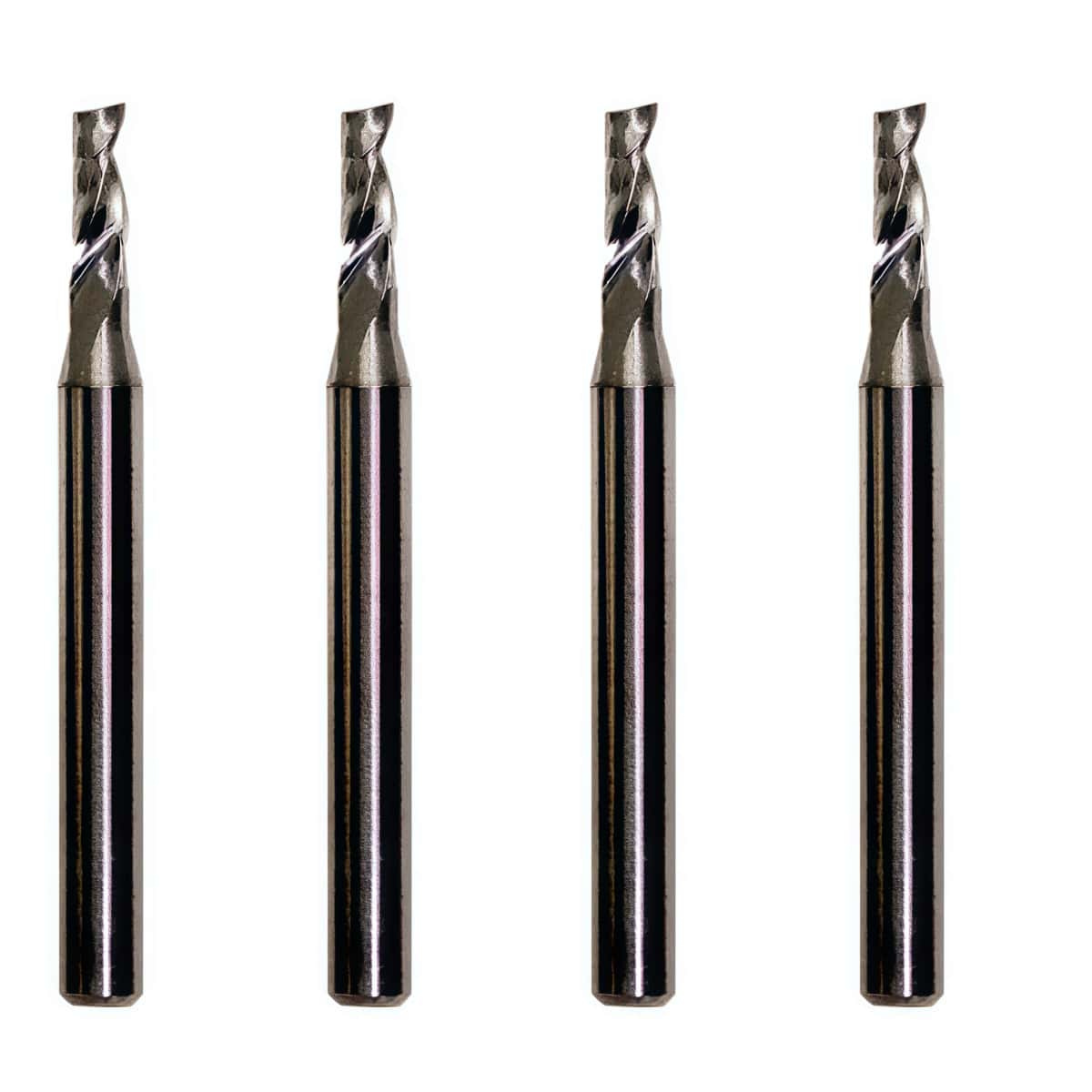

Zund R72 Multipurpose Milling & Router Bits Type 3910753

Zund Multipurpose Milling & Router Bits Type R72 3910753 Replacement For: Zund R41 / 3910734 Zund R72 / 3910753 Esko Bit-Mus03-2006-38 / G42443416 Esko Bit-Aus03-2006-30 / G42443630 Zund Milling Cutter Router Mill Bits Webshop | MyZund - Zund Enquire now

Description

Zund Multipurpose Milling & Router Bits Type R72 3910753

Item no.
3910753

Routing Diameter
2
Diameter of Shank
3 mm
Routing Depth mm.
6
Cutting Edges
1
Max Rotation Speed
80000

Recommended Materials

True to its multipurpose designation, the R72 excels across soft metals, rigid sheets, and natural composites:

Aluminium Composite Materials (ACM / Dibond / Maxmetal)
Rigid & Semi-Rigid Sheet Plastics (Acrylic, Polypropylene, PE, PET, PETG, Polycarbonate)
Signage Foams (Expanded PVC / Forex / Sintra)
Wood Composites (MDF, Plywood, Hardwoods)

System Integration & Compatibility

The R72 interfaces natively with Zünd's routing hardware, working with the Universal Routing Tool (URT), Router Module RM-A (150W / 450W), and RM-L configurations. It is fully compatible with Zund G3, S3, L3, and D3 digital cutters and is supported inside the Zund Cut Center (ZCC) software framework.

Key Differences to Keep in Mind

Total Length (30mm vs 38mm): The Esko BIT-MUS03-2006-38 features a slightly longer total tool length of 38mm compared to the 30mm standard of the Zund R72/R41 bits. Ensure your Zund initialization sensor or Esko tool-head calibration accounts for this 8mm difference to prevent crashing the bit into your cutting mat.
Material Optimization: While the MUS series (Multi-purpose) is optimized to cut a broad range of materials like ACM, MDF, and Foams, the Esko AUS series is specially polished and ground to cut clean edges specifically in Acrylic and rigid plastics without melting.
