Zund R73 Cnc Milling & Router Bits 3910754-Production Manufacturing Supply Sales Store

Zund R73 CNC Milling & Router Bits (Model 3910754) – Specializing in Production, Manufacturing, Supply, and Sales. Your trusted source for OEM and ODM services. Available through Shenzhen Oyea Machinery Co., Ltd., CHINA. Enquire now

Description

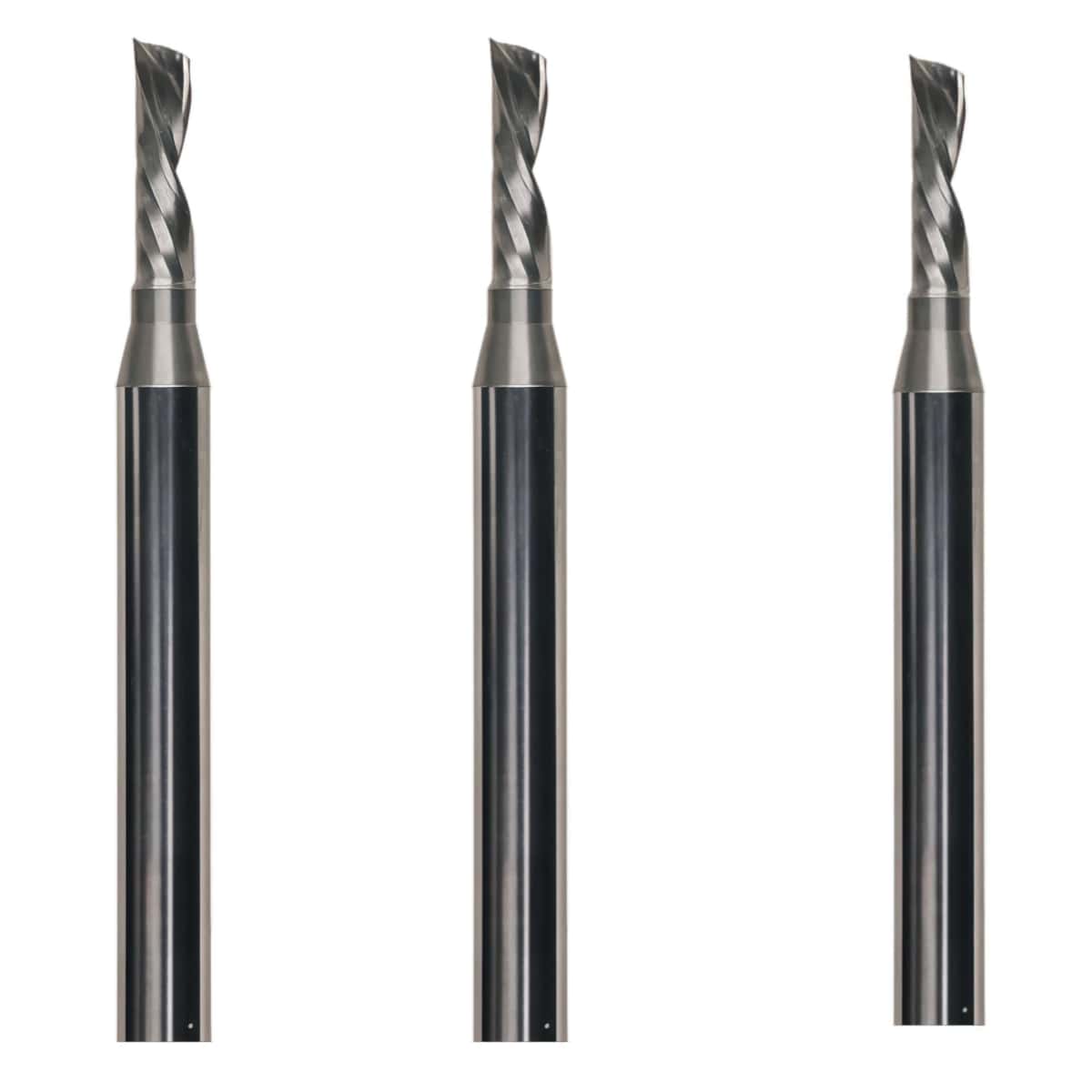

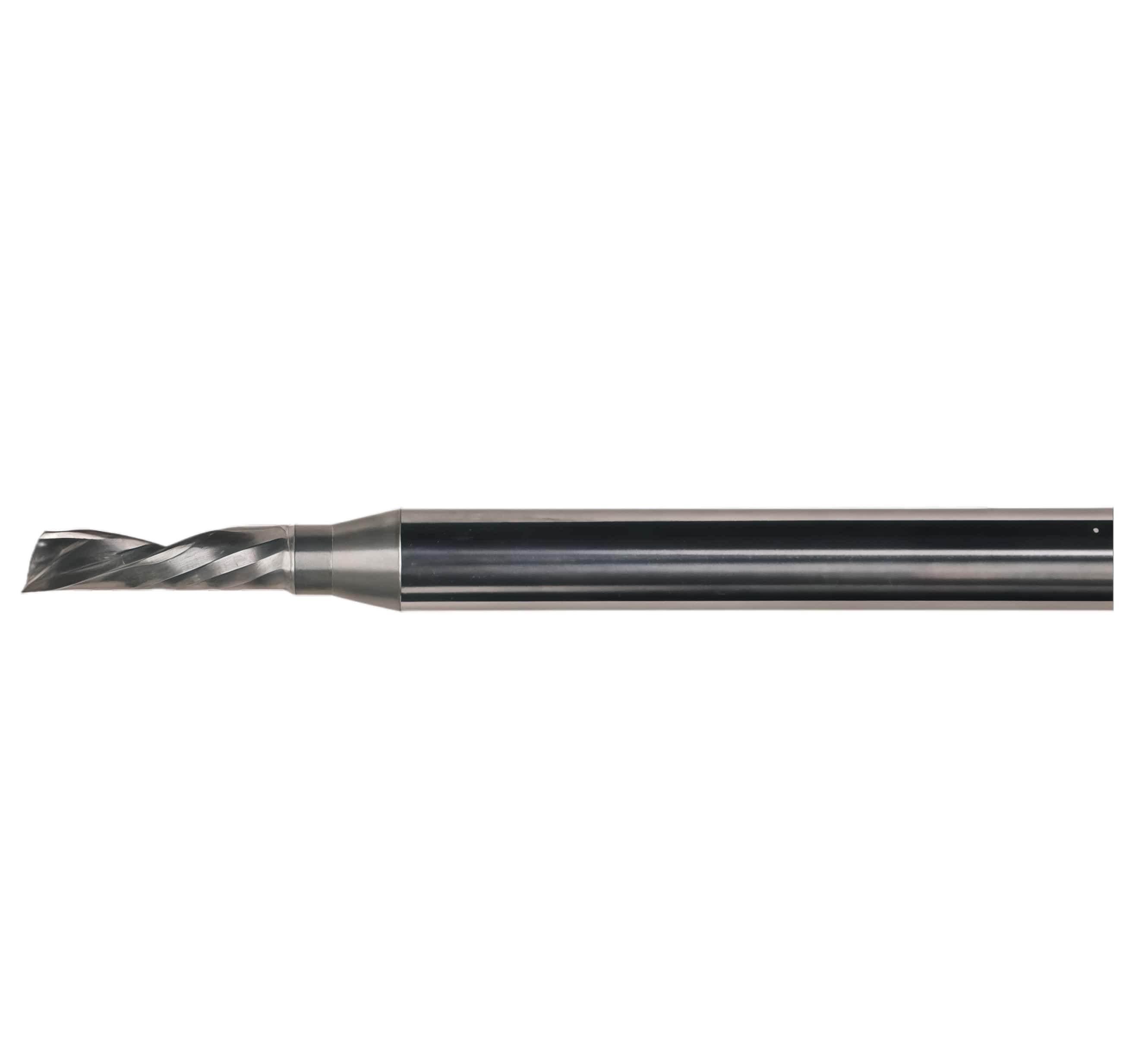

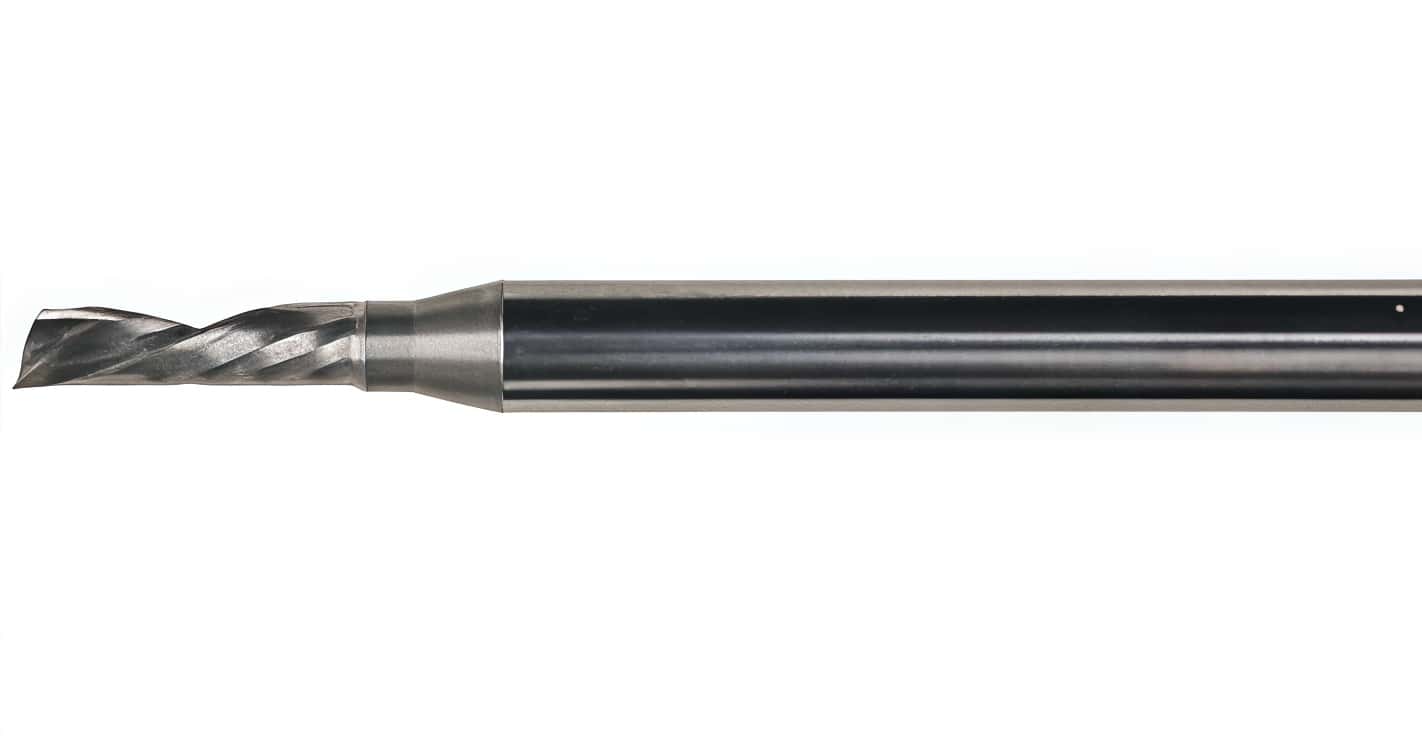

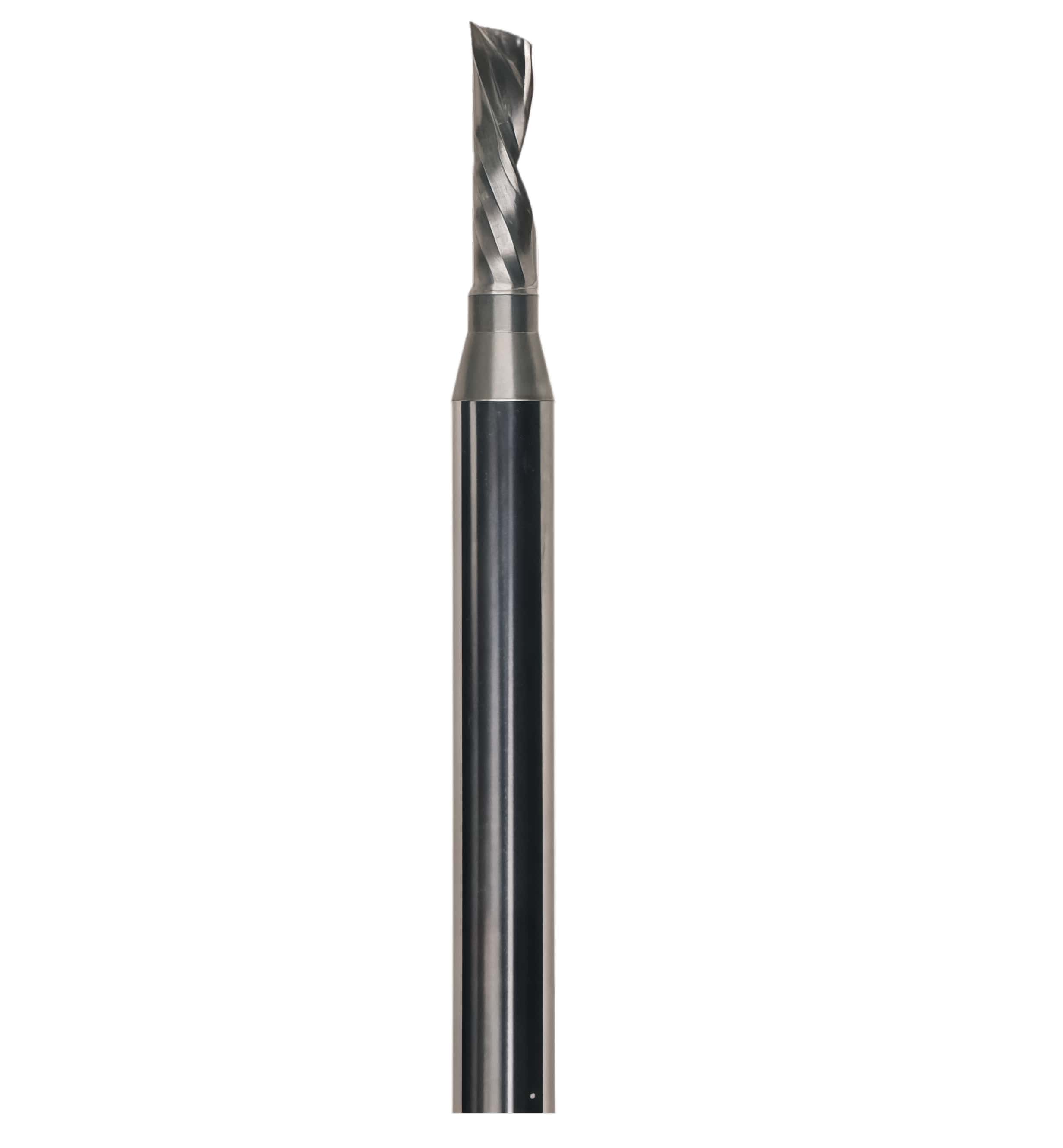

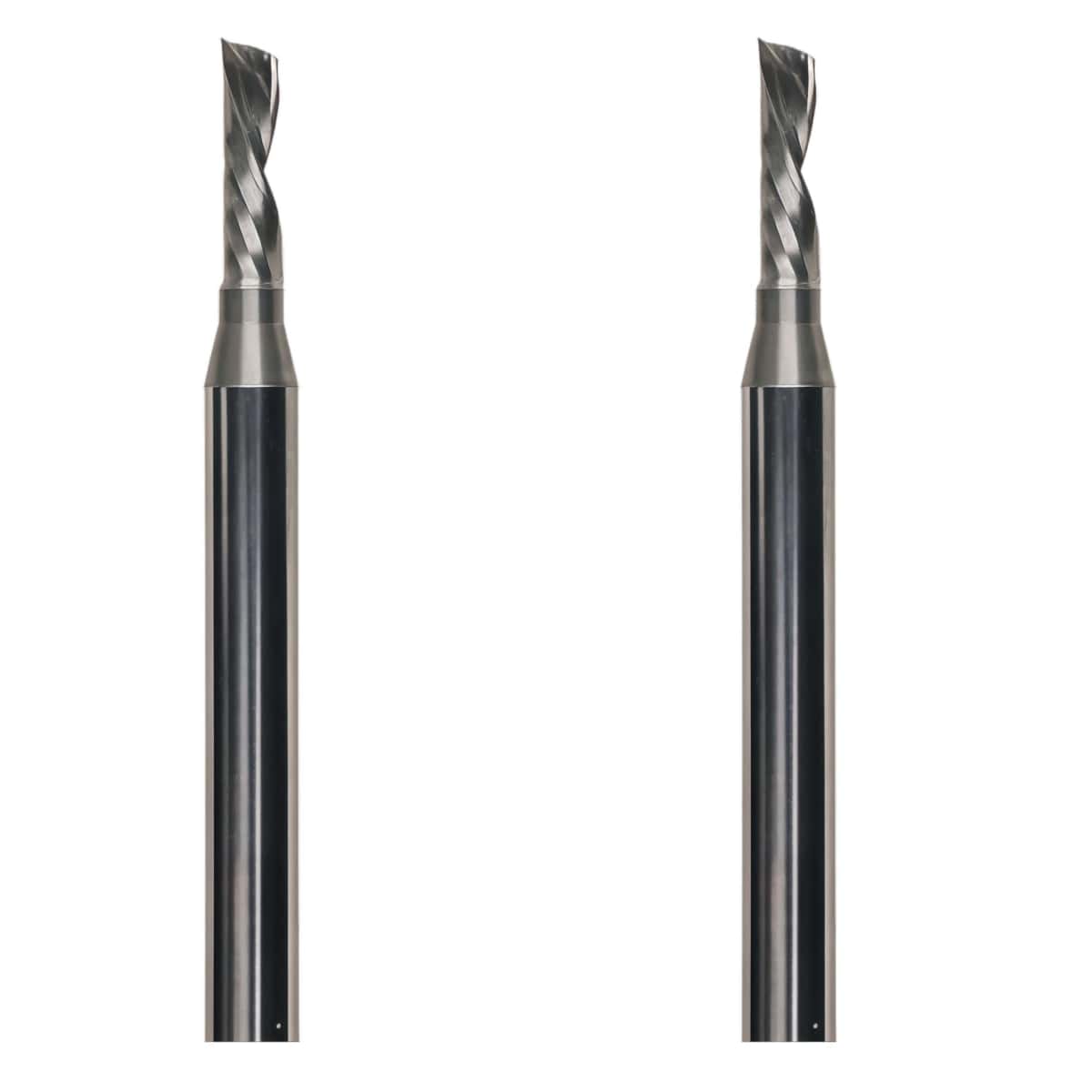

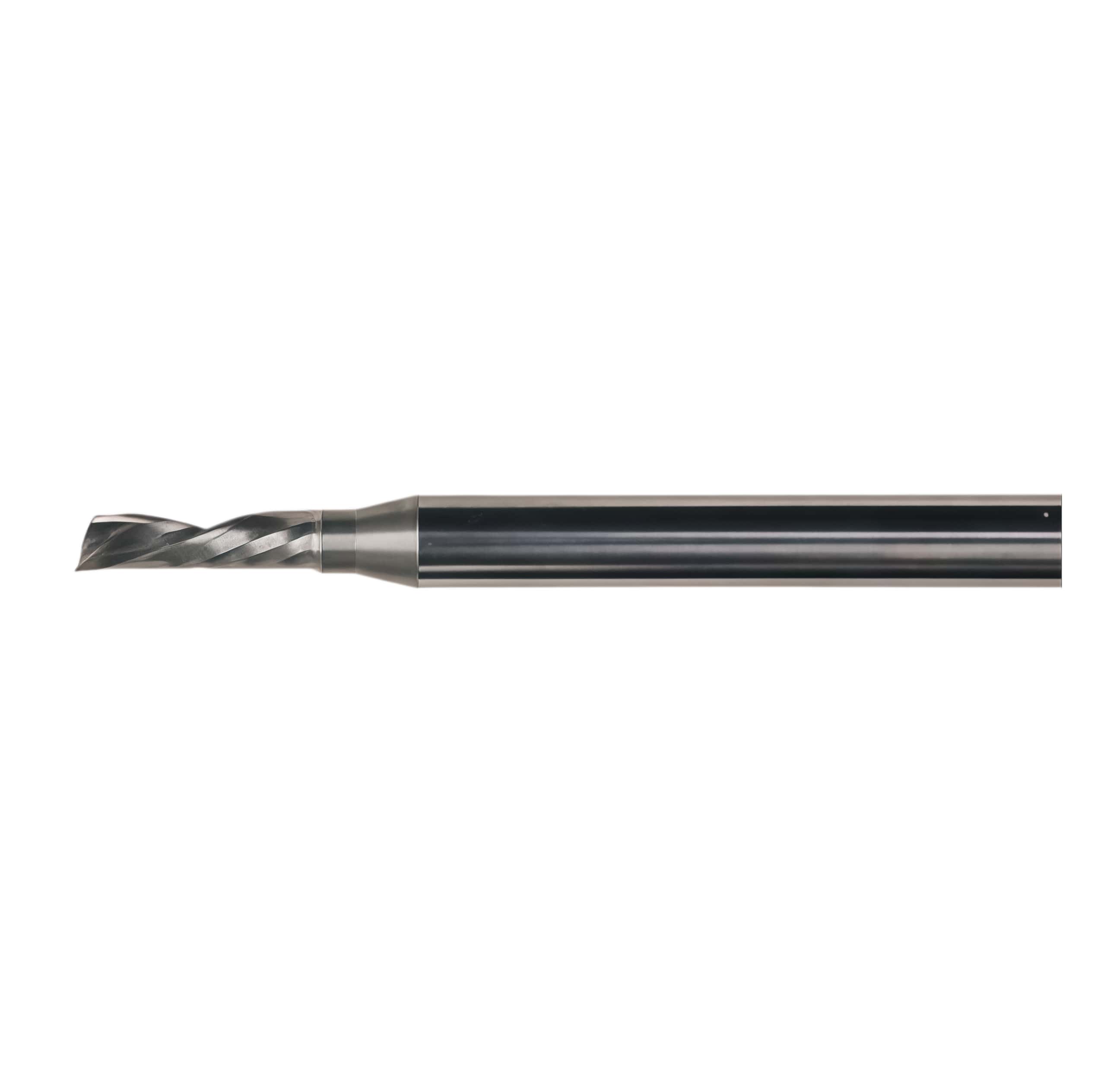

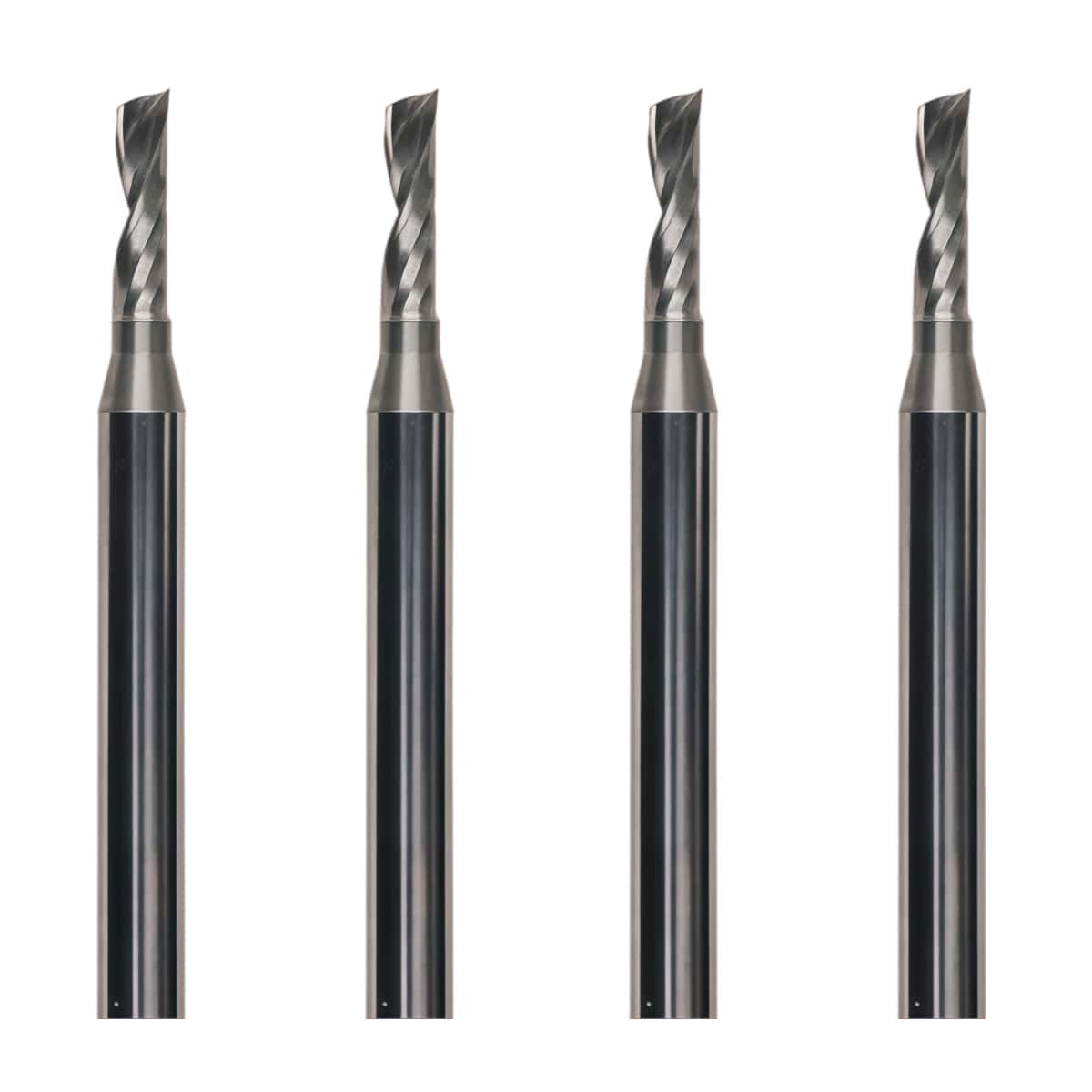

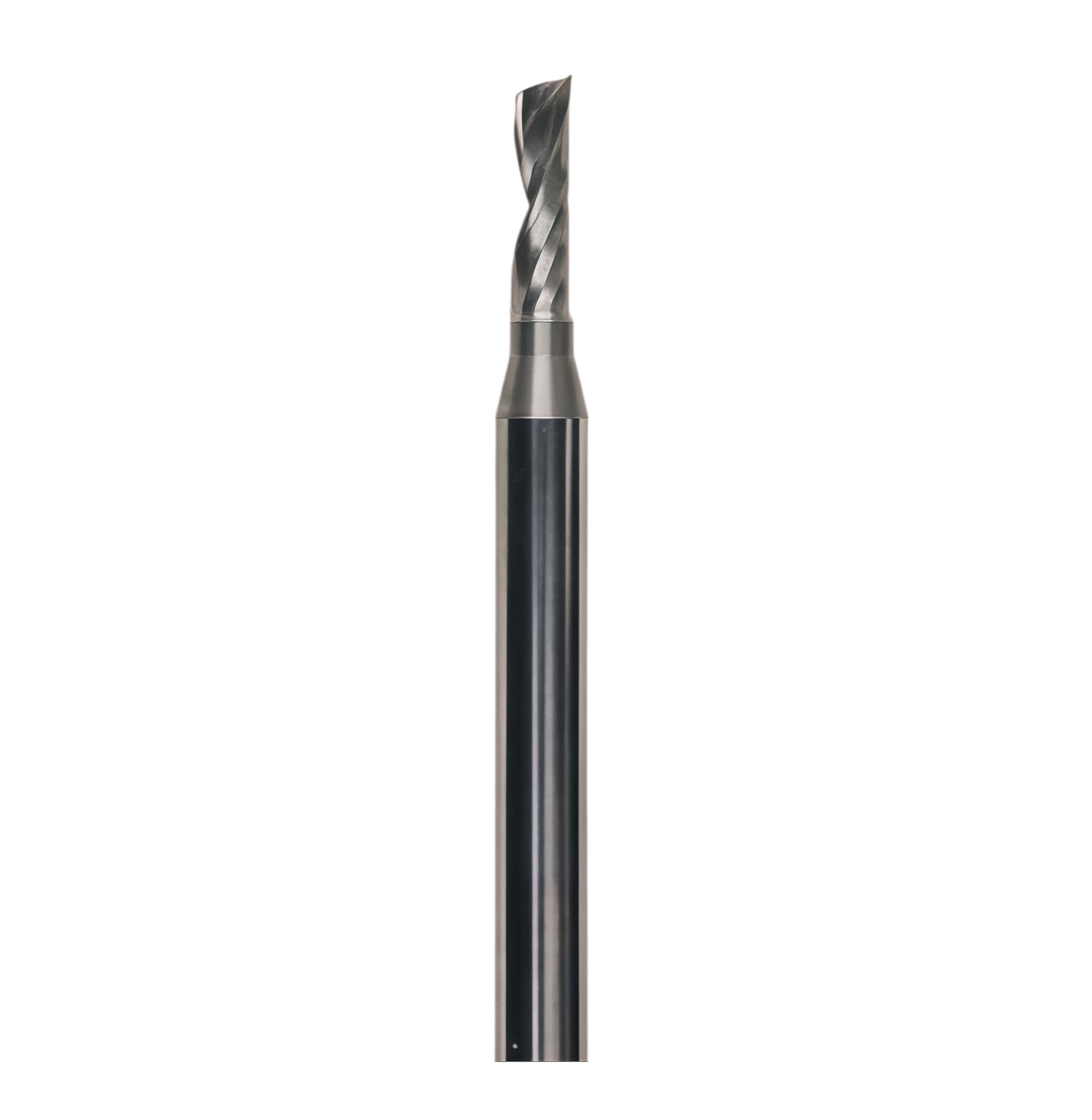

Zund Milling & Router Bits R73(3910754)

Zund R73 CNC Solid Carbide Milling & Router Bit (Item No. 3910754) is a premium single-flute tool optimized for clean cutting on digital flatbed cutters. Functioning as a companion tool to the R74 bit, the R73 distinguishes itself with a left-hand spiral (down-cut) design. This downward flute orientation forces material chips and downward pressure toward the vacuum bed, yielding a perfectly clean finish on the top edge of thin sheets.

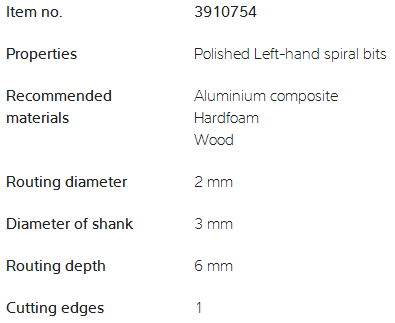

Item no.
3910754

Properties
Polished Left-hand spiral bits

Routing diameter
2 mm

Diameter of shank
3 mm
Routing depth
6 mm
Cutting edges
1

Recommended Materials

Composites: Aluminum Composite Materials (ACM / Dibond)
Plastics & Foams: Expanded PVC (Forex), PE, PET, PETG, PP, and PA 6.6
Wood Products: Thin MDF, plywood, and softwoods

Performance Characteristics

Because of its small 2 mm cutting diameter and short 6 mm routing depth, the R73 offers exceptional structural stability. The down-cut layout forces thin or flexible materials to stay firmly flattened against the vacuum bed, eliminating the vibration and lifting common with up-cut tools. Additionally, its polished single flute prevents friction and prevents melting or resin buildup when processing gummy plastics and softwoods.
