Zund R74 Cnc Milling & Router Bits 3910755- Production Manufacturing Supply Sales Store

Zund R74 CNC Milling & Router Bits (3910755) serve as a reliable replacement option, compatible with a wide range of applications. Available via the MyZund webshop, Shenzhen Oyea Machinery Co., Ltd specializes in providing these high-quality tools for production, manufacturing, and supply needs. The… Enquire now

Description

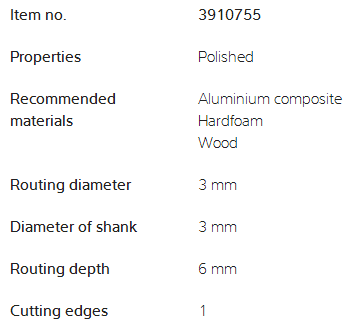

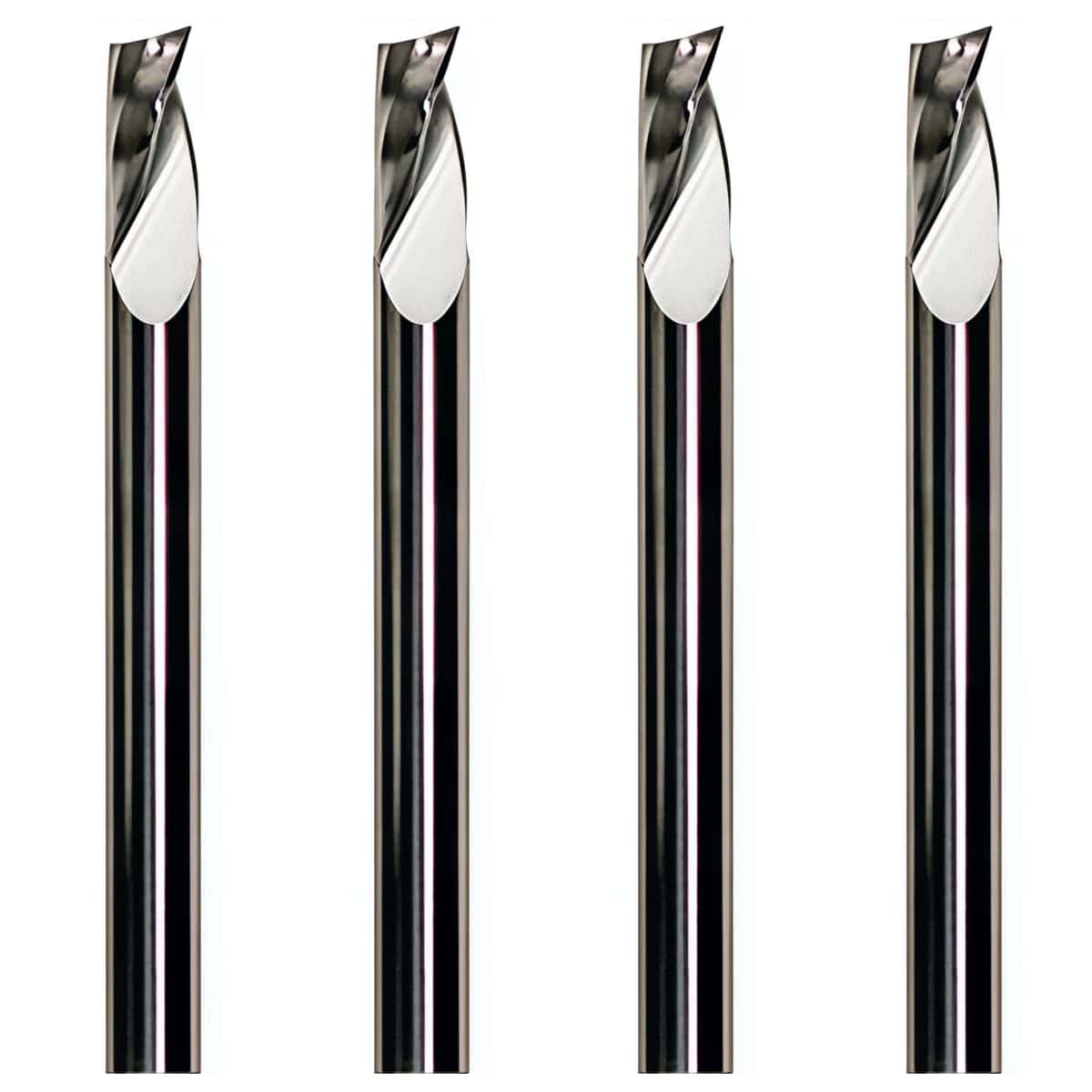

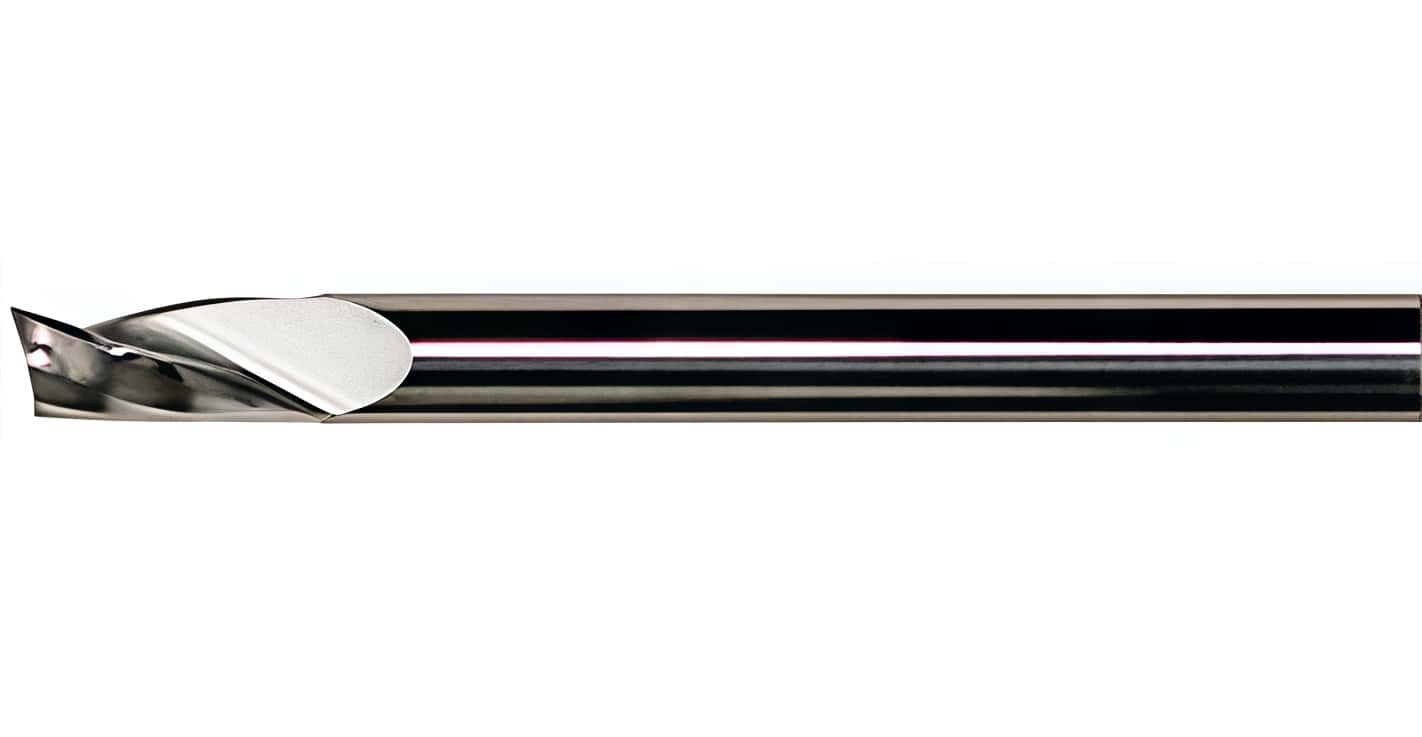

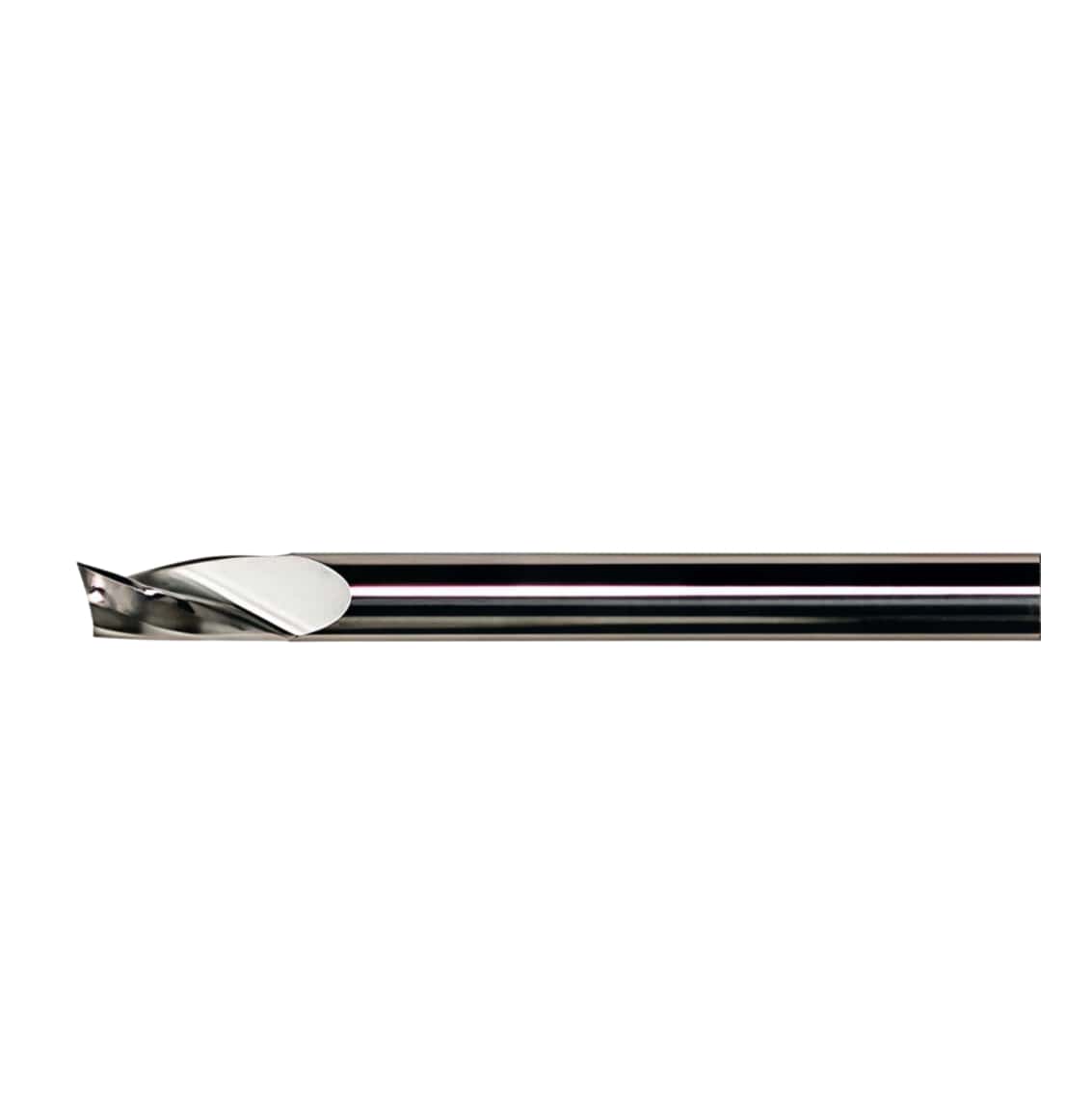

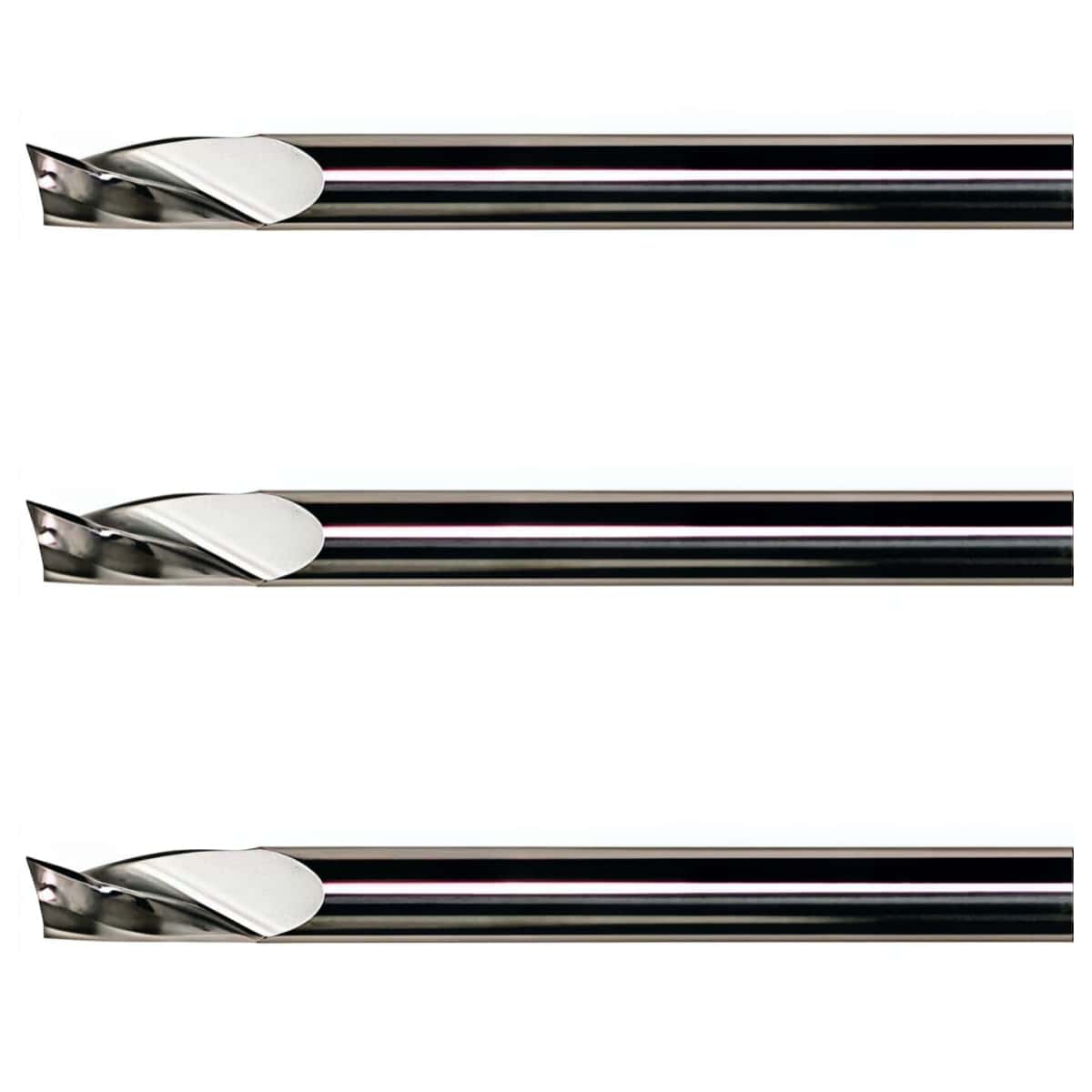

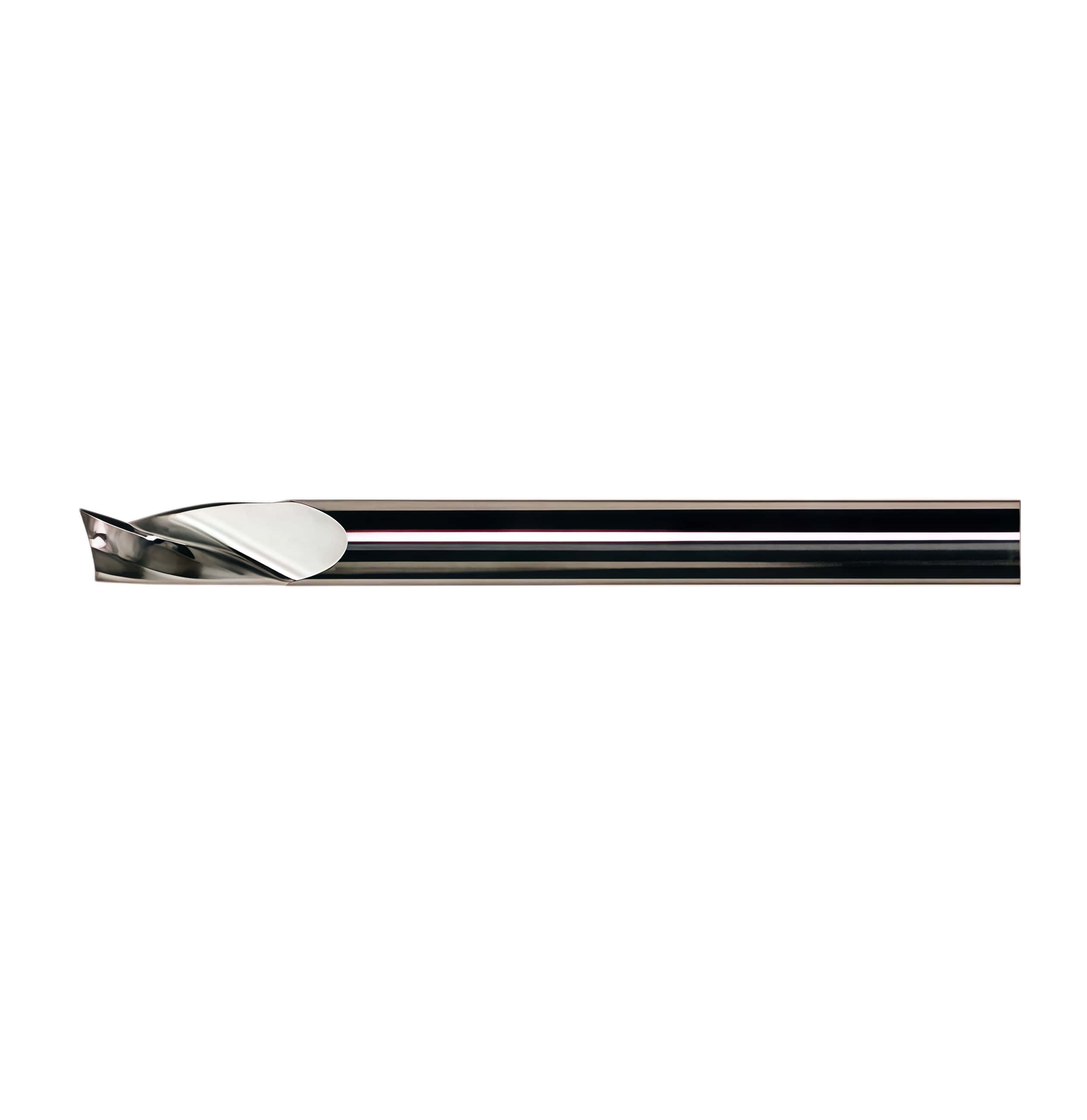

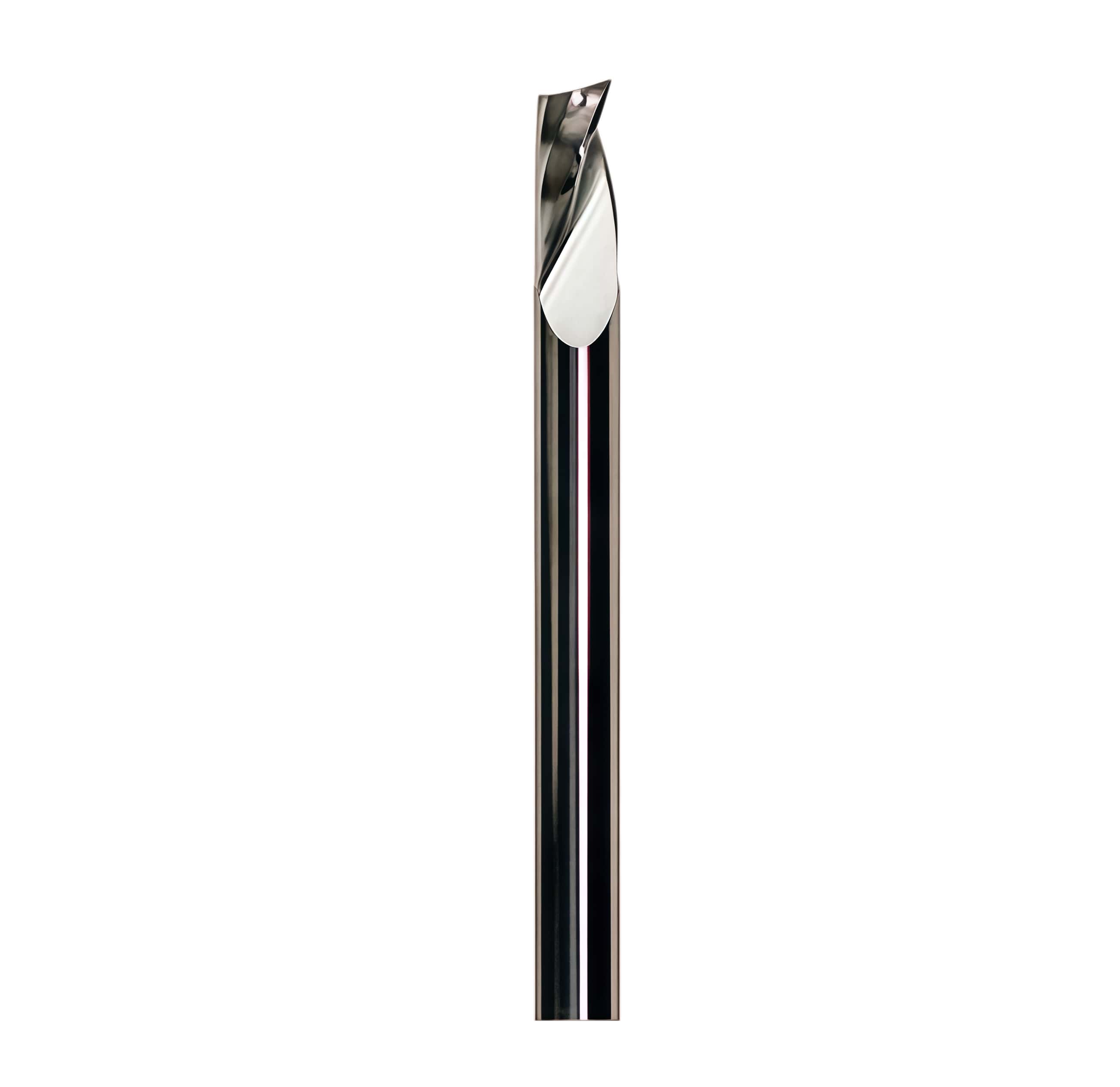

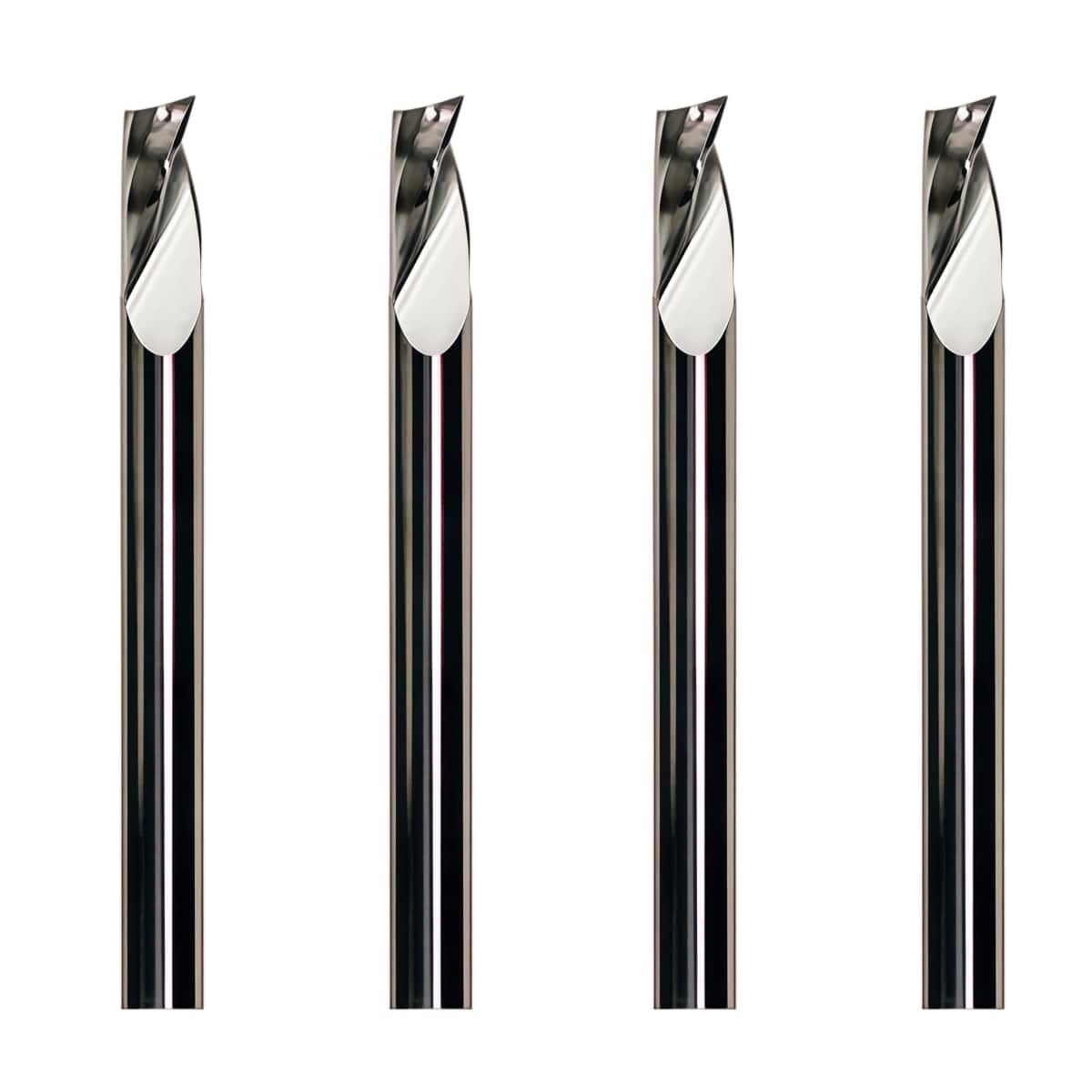

Zund Milling & Router Bits R74(3910755)

Item no.
3910755

Routing diameter
3 mm
Diameter of shank
3 mm
Routing depth
6 mm
Cutting edges
1

Recommended Materials

Composites: Aluminum Composite Materials (ACM / Dibond)
Plastics & Foams: Expanded PVC (Forex), PE, PET, PETG, and PP
Wood Products: Thin MDF, plywood, and various softwoods

Performance Characteristics

Because of its short 6 mm flute length, the R74 offers a much higher structural rigidity compared to the deeper 11 mm variants like the R75 and R76. This rigidity significantly minimizes tool vibration, drastically extending the bit's operating life while leaving a highly polished, burr-free side profile on thin panels. Its polished single O-flute geometry ensures that gummy plastics do not melt or fuse to the cutting edge at high rotation speeds.
