Zund R119 Cnc Milling & Router Bits 3910727-Replace Compatible Applicable Webshop

Zund R119 is a CNC router/milling bit in the Zund tool family, and 3910727 is the associated part number used by reseller listings for Zund-compatible router bits. Enquire now

Description

Zund Milling & Router Bits R119(3910727)

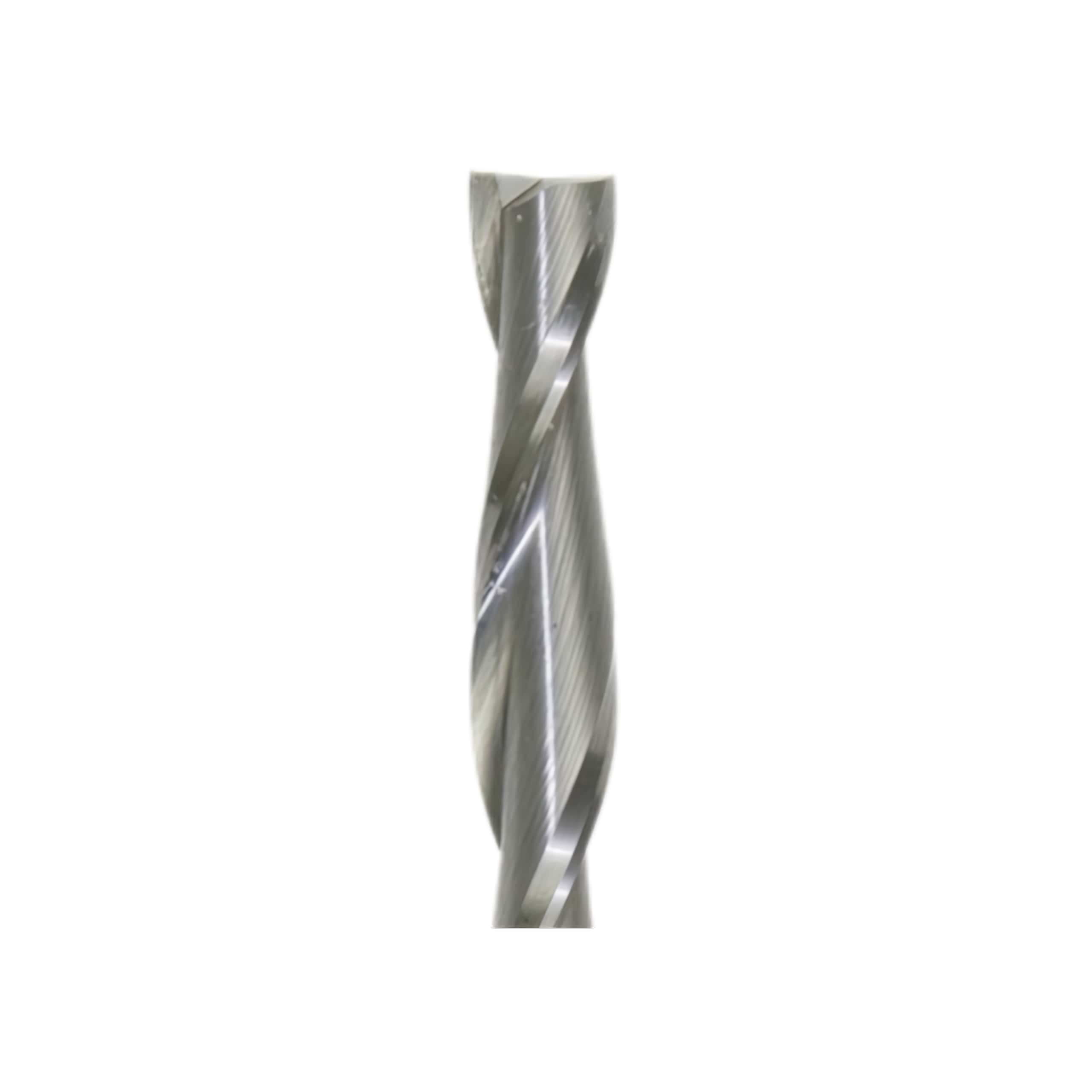

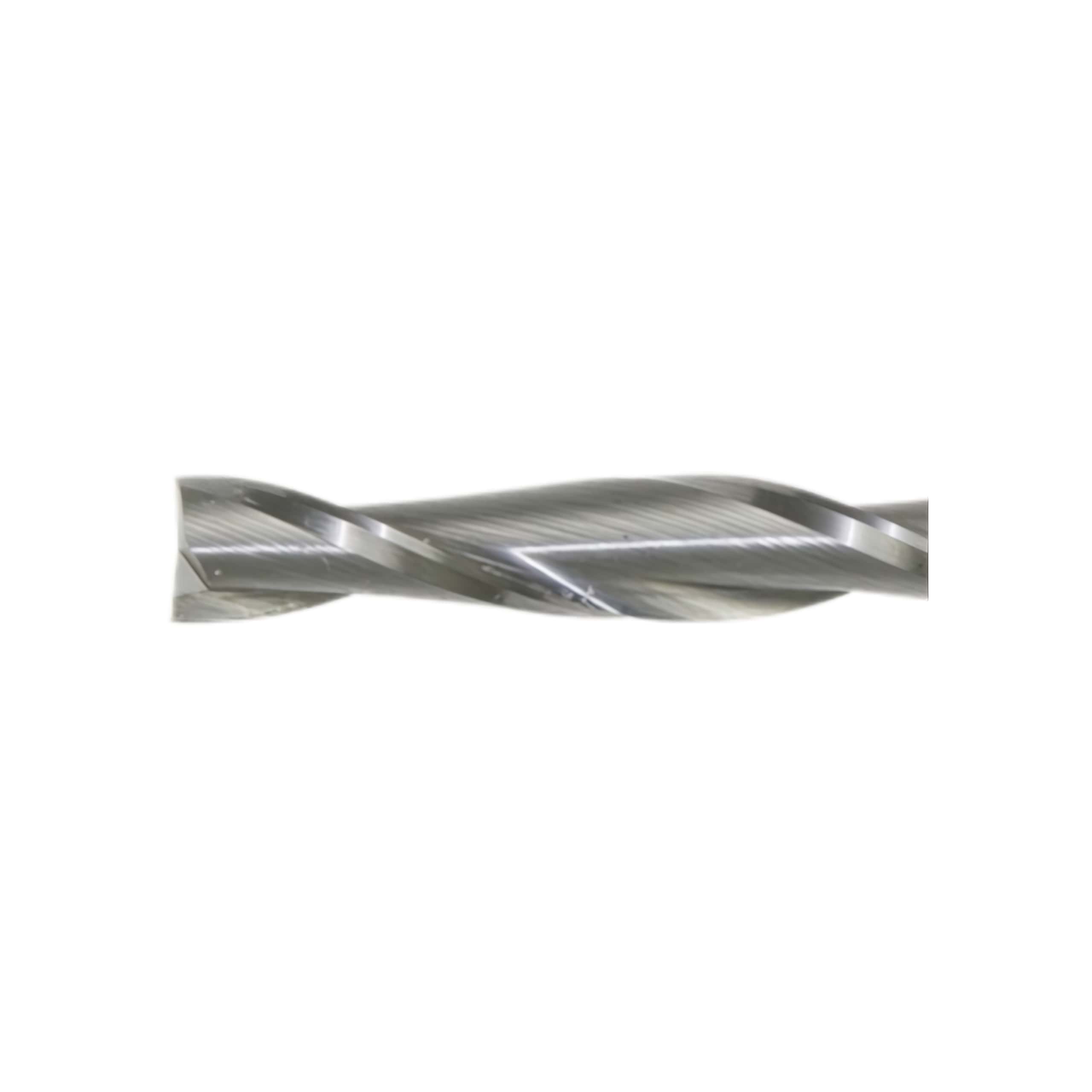

Zund R119 (Part Number 3910727) is an OEM solid tungsten carbide spiral milling and router bit engineered for deep-reach cutting applications on Zund digital flatbed cutters.

Technical Specifications

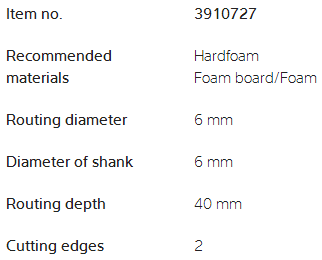

According to Zund tooling catalogs, the exact specifications for the R119

Shank Diameter: 6.0 mm
Routing (Cutting) Diameter: 6.0 mm
Maximum Routing Depth: 40.0 mm (Extended depth reach)
Overall Tool Length: 100.0 mm
Flute Configuration: 2-flute spiral upcut
Maximum Rotation Speed: 48,000 RPM

Recommended Materials

This bit features an extended-reach length specifically optimized for processing thick, lightweight,

Foam Board & Hardfoam (XPS insulation boards, polyurethane foam)
PE Foam (Polyethylene foam packaging profiles)
Honeycomb and Corrugated Plastics (Thick rigid boards)
Note: While some aftermarket suppliers list it for acrylic or aluminum, Zund's OEM catalog specifically targets it at foam and rigid/soft composite thick board groups due to its 40mm cutting length.

Compatible Tool Modules

The R119 operates seamlessly with Zund cutting systems using the following high-power

RM-A Module (Router Module Automatic)
RM-L Module (Router Module Long)
URT (Universal Routing Tool)
