Zund R202 Tungsten Carbide Milling & Router Bits 5209418-Production Manufacturing Supply Sales Store

Zund R202 Tungsten Carbide Milling and Router Bits 5209418 – Your Source for Production, Manufacturing, and Supply Sales Enquire now

Description

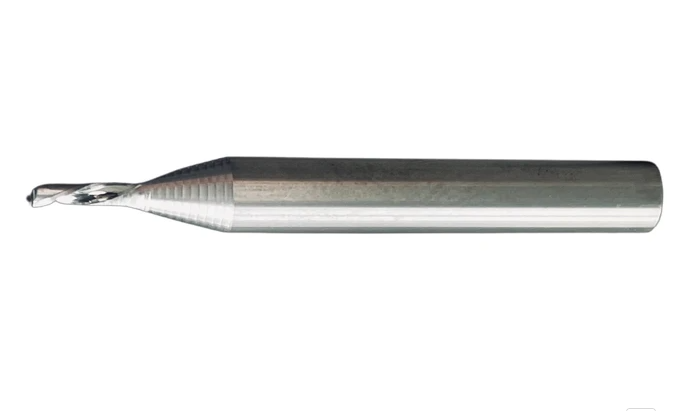

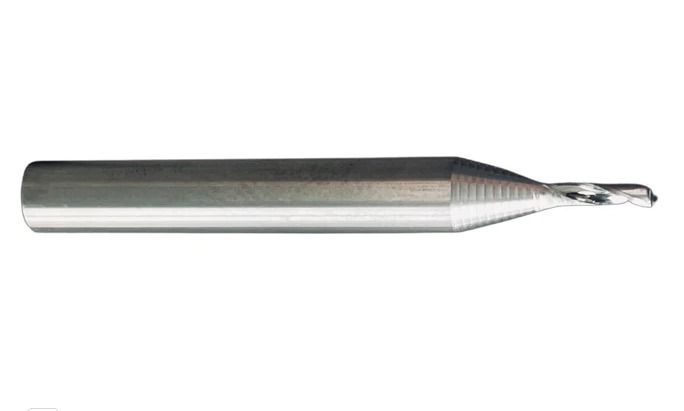

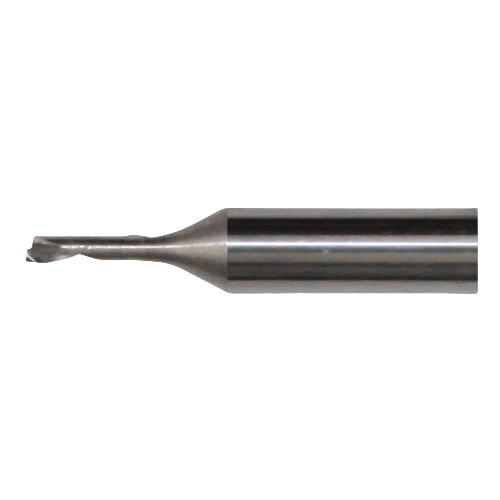

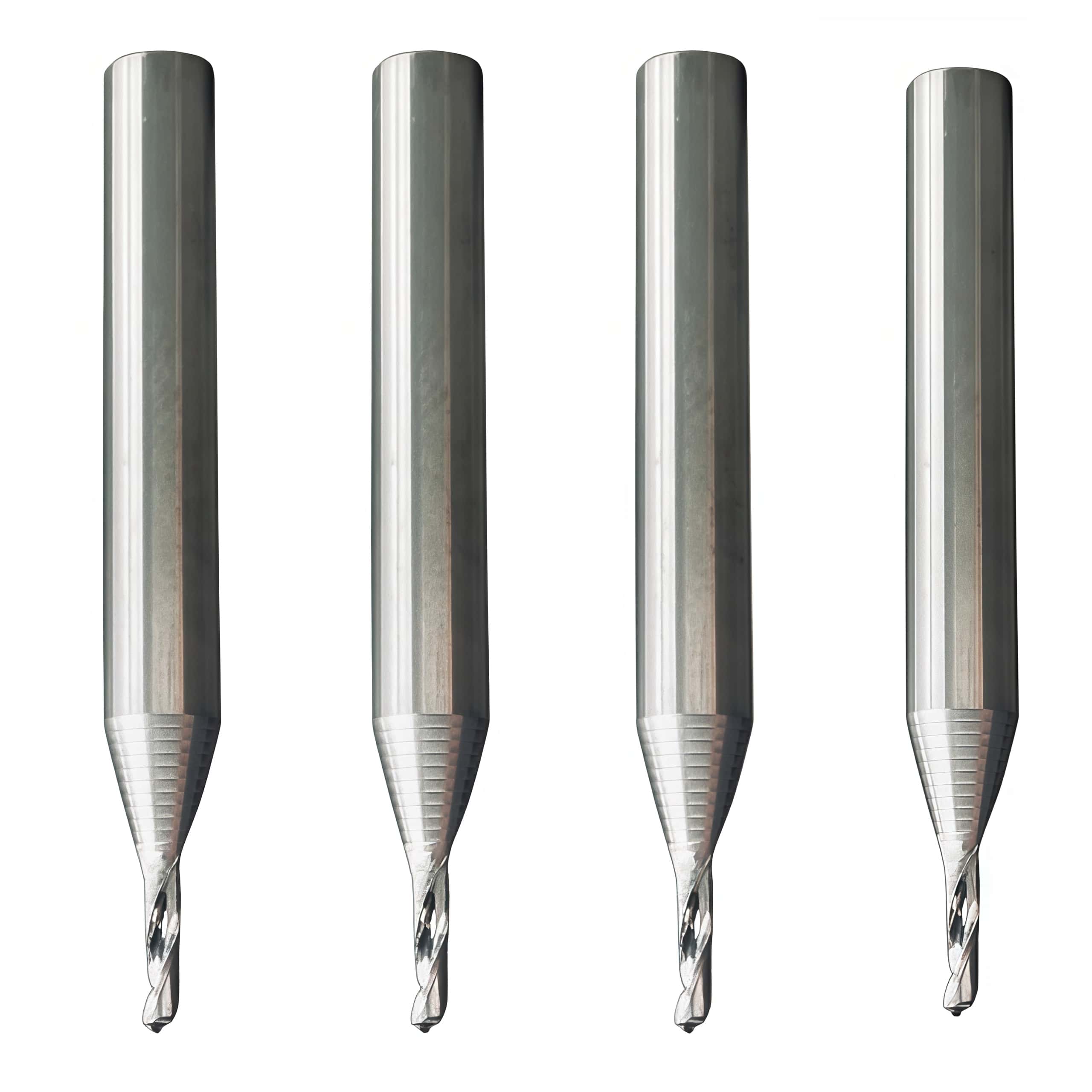

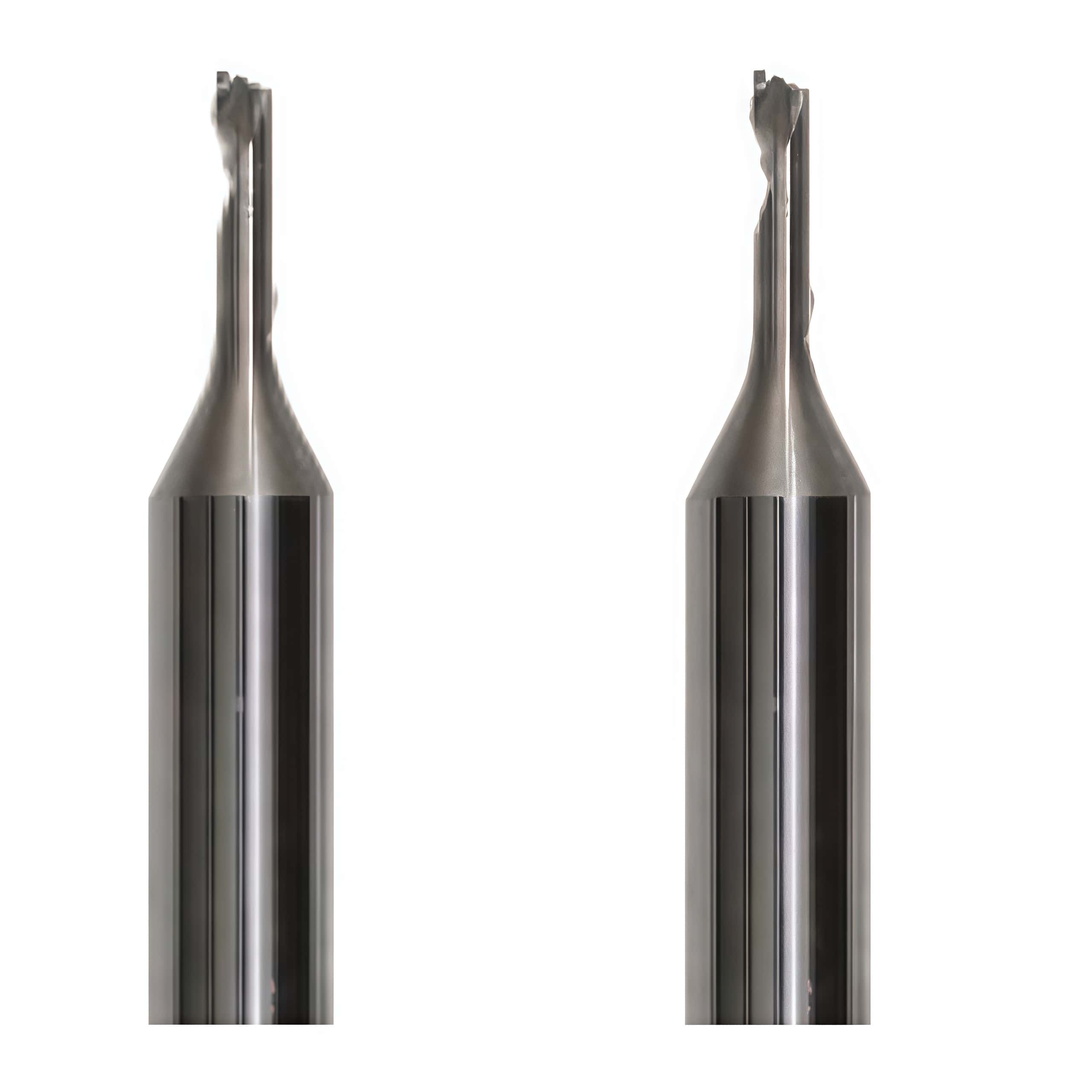

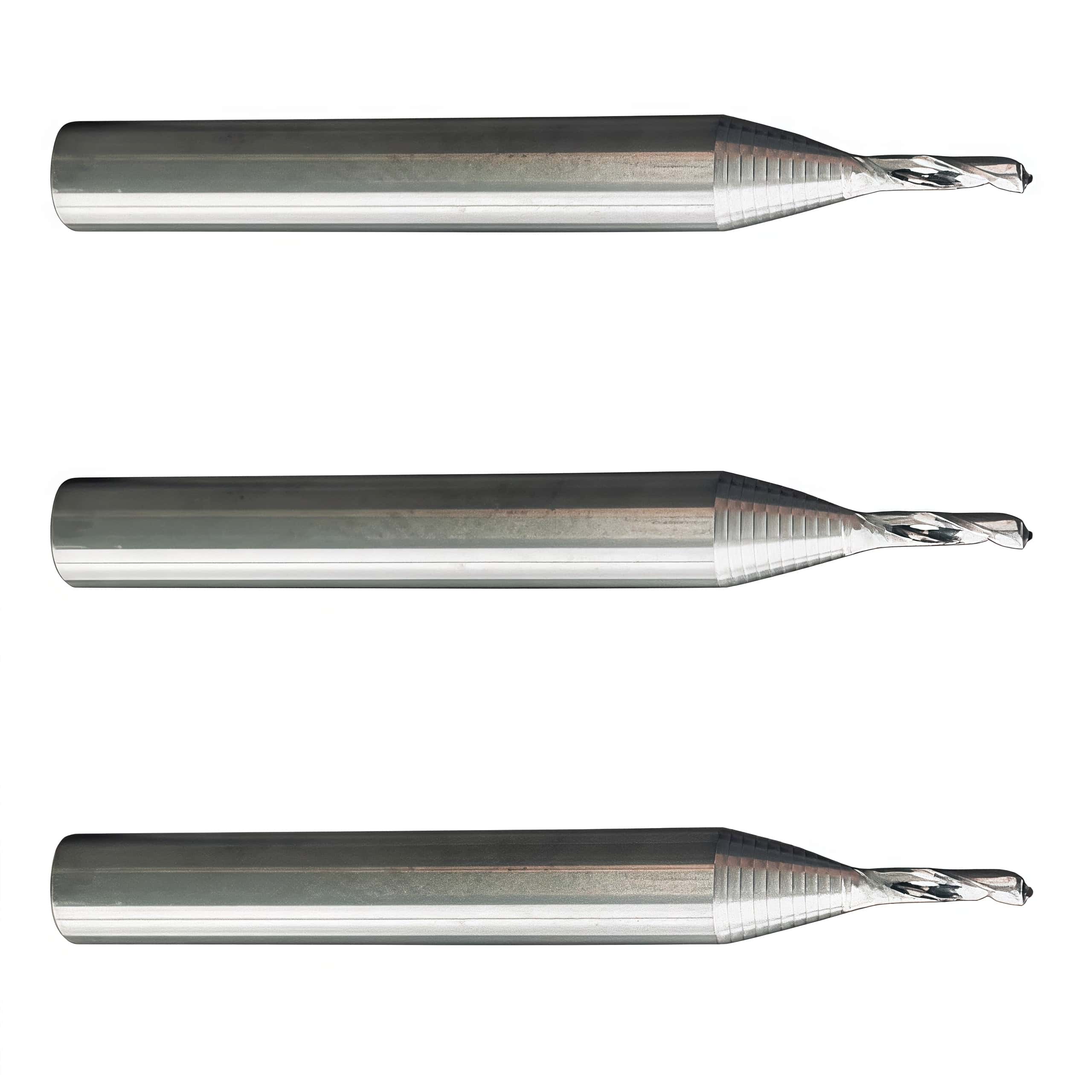

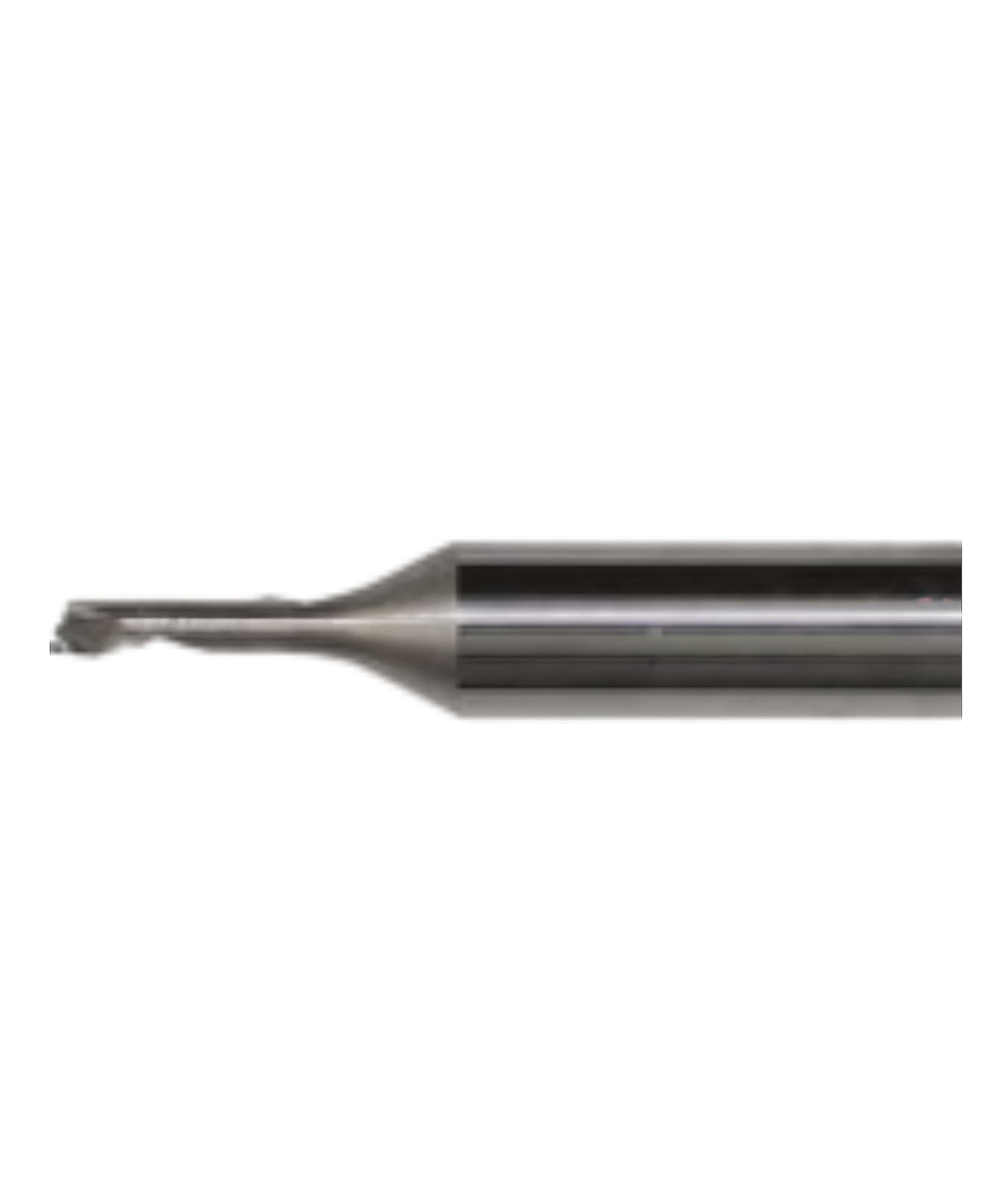

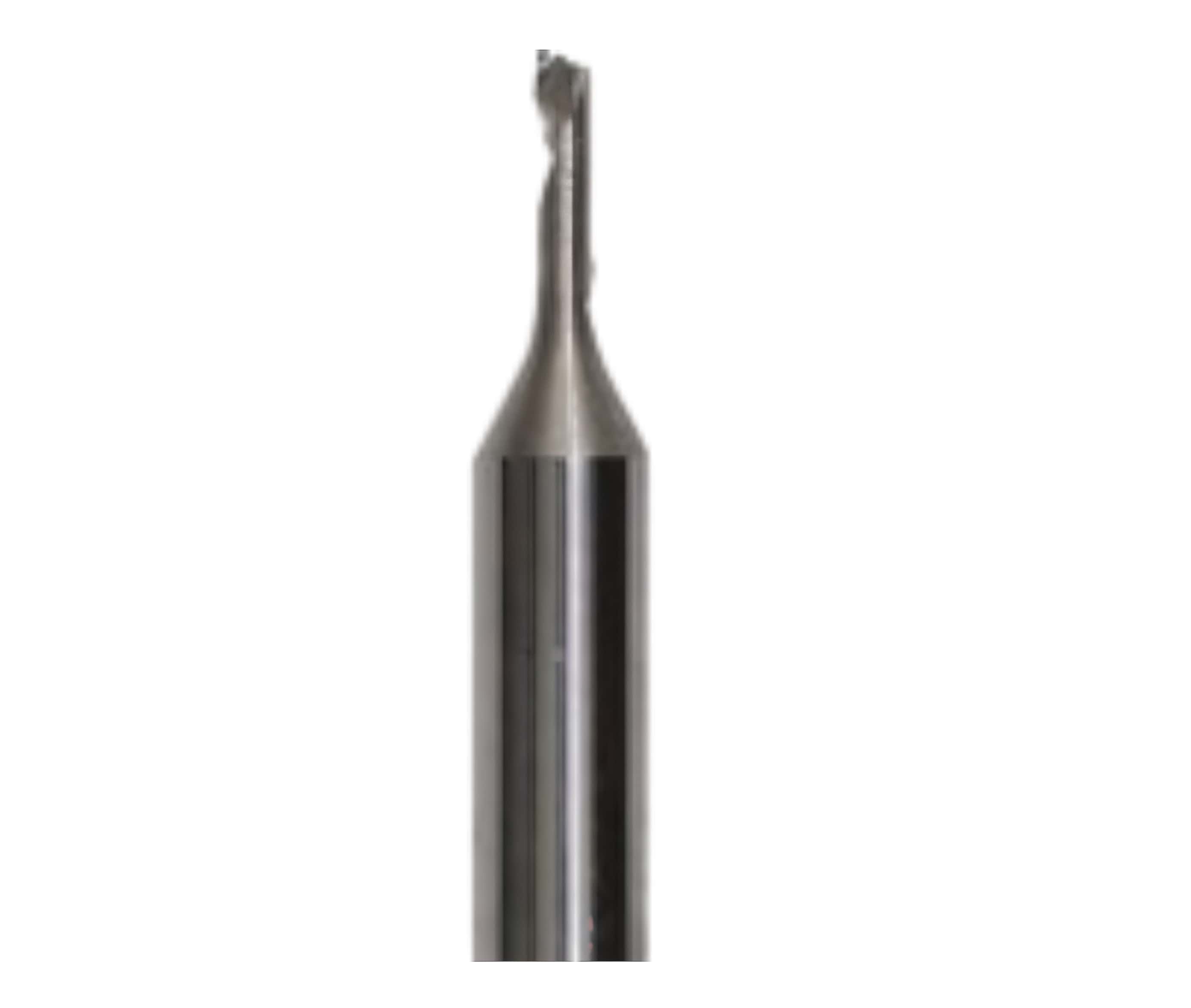

Zund Milling & Router Bits R202(5209418)

The Zund R202 (Part #5209418) is a premium, solid tungsten carbide multipurpose router bit engineered explicitly for Zund digital cutting systems. It features a single-flute, right-hand spiral (up-cut) geometry designed to eject chips upward and deliver exceptionally clean edge finishes.

Technical Specifications

Routing Diameter: 2.0 mm
Max. Routing Depth: 6.0 mm
Shank Diameter: 6.0 mm
Total Length: 58 mm
Maximum Rotation Speed: 50,000 RPM
Material Composition: High-grade Tungsten Carbide (HRA 89~92.5)
Variants: Available as the standard R202 or the R202-A variant, which includes an integrated stop ring for automated tool changers (ARC systems).

Target Materials

The R202 bit balances durability and cutting speed across a massive range of both soft and hard materials:

Composites & Metals: Aluminum alloy, Dibond (ACM), and Pertinax.
Plastics: Acrylic (PMMA), Polycarbonate (PC), PETG, Expanded PVC (Forex), Polystyrene (PS), PP, and PE.
Woods & Foams: MDF, Plywood, hard paper, and rigid PUR/PMI foam boards.
