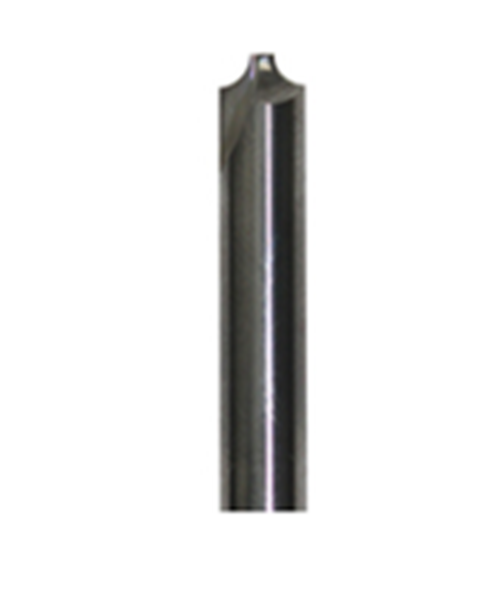

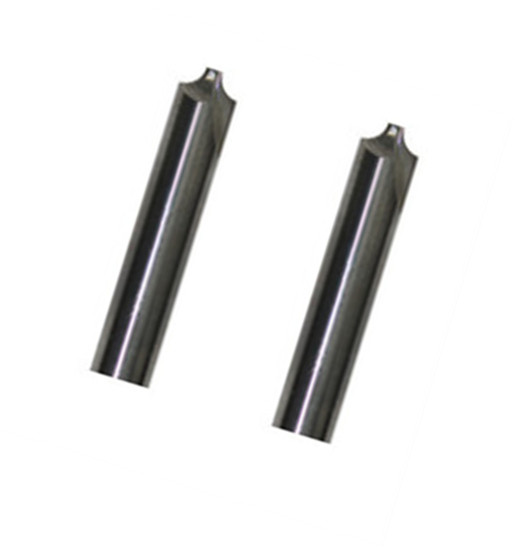

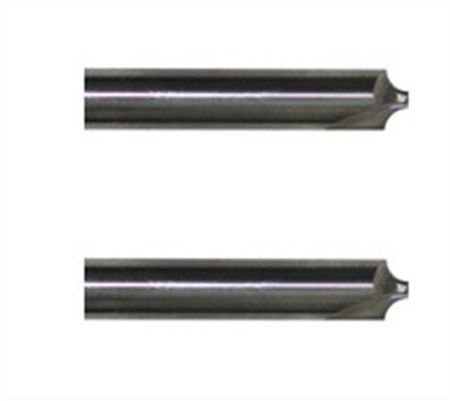

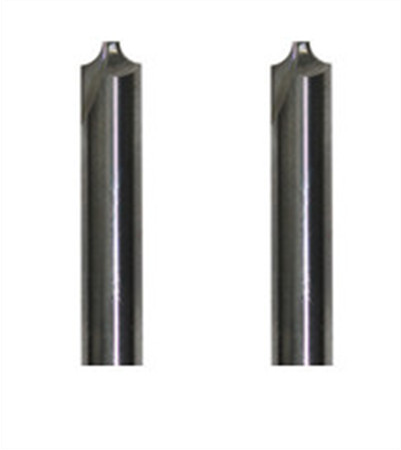

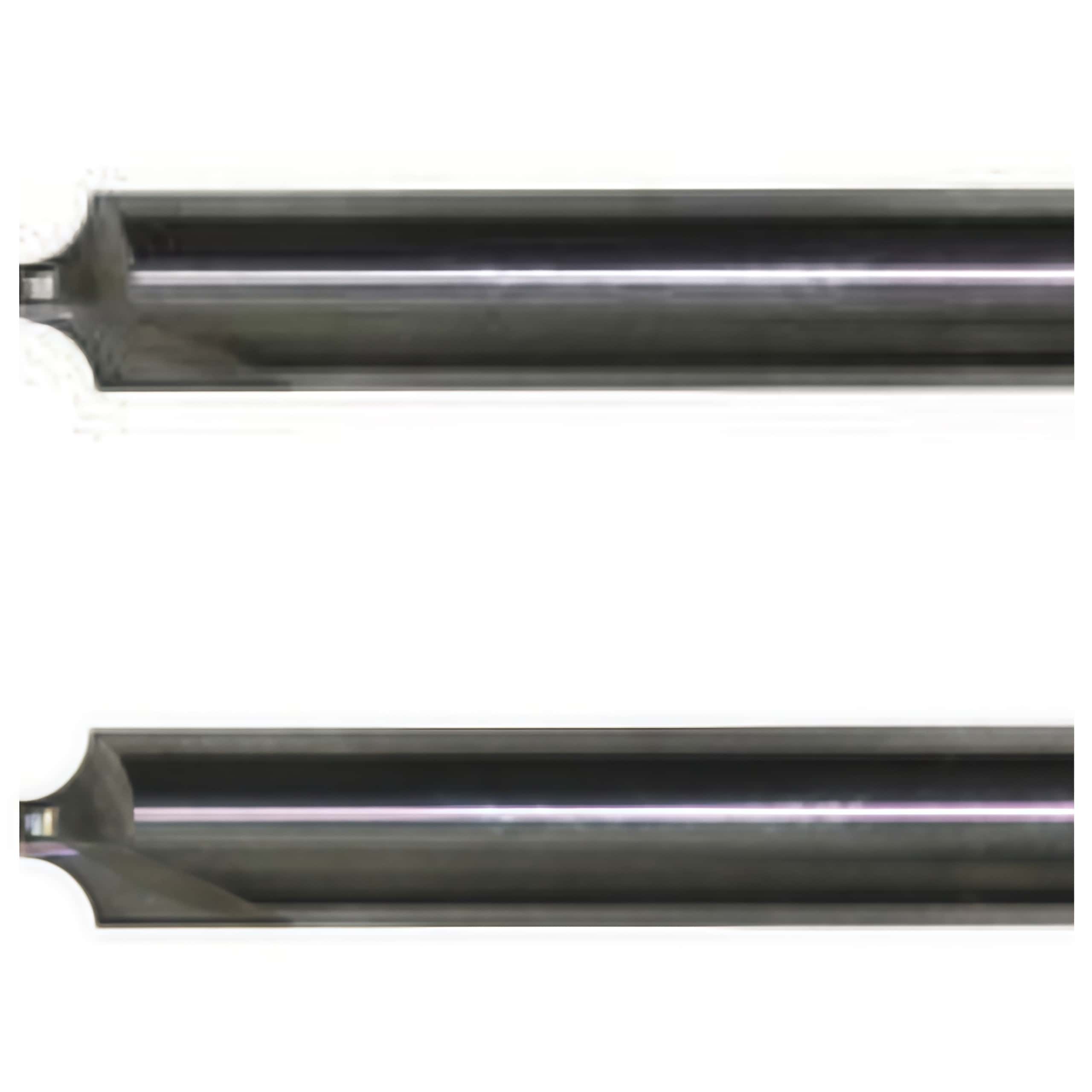

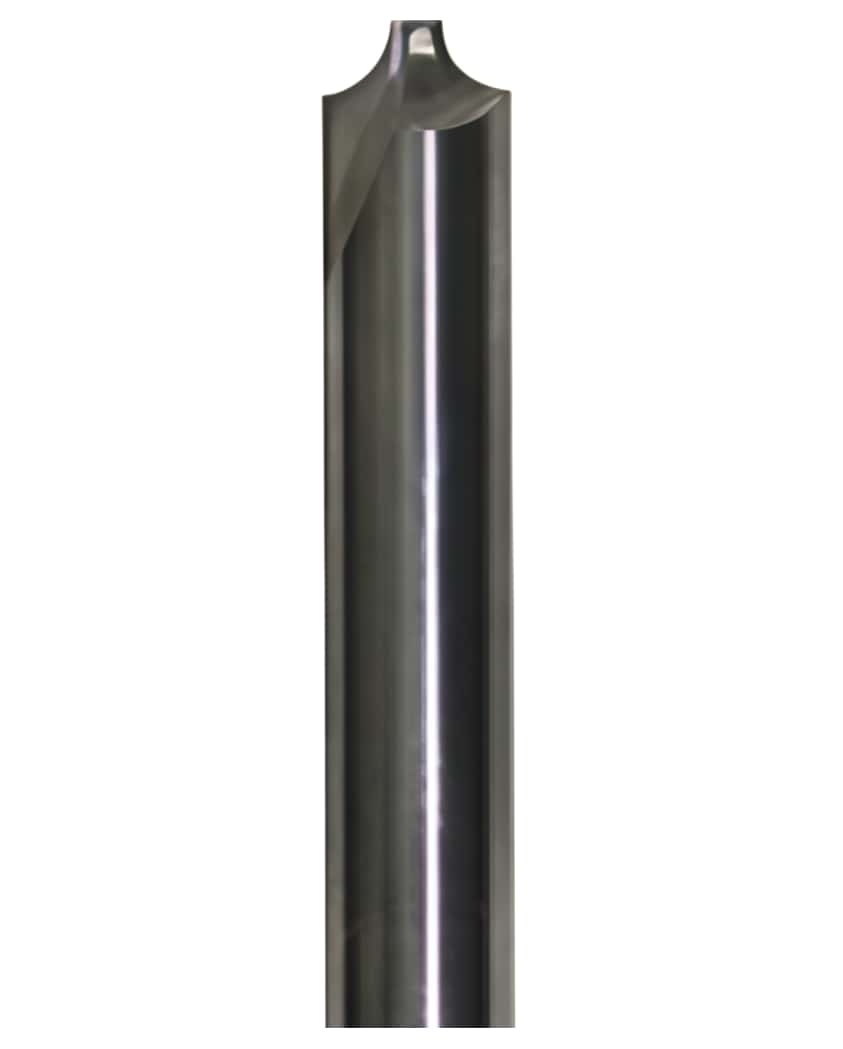

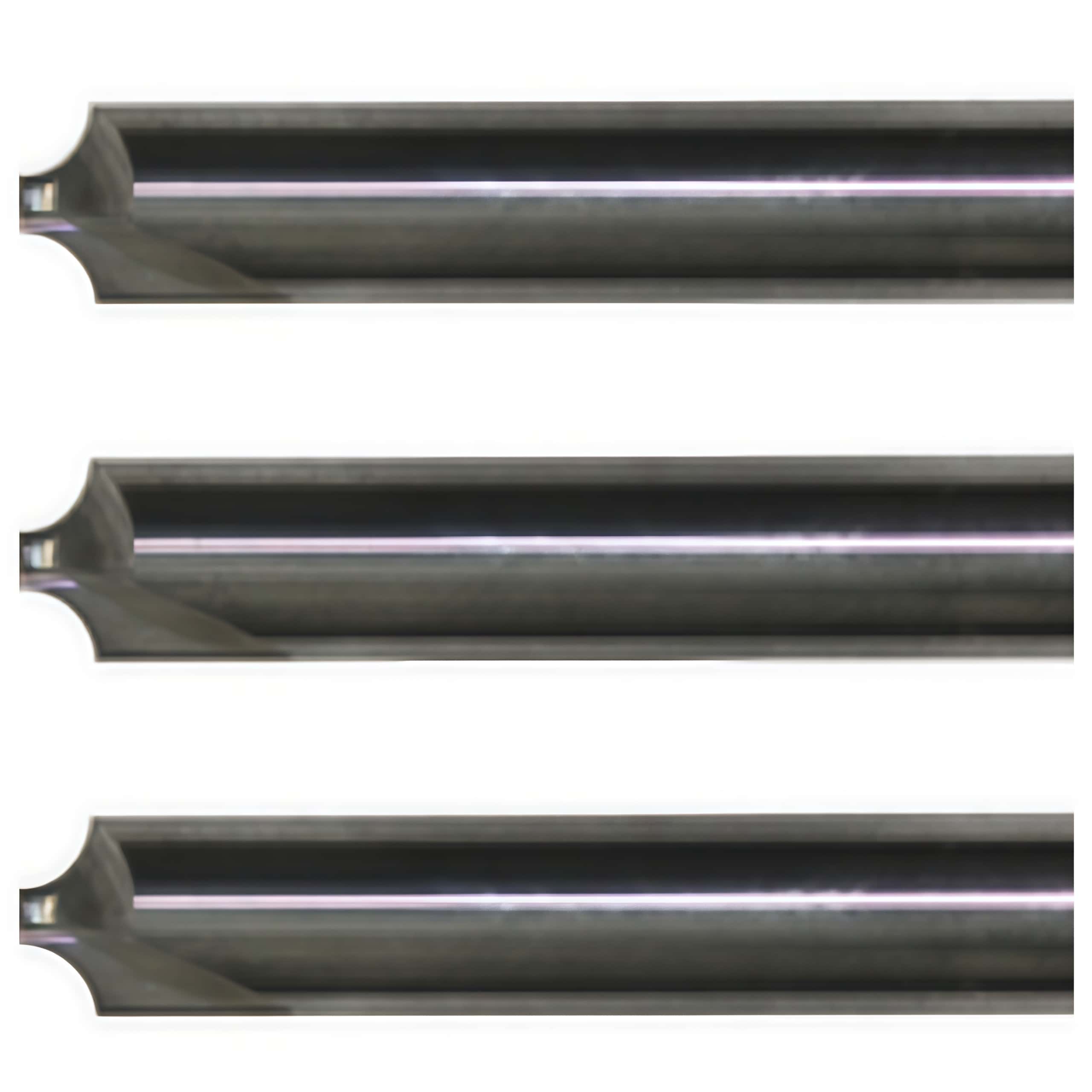

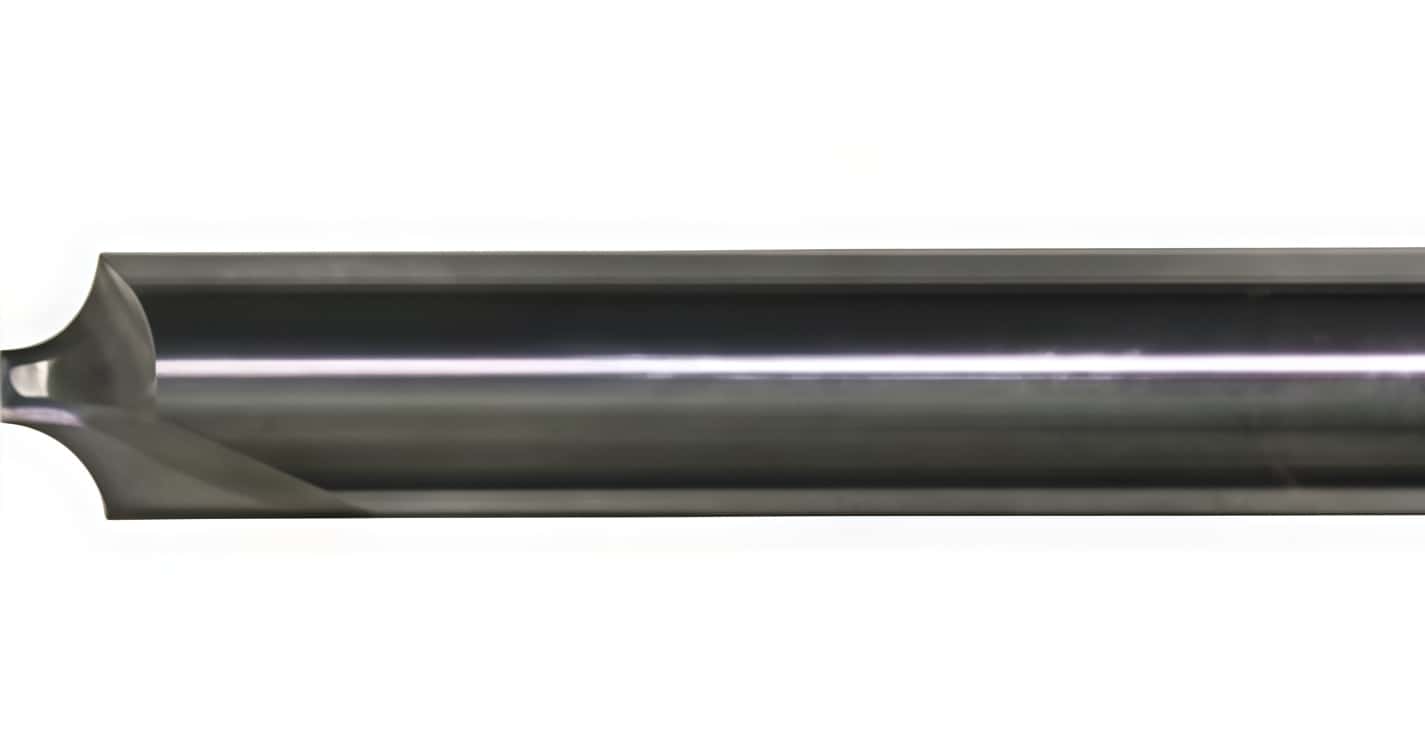

Zund R210 Cnc Flatbed Systems Carbide Router Bit Cutting Tool 5213150

Zund R210 Fine Grain Carbide Router Bit (5213150) is a top-tier, industrial-grade cutting tool made from solid tungsten carbide. It is designed for precise milling on Zund CNC flatbed digital cutting systems. Enquire now

Description

Zund R210 Cnc Flatbed Systems Carbide Router Bit Cutting Tool 5213150

Zund R210 Fine Grain Carbide Router Bit (5213150) is a premium, industrial-grade solid tungsten carbide spiral cutting tool engineered for high-precision milling on Zund CNC flatbed digital cutting system

Key Specifications

Routing / Shank Diameter: 6.0 mm
Overall Tool Length: 50 mm
Max Routing Depth: 2.0 mm
Geometry: 2-Flute right-hand twist (up-cut) with a 2 mm radius top edge
Maximum Rotation Speed: 50,000 RPM

Material Compatibility

This fine-grain carbide profile is highly versatile, optimizing edge finishes across both rigid and flexible media:

Metals & Composites: Aluminum composite material (ACM / Dibond) and soft aluminum alloys.
Plastics: Acrylic (PMMA), Polycarbonate (PC), PETG, Expanded PVC, and Polyamide (PA 6.6).
Wood & Fiber Boards: MDF, Multiplex (MPX), Plywood, and Hard paper boards.
Foams & Insulation: PE foam, PUR foam, and Extruded Polystyrene (XPS).

Hardware Compatibility

The standard R210 tool is designed to lock seamlessly into Zund routing modules, including the RM-L, RM-A, RM-A QC, and RM-S modules.

Note: If your Zund system is configured with an Automatic Router-bit Changer (ARC), you will need the R210-A variant (Item No. 5213151), which includes an integrated stop ring for automated mechanical tool calibration and hands-free swaps.
