Esko Kongsberg Milling & Router Bits BIT-MDS06-4012-50 G42449389

Esko Kongsberg BIT-MDS06-4012-50(G42449389 / 42449389 ) is a multi-purpose single-flute down-cut router bit primarily used in Kongsberg CNC cutting machines Enquire now

Description

Esko/Kongsberg Milling & Router Bits BIT-MDS06-4012-50(G42449389)

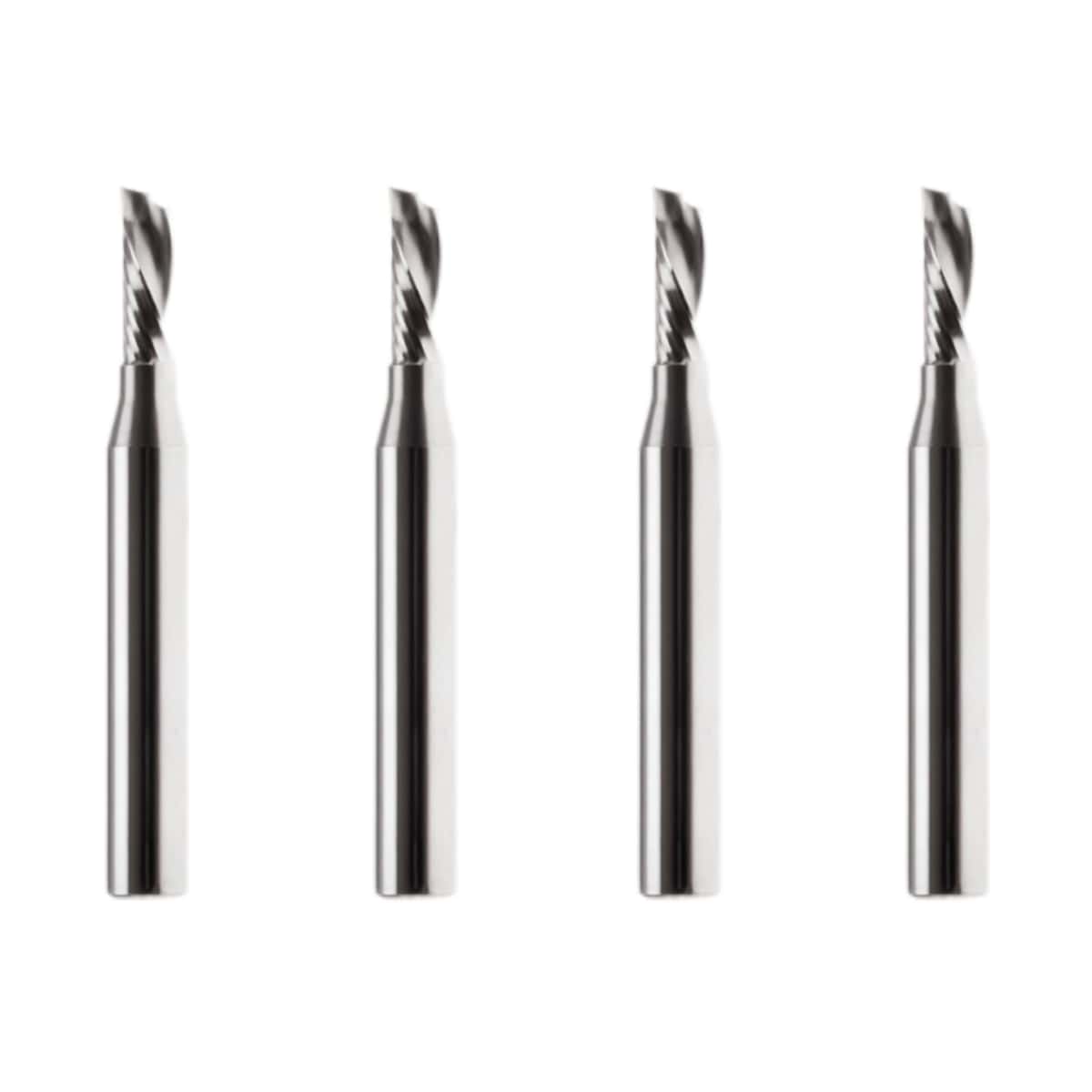

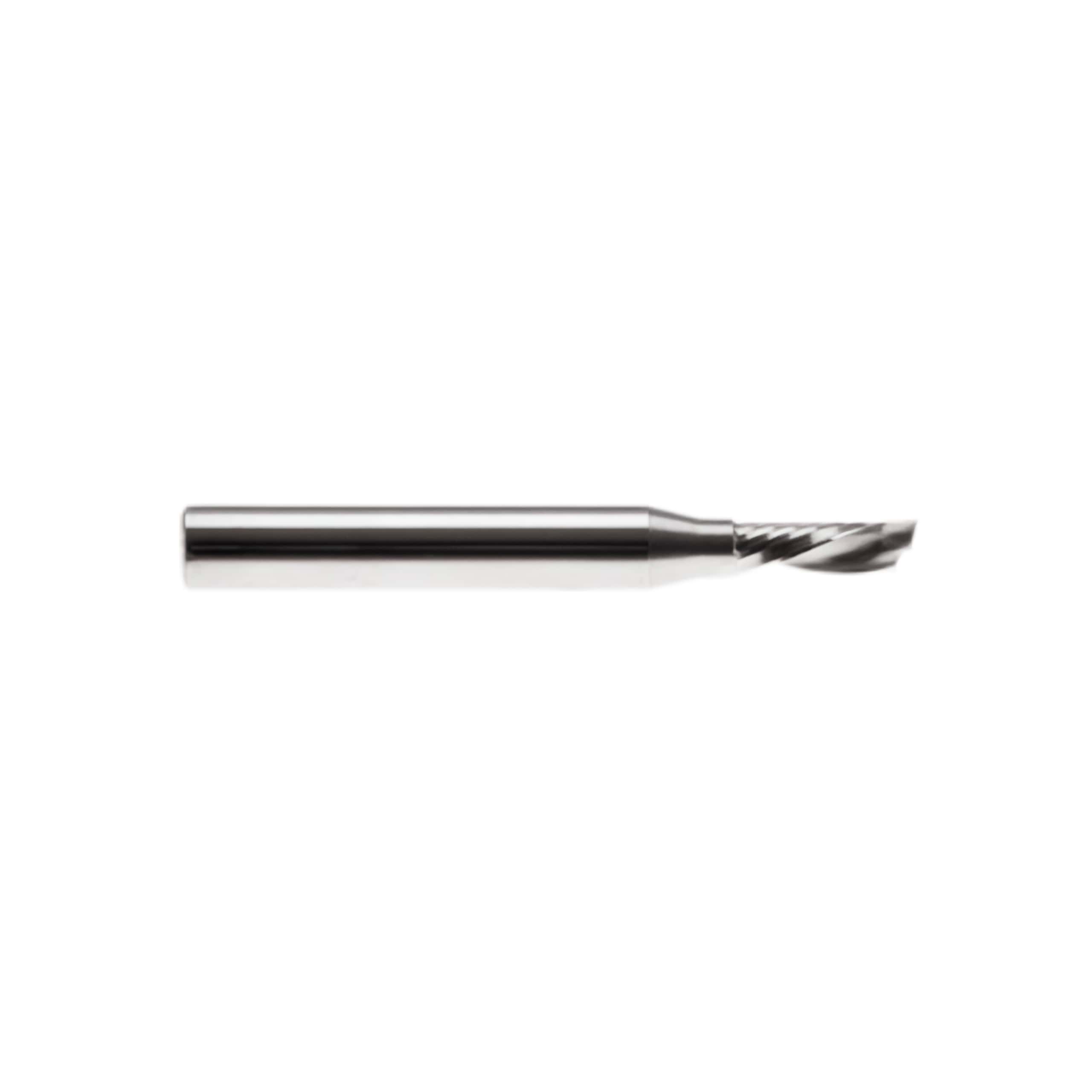

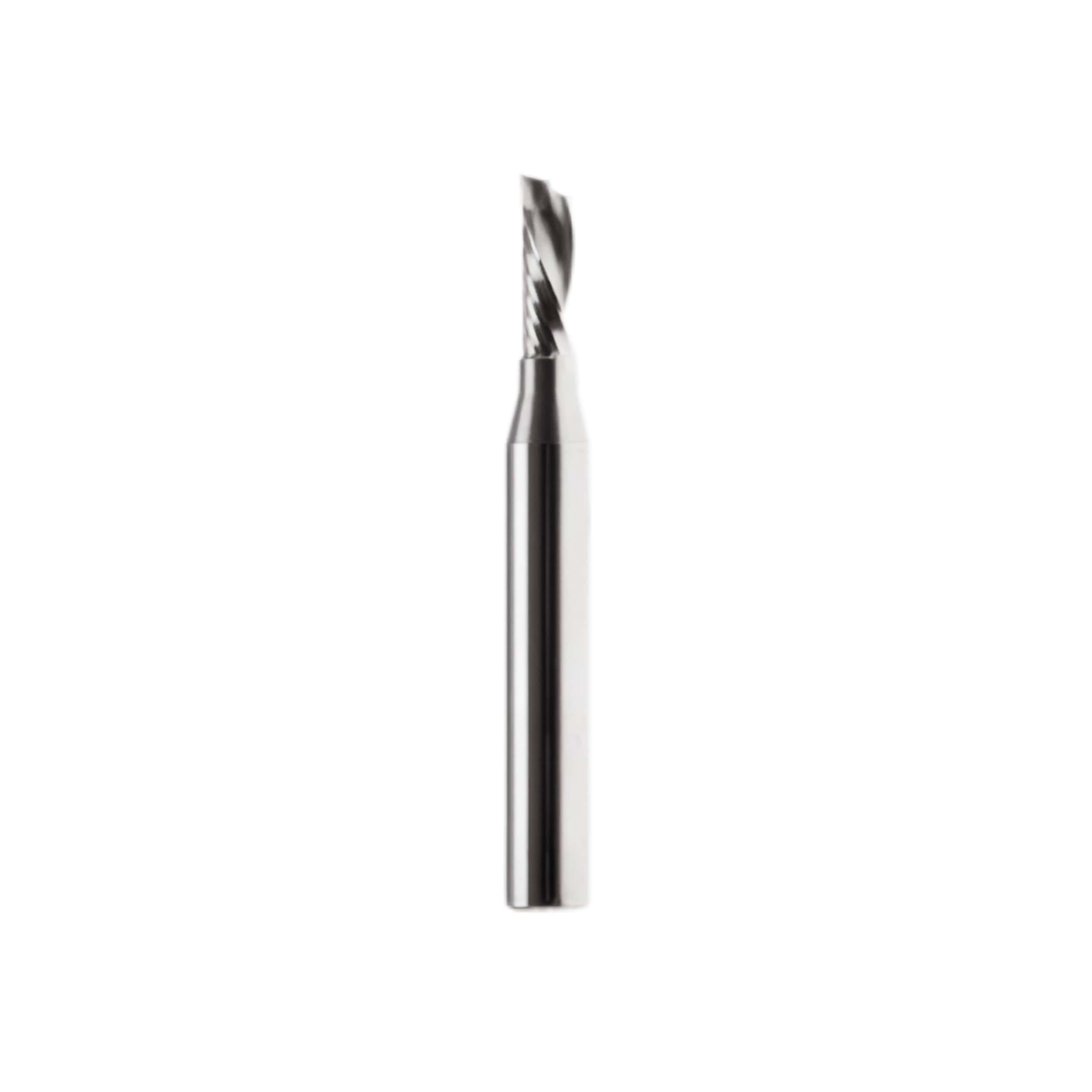

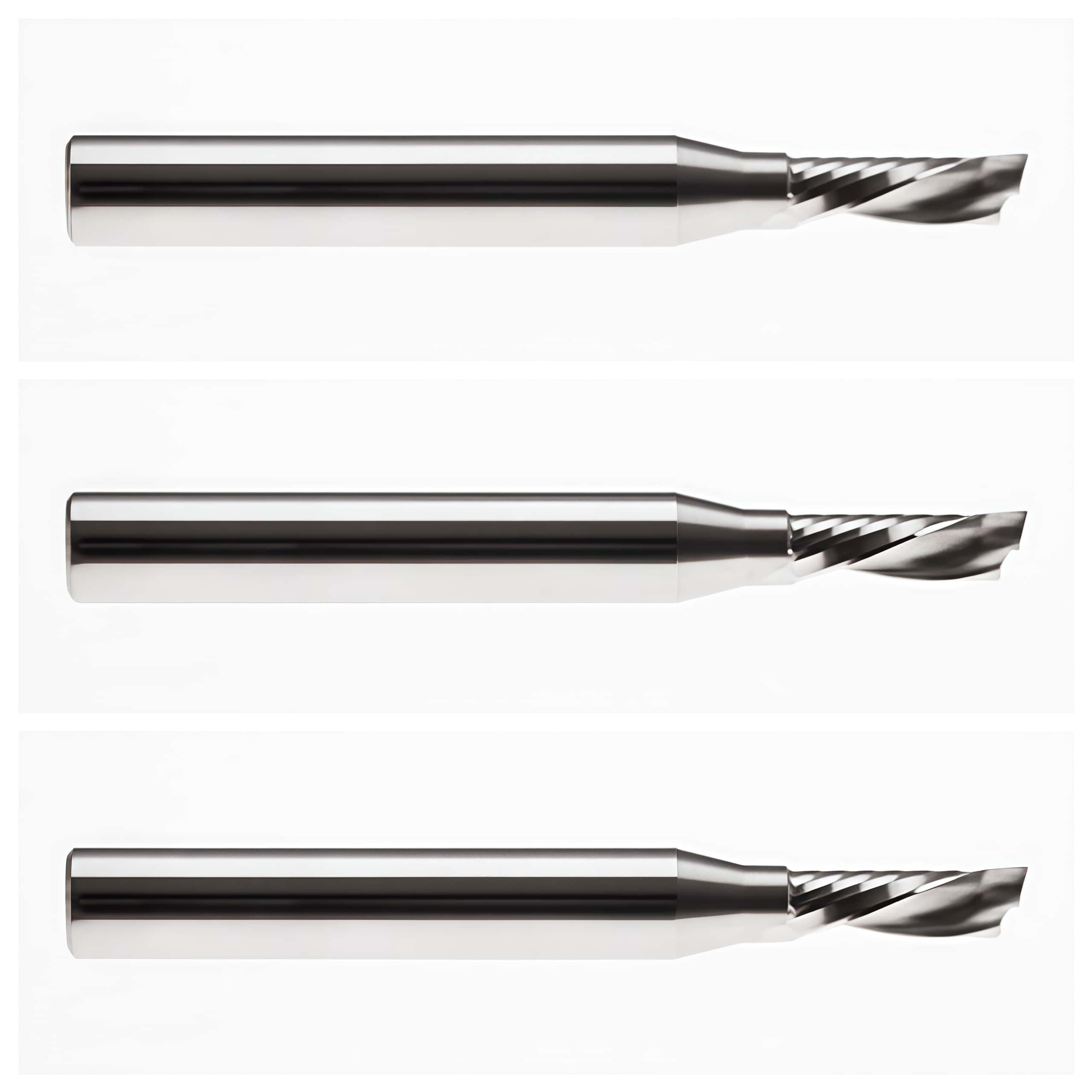

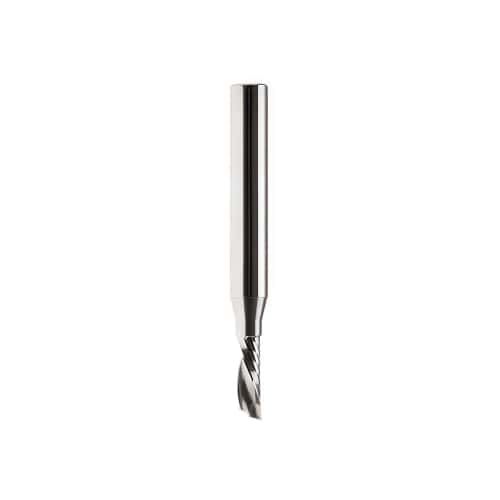

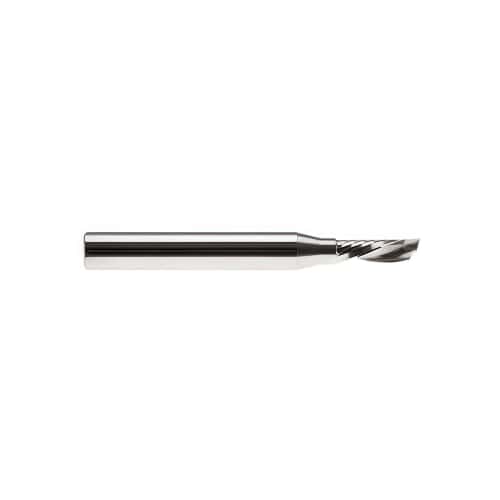

Esko Kongsberg BIT-MDS06-4012-50(G42449389 / 42449389 ) is a multi-purpose single-flute down-cut router bit primarily used in Kongsberg CNC cutting machines, such as those equipped with the MultiCUT module . This tool is designed to provide a smooth, flat top edge when machining certain materials of specific hardness or softness.

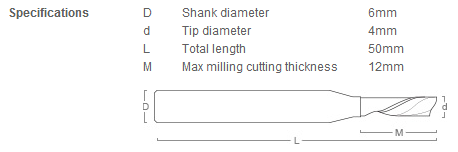

Core Technical Specifications

Parameters	Specifications
Shank Diameter	6 mm
Cutting Diameter (Tip/Cutting Diameter)	4.0 mm
Flute Length / Max Milling Depth	12 mm (some compatible parts can reach 14 mm)
Total Length	50 mm
Chip removal flue types (Flutes)	Single-blade (1 Flute), O-type chip removal groove
Cut Direction	Left-hand spiral / Down cut
Maximum RPM	50,000 RPM

Applicable Materials and Application Scenarios

Due to its down-cut design, the cutter pushes the chips downwards and presses the material firmly against the cutting table. This significantly reduces burrs, stringing, or delamination on the material surface (top edge), making it particularly suitable for the following materials:

Foamed PVC/polystyrene foam boards (such as Forex, Sintra, recommended thickness 5-10mm)
High-density protective sponge/foam material (recommended thickness < 20mm)
Plastics, composite boards, or flexible signage materials that are prone to surface chipping under conventional cutting tools.

Cross-brand compatible models (Cross Reference)

When changing tools, this tool is fully compatible or interchangeable with the following brands and models:

Zund : Model R124 (Part number: 3910748 or 5211742, version with limit ring)
Summa : Model 500-9880
Colex : Model T00501
