Summa 500-9880 Multipurpose F-Series Router Bit,D6/4 L50/12 1FL DC MP Review

Summa 500-9880yesA is a high-performance, one-piece carbide router bit crafted for professional use. It is specifically designed to be compatible with the routing system of Summa F-Series Flatbed Cutters. As part of the cutting tool range within the Summa lineup, Enquire now

Description

Summa Multipurpose Router Bit,D6/4 L50/12 1FL DC MP,500-9880

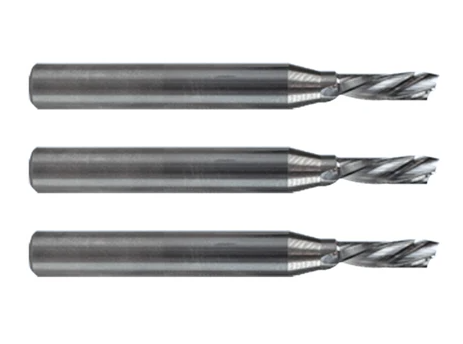

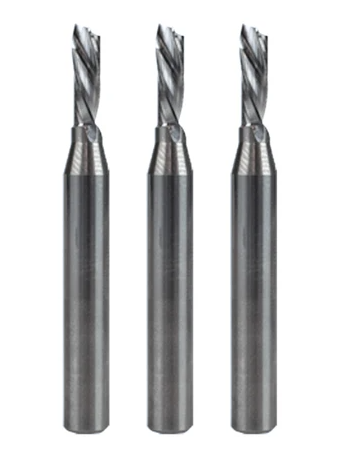

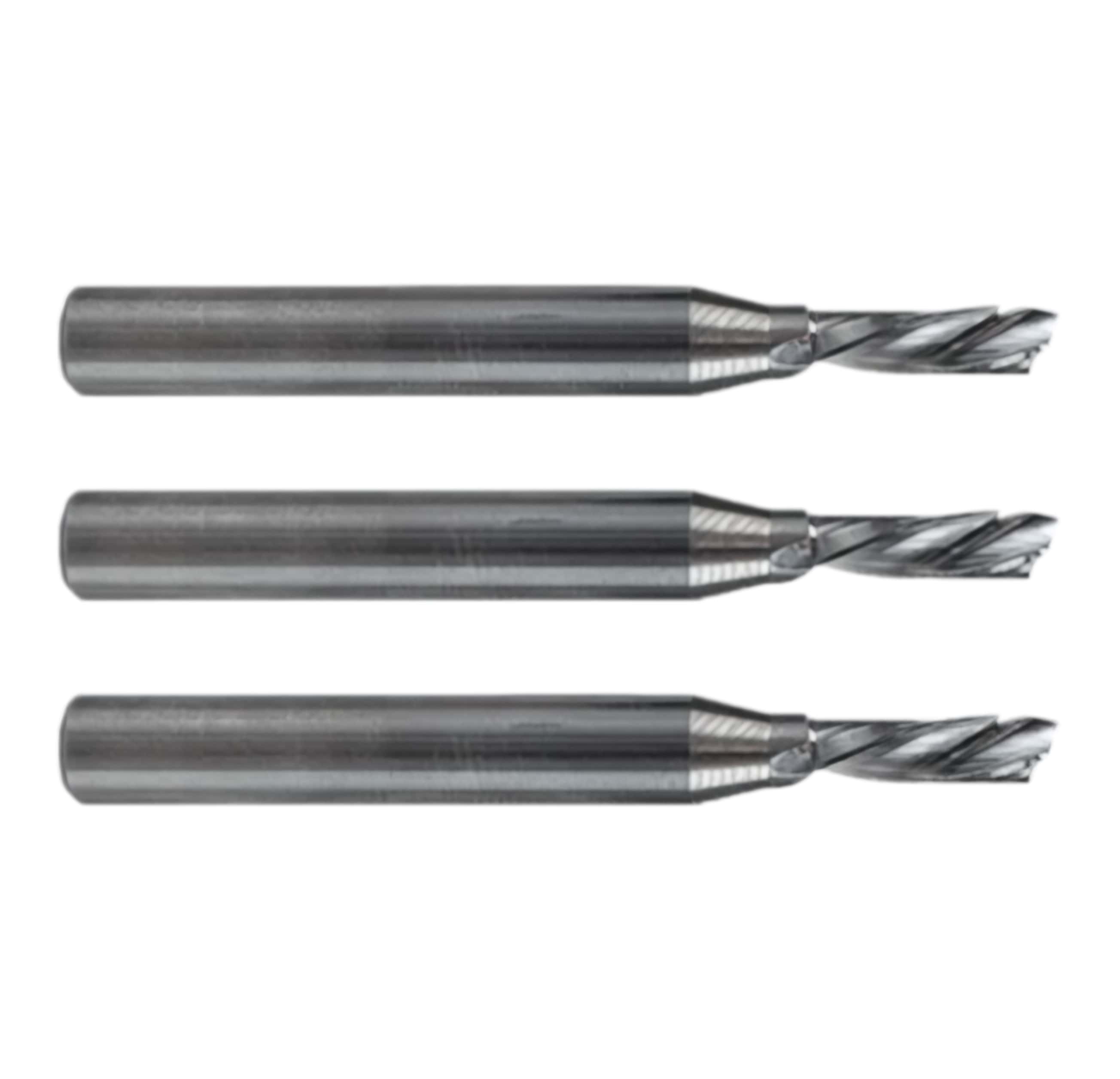

Summa 500-9880 Multipurpose F-Series Router Bit

For use with the Summa F Series Standard Routing System and the Summa F Series High Frequency Routing System.

Core technical parameters and specifications

Part Number (SKU) : 500-9880
Flute configuration : Single-flute down-cut type (1 Flute Down-Cut / 1FL DC)
- Note: The "Down-Cut" design presses the chips downwards during high-speed rotation, thus providing an extremely clean, flat, and burr-free edge for the surface layer of the board.
Core size : D6/4 L50/12
- Shank Diameter : 6 mm
- Cutting Diameter : 4 mm
- Total Length : 50 mm
- Flute Length (Depth of Cut) : 12 mm
Material : High industrial-grade cemented carbide (Solid Carbide / Tungsten Steel) to resist high heat and wear at high speeds.
System compatibility : Fully compatible with Summa F series standard router modules (Standard Router Module - 1.4 kW) and high frequency router modules (High Frequency Router Module - 3.7 kW) .

Optimal application material (multipurpose performance)

As a "multi-purpose (MP)" end mill, the 500-9880 features optimized chip evacuation geometry, making it suitable for cutting and contouring medium-thickness (up to 12mm) hard signage materials.

Composite panels : Aluminum composite panels (ACM / ACP / Alupanel)
Plastics and Foam Boards : Foam PVC (PVC foam board), Polycarbonate (PC), Rigid Plastics
Wood-based panels : MDF (medium-density fiberboard), various softwoods and hardwoods, and plywood.

Compatibility Chart
Compatible Equipment Summa F Series Flatbed Cutters
Compatible Router Summa F Series Standard Routing System, Summa F Series High Frequency Routing System
