Zund Esko Kongsberg Summa Multicam CNC Router Bits: The Basics to Get Started

Zund:
- Zund router bits come in different diameters with originals and replacements for soft and hard materials.
- Common sizes range from 2mm to 6mm diameter bits for cutting materials like wood, acrylic, aluminum, plastics, MDF, etc.
- Zund bits may have various coatings like DLC for increased wear resistance and efficiency.
- The routing tool automatically applies offset for the bit diameter during cuts, simplifying programming.

Esko and Kongsberg:
- Esko recommends specific tooling guides; milling router bits fit their cutting tables.
- Kongsberg offers high-quality carbide router bits, like the ACS series, optimized for acrylic cutting and other materials.
- Both brands use precise router bits tailored for signage, display, and advertising fabrication.

Summa:
- Summa offers many router bit styles for various materials and cut profiles, common shank diameters are around 6mm.
- Routing bits range in diameter and length to work on aluminum composite materials (ACM), acrylic, wood, plastics.
- Summa does not supply V-groove bits but recommends compatible 3.4 or 6mm V-bit replacements from third parties.

MultiCam:
- MultiCam CNC router bits are chosen based on material and application, focusing on tooling style and chip load.
- MultiCam tooling is aimed at improving cutting capabilities for a wide range of materials.

Common router bit basics:
- Shank diameter (fit in collet) typically 6mm or 1/4 inch for these CNC routers.
- Cutting tip diameter affects cut width and detail.
- Flutes clear chips; number and spiral style depend on material.
- Bits can have up-cut or down-cut flute design, affecting finish quality.
- Speed, feed, plunge rates, and chip load settings are critical for optimal routing results.

These basics provide a solid foundation to understand and choose router bits for Zünd, Esko, Kongsberg, Summa, and MultiCam CNC routers for cutting materials common in signage, displays, and general manufacturing. More detailed recommendations depend on material specifics and machining goals.

If needed, specific starter bit types and proper usage tips can also be provided for beginners. Let me know if further details on any brand or bit type are desired.

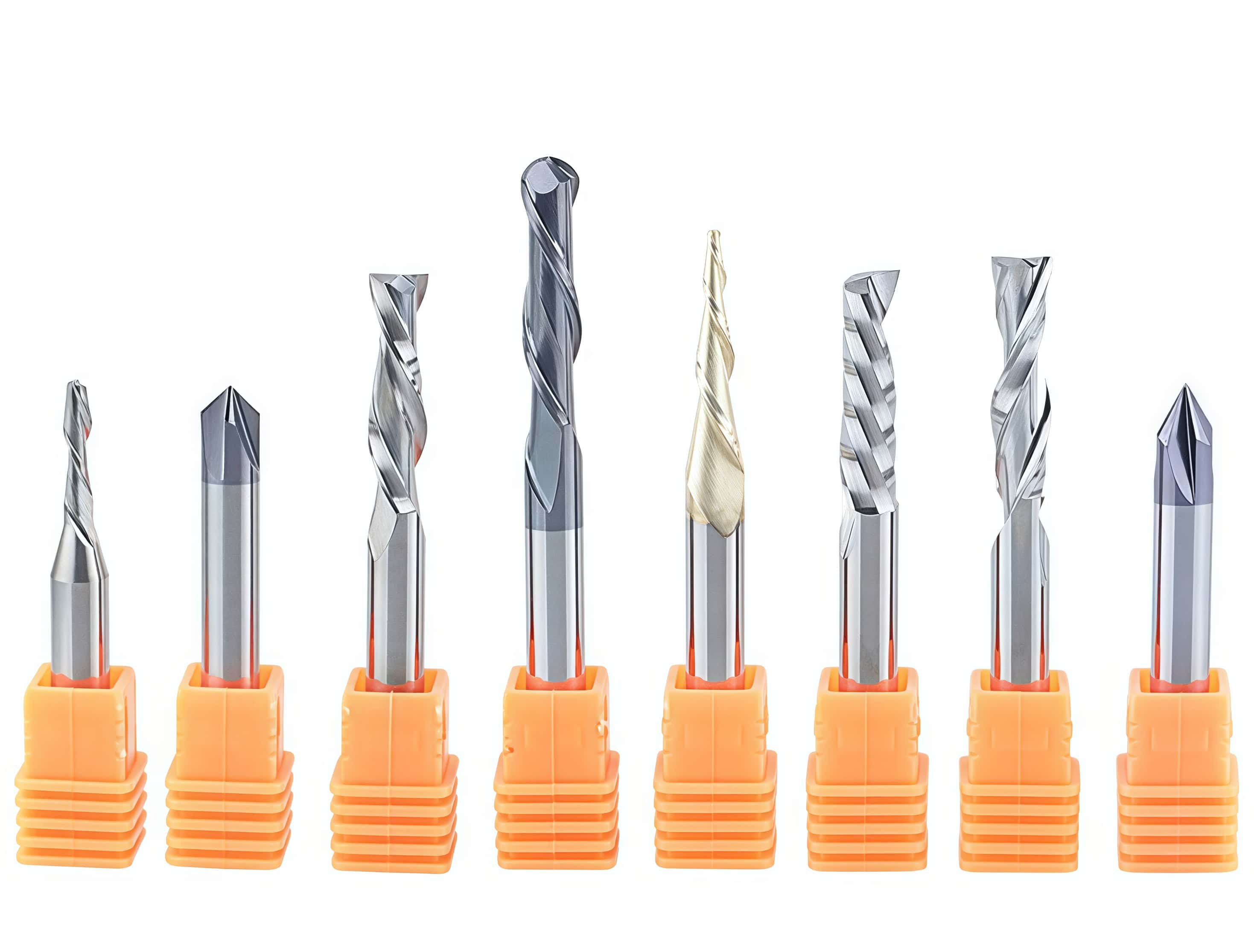

Best starter router bit types for Zund, Esko, Kongsberg, Summa, Multicam

The best starter router bit types for Zund, Esko, Kongsberg, Summa, and MultiCam CNC routers generally include the following essential bits that cover a range of cutting needs and materials:

1. Straight (Plunge) Bit:

· Used for straight cuts, dados, and grooves.

· Common diameters: 3mm to 6mm.

· Good for general purpose routing on wood, plastics, and composites.

· Often carbide tipped for durability.

2. Flush Trim Bit:

· Has a bearing that rides along a template or edge.

· Used for trimming laminates, veneers, or matching shapes.

· Great for precision trimming and edge work.

3. Roundover Bit (or Radius Bit):

· Creates rounded edges on material.

· Ideal for finishing edges and giving smooth contours.

· Popular beginner bit for woodworking and signage.

4. Chamfer Bit:

· Cuts a beveled edge, usually 45 degrees.

· Useful for decorative edges or joint preparation.

5. V-Groove Bit:

· Used for engraving, lettering, and decorative cuts.

· Available in various angles, often 30° or 60°.

· Suitable for acrylic, e branded or compatible bits optimized for their systems; Kongsberg ACS bits excel in acrylic cutting.

· Summa advises choosing bit diameter based on cut speed and detail, with coated bits for longer life, and down-cut bits for better finish on top surfaces.

Starter bit sets are commonly available includin

g straight, flush trim, roundover, chamfer, and V-bit types, with carbide tips recommended for longevity and efficiency. Brands wood, and signage materials.

6. Up-cut and Down-cut Spiral Bits:

· Up-cut bits pull chips out of the cut, good for deep cuts.

· Down-cut bits push chips down helping keep top surfaces clean.

· Both types useful depending on material and finish requirements.

Specific recommendations by brand:

· Zund and MultiCam often use 6mm shank carbide bits in these styles due to their versatility.

· Esko and Kongsberg providlike Amana, Whiteside, and Freud are popular choices for quality bits compatible across these CNC routers.

For beginners, having a selection of these bit types with 1/4" or 6mm shanks depending on the router collet is a practical way to start routing on different substrates with these industrial systems.

If detailed starter bit kits for these specific brands desired, that can also be provided.

Summary table of best starter CNC router bit types:

These bits cover most routing needs across Zund, Esko, Kongsberg, Summa, and MultiCam CNC systems.
