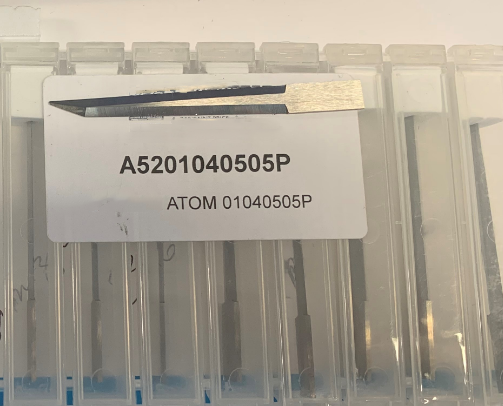

Atom 01040505p Cemented Carbide/Tungsten Carbide Oscillating Knife Blades

Atom 01040505P is a heavy-duty tungsten carbide flat oscillating bladespecifically forthe Atom Flashcutseries (especially the HV1600/HV1400 cutter heads) and other high-precision industrial CNC cutting machines. Enquire now

Description

Atom 01040505p Cemented Carbide/Tungsten Carbide Oscillating Knife Blades For Atom Cutting Machines & Cnc Cutters

The Atom 01040505P (or general model 01040505) is a heavy-duty tungsten carbide flat oscillating blades pecifically forthe Atom Flashcutseries (especially the HV1600/HV1400 cutter heads) and other high-precision industrial CNC cutting machines.

The suffix "P" usually stands for Pointed , used to distinguish blade tip geometry that is specifically optimized for puncture performance (some third-party compatible blades, also offer R-angle anti-breakage blade tip versions with rounded corners for protection).

Core Technical Parameters

Part Number : 01040505P / 01040505 / 40505
Material : High-density solid cemented carbide/tungsten carbide, which has excellent wear resistance and high temperature resistance.
Blade thickness : 1.50 mm (belongs to medium-thickness heavy-duty blades, providing greater resistance to lateral torsional stiffness).
Mounting handle type : 1.50 mm flat handle flat mounting.
Maximum cutting depth : 30.00 mm (some long-handle derivative models can reach 33.4 mm).
Blade height : 59.00 mm.
Cutter head width : 10.00 mm.
Cutting edge angle : 10° - 45° - 45° stepped composite blade (HV1600 specification) or universal 45°/80° cutting edge angle.

Applicable Materials and Industry Applications

Thanks to its 1.5mm thickness and high strength rigidity, 01040505P is primarily used for processing hard and soft substrates with medium to high density, high abrasion resistance, or multi-layer lamination .

Foam and packaging cushioning materials : EVA foam, polyurethane foam, EPE pearl cotton and heavy-duty paper packaging board.
Industrial gaskets : thick rubber sheets, fluororubber, silicone sheets, and asbestos-free, high-temperature resistant composite graphite metal gaskets.
Footwear and heavy-duty leather : heavy-duty genuine leather with a thickness of 4–5 mm or more, midsole cardboard, fiber sandwich panels and bag reinforcement panels.
Synthetic and composite materials : multilayer bulletproof aramid, carbon fiber prepreg, wool, felt filter materials, etc.
