Ecocam E85 Cnc Systems Carbide Round Shank Shaft Oscillation(Vhm)Knife Blades For Ecocam Eot 220085

EcoCam E85 (Part Number 220085) is a solid carbide tangential oscillating knife blade engineered for CNC digital cutters equipped with EcoCam Electric Oscillating Tool (EOT) modules, such as the EOT-2 and EOT-3. Enquire now

Description

Ecocam E85 Cnc Systems Carbide Round Shank Shaft Oscillation(Vhm)Knife Blades For Ecocam Eot Modules 220085

Ecocam Solid Carbide Blade,Ecocam Carbide Blade,Ecocam Blade,Ecocam e85 Blade,Ecocam e85,Ecocam Blades

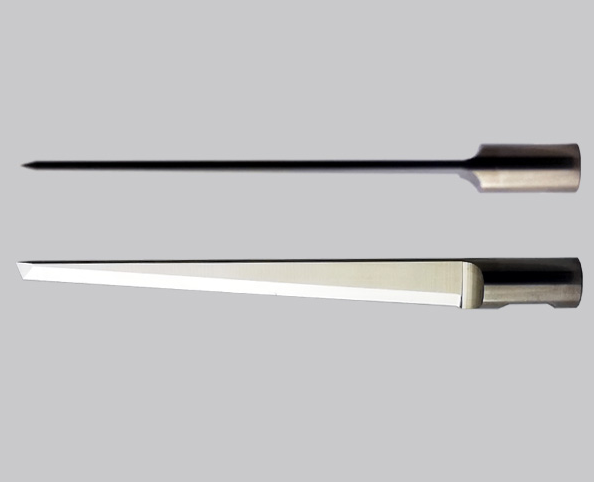

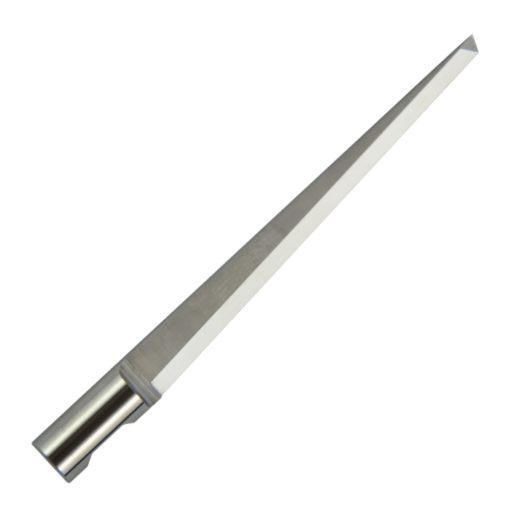

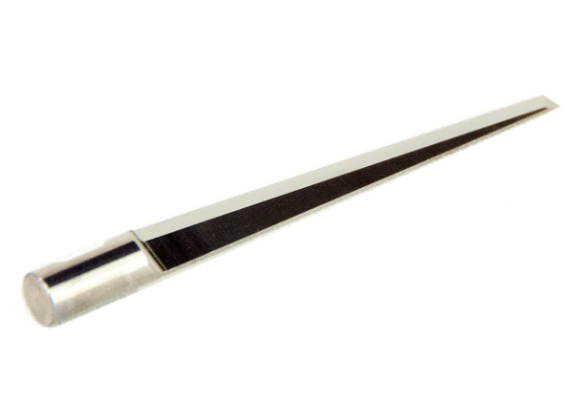

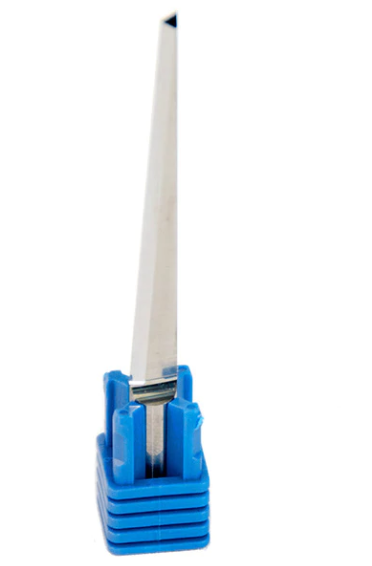

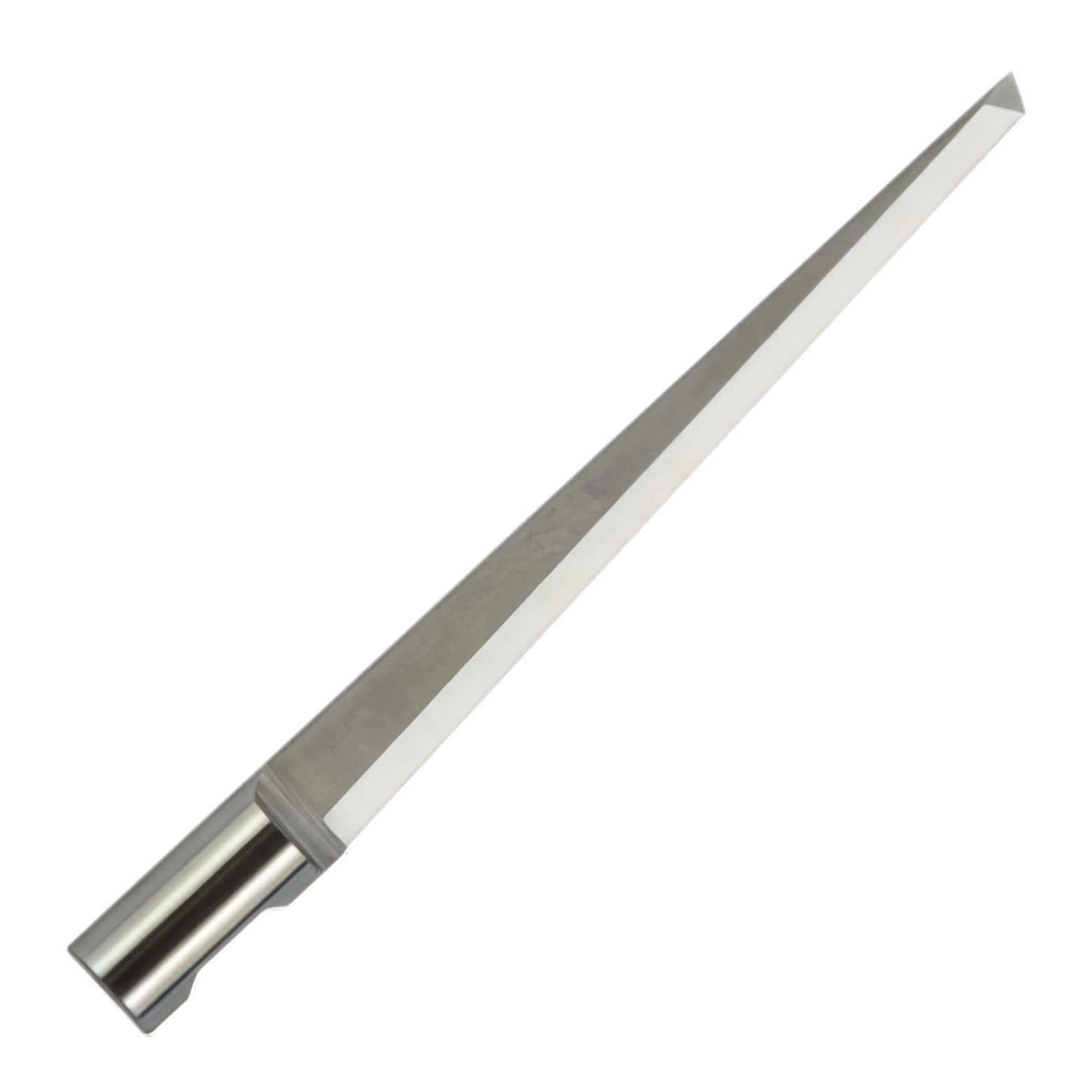

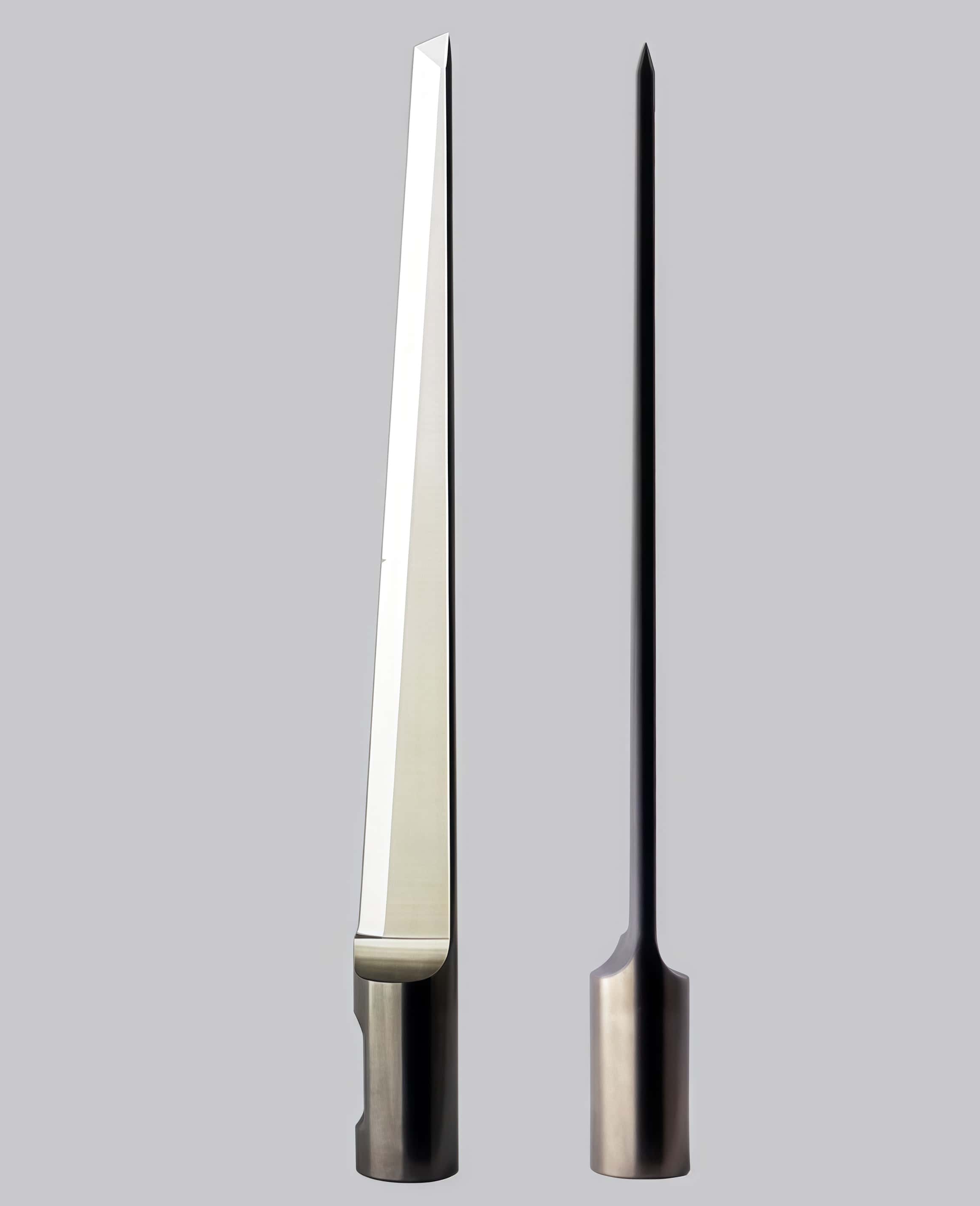

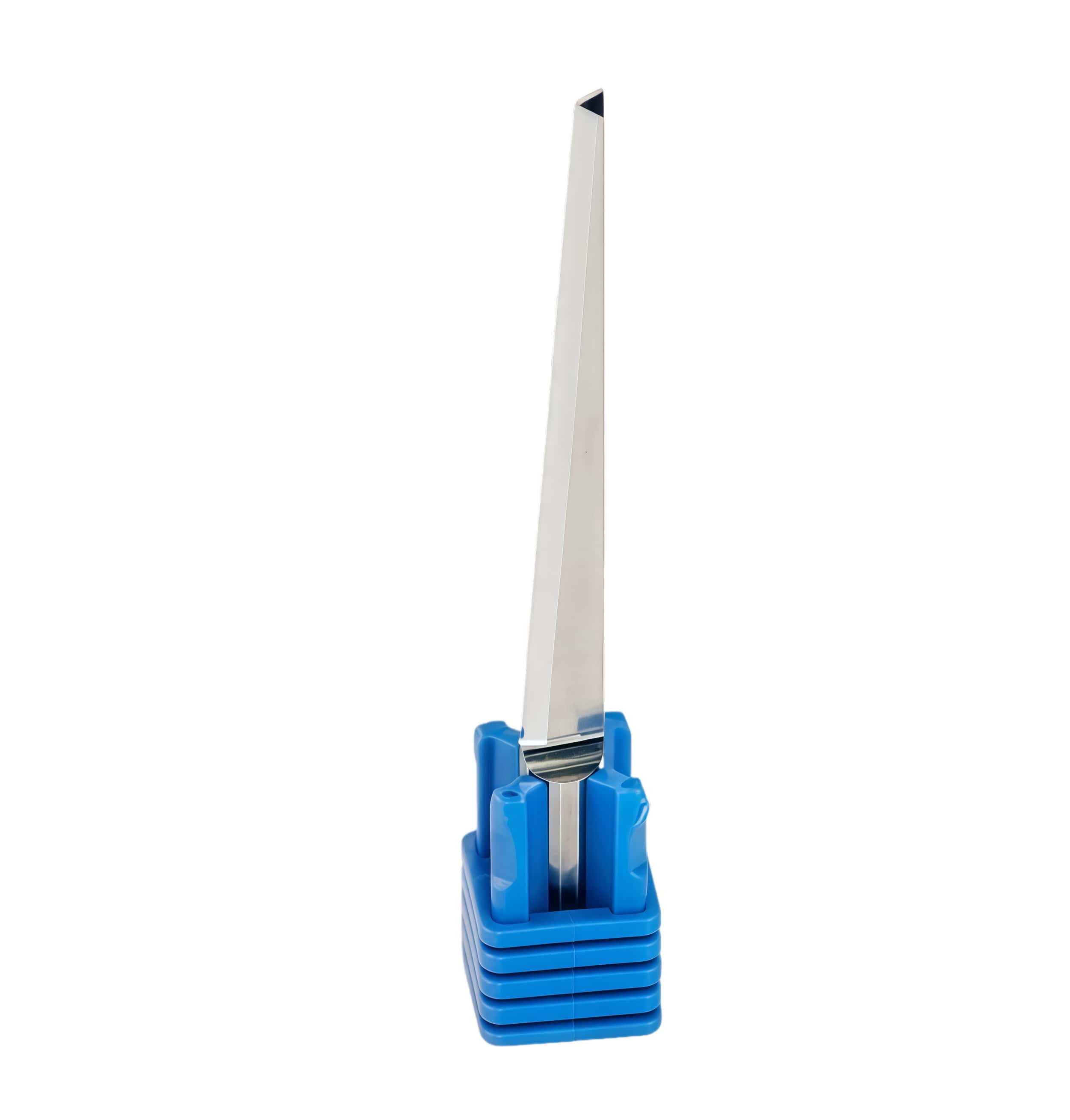

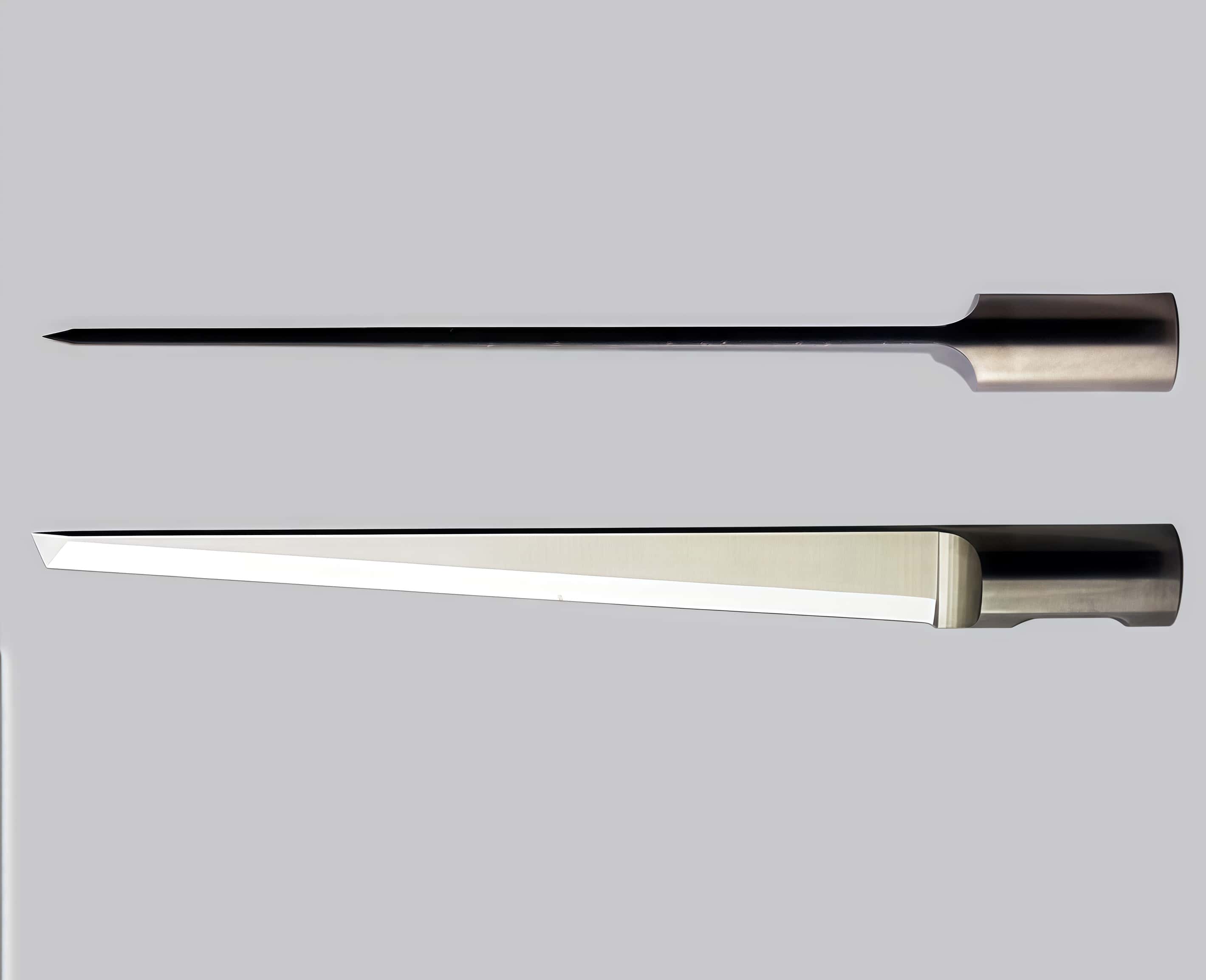

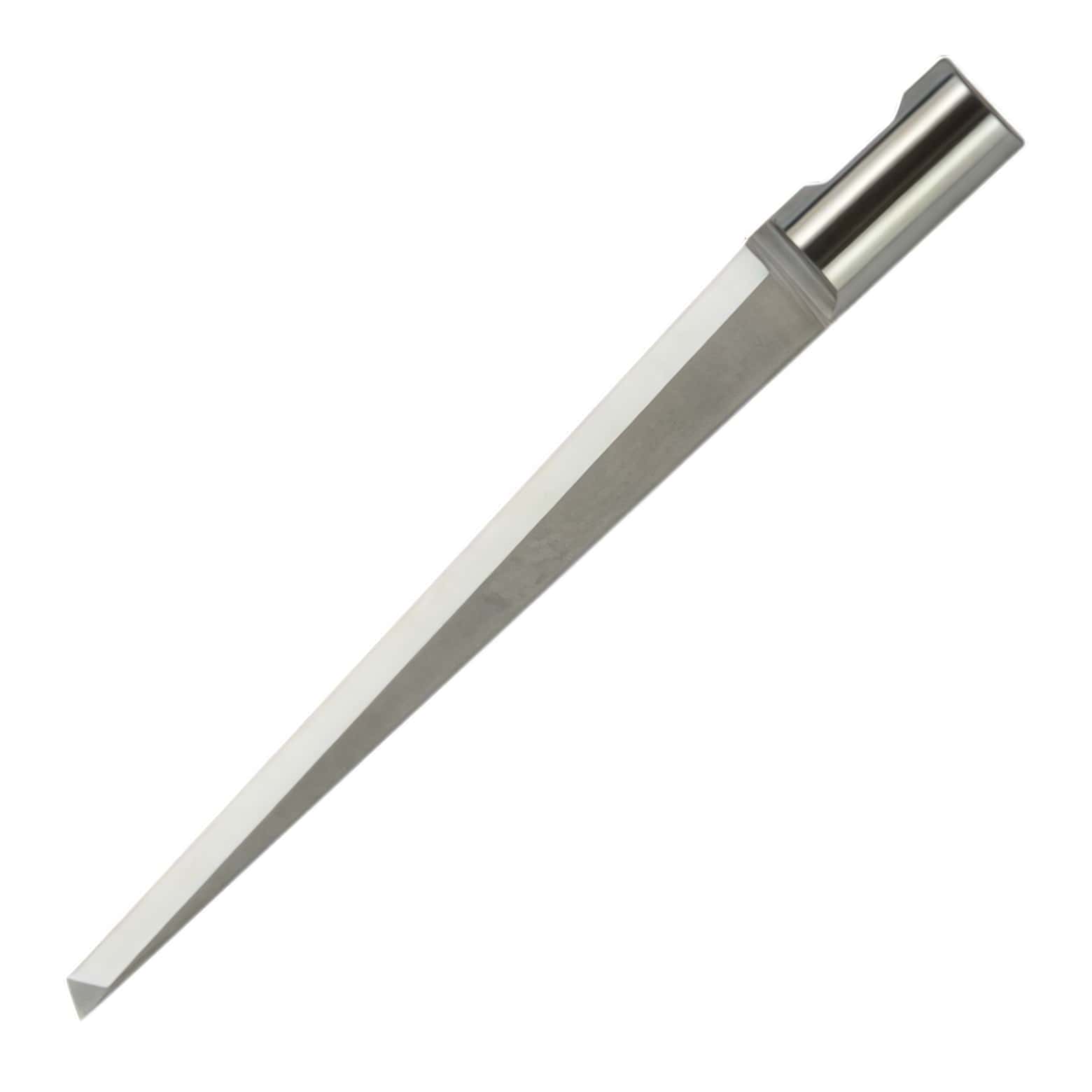

Ecocam E85 (part number 220085) is a premium, solid tungsten carbide (VHM) wedge oscillating knife blade built for high-precision industrial flatbed cutting systems. Unlike the wave-cut W30 blade, the E85 features a single flat cutting edge optimized with distinct dual-cutting angles to pierce and slice smoothly through deep, non-rigid materials.
It is engineered as a core specialty blade for EcoCam EOT (Electric Oscillating Tool) Tangential Cutting Modules, common on industrial CNC systems like Esko Kongsberg workflows.

Technical Specifications

The flat, micro-grain solid carbide layout provides extreme structural rigidity to prevent the blade from flexing when working at maximum depths.
• Blade Type: Flat wedge-shaped, single cutting edge
• Shank Type: Standardized 6.00 mm round cylinder shank with a Weldon locking flat
• Max Cutting Depth: 50.00 mm (approx. 2 inches)
• Total Tool Length: 65.00 mm (approx. 2.5 inches)
• Geometry Angle: Dual-angle profile (20° / 86°) for low penetration resistance

Target Applications & Materials

The single-edge flat profile of the E85 is less aggressive than a wave-cut tool, making it perfect for materials that need a perfectly square, unmarred vertical finish face.
• Foams & Sponges: Specifically tailored for soft polyurethane (PU) foam panels, thick technical acoustic foams, and dense industrial PU sponges.
• Industrial Fabrics: Thick felt padding, backing textiles, flock textile foils, and layered composites.
• Soft Packaging: Heavy-duty corrugated multi-wall carboard and insulating mats.
