Ecocam W30 CNC Systems Carbide Round Shank Shaft Oscillation Wave Cut Sawtooth Blades Part 220100
Ecocam 220100 is a carbide round shank wave-shaped vibrating insert (W30/W38 series) designed specifically for CNC cutting systems (such as the Ecocam EOT vibrating knife module and TCM cutting knife module) Enquire now
Share this:
 Facebook  Twitter  LinkedIn  Google+  Addthis
Ecocam W30 CNC Systems Carbide Round Shank Shaft Oscillation Wave Cut Sawtooth Blades Part 220100
Ecocam W38,Ecocam W38 Blade,Ecocam Carbide Wave Cut Blade,Ecocam Wave Cut Blade,Ecocam Carbide Blade,Ecocam Blade,Ecocam Blades

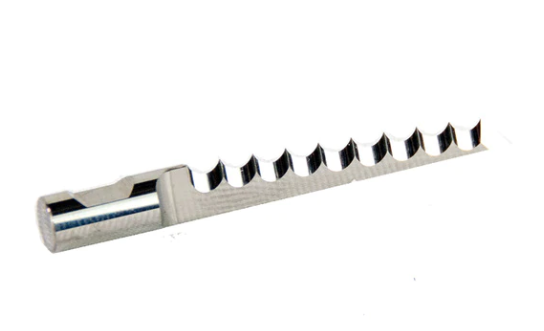

Ecocam W30 (also referenced by part number 220100) is a professional-grade solid tungsten carbide wave-cut oscillating knife blade designed for high-precision CNC cutting systems. It is primarily engineered for use with Electric Oscillating Tool (EOT) modules to execute clean, continuous cuts through thick, soft, or fibrous materials without causing edge tearing.

Technical Specifications

• Blade Type: Wave cut (serrated) single-edged oscillating blade
• Material: Solid Tungsten Carbide (VHM) for extended structural rigidity and wear resistance
• Shank Diameter: 6.00 mm straight shank featuring a flat Weldon surface for secure tool-head locking
• Cutting Edge Length: Typically 30 mm to 38 mm depending on the exact supplier configuration
• Total Length: Approximately 60 mm

Primary Applications & Materials

Thanks to its serrated wave geometry, the W30 blade excels at slicing through complex industrial soft goods that typically bind or tear under standard flat blades. Common applications include:
• Packaging & Prototyping: Heavy corrugated cardboard and dense honeycombed paper boards.
• Insulation: Technical foam, soft polyurethane (PU) foam panels, and multi-layer deep insulation materials.
• Industrial Soft Goods: Thick synthetic sponges, felt, and low-density elastomers.

Ecocam W38,Ecocam W38 Blade,Ecocam Carbide Wave Cut Blade,Ecocam Wave Cut Blade,Ecocam Carbide Blade,Ecocam Blade
