How To Choose The Difference Between Ecocam E12 E18 E25 E28 E30 E50 E70 E85 E87 E92 W30 W60 W38 Solid Carbide Knife Blade

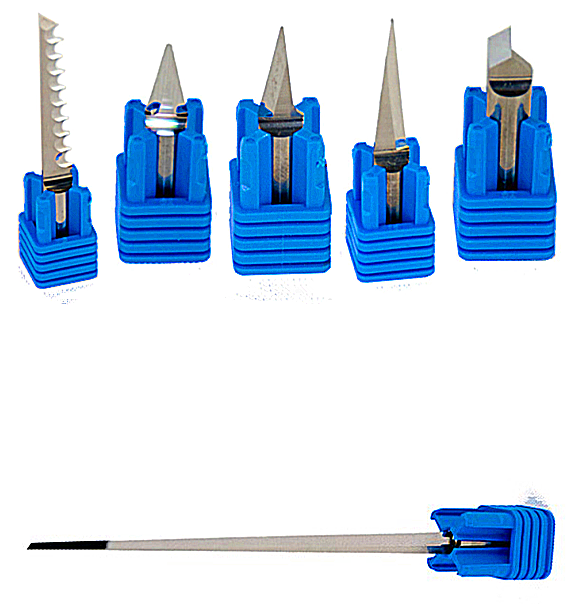

When choosing between Ecocam solid carbide knife blades like E12, E18, E25, E28, E30, E50, E70, E85, E87, E92, and wave cut blades W30, W38, W60, the key factors to consider are blade size, cutting edge length, cutting angle, and the material/application compatibility.
Here is a detailed guide based on their specifications and typical uses:
|
Blade Model |
Cutting Edge Length |
Total Length |
Cutting Angle |
Typical Applications |
Notes |
|
12 mm |
25 mm |
- |
Universal for cardboard, gasket, foam rubber, cork |
Small universal blade |
|
|
13.5 mm |
26.5 mm |
- |
Universal for cardboard, foam, rubber, cork |
Good for foam core, magnet material |
|
|
25 mm |
39 mm |
- |
Universal for cardboard, gasket, foam rubber, cork |
Larger cutting edge |
|
|
30 mm |
45 mm |
30°/82° |
Cardboard, foam rubber, cork, gasket materials |
Universal blade with specific angle |
|
|
2.5 mm |
25 mm |
Wedge 30° |
Special blade for foils and writings |
Specialized for thin foils |
|
|
3.5 mm |
25 mm |
Wedge 50° |
Flock textile foils, felt, cardboard |
For textile foils and felt |
|
|
8 mm |
25 mm |
Wedge 70° |
Flock textile foils, felt, cardboard |
Larger wedge angle for tougher textiles |
|
|
50 mm |
65 mm |
- |
Soft polyurethane foam panels (EOT module) |
For soft foam cutting |
|
|
70 mm |
83 mm |
- |
Soft polyurethane foam panels (EOT module) |
Larger blade for foam |
|
|
120 mm |
133 mm |
- |
Soft polyurethane foam panels (EOT module) |
Long blade for thick foam |
|
|
30 mm |
- |
Wave cut |
Various materials including aramid fiber, carbon fiber, fabric, felt |
Wave cut blade for general use |
|
|
38 mm |
50 mm |
Wave cut, single serrated |
Honeycomb, fluted cardboard |
Serrated for textured materials |
|
|
55 mm |
73 mm |
Wave cut, single serrated |
Tougher materials like aramid, carbon fiber |
Longer serrated blade for tougher cuts |
How to choose the right blade:
· Material Type:
For cardboard, foam rubber, cork, gasket materials, universal blades like E12, E18, E25, E28 are suitable.
For textile foils, felt, flock materials, specialized wedge blades E50, E70 are better.
For soft polyurethane foam panels, use longer blades E85, E87, or E92 designed for EOT modules.
For fibrous or textured materials like honeycomb cardboard or carbon fiber, wave cut blades W30, W38, W60 with serrated edges are ideal.
· Blade Size and Cutting Depth:
Smaller blades (E12, E18) are good for precision and thinner materials.
Larger blades (E25, E28, E85+) handle thicker or larger cutting depths.
· Cutting Angle and Edge:
Wedge blades with different angles (30°, 50°, 70°) are designed for specific materials and cutting styles.
Wave cut blades have serrated edges for cutting tough or textured materials efficiently.
· Machine Compatibility:
Ensure the blade shank diameter matches your CNC tangential cutting module (usually 6 mm with Weldon surface).
Summary
· For general-purpose cutting of cardboard, foam, cork, choose E12, E18, E25, or E28 depending on desired cutting edge length.
· For specialized cutting of foils and textiles, choose E30, E50, or E70 based on material thickness and type.
· For soft foam panels, use E85, E87, or E92.
· For textured or tough materials like honeycomb cardboard or carbon fiber, select W30, W38, or W60 wave cut blades based on material hardness and thickness.
This approach ensures you select the blade that best fits your material and cutting requirements for optimal performance and blade life
