Ecocam E92 CNC Systems Carbide Round Shank Shaft Oscillation​(Vhm)Knife Blades For Sale Tool 220092
Ecocam E92 Solid Carbide Blade is a heavy-duty single-edge cutting knife designed for CNC Electric Oscillating Tool (EOT) tangential cutting modules like the EOT-2 and EOT-3. It cuts through soft polyurethane foam panels and fibrous materials. Enquire now
Share this:
 Facebook  Twitter  LinkedIn  Google+  Addthis
Ecocam E92 CNC Systems Carbide Round Shank Shaft Oscillation(Vhm)Knife Blades For Sale Tool 220092
Ecocam Solid Carbide Blade,Ecocam Carbide Blade,Ecocam Blade,Ecocam e92 Blade,Ecocam e92,Ecocam Blades
Ecocam Solid Carbide Blade,Ecocam Carbide Blade,Ecocam Blade,Ecocam e92 Blade,Ecocam e92,Ecocam Blades

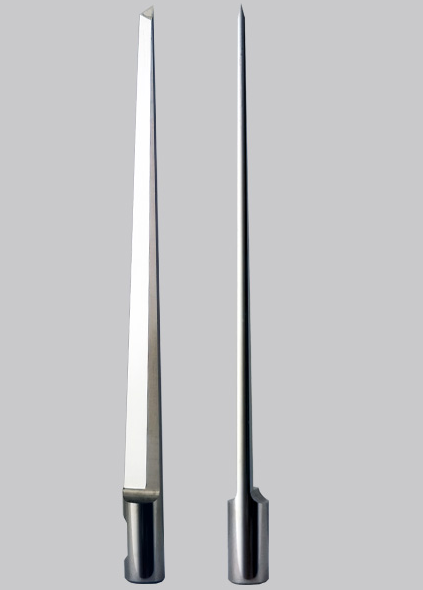

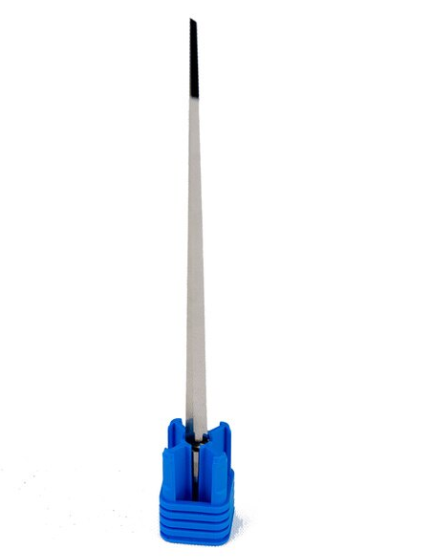

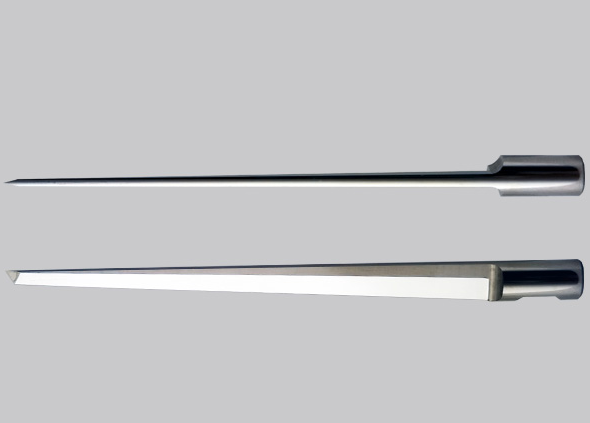

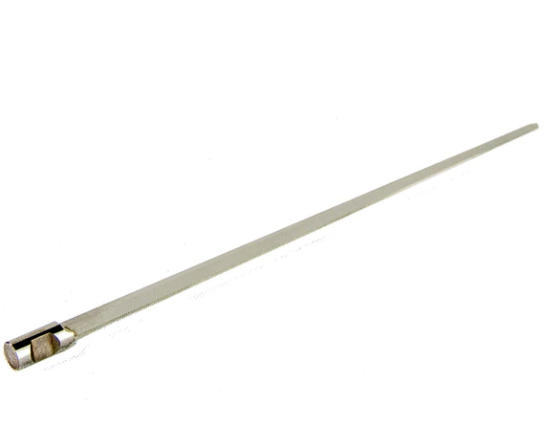

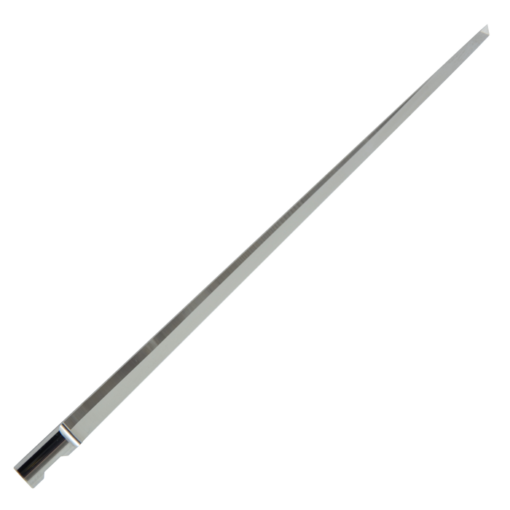

Ecocam E92 (part number: 220092) is an extra-long solid carbide (VHM) single-edge vibrating insert . Designed specifically for use with the Ecocam EOT-2 and EOT-3 cutting modules (tangential vibrating cutter systems), it is one of the deepest-cutting inserts in the series.

 Core technical specifications and parameters

• Product Model: E92
• Part No.: 220092
• Maximum Cutting Depth:  120.00 mm (Designed for ultra-thick soft materials)
• Total blade length: 133.00 mm
• Shank type: 6.0 mm round shank with Weldon flattened clamping face (to prevent rotation or slippage during high-speed vibration).
• Number and angle of cutting edges: 1 cutting edge (single edge), tip edge angle 20°/88°
• Base material: Tungsten steel/Solid Tungsten Carbide/VHM

Core Application Scenarios and Processing Guide

Because the E92 insert has an extra-long overhang of 120 mm, its use must adhere to specific physical characteristics and machining logic:
• Best suited materials:  Low-density, ultra-thick soft materials , such as soft polyurethane (PU) foam boards, thick pearl cotton (EPE), insulation pads, packaging sponges, and air filter cotton.
• Materials not recommended: High-density or hard materials (such as rigid EVA foam, thick rubber, cardboard, leather, etc.). Although cemented carbide is hard, it is brittle and can easily cause the cutting tool to break when cutting high-resistance materials in deep holes.
• Machining allowance reminder: Official guidelines recommend controlling the material thickness between 65 mm and 115 mm . Never cut to the full thickness of 120 mm; a safety clearance of at least 5 mm must be maintained to prevent the tool holder root from impacting the material surface during high-frequency vibration.
• Feed rate control: When using E92, the feed rate of the CNC machine tool needs to be reduced by 30% to 50% compared to conventional inserts . Special deceleration is required when cutting sharp bends or small radius arcs to prevent excessive tool runout and brittle breakage.

Ecocam Solid Carbide Blade,Ecocam Carbide Blade,Ecocam Blade,Ecocam e92 Blade,Ecocam e92
