Iecho E13 Tungsten Carbide Double Ended Knife Blades-Replacement For Zund Z13 Kongsberg Bld-Df213

iEcho E13 tungsten carbide double-ended knife blade is a 60° carbide drag blade with a 50 mm total length, 8 mm width, 1.5 mm thickness, and up to 6.9–7 mm cutting depth, depending on the listing Enquire now

Description

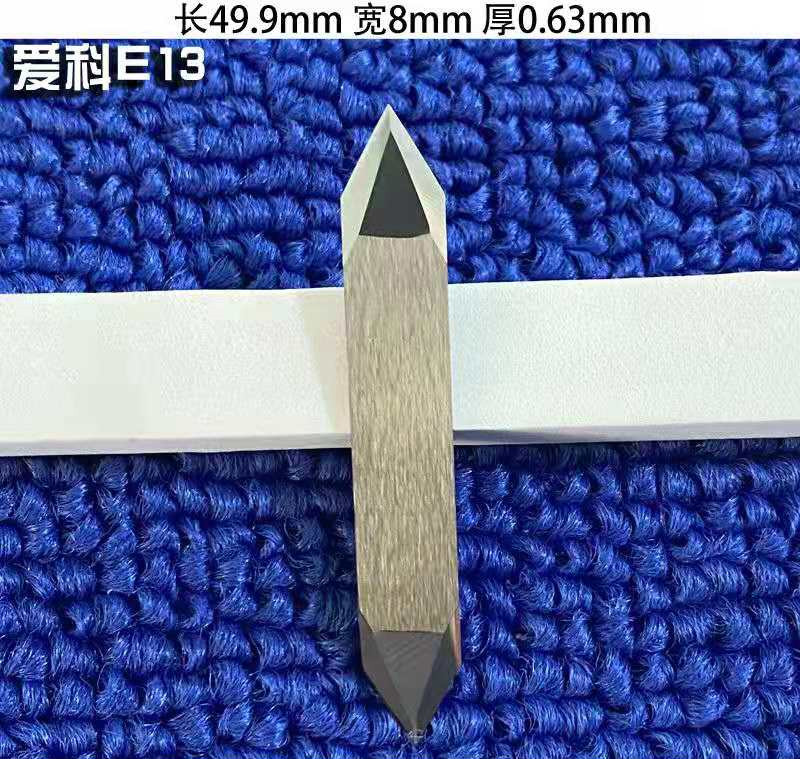

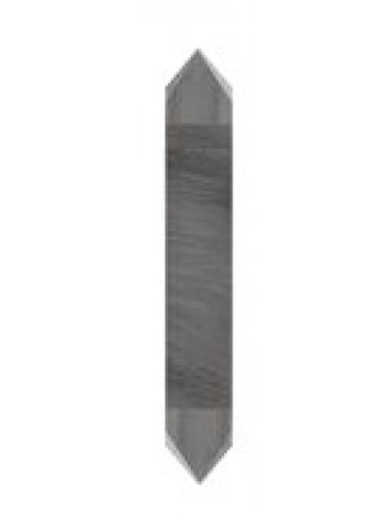

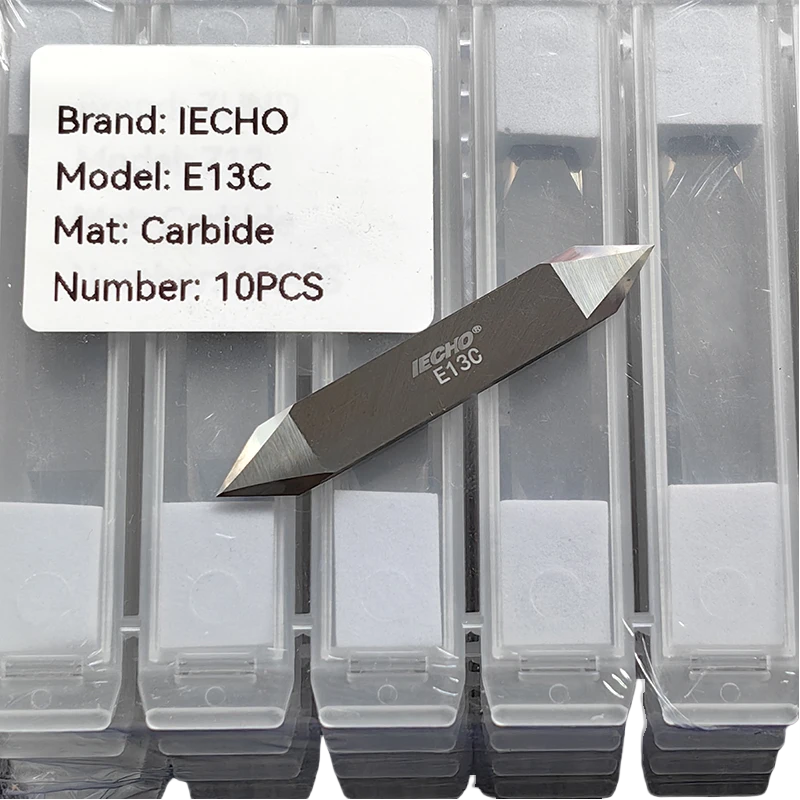

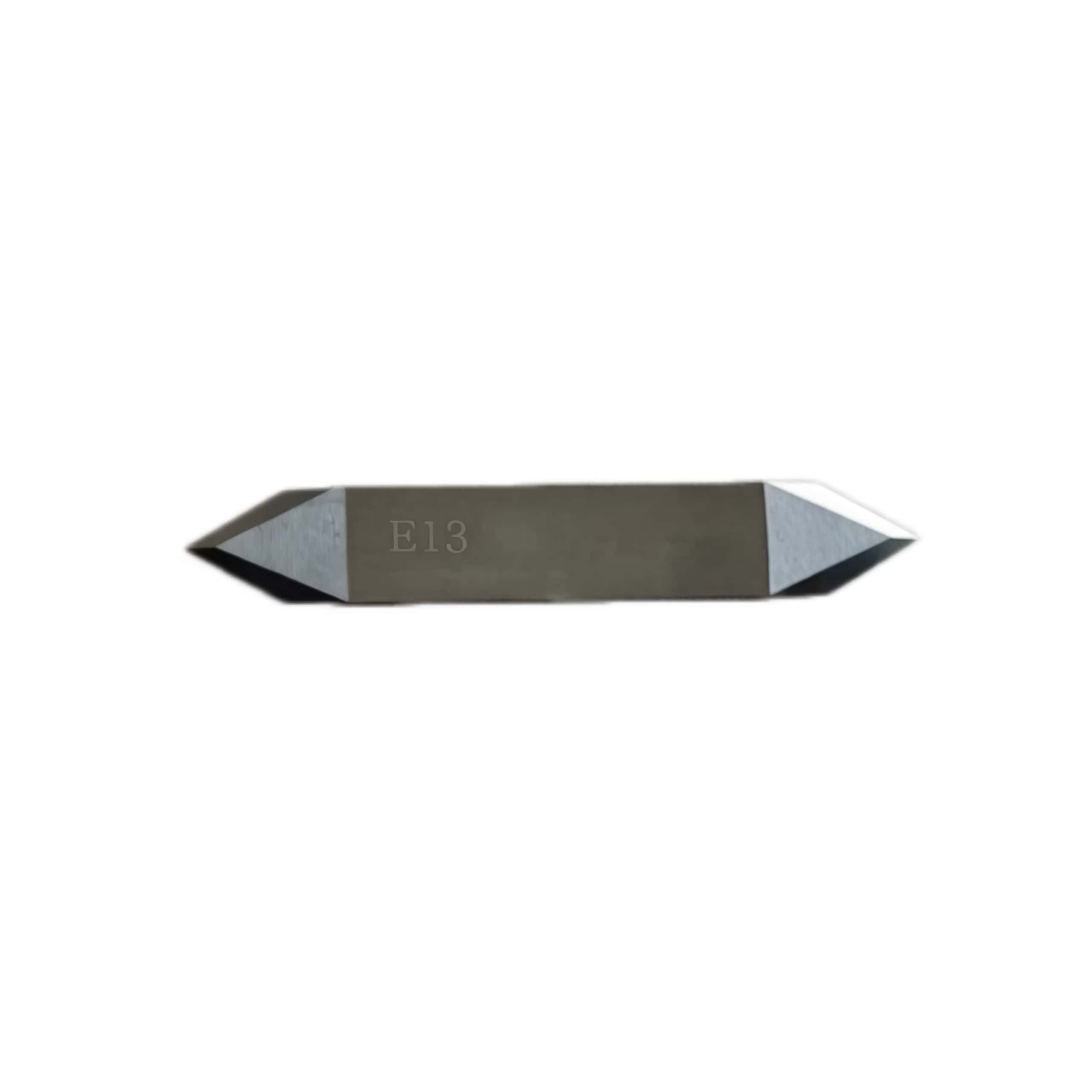

iEcho E13 Tungsten Carbide Double Ended Knife Blades

IECHO E13 tungsten carbide blade is a double-ended flat-stock drag knife engineered for high-speed IECHO digital flatbed cutting machines. Because it features a cutting edge on both ends, you can flip the blade over when one side dulls, effectively doubling its service life and minimizing machine downtime.

Technical Specifications

Blade Type: Double-ended flat-stock drag knife
Material: Premium solid tungsten carbide (tungsten steel)
Cutting Angle: 45°
Blade Thickness: 0.63 mm
Blade Width: 5.50 mm
Total Height: 25.00 mm
Maximum Cutting Depth: 2.50 mm

Machine & Tool Compatibility

The E13 blade is designed for 0.63 mm flat-stock tool holders and is standard equipment for IECHO BK, BK3, BK4, and TK series digital cutters.

Replacement for:
TC knife blade XZ0013 BT-2362 AXYZ 26082,iEcho E13,Comagrav E13,ZUND 3910321 Z13,Atom 01033925,Dyss AGDYB140,Esko Kongsberg 42441204 G42441204 BLD-DF213 i-313 i-311 T13,Blackman & White BW13 Cutworx Apex CWX/CWT E13

Common Material Applications

The thin 0.63 mm profile and 45° angle make the E13 exceptionally clean at cutting intricate details, sharp corners, and small radii in flexible materials:

Packaging & Prototyping: Folding carton, solid cardstock, and heavy paper.
Signs & Graphics: Self-adhesive vinyl foil, reflective vinyl, masking film, and magnetic foil.
Industrial Fabrics: Tarpaulin, thin PVC banners, canvas, and woven polyester fabric.
Plastics & Composites: Thin polycarbonate (PC), polypropylene (PP), and fiberglass prepreg.
