iEcho E17LC Oscillating Cutting Knife Blades For Iecho Flatbed Cutter Shop In China

The iEcho E17LC oscillating cutting knife blade is a tungsten carbide blade for iEcho flatbed digital cutters, with a 0.63 mm flat mount, 70° angle, and 16 mm max cutting depth. Enquire now

Description

iEcho E17LC Oscillating Cutting Knife Blades For Iecho Flatbed Cutter Shop In China

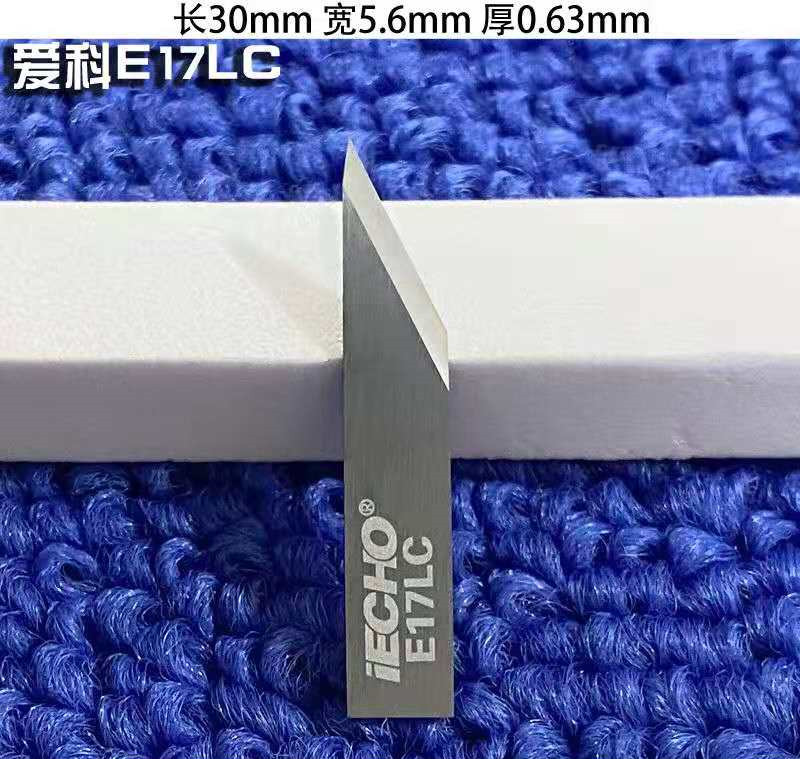

IECHO E17LC oscillating knife blade is an extended-depth, flat-stock tungsten carbide blade designed specifically for reciprocating tool modules on IECHO digital flatbed cutting machines. Based on industrial tool nomenclature, the "L" stands for Long (extended length) and the "C" designates its composition for high-frequency cutting.

Compared to the standard E17 blade (which cuts up to 12.00 mm), the E17LC features an extended 29.00 mm total height, stretching its maximum cutting depth to 17.00 mm to handle thicker materials without adding cutting resistance.

Technical Specifications

Blade Type: Extended flat-stock oscillating blade
Material: Premium solid ultra-fine grain tungsten carbide (VHM / Hard Metal)
Cutting Angle: 65°
Blade Thickness: 0.63 mm
Blade Width: 5.50 mm to 5.60 mm
Total Height (OVL): 29.00 mm
Maximum Cutting Depth: 17.00 mm
Mounting Style: 0.63 mm flat-stock tool holder

Tool & Machine Compatibility

The E17LC is designed to fit standard 0.63 mm flat tool adapters used in high-frequency reciprocating tool assemblies. It is fully compatible with:

Electric Oscillating Tool (EOT): Driven by high-RPM electric motors for controlled, rapid vertical sawing.
Pneumatic Oscillating Tool (POT): Driven by compressed air to deliver an aggressive stroke length through dense materials.
Machine Systems: Extensively utilized across IECHO BK, BK3, BK4, and TK series flatbed cutting systems.

Common Material Applications

The thin 0.63 mm profile combined with a steep 65° angle gives the E17LC an incredibly tight overcut radius, making it ideal for executing sharp corners and complex geometry in thicker, soft-to-medium substrates:

Graphics & Advertising: Thicker expanded PVC foam sheets (Chevron board), magnetic film sheets, and heavy canvas.
Packaging & Prototyping: Heavy-gauge folding cartons, solid paperboard boxes, and single-wall or double-wall corrugated cardboard.
Industrial Synthetics: Thick polyester fabrics, heavy-duty tarpaulins, rubberized banner vinyl, and non-asbestos gasket materials.
