Iecho E17 Carbide Oscillating Knife Blades-Replacement For Zund Z17 Esko Bld-Sf217 Bullmer B17

iEcho E17 carbide oscillating knife blade is a tungsten carbide blade for iEcho digital cutters and flatbed cutting machines, with common specs of 25 mm height, 5.6 mm width, 0.63 mm thickness, 65° angle, and 12 mm max cutting depth Enquire now

Description

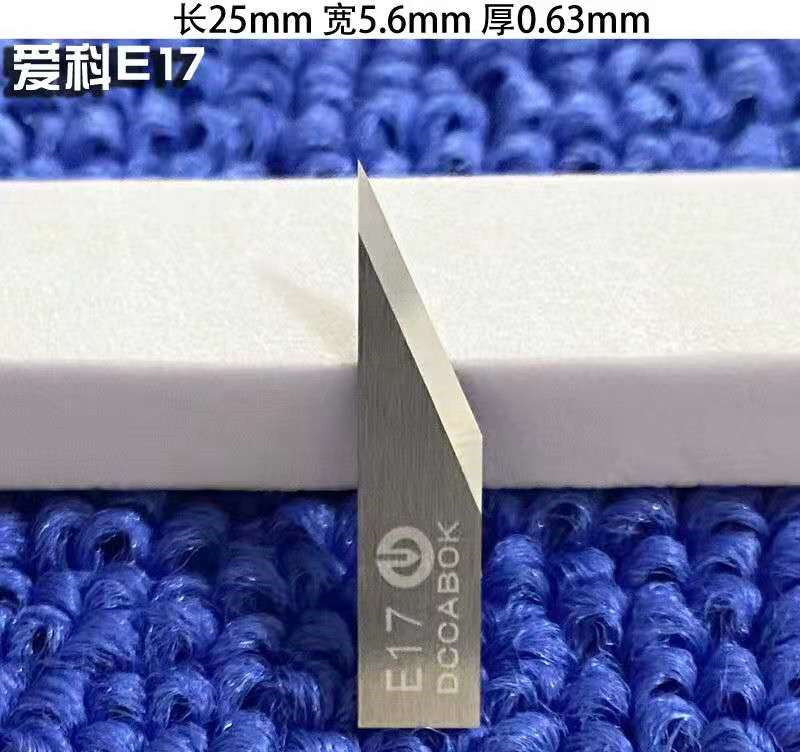

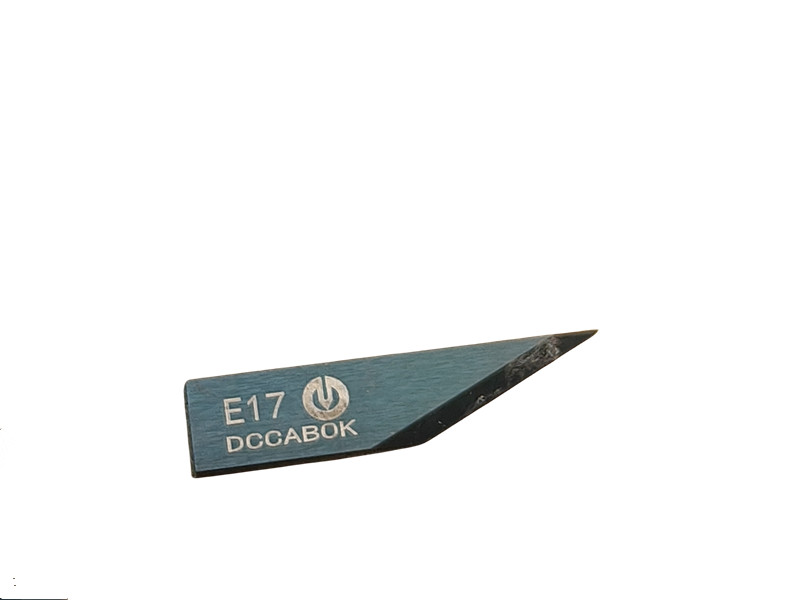

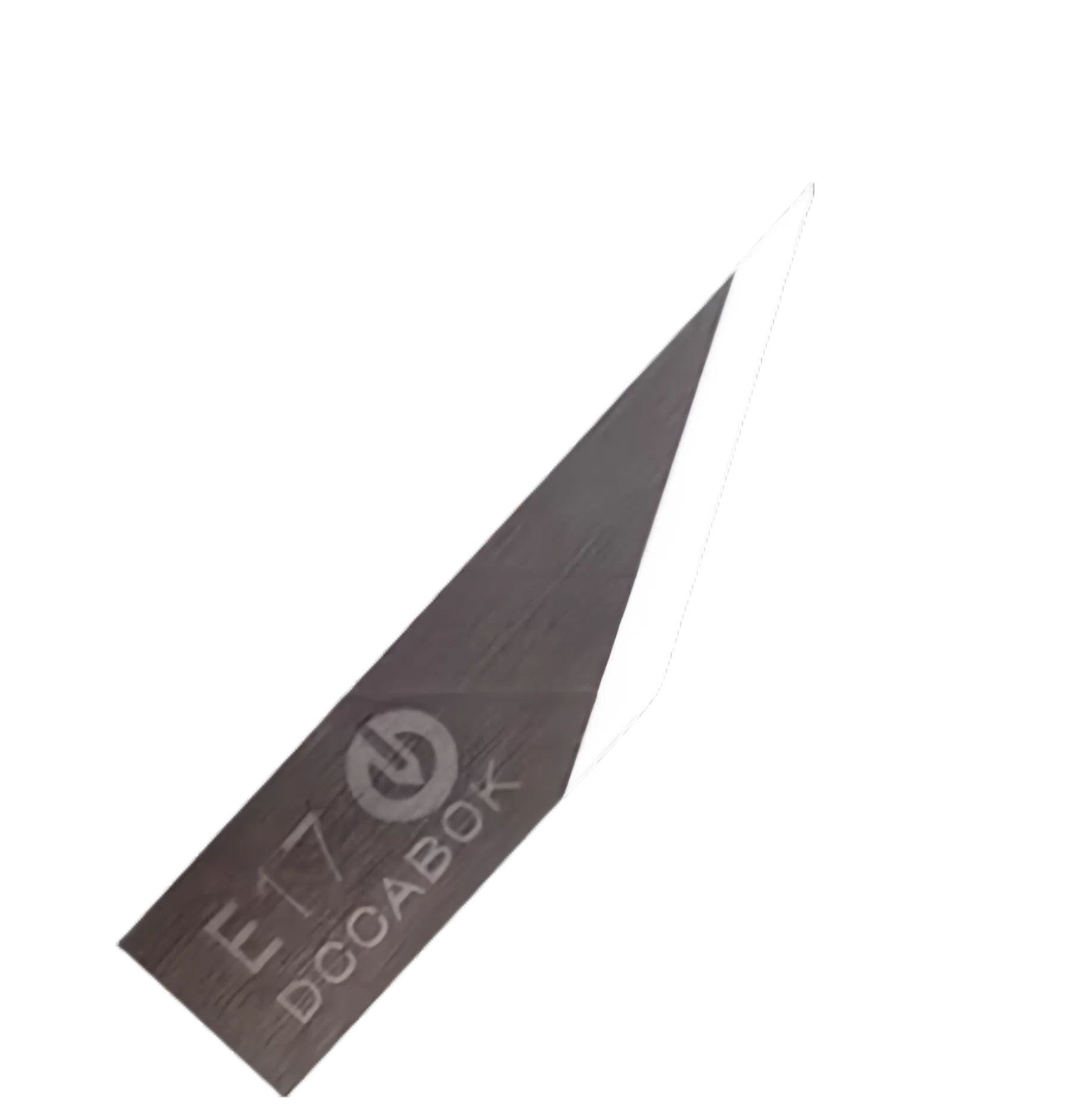

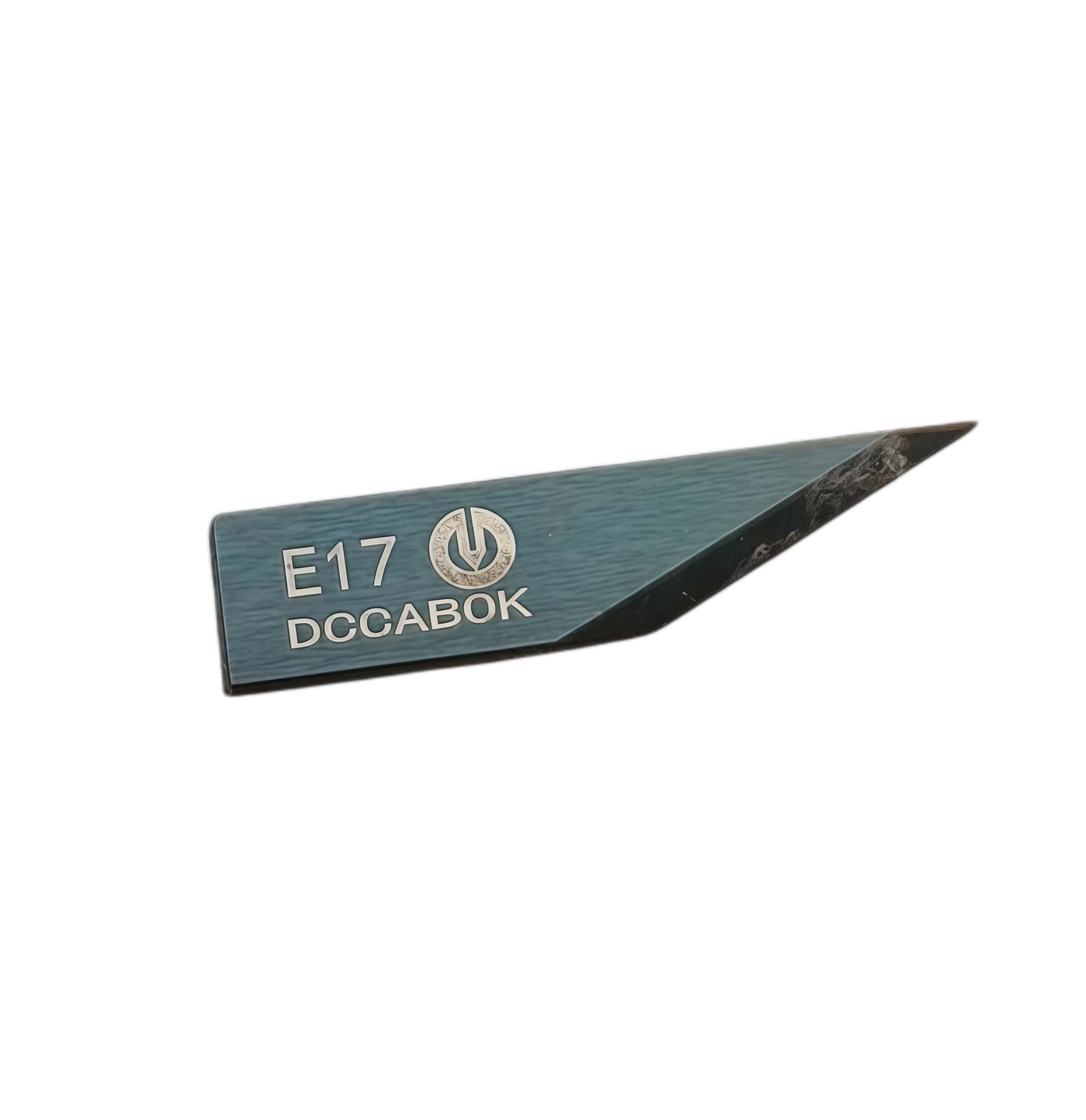

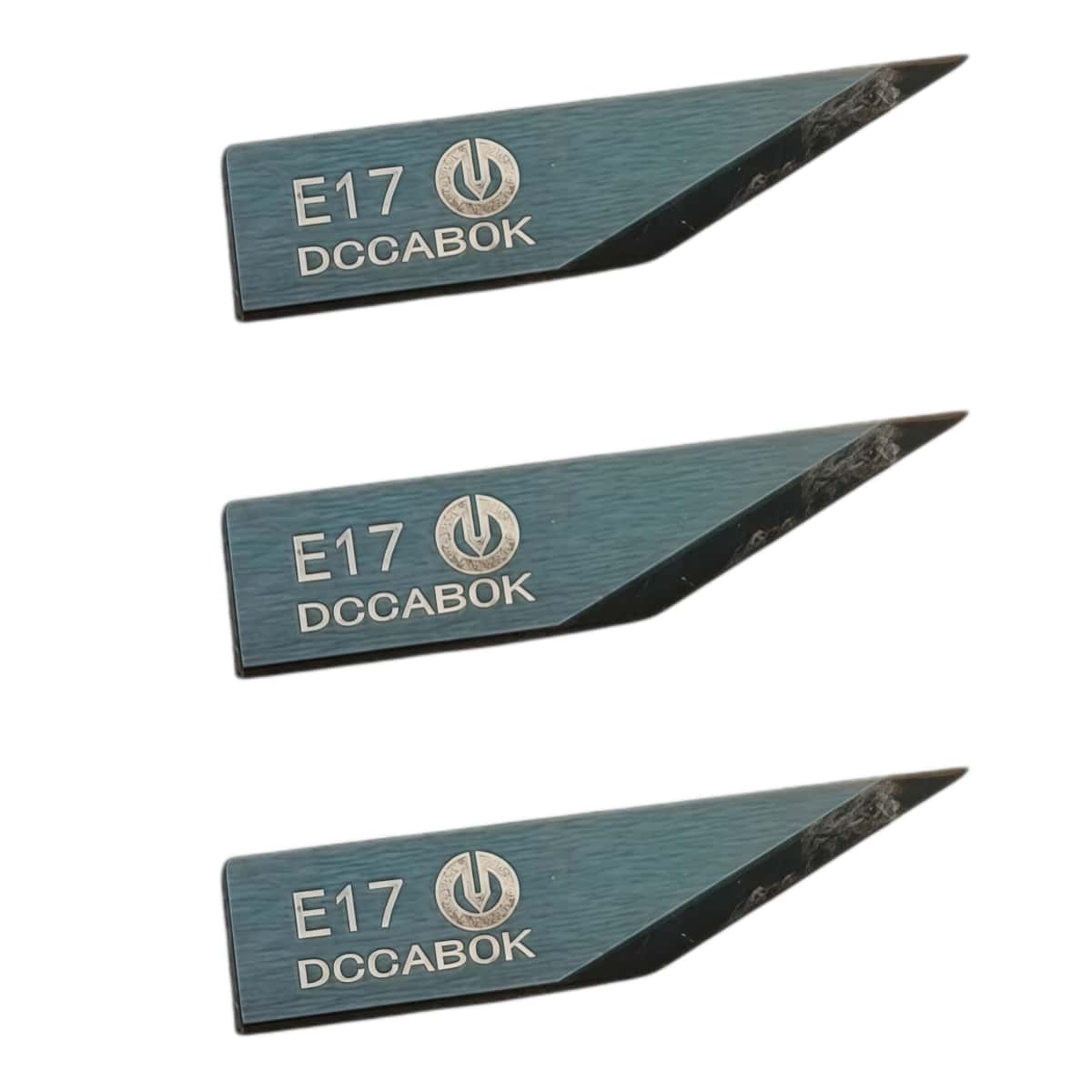

iEcho E17 Carbide Oscillating Knife Blades

IECHO E17 carbide oscillating knife blade is a premium, flat-stock tungsten carbide blade explicitly engineered as a high-precision cross-brand alternative for various industrial digital cutters. Featuring a sharp, pointed 65° single-edge geometry, it provides a smaller overcut when slicing through intricate curves, tiny radiuses, and complex geometries.

Technical Specifications

Blade Type: Flat-stock pointed oscillating/drag blade
Material: Micro-grain solid tungsten carbide (HM / Hard Metal)
Cutting Angle: 65° single edge
Blade Thickness: 0.63 mm
Blade Width: 5.60 mm
Total Height: 25.00 mm
Maximum Cutting Depth: 12.00 mm
Mounting Style: 0.63 mm flat-stock tool holder

Machine Tool & System Compatibility

While widely cross-compatible with Zund, Esko, and Bullmer machines, on IECHO BK, BK3, BK4, and TK series digital flatbed cutting tables, the E17 blade is driven by two primary high-performance modules:

Electric Oscillating Tool (EOT): Utilizes rapid, motorized vertical strokes. This reduces drag force, making it the ideal setting for dense or fibrous materials where detail accuracy is critical.
Pneumatic Oscillating Tool (POT): Powered by compressed air. It provides a longer stroke length and massive downforce to maintain clean edges through thicker semi-rigid substrates.

Target Material Applications

The thin 0.63 mm body paired with a steep 65° profile allows the blade to slice through light-to-medium substrates with very low cutting resistance, preventing shifting or puckering:

Packaging & Cardboard: Solid folding carton (100g to 1500g), heavy cardstock, and single-wall corrugated paperboards.
Graphics & Film: Self-adhesive vinyl, reflective signage film, heavy paper (100g to 400g), and magnetic foil sheets.
Industrial Fabrics & Synthetics: Canvas, polyester textiles, thin PVC banner material, and offset coating blankets.
Technical Materials: Polycarbonate (PC) panels, polyester film, and soft non-asbestos gasket components.

Replacement for: XZ0017,BT-2317,Zund Z17 / 3910307,Esko T17, G42441220, 42441220, BLD-SF217, i-217,Bullmer B17,iEcho E17,Mecanumeric 100610390,COMPO008759,Blackman & White BW17,Comagrav FN12,Atom 01039894,Viliani 2157 T17,Ronchini RM-01039894 Cutworx Apex CWX/CWT E17
