iEcho E42 Oscillating Knife Blades-Replacement For ZUND Z42 Atom 01039893 Lectra 801400

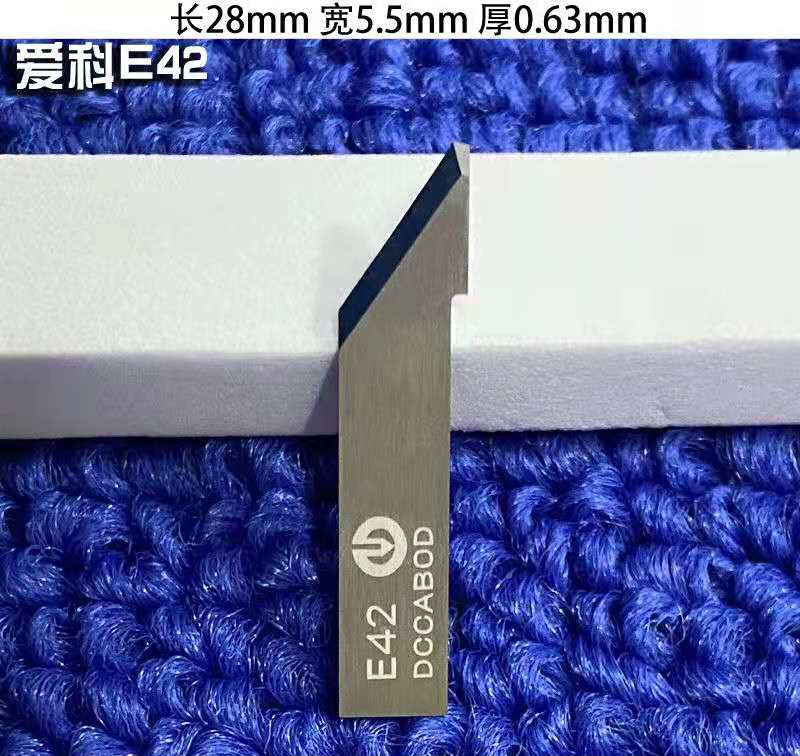

iEcho E42 oscillating knife blade is a tungsten-carbide replacement blade for iEcho digital cutters, commonly listed with a 28 mm height, 5.6 mm width, 0.63 mm thickness, a 15°/55° cutting angle, and about 7.8 mm max cutting depth.

Enquire now

Description

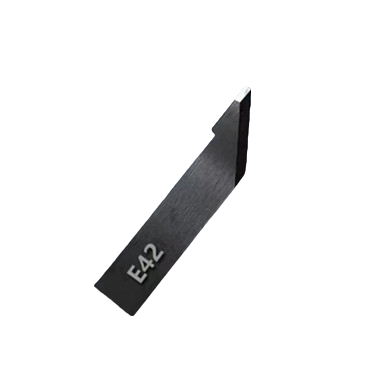

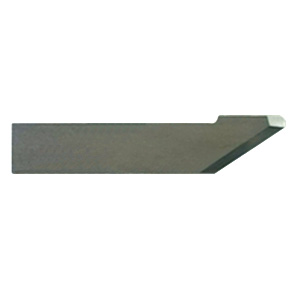

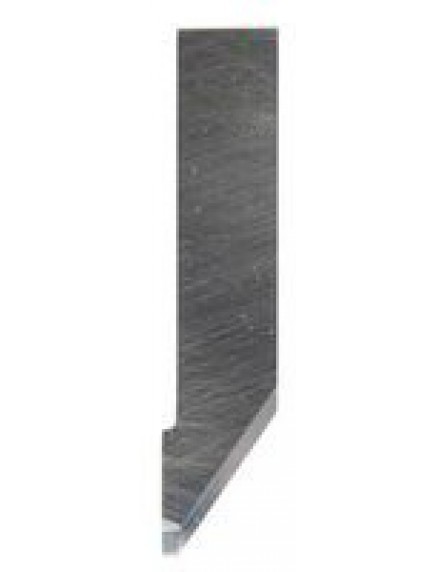

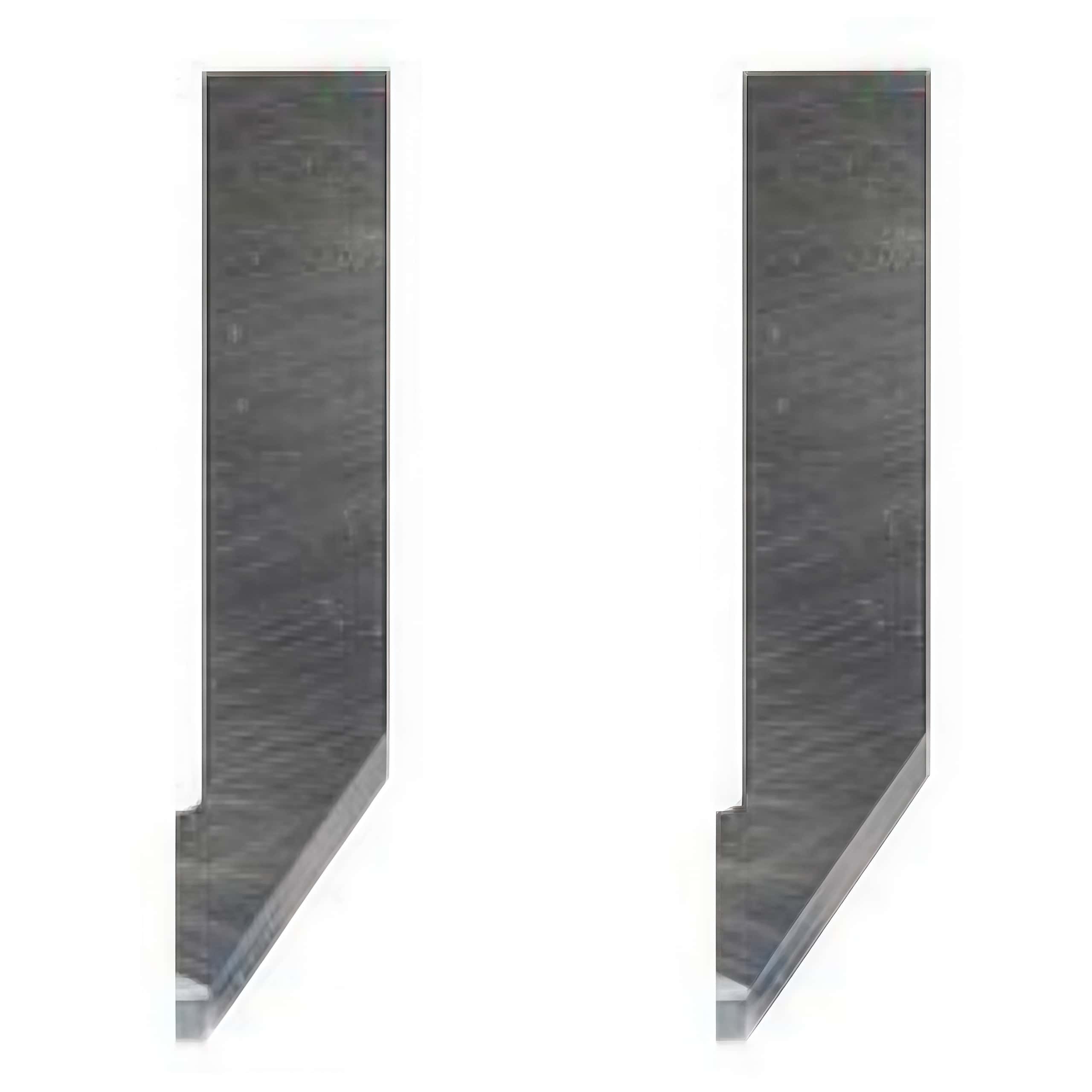

iEcho E42 Oscillating Knife Blade

iEcho E42 Oscillating Knife Blade is a robust, pointed flat blade engineered for high-frequency vertical vibrating cuts on iEcho Digital Flatbed Cutters. It features a unique dual-angle tip design (15° / 55°) with a small pre-cut profile. This geometry allows it to easily pierce dense materials and execute clean, intricate geometries without tearing.

Knife height: 28mm
Thickness: 0.63mm
Max. cutting depth:7.5mm
Knife type: Oscillating
Angle:15/55°

Tool Compatibility

The flat 0.63 mm base is built specifically to seat into iEcho’s rapid vertical-stroke vibration modules:

EOT (Electric Oscillating Tool): Ideal for high-speed, detailed execution on lower-density stocks.
POT (Pneumatic Oscillating Tool): Provides the heavy-duty compressed air stroke required to force the E42 through thick, stubborn substrates.

Ideal Material Applications

Because the E42 utilizes a small pre-cut zone, it excels at directional changes in materials that typically drag or bunch up:

Structural Boards: Corrugated cardboard, compact folding cartons, and sandwich foam boards.
Gaskets & Insulation: Industrial felt, non-woven fabrics, and technical foam rubber.
Tough Organics: Heavy leather hides, suede, and multi-layer apparel textiles.
Advanced Weaves: Carbon fiber plies, fiberglass sheets, and protective Aramid (Kevlar) fabrics.

Production Upgrades

When sourcing replacements, you will typically find two performance tiers beyond the standard grey tungsten steel:

LongLife / Coated Variations: Finished with a titanium nitride (gold tint) or diamond-like carbon layer. These lower friction heat and extend blade life by up to 2x.
Super Hard Metal (SHM): Specialized ultra-pure carbide formulations designed specifically to reduce edge chipping when cutting highly abrasive glass or carbon filaments.

Suitable for machine manufacturer:Dyss AGDYB420,iEcho E42,Topcut Bullmer 10750,Blackman & White BW42,ZUND Z42,Atom 01039893,Lectra 801400,Ronchini RM-01039893
