iEcho E51 Decagonal (10-sided) Rotation Knife Blades-Replacement For Zund Z51 Summa 500-9861

iEcho E51 decagonal 10-sided rotation knife blade is a rotary blade for iEcho digital cutters and flatbed cutting machines, with listings showing a 28 mm height, 0.6 mm thickness, and a 5.5 mm max cutting depth. Enquire now

Description

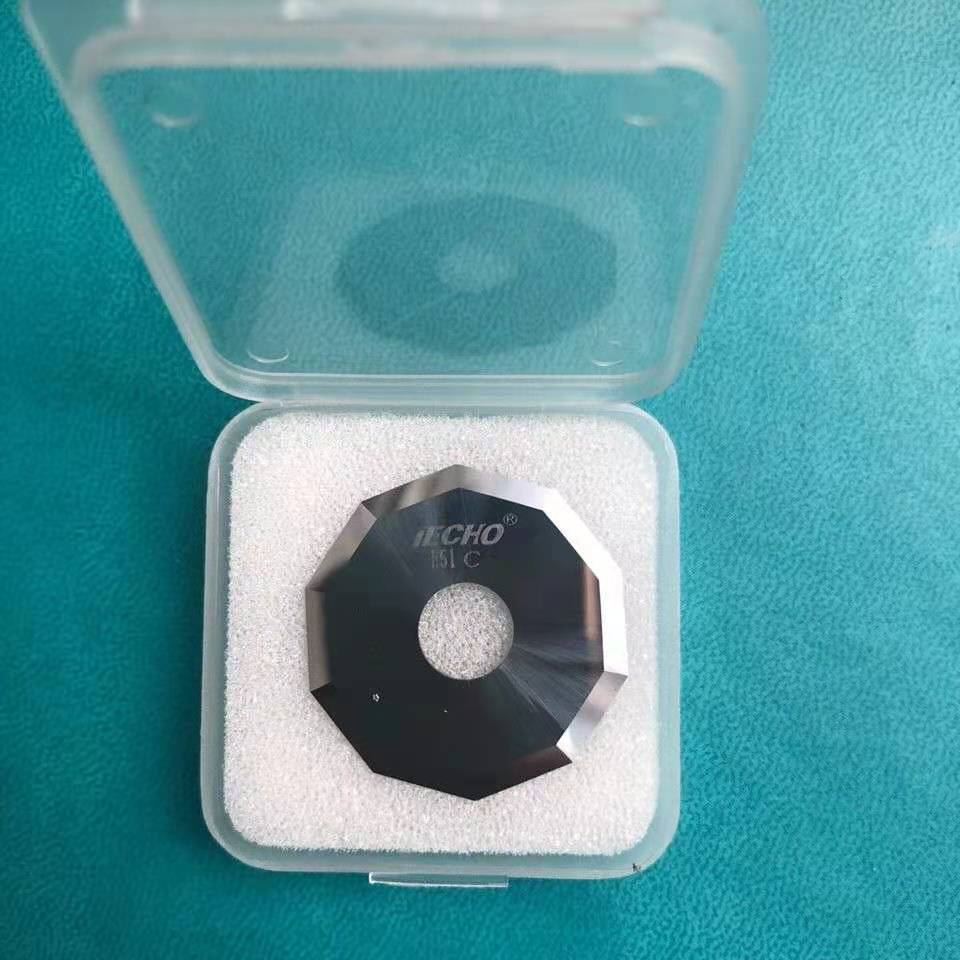

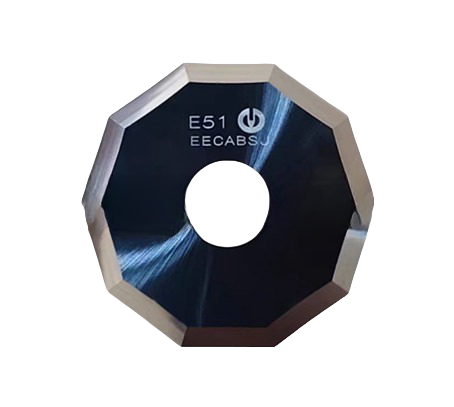

iEcho E51 Decagonal (10-sided) Rotation Knife Blades

iEcho E51 Decagonal Rotation Knife Blade is a 10-sided, faceted circular rotary blade designed for very high-speed slicing on iEcho Automated Digital Flatbed Cutters. Unlike perfectly round blades, the 10 distinct facets (edges) of the decagonal design introduce a subtle chopping and shearing rhythm as the blade rolls. This mechanical action dramatically reduces material slippage and prevents flexible threads or weaves from bunching up under the cutting head.

Knife height:
28mm
Thickness:
0.6mm
Max. cutting depth:
5.5mm
Knife type:
Rotary

Tool Compatibility

The E51’s 8mm center hole slips directly onto the drive shafts of iEcho’s rotation-specific modules:

DRT (Driven Rotary Tool): A motorized tool head that spins the E51 actively, synchronizing its speed to match the gantry's travel velocity. It is ideal for clean, high-precision cuts in delicate textiles.
PRT (Power/Pneumatic Rotary Tool): A high-torque module meant to force the multi-sided blade through tough, abrasive, dense multi-layered fabrics without binding or losing rotation speed.

Ideal Material Applications

Because the 10-sided edge cleanly nips through individual filaments instead of dragging across them, the E51 excels at processing dense, slippery, or interlocking fibers:

High-Strength Composites: Raw carbon fiber sheets, fiberglass mats, and defensive aramid (Kevlar) fabrics.
Industrial Flooring & Padding: Thick technical felt, heavy carpets, and non-woven backing materials.
Synthetics & Apparel Textiles: Multi-layered polyester, heavy nylon fabrics, canvas, and natural leather hides.
Paper Products: Heavy-gauge paperboards and flexible packaging sheets.

Suitable for machine manufacturer:XZ0051 BT-2351 Zund Z51 3910336,Gerber MCT R51,Summa 500-0861 500-9861,Kuris 84559,iEcho E51,Blackman & White BW51,Comagrav CD28,Multicam 003612-MC51,Bullmer B51,Aristo 7459 000007459 0000 07459,Gunnar GR928 Cutworx Apex CWX/CWT E51 Itc Brr-28 - No. 28 Rotary Blade

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
