Summa 500-0861 500-9861 F Series Decagonal (10-Sided) Rotary Cutter Knife Blades

CHINA Summa 500-0861 (500-9861) Decagonal Rotary Cutter Knife Bladeisa specialized, 10-sided circular replacement blade engineered for the Summa F Series Flatbed Cutters. Enquire now

Description

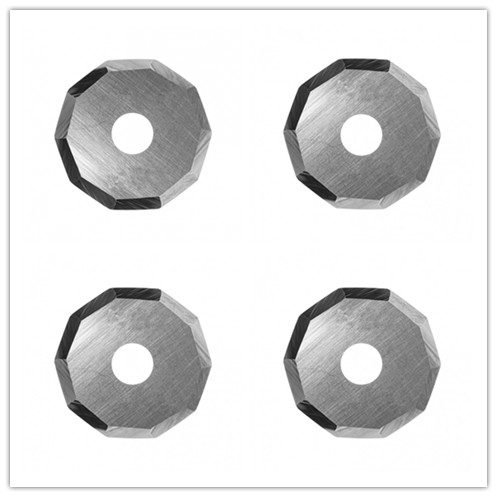

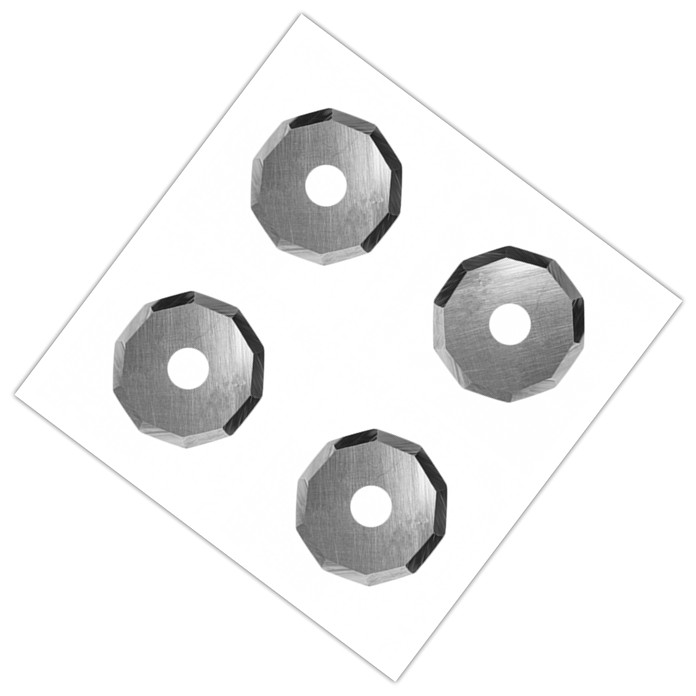

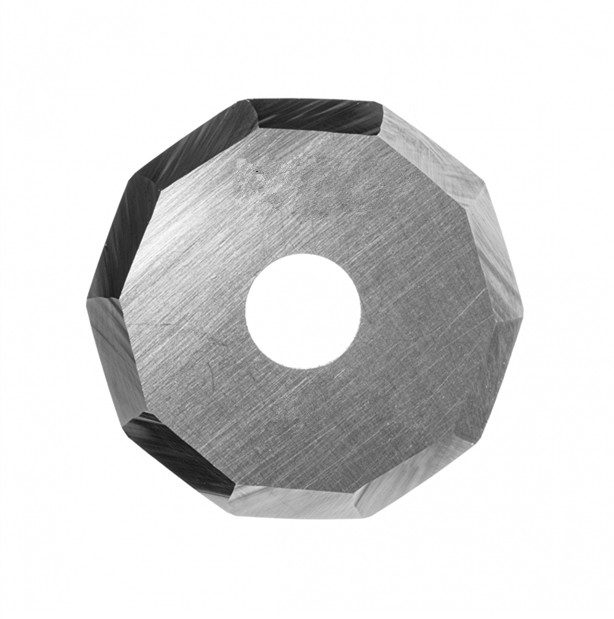

Summa Decagonal (10-Sided) Rotary Knife blades 500-0861,500-9861

Core Technical Specifications

Blade Type : Decagonal (10-sided) driven rotary blade.
Blade Diameter / Height : 28.00 mm (commonly designated as the D28 size).
Blade Thickness : 0.60 mm.
Cutting Angle : 36°.
Maximum Cutting Depth : Up to 3.00 mm (material thickness capability) to 5.00 mm (physical plunge limit).
Bore / Mounting Hole : 8.00 mm inner diameter.
Material Composition : Typically solid tungsten carbide (also available with Titanium Nitride [TiN] wear-resistant coatings).

Functionality & Hardware Compatibility

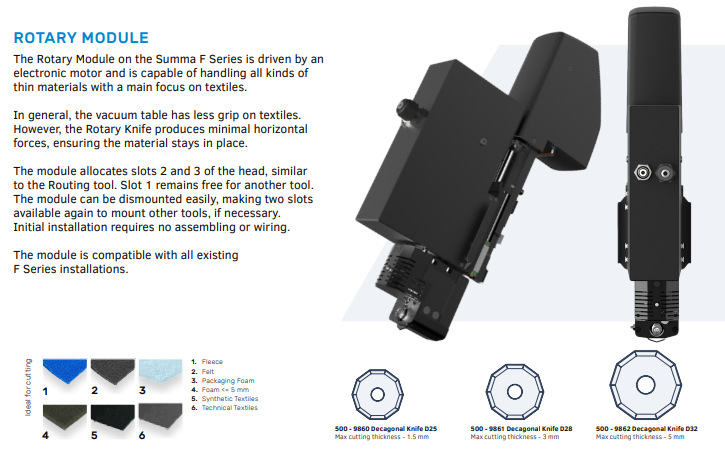

The decagonal geometry provides 10 distinct, faceted cutting facets instead of a perfectly smooth round edge. As an electronic motor drives the module, this multi-sided edge creates a continuous chopping/slicing action. This reduces friction and prevents stretchy or loosely woven material from bunching up.

Common Target Materials

Technical Textiles : Carbon fibers, fiberglass, and Aramid/Kevlar weaves.
Wovens & Fabrics : Polyester, nylon, cotton, and heavy textiles.
Heavy Substrates : Dense felt, non-woven fabric, and heavy outdoor banner vinyl.

Suitable for machine manufacturer:XZ0051 BT-2351 Zund Z51 3910336,Gerber MCT R51,Summa 500-0861 500-9861,Kuris 84559,iEcho E51,Blackman & White BW51,Comagrav CD28,Multicam 003612-MC51,Bullmer B51,Aristo 7459 000007459 0000 07459,Gunnar GR928

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
