Multicam Bt-57230 84-00193-Bt-57230 Round Shank Knife Blades For Multicam CNC Machine Routers

Multicam BT-57230 (84-00193-BT-57230) is an industrial-grade, solid tungsten carbide round-shank oscillating knife blade. It is engineered specifically for high-frequency vertical vibration slicing on MultiCam CNC automated digital cutting machines and routing tables. Enquire now

Description

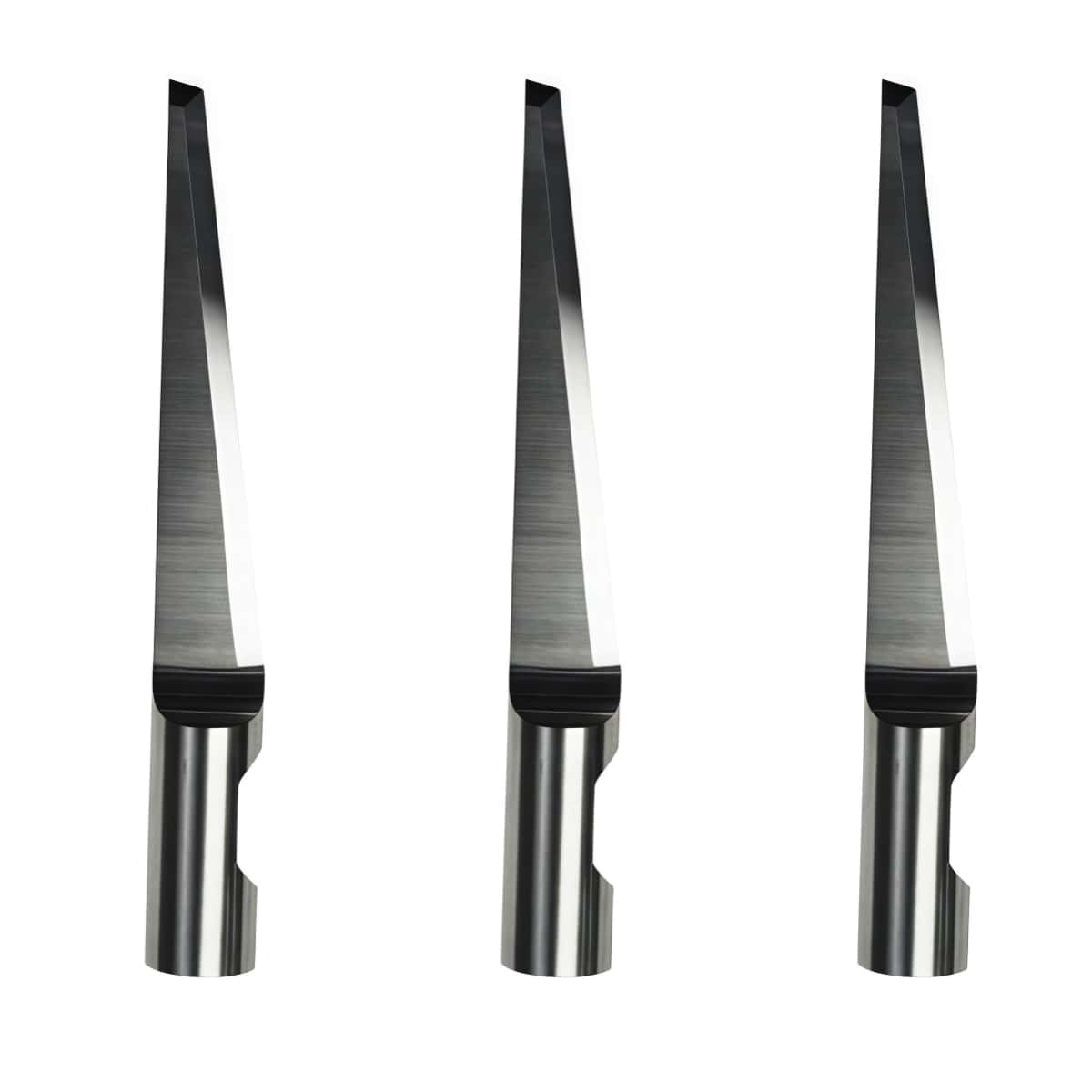

Multicam Bt-57230 84-00193-Bt-57230 Round Shank Knife Blade For Multicam CNC Machine Routers

The Multicam BT-57230 (OEM Part Number: 84-00193-BT-57230) is an industrial-grade, solid tungsten carbide round-shank oscillating knife blade. It is engineered specifically for high-frequency vertical vibration slicing on MultiCam CNC automated digital cutting machines and routing tables.

Technical Specifications & Geometry

Part Number: BT-57230 / 84-00193-BT-57230
Shank Type: Ø 6.00 mm universal cylindrical shank (typically features a Weldon flat interface to prevent rotation during high-vibration stress).
Overall Blade Height: 46.00 mm.
Maximum Cutting Depth: 30.00 mm.
Cutting Tip Angle: 82.3°.
Blade Profile: Single-edged, flat-point layout optimized for clean bidirectional or continuous vibration cycles.
Material Composition: Uncoated micro-grain tungsten carbide (tungsten steel) delivering extreme wear resistance and maintaining a sharp edge under high-friction load.

Target Materials & Industrial Applications

The extended 30 mm cutting depth allows this blade to slice through thicker or layered mediums that regular drag knives cannot process without fraying or material bunching. It is widely used to achieve clean contour cuts on:

Composite Fibers: Carbon fiber and aramid fiber sheets.
Industrial Fabrics: Thick canvas, polyester textiles, and magnetic foils.
Packaging Materials: Multi-wall corrugated cardboard, heavy cardboard, and folding cartons.
Structural Substrates: Tough foam boards, rubber sheets, and honeycomb panels.

Equivalent to: Summa 500-9831, MultiCam 84-00193-BT-57230, AXYZ B1031l-30

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
