Multicam BT-57253R Round Oscillating Knife Blades For Multicam CNC Machine Routers

Multicam BT-57253R is a high-performance, solid tungsten carbide round shank oscillating knife blade designed for heavy-duty, high-frequency vibration cutting on MultiCam CNC machine routers and automated digital finishing tables Enquire now

Description

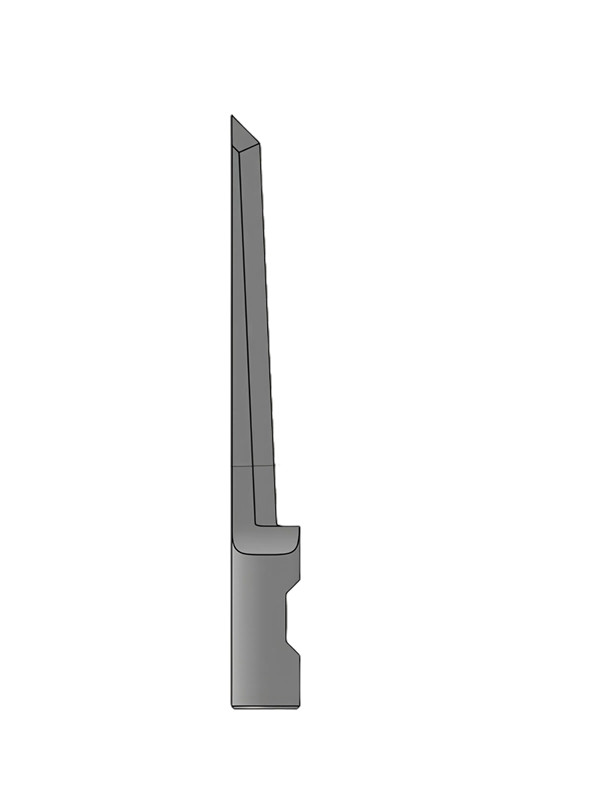

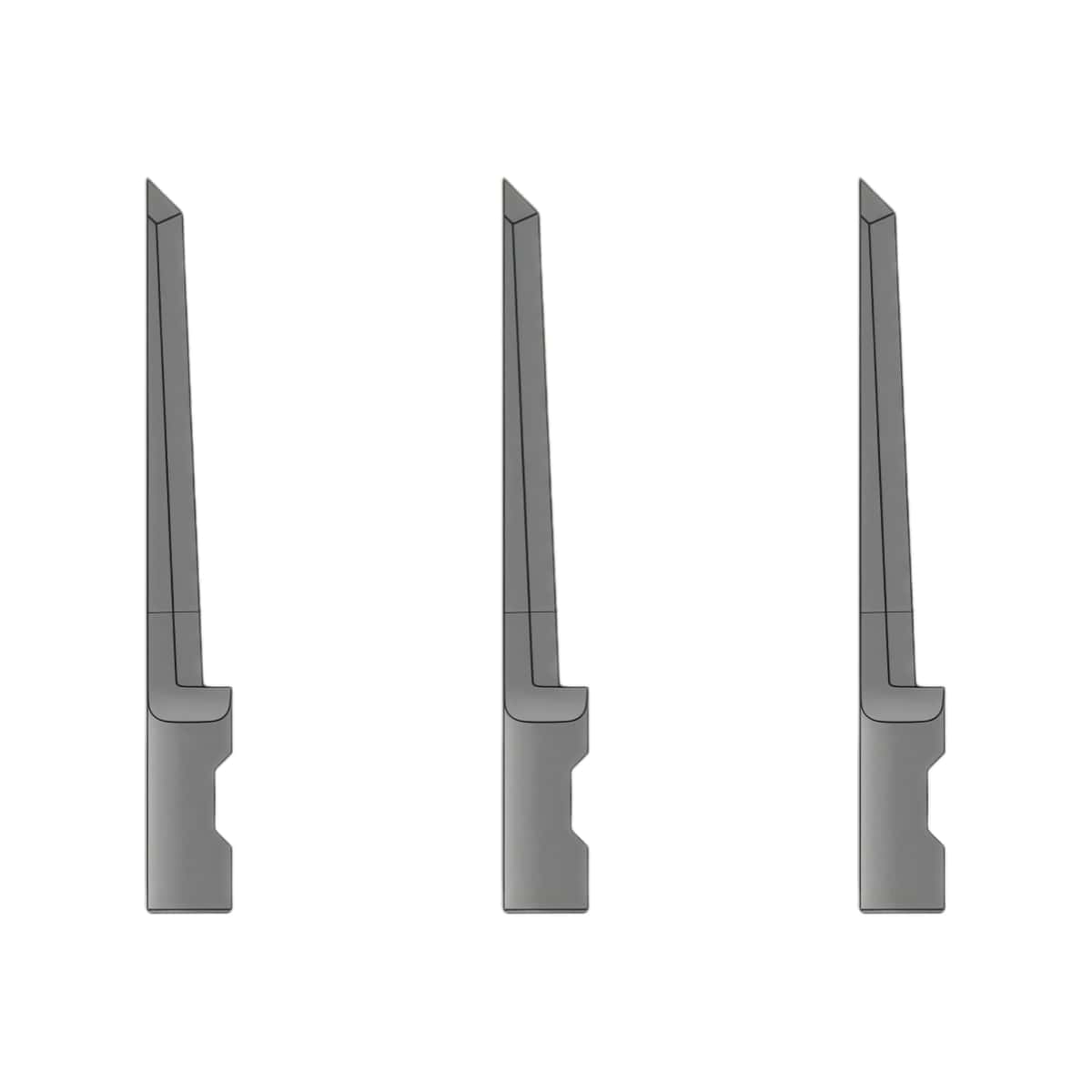

Multicam BT-57253R Round Oscillating Knife Blade For Multicam CNC Machine Routers

The Multicam BT-57253R is a high-performance, solid tungsten carbide round shank oscillating knife blade designed for heavy-duty, high-frequency vibration cutting on MultiCam CNC machine routers and automated digital finishing tables.

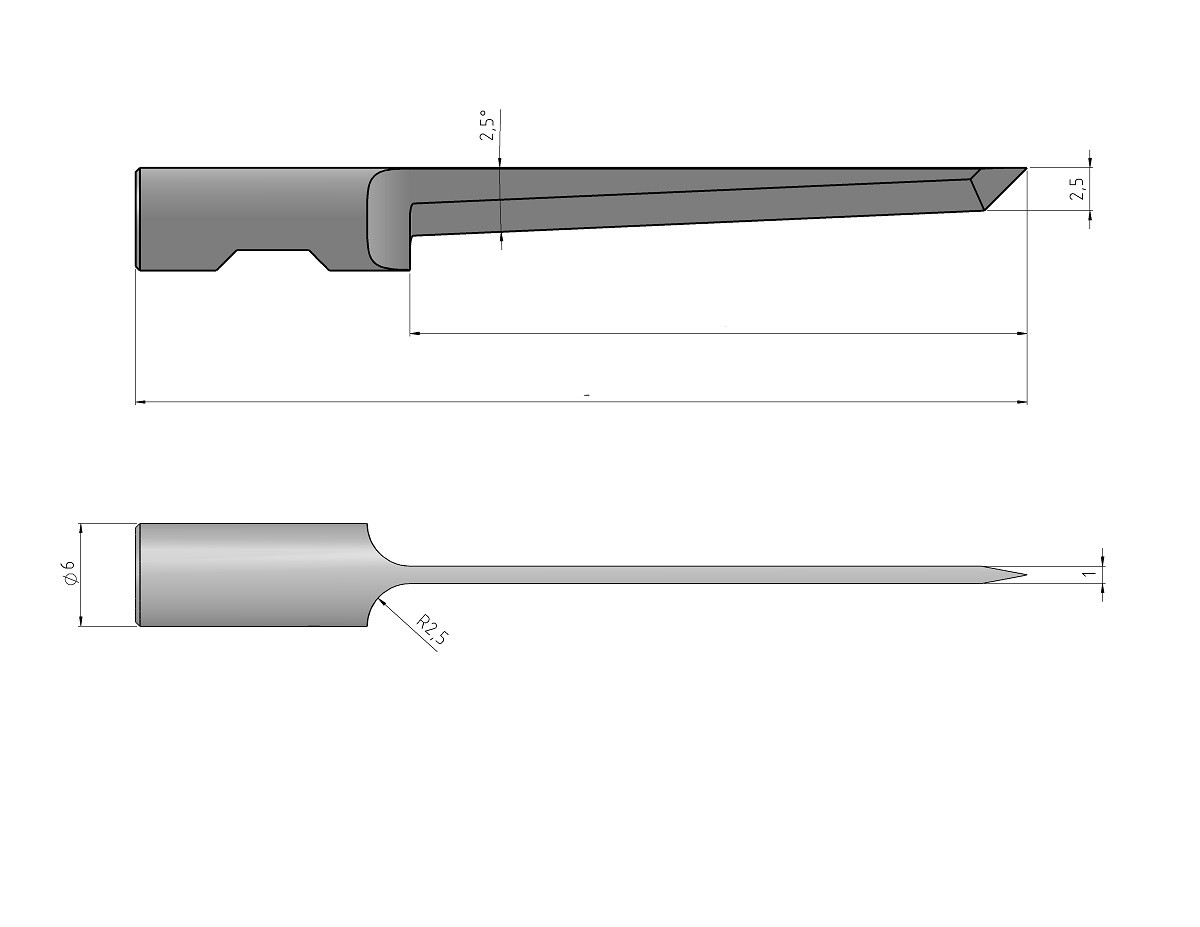

Technical Specifications & Geometry

Part Number: BT-57253R
Shank Diameter: 6.00 mm universal round shank (compatible with Weldon-style tool holders to prevent slippage during oscillation).
Overall Length (OAL): 52.0 mm.
Maximum Cutting Length (Depth): 36.0 mm.
Cutting Angle: 87.5° steep profile angle.
Blade Geometry: 2 Cutting edges (Double-edged cutting profile) engineered for continuous, bidirectional high-speed slicing.
Material Composition: Micro-grain solid tungsten carbide (tungsten steel) providing high friction resistance and edge retention

Application and Materials

With a generous 36 mm maximum cutting depth and a steep 87.5° angle, this blade excels at making vertical plunging cuts and tight contour tracking in thick, flexible, or fibrous materials. It minimizes material pulling and distortion on:

Thick honeycomb core panels and structural cardboard
Dense technical packaging foams and rubber gaskets
Thick industrial textiles, felt substrates, and multi-ply canvas

Comparable to:
Esko BLD-SR6311 G42443101 AXYZ B1031l-35
