Axyz Bt-57235 B1031l-35 Kf1-35 Tungsten Carbide Cylindrical Oscillating Knife Blades

Axyz BT-57235 (also listed as B1031L-35 or KF1-35) is an industrial solid tungsten carbide oscillating knife blade engineered for CNC router knife systems. Enquire now

Description

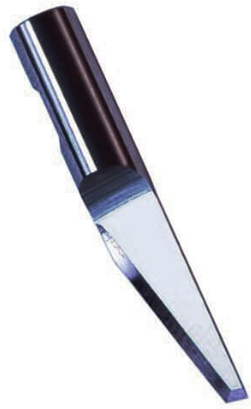

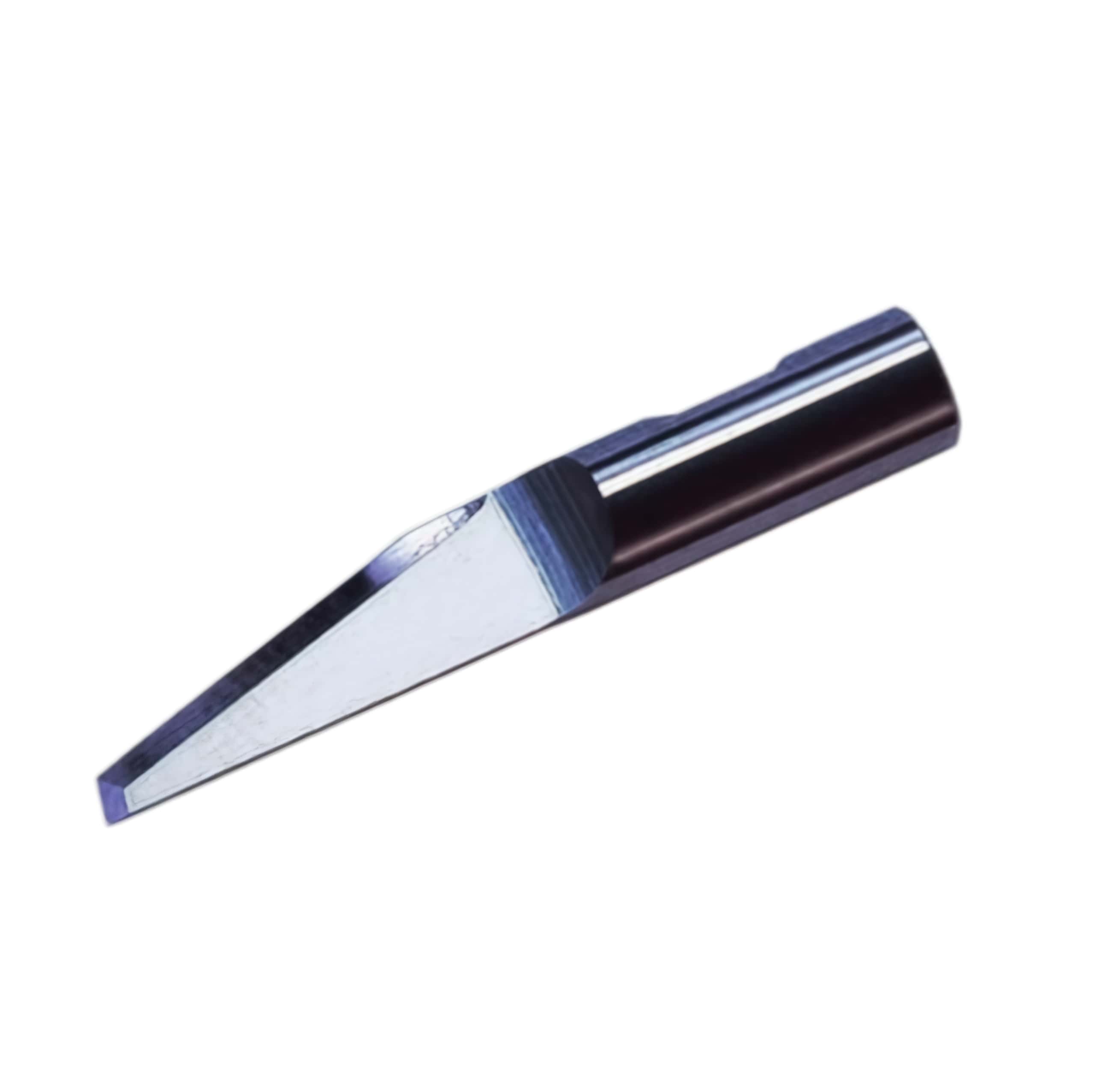

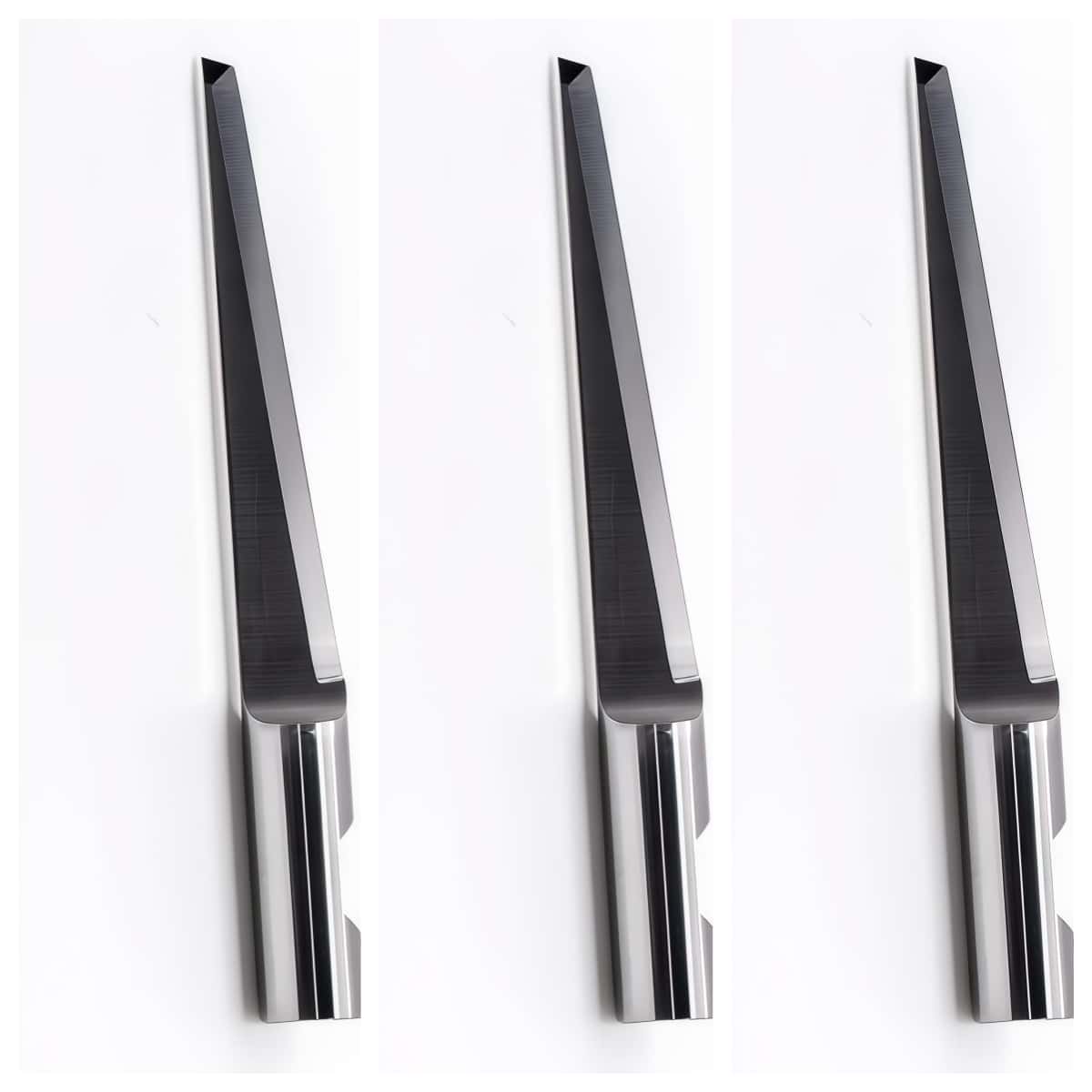

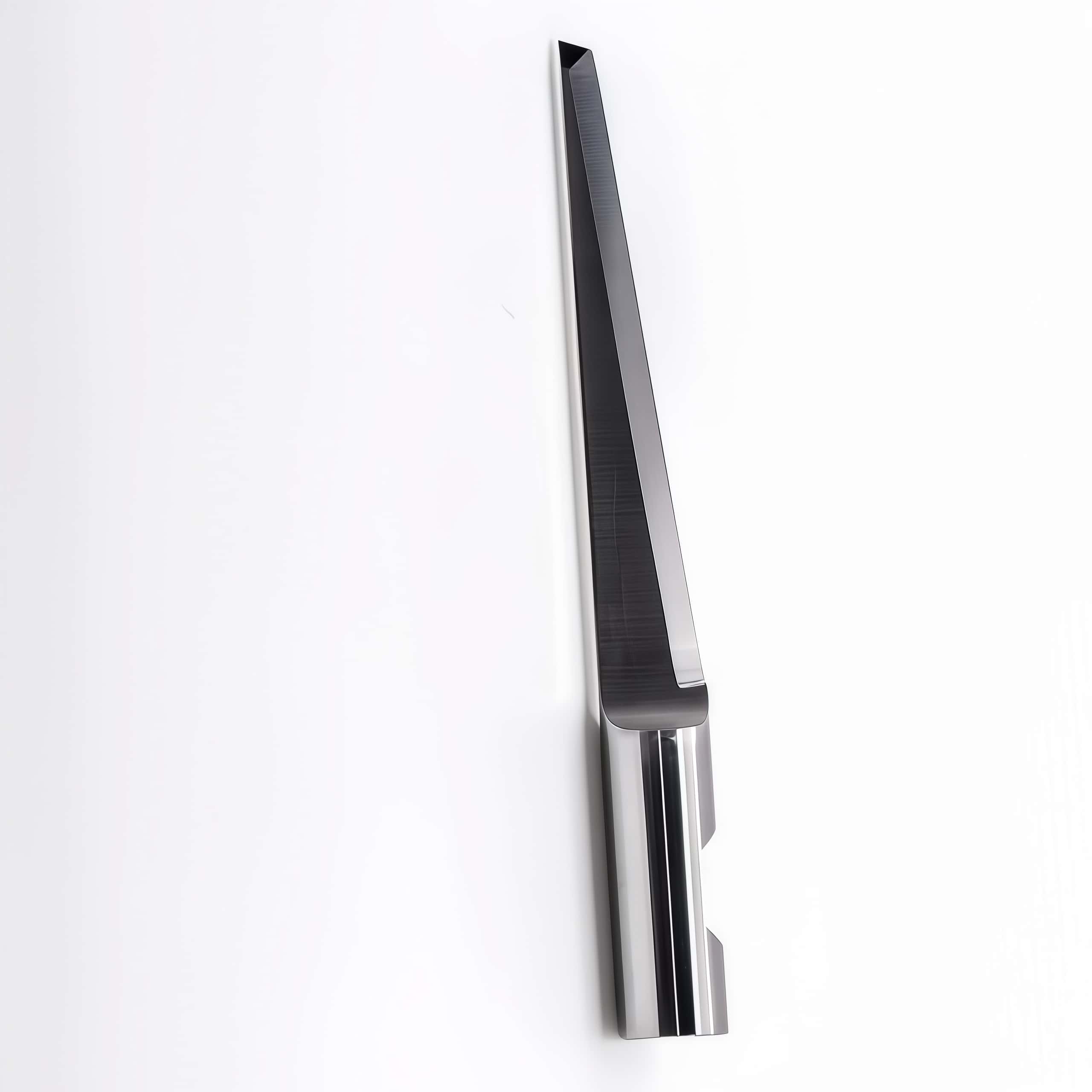

Axyz Bt-57235 B1031l-35 Kf1-35 Tungsten Carbide Single-Edge, Flat-Point Cylindrical Oscillating Knife Blades

AXYZ B1031L-35 (cross-referenced under part numbers BT-57235 and KF1-35) is an industrial-grade, solid tungsten carbide single-edge, flat-point cylindrical oscillating knife blade. This blade utilizes high-frequency vertical vibration (up-and-down sawing action) to slice cleanly through extra-thick, soft, and highly compressible materials without snagging or dragging.

Key Technical Specifications
Cut Length: 35mm.
Shank Type: 6mm Round Shank.
Overall Length (OAL): Approximately 51mm to 55mm (varies slightly by manufacturer).
Tip Geometry: Flat Point (ideal for materials where a sharp point might snag or cause tearing).
Cutting Angle: Roughly 83.5° to 86°.

Common Applications & Compatibility
These blades are specifically engineered to fit the AXYZ Oscillating Knife Tool found on AXYZ Flashcut and Trident series CNC routers.
Primary Materials: Fibrous and insulation materials, gaskets, textiles, rubber, and foam.

Cross-Compatibility: This blade is often interchangeable with equivalent part numbers from other brands, equivalent to: MultiCam 003612-MC142568 84-00193-BT-57235, AXYZ B1031L-35

Axyz BT-57210 BT-57215 BT-57220 BT-57230 BT-57235 BT-57240 BT-572065 BT-572070 BT-572110 BT-572120 Single Edge Flat Point Carbide Knife Blade Regular Size Selection Comparison Table

General Reference Model	AXYZ OEM code	Shank diameter	Maximum depth of cut	Overall blade length (OAL)	Optimal for material thickness	Core Recommended Processing Materials
BT-57210	B1031L-10	6 mm	10 mm	~40 mm	1 - 8 mm	Industrial rubber gaskets, thin-layer flexible PVC, magnetic stickers, automotive leather
BT-57215	B1031L-15	6 mm	15 mm	~45 mm	5 - 12 mm	Aramid/Kevlar fibers, prepregs, multilayer canvases, technical textiles
BT-57220	B1031L-20	6 mm	20 mm	~50 mm	10 - 18 mm	High-density rubber sheet, heavy-duty insulating pad, thick synthetic leather
BT-57230	B1031L-30	6 mm	30 mm	~60 mm	15 - 28 mm	Main products for packaging sampling : double/triple-layer corrugated boxes, medium-thickness honeycomb cardboard
BT-57235	Compatible Parts Code	6 mm	35 mm	~65 mm	20 - 32 mm	Polyester fiber sound insulation board, medium density sound-absorbing cotton, building insulation felt
BT-57240	B1031L-40	6 mm	40 mm	~70 mm	25 - 38 mm	Main materials for advertising signage : thick KT foam board, dense foamed PVC, rigid EVA
BT-572065	B1041L-65	6 mm	65 mm	~91 mm	40 - 62 mm	Cushioning packaging with pearl cotton (EPE/XPE) and medium-thickness sponge lining.
BT-572070	B1031L-70	6 mm	70 mm	~96 mm	45 - 68 mm	Heavy-duty honeycomb mechanical trays, closed-cell structure antistatic rigid foam parts
BT-572110	B1031L-110	6 mm	110 mm	~140 mm	80 - 105 mm	Flexible air conditioning duct panels, thick foam blocks for sofas and chairs, and shockproof chambers for precision instruments.
BT-572120	B1031L-120	6 mm	120 mm	~150 mm	90 - 115 mm	Extreme depth cutting : ultra-thick building sound insulation rock wool, ultra-thick flexible plastic foam chamber

Three Core Golden Rules for Size Selection
1,Cutting depth allowance principle (10% - 15% redundancy) :
Because CNC cutting machines need to penetrate the material and finely adjust the blade to embed itself into the protective felt/cutting pad below (usually 0.5mm - 1.5mm), never choose a blade whose maximum cutting depth is exactly the same as the material thickness . For example, when cutting 30mm thick foam board, this should be abandoned BT-57230, and a different type of blade should be selected BT-57235 instead BT-57240.

2,The principle of maximizing rigidity (choose shorter over longer) :
While cemented carbide (tungsten steel) is extremely wear-resistant, the longer the cutting depth, the greater the lateral shearing force exerted on the blade by high-frequency reciprocating vibrations. It is strictly forbidden to use it to cut 10mm cardboard for the sake of "saving time BT-572110 ." An excessively long, suspended blade will generate micro-resonance during high-speed feed, leading to wavy cuts, shortened blade life, or even chipping.

3,Machine tool tip travel matching : Before
using thick inserts (such as 0.5mm and above), you must confirm the Z-axis clearance BT-572065 of your AXYZ Trident or MultiCam equipment . If the travel is insufficient, the insert tip will directly scratch or drag the material surface when lifting and swishing or during rapid traverse.
