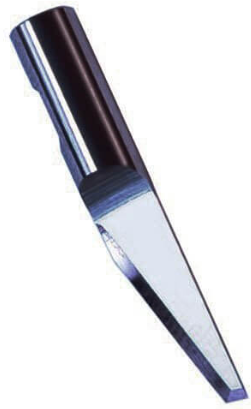

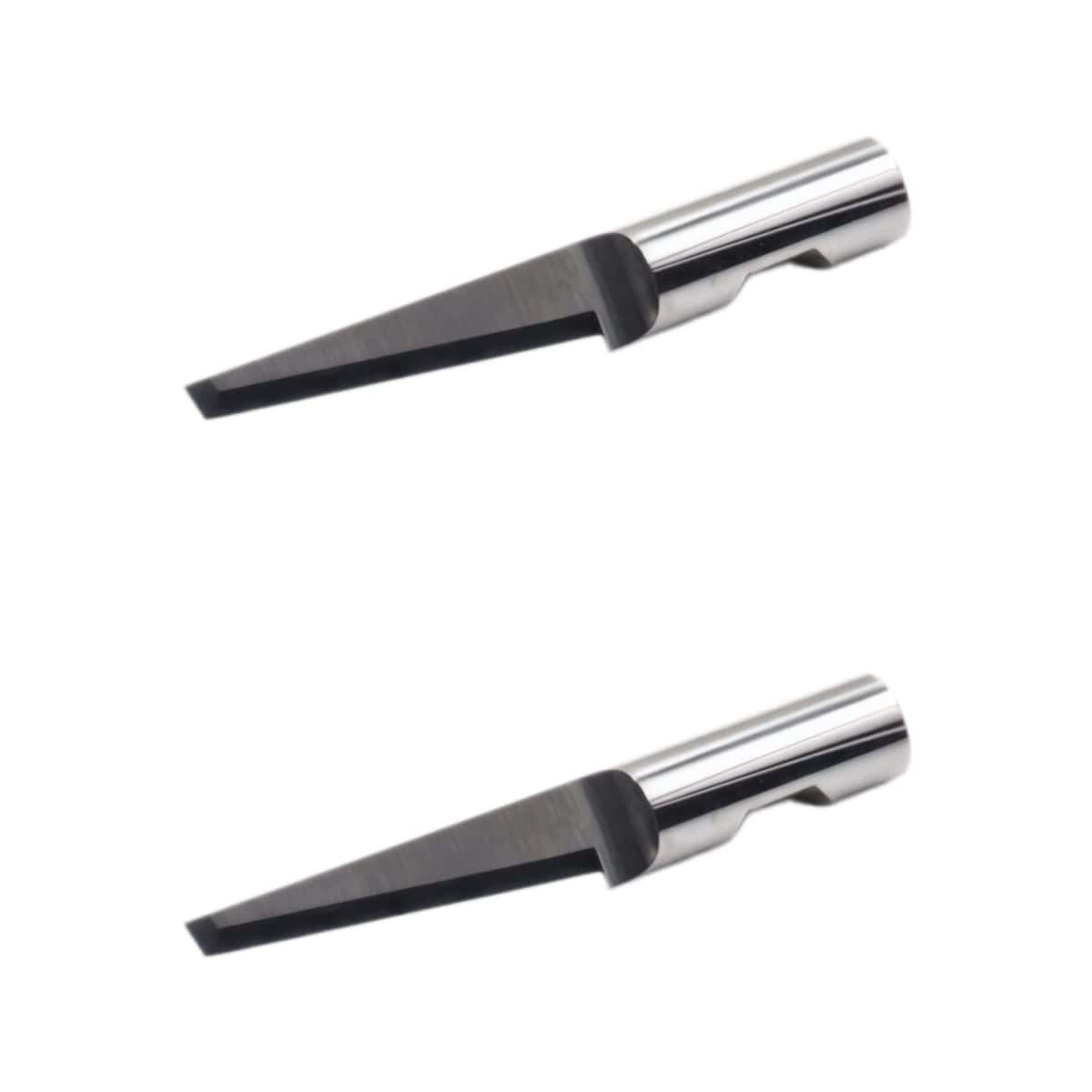

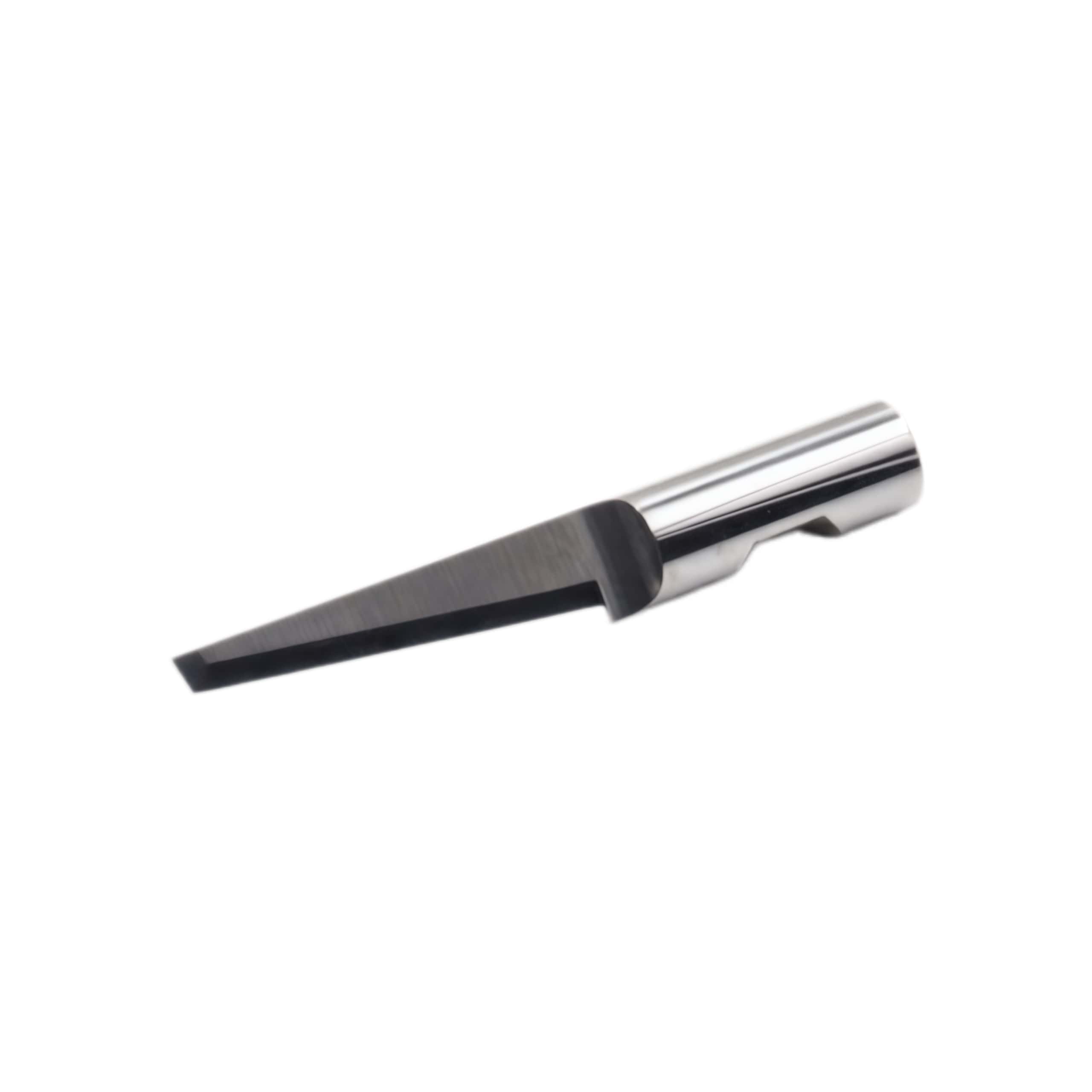

Axyz B1031l-20 Bt-57220 Kf1-20 Solid Tungsten Carbide Cylindrical Oscillating Knife Blades

AXYZ B1031L-20 (BT-57220 and KF1-20) is an industrial-grade, solid micrograin tungsten carbide single-edge, flat-point oscillating knife blade designed for heavy-duty, deep-pocket material cutting on CNC digital finishing tables. Enquire now

Description

Axyz BT-57220 B1031l-20 Single Edge Round Shank Flat Point Knife Blades

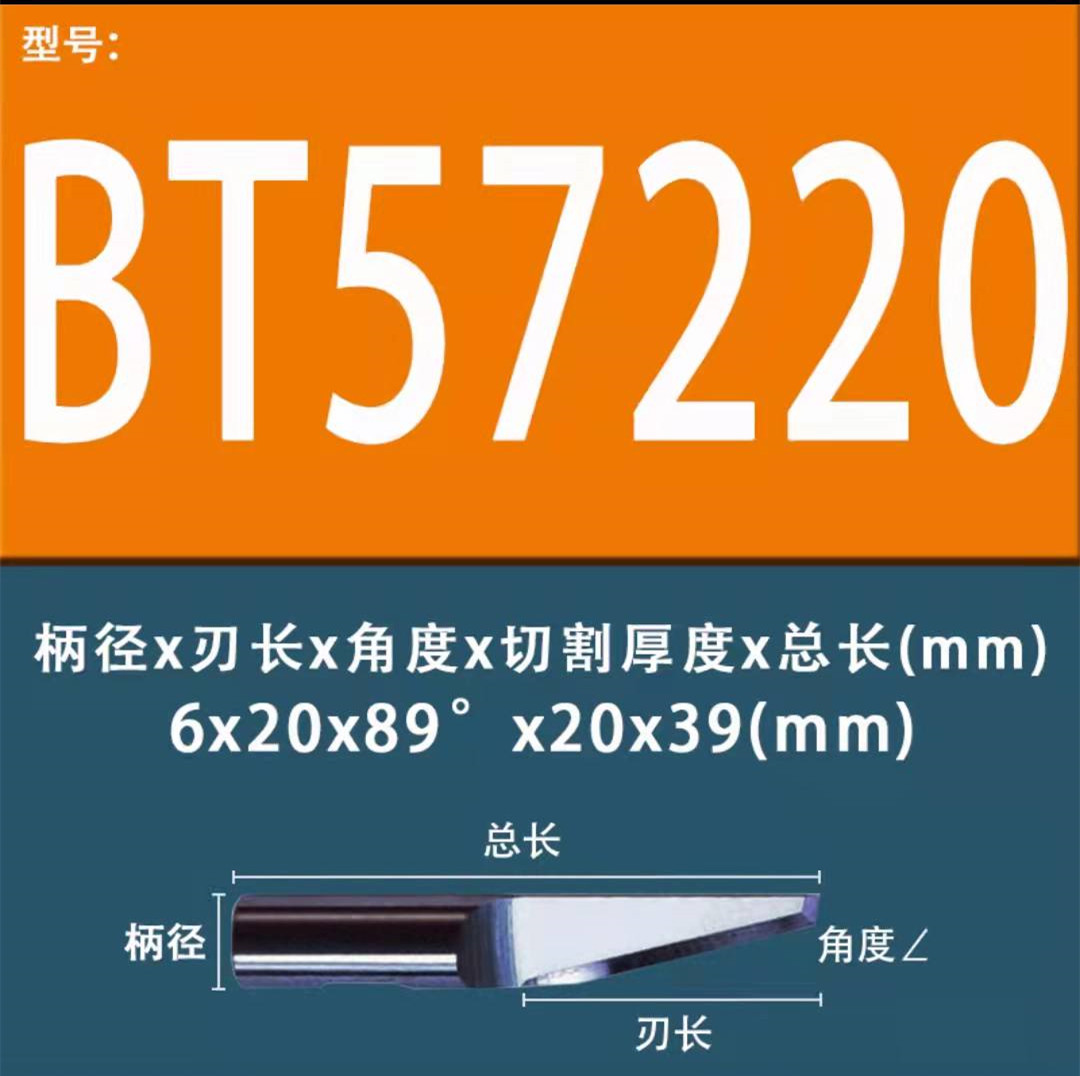

Technical Specifications & Geometry

Feature	Specification	Engineering Purpose
Model / Part Numbers	B1031L-20 / BT-57220 / KF1-20	Universal OEM/aftermarket cross-reference identification
Material Construction	Solid Micrograin Tungsten Carbide (VHM)	Ensures maximum rigidity, edge sharpness, and high heat/wear resistance
Shank Diameter	6.0 mm Round Shank (with locating flat)	Provides rigid clamping in high-frequency reciprocating collets
Tip Profile	Flat-Point / Square-End Single Edge	Cleanly slices through tough bottom liners without gouging the sacrificial mat
Max Cutting Depth	20.0 mm (0.78 in)	Enables single-pass cutting on thick foams and multi-ply substrates

Equivalent to: Summa 500-9830, MultiCam 84-00193-BT-57220, AXYZ B1031l-20, MultiCam 003612-MC142022

Machine & Tool Module Compatibility

AXYZ Tool Modules: Fits the AXYZ High-Frequency Oscillating Knife (HFOK), Electric Oscillating Tool (EOT), and Pneumatic Oscillating Tool (POT).
Compatible CNC Machines: AXYZ Trident, Infinite, Z-Series, and Pacific digital cutting tables equipped with oscillating knife heads.
Cross-Brand Fitment: Also compatible with select 6mm-shank oscillating tool units on Esko Kongsberg, MultiCam,and Summa flatbed cutters accepting 20mm flat-point blades.

Primary Materials & Applications

Corrugated Board: Heavy double-wall, triple-wall, and honeycomb board packaging.
Foams & Packaging: Expanded polyethylene (EPE), EVA foam, closed-cell foam, and custom protective inserts up to 20mm thickness.
Gaskets & Rubbers: High-density rubber, neoprene, silicone, and fibrous gasket materials.
Acoustics & Composites: PET acoustic panels, thick felt, carpet, and soft synthetic boards.

Key Operational Advantages

Flat-Point Advantage: Unlike pointed blades that can tear or pierce fibrous materials unevenly, the flat-point (square) tip creates a clean, vertical shearing action that reduces drag and maintains square wall edges.
High-Frequency Durability: The micrograin carbide matrix resists micro-chipping caused by the high-impact reciprocating strokes (up to 12,000+ strokes/minute) against abrasive substrates.
