COLEX T00360 decagonal (10-Sided) Rotary Knife Blades Shop

china COLEX T00360 is a 10-sided high-hardness tungsten steel decagonal rotary knife blade specifically designed for the Colex Sharpcut digital flatbed cutting machine Enquire now

Description

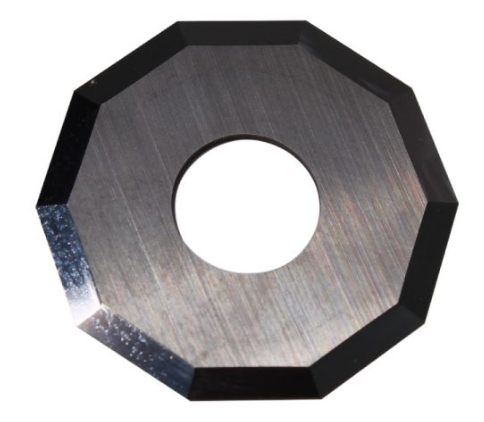

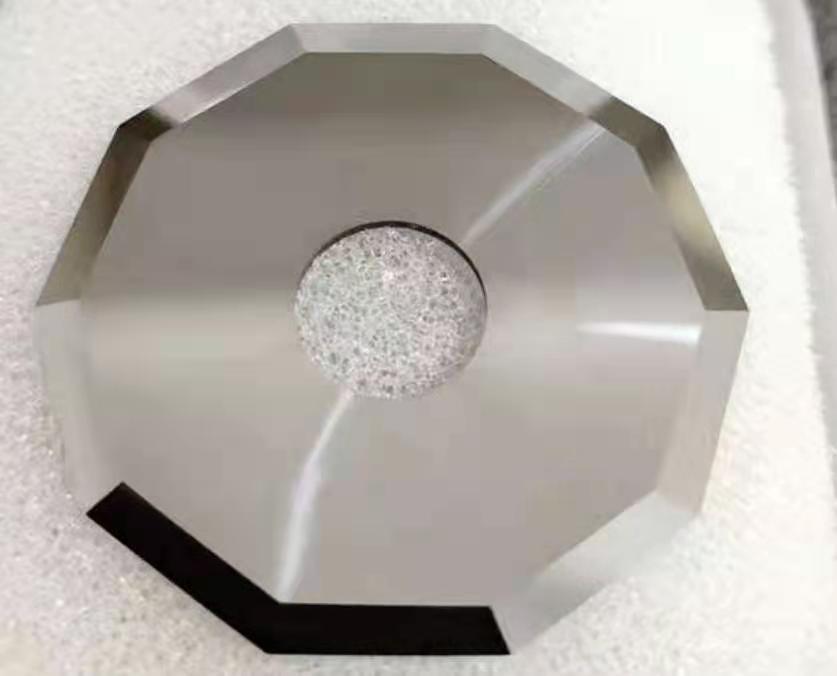

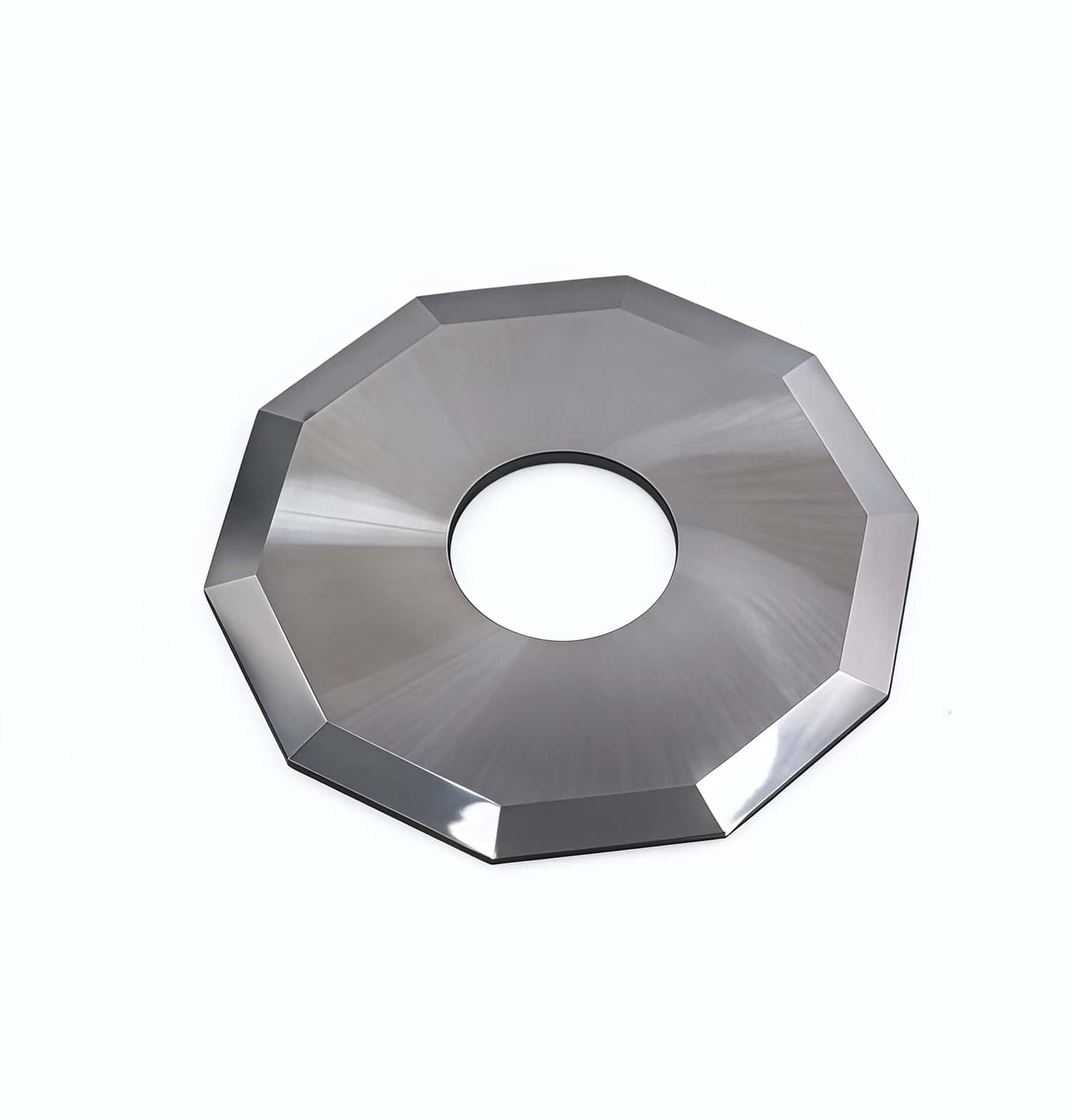

COLEX T00360 decagonal (10-Sided) Rotary Knife Blades

COLEX Knife,COLEX T00360,COLEX T00360 Blade,COLEX Rotary Blade,COLEX Ten Sided Rotary Blade,COLEX Blade,COLEX Rotary Blades,COLEX Blades

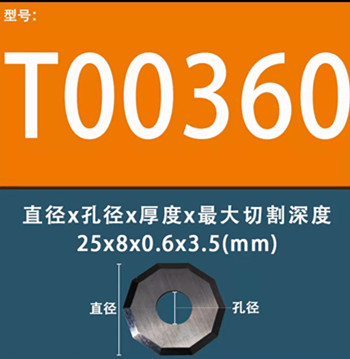

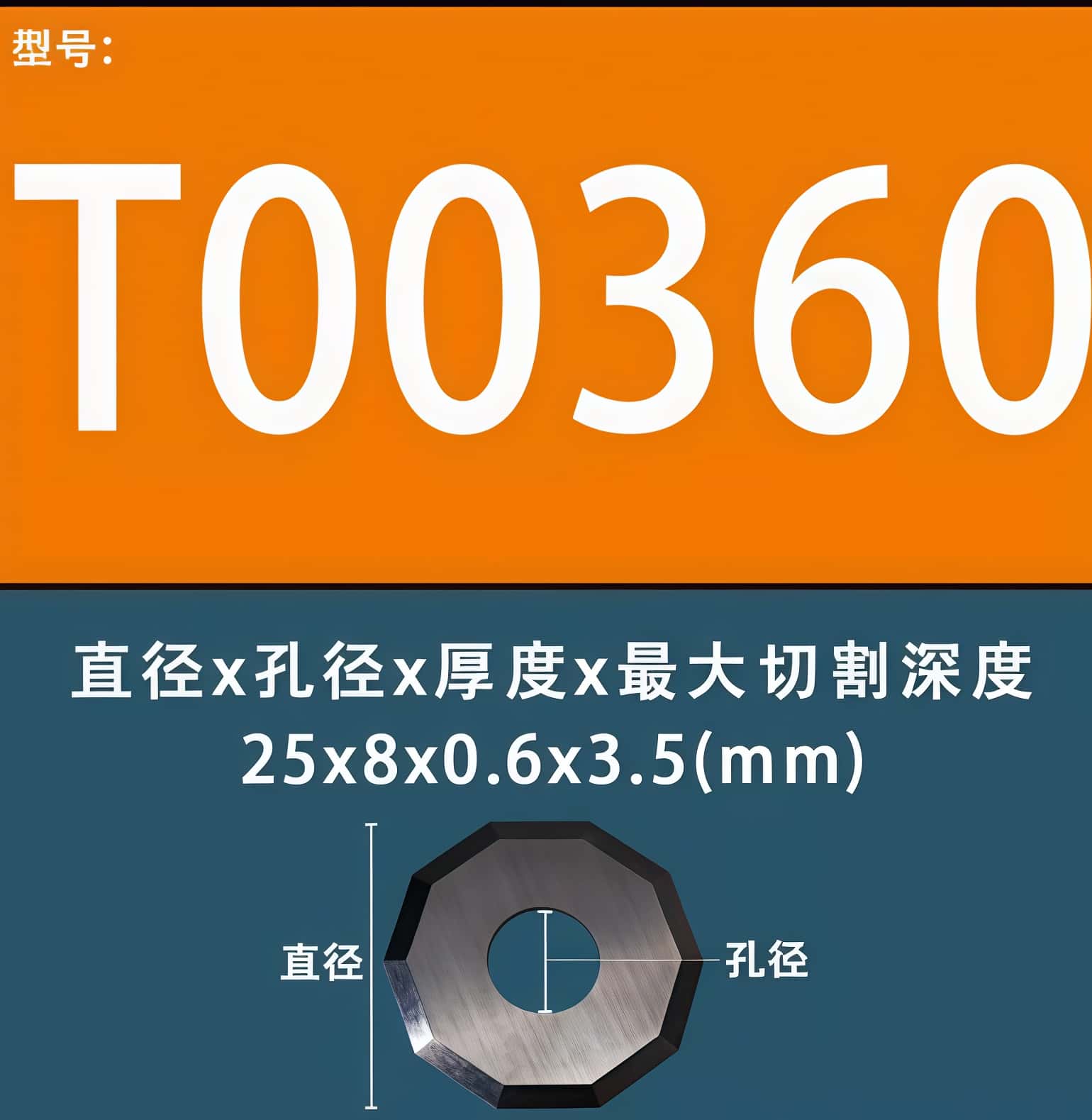

Max. cutting depth: 3,5 mm
blade thickness: 0,6 mm
diameter: 25 mm
bore: 8 mm
Used With Colex Holder: T00143
Description: Decagonal (10-Sided) rotary blade

Suitable for machine manufacturer:
Esko BLD-RC110 G42444844,Zund Z50 3910335,Gerber MCT R50,Summa 500-0860 500-9860,Kuris 83906,Colex T00360,iEcho E50,Blackman & White BW50,Comagrav CD25,Multicam 003612-MC50,Bullmer B50

Applications
The T00360 is optimized for cutting a variety of soft and textile-based materials, including:
Fabrics and Textiles: Including nylon, polyester, and nonwoven fabrics.
Advanced Composites: Aramid fibers (Kevlar), carbon fiber, and fiberglass.
Industrial Materials: Felt, leather hide, and paper.

Production Adjustment and Maintenance Techniques

Underlayment Mat Selection : When using the T00360 rotary cutter, never operate it under high pressure on severely damaged or hard surfaces . The cutter is highly dependent on the flatness of the underlayment; it is recommended to use a dedicated soft cutting felt. If the felt surface is uneven, the cutter is prone to slight vibrations as it rolls, resulting in localized breaks in the fibers of the fabric that are not cut through.
Heavy-duty upgrade option : If the cutting of textile fabrics or single-layer carbon fiber accounts for more than 50% of the total workload in your factory , or if you need to cut thicker fabrics, you may consider upgrading to the official heavy-duty large roller cutter T00362 (45mm in diameter, designed for high-intensity continuous industrial textile shearing).
