Colex T00496 Upcut Router Bit-Production Manufacturing,Wholesale Sales

The Colex T00496 Upcut Router Bit is a universal CNC tool designed specifically for high-precision cutting of both hard and soft plastics. As an upcut spiral bit, it effectively pulls chips and debris upward away from the material, allowing for faster feed rates and preventing heat buildup during th… Enquire now

Description

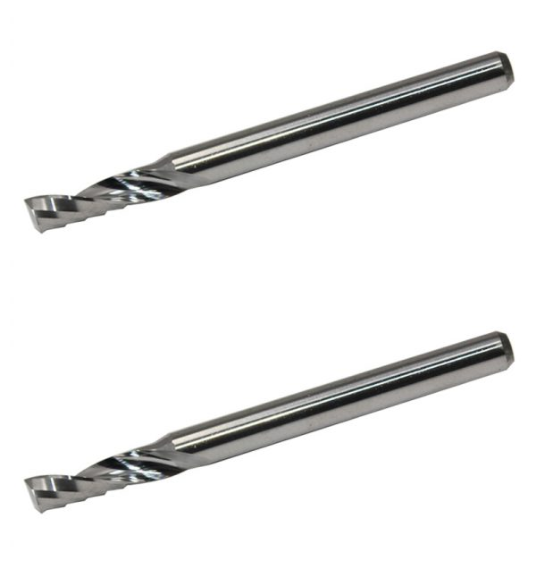

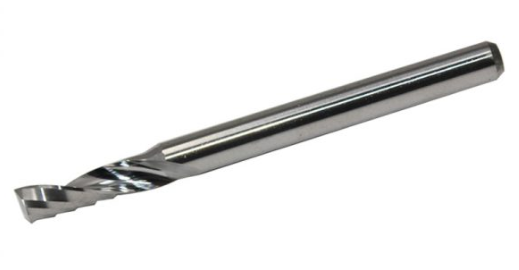

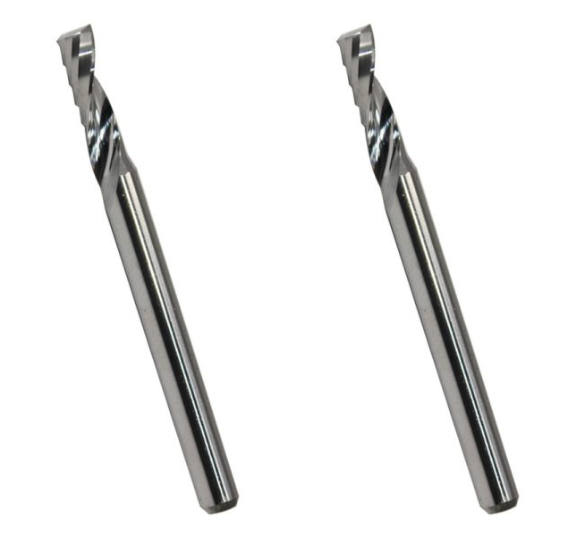

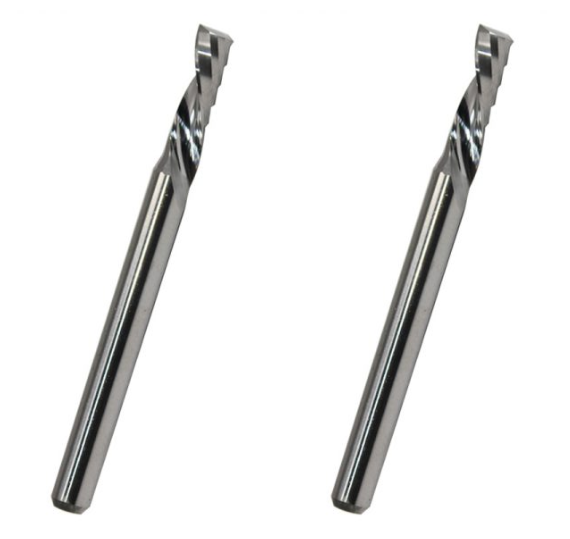

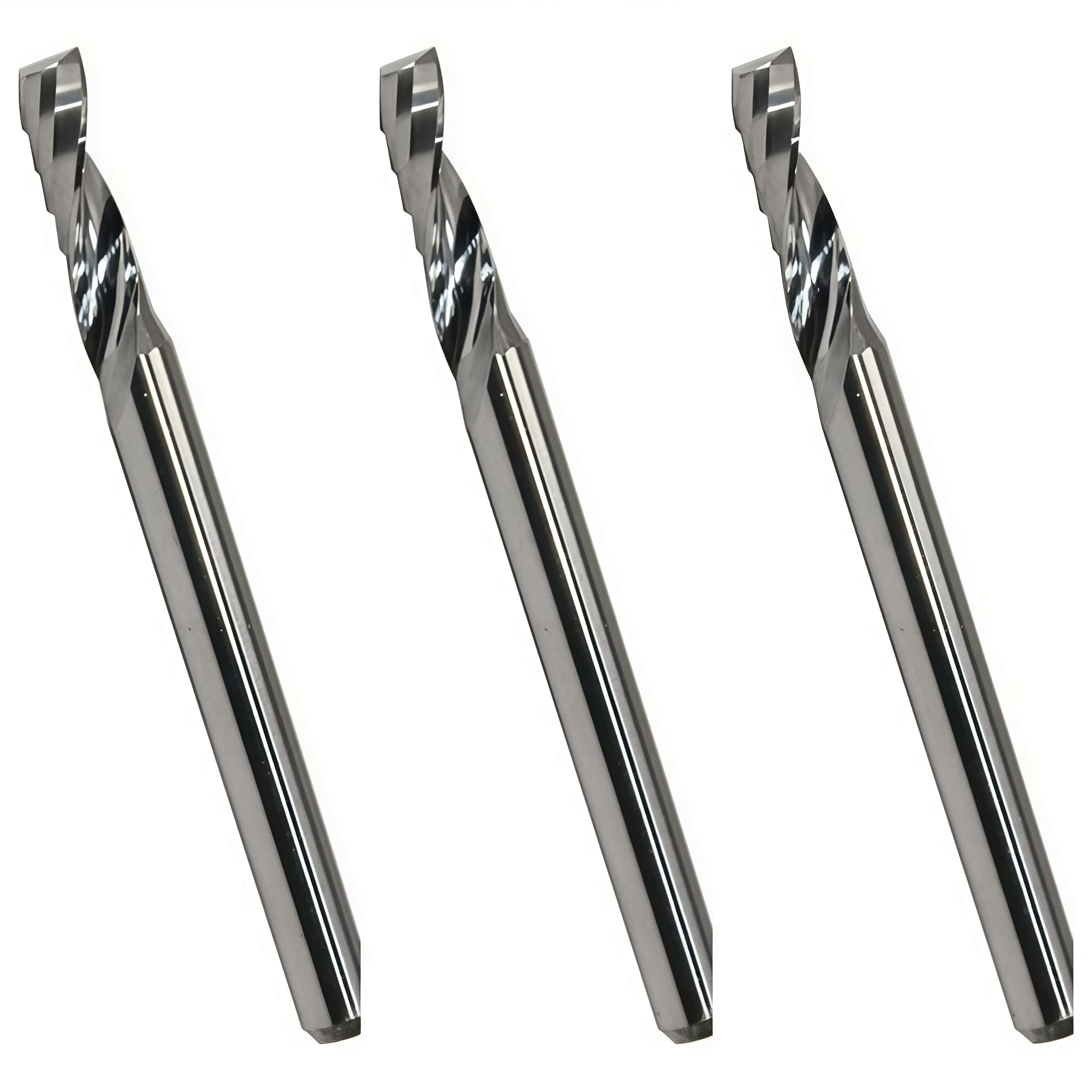

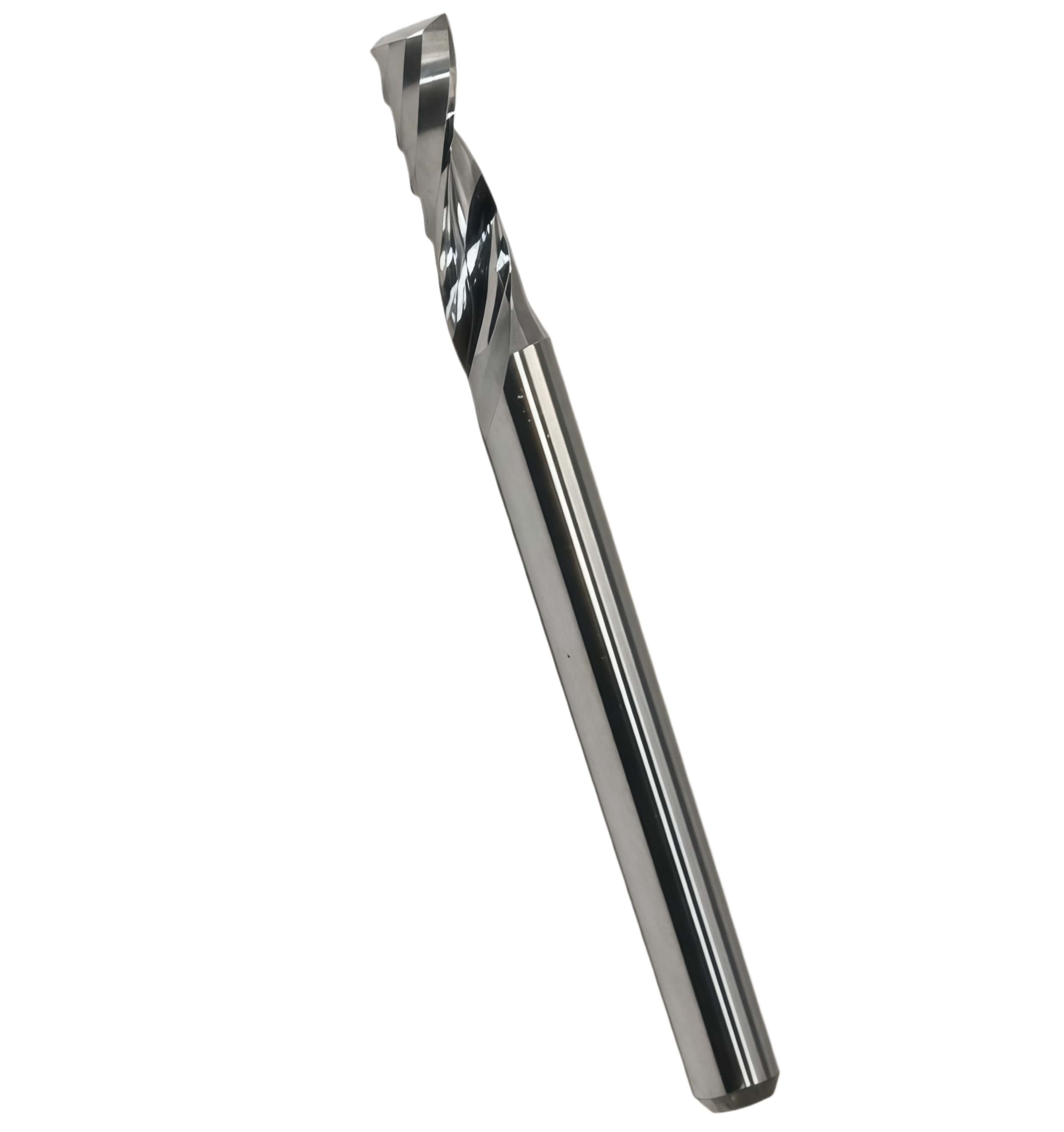

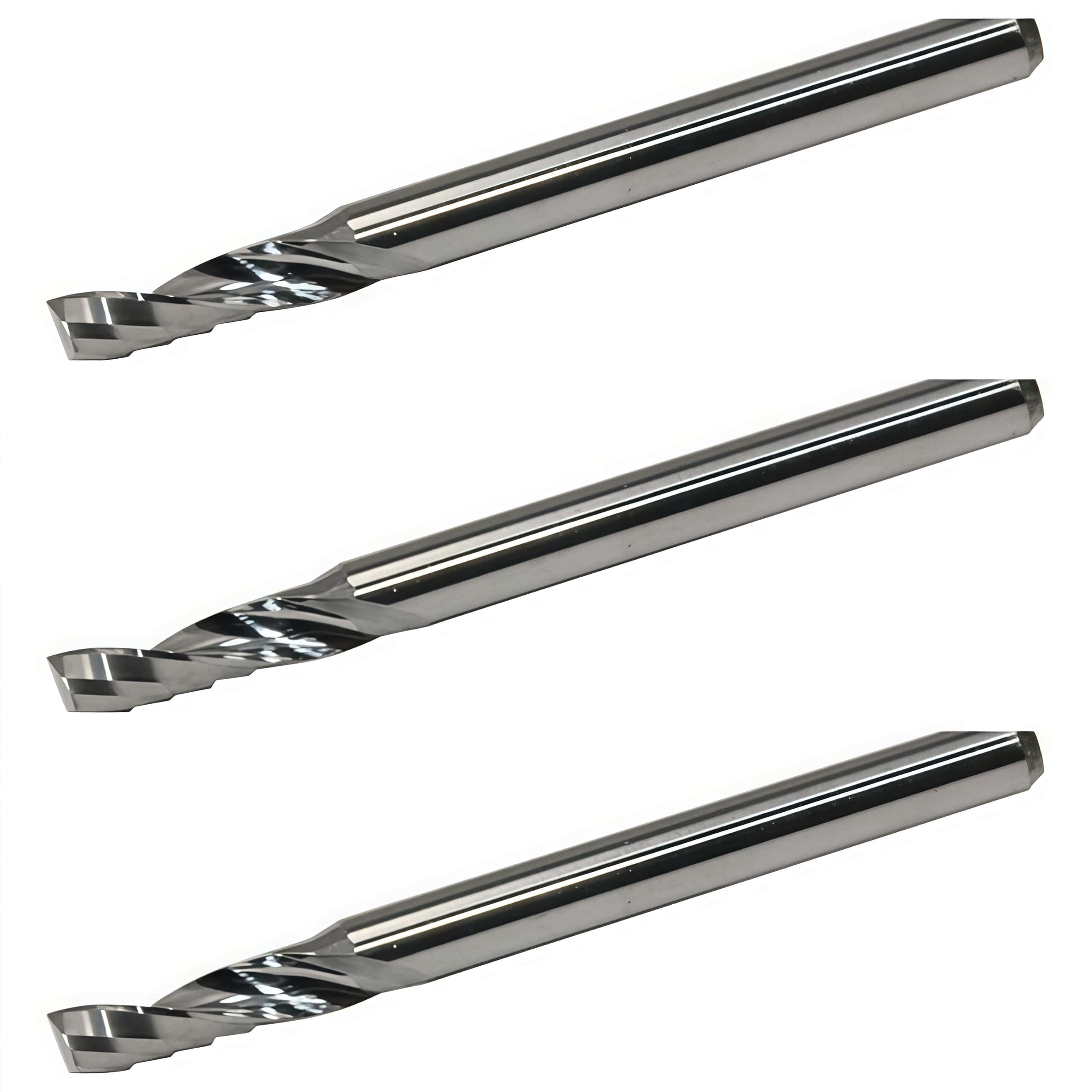

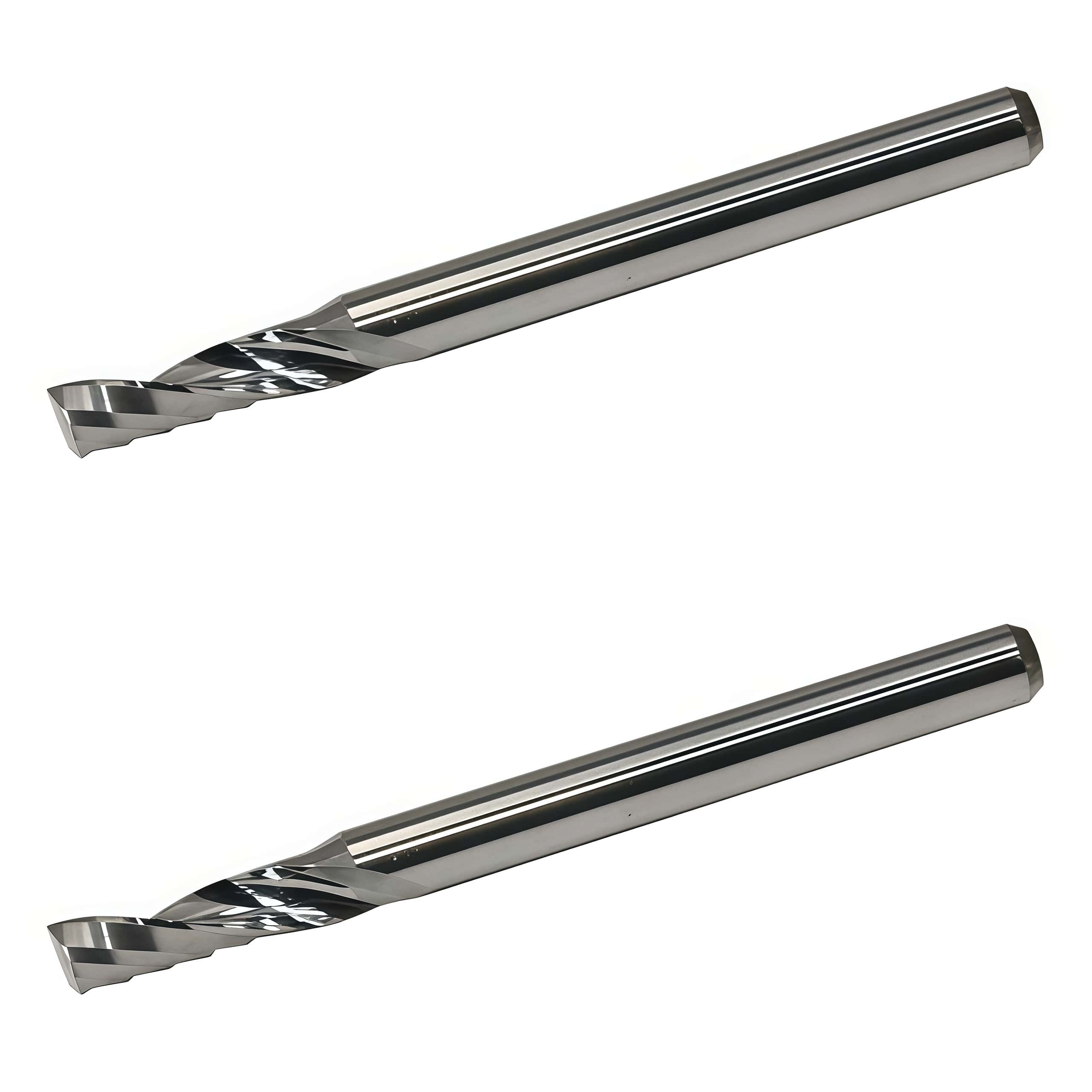

Colex T00496 Upcut Router Bit

Bit Type:
Upcut, 1 Flute
Cut Diameter:
3.175mm /1/8″
Cut Length:
10mm/ 0.394″ -approx 25/64″
Shank Diameter:
1/8″

Recommended Use:

Performance Characteristics

Material Compatibility: While primary use is for plastics, it is part of a "universal" line. Related bits in the same series, such as the T00498 or T00500, are also suitable for soft and hard woods.
Chip Removal: The upcut spiral geometry is ideal for deep grooves or through-cuts, as it clears waste efficiently to prevent bit breakage or material melting.
Edge Quality: Because it pulls material upward, it provides a very clean finish on the bottom surface of the workpiece but may cause slight "fuzzing" or lifting on the top edge.

Usage & Safety

Installation: When mounting in a CNC collet, it is recommended to push the bit in fully and then pull it back out approximately 1/16" to 1/8" before tightening to ensure a secure, vibration-free hold.
Safety: Standard CNC safety protocols apply, including wearing eye and hearing protection and ensuring the material is fed against the rotation of the bit.
