Colex T00498 Upcut Router Bit Compatible with Colex Routing Systems

The Colex T00498 Upcut Router Bit is a universal CNC tool designed for precision cutting across a variety of materials. It is a part of the specialized line of Router Bits offered by Colex for use with their Sharpcut Flatbed Cutter systems. Enquire now

Description

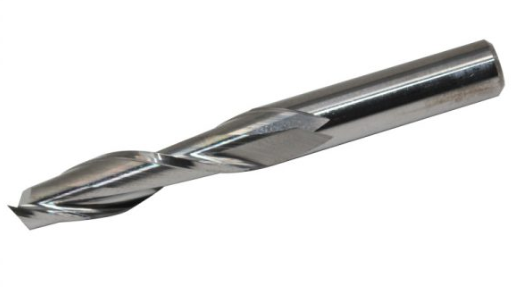

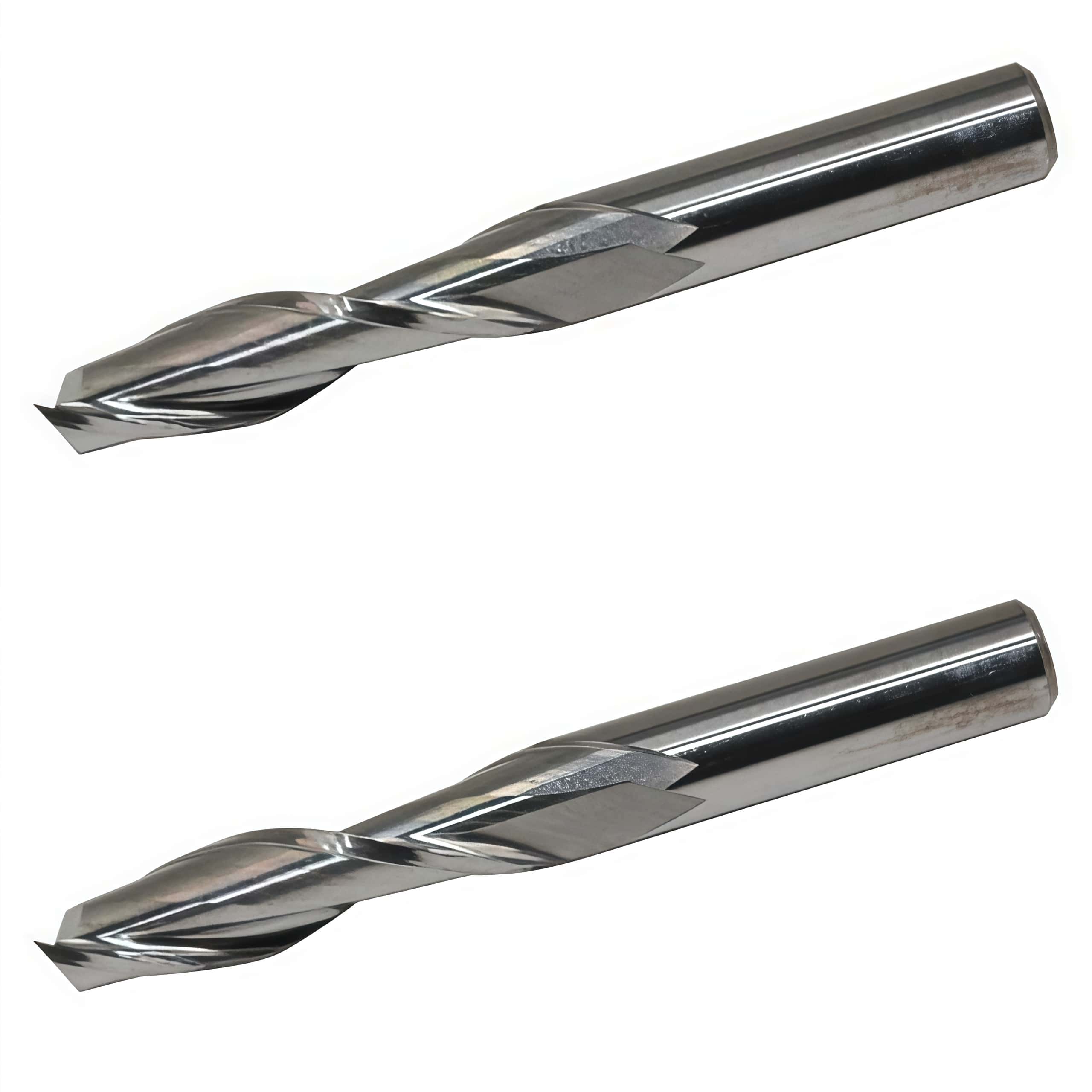

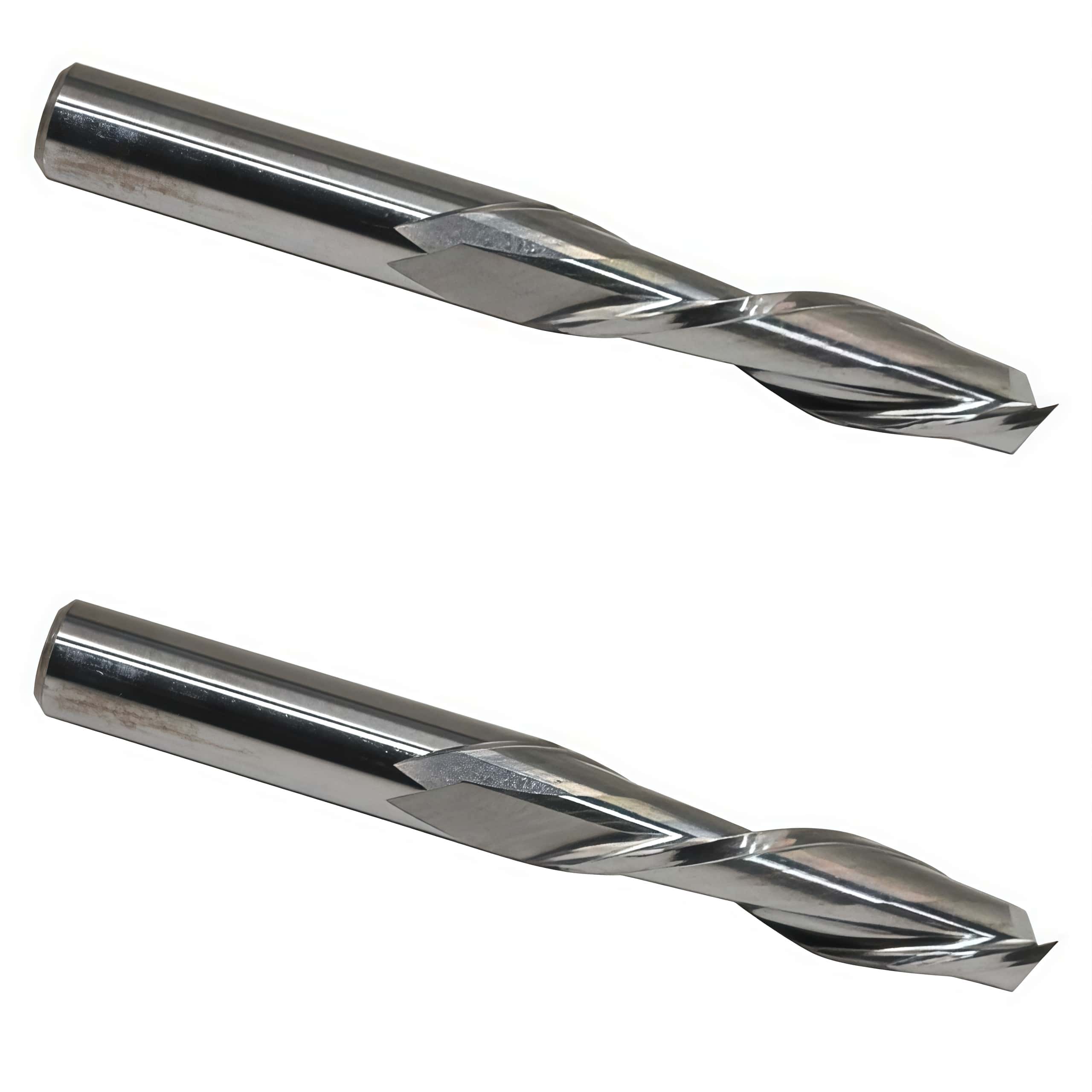

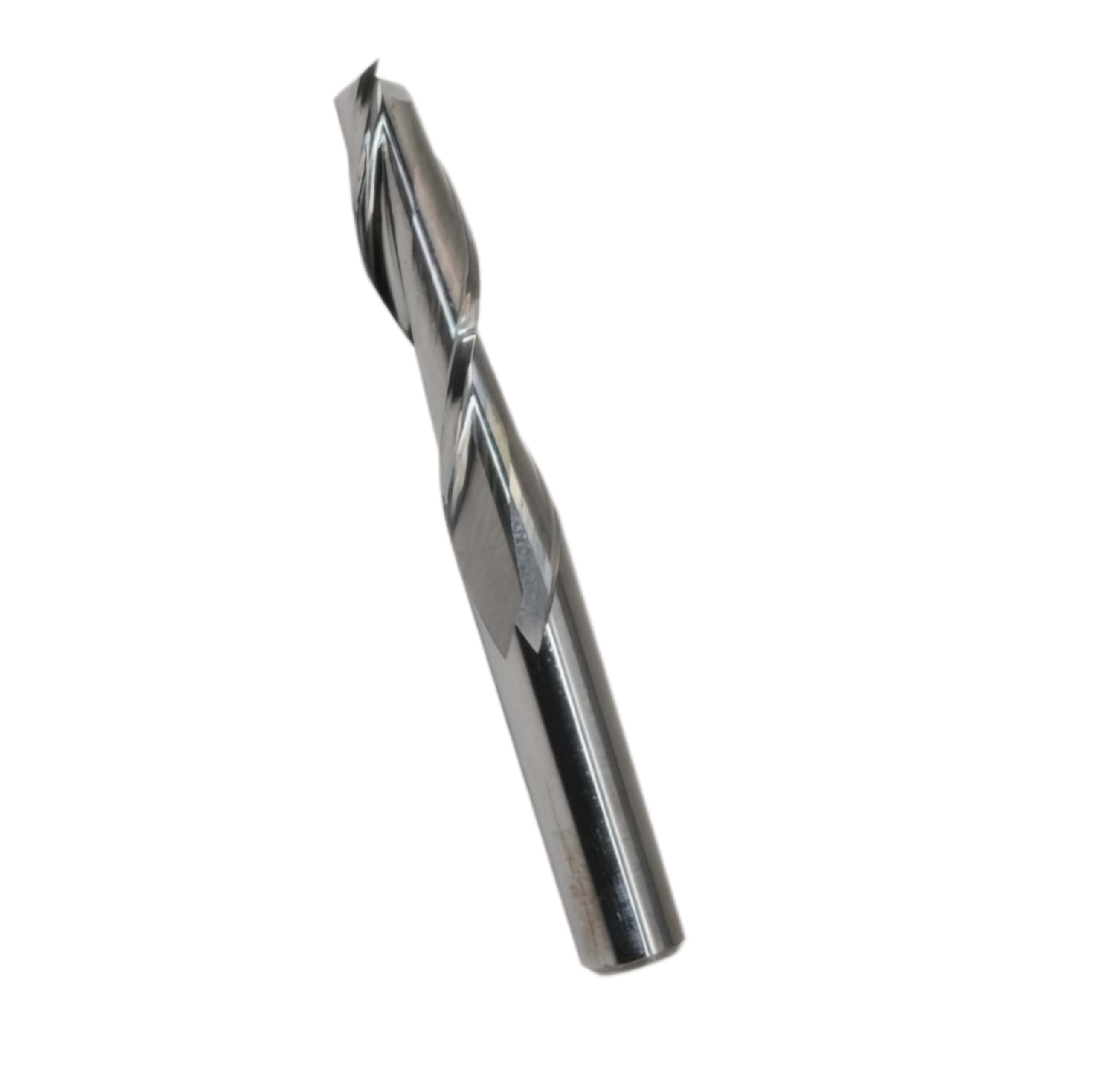

Colex T00498 Upcut Router Bit

Bit Type:
Upcut, 2 Flute
Cut Diameter:
6mm/ 0.236″ -approx 1/4″
Cut Length:
25mm/ 0.984″ -approx 1″
Shank Diameter:
6mm

Key Features & Use Cases

The upcut design of the T00498 is particularly effective for high-volume CNC routing tasks where material clearing is a priority.

· Efficient Chip Removal: The spiral flutes pull chips and debris upward toward the motor, preventing heat buildup and clogging within the cut.

· High Feed Rates: Because it clears waste efficiently, it allows for faster operating speeds compared to downcut bits.

· Versatile Application: While specialized for Colex systems, its universal design makes it suitable for various flatbed cutters handling signage materials like gator board and plastic.

Comparisons with Related Colex Bits

If the 1" cut length is not suitable for your project, Colex offers similar upcut bits in different configurations:

Model	Cut Length	Best Used For
T00496	3/8"	Hard and soft plastics
T00497	5/8"	Sign foam, soft plastic, and gator board
T00508	7/16"	ACM, Acrylic, and Hard Plastic
T00525	~7/16" (12mm)	Aluminum and ACM (Superior Coated)
