Colex T00538 Upcut Router Bit Compatible with Colex Routing Systems

Colex T00538 Upcut Router Bit is a high-performance CNC cutting tool specifically designed for use with Colex Sharpcut flatbed cutters. As an upcut spiral bit, it is engineered to pull chips upward during the routing process, which ensures efficient chip removal and a smooth finish on the bottom sur… Enquire now

Description

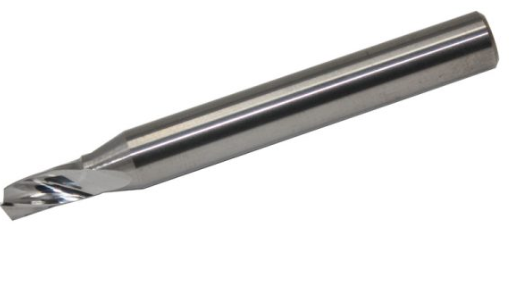

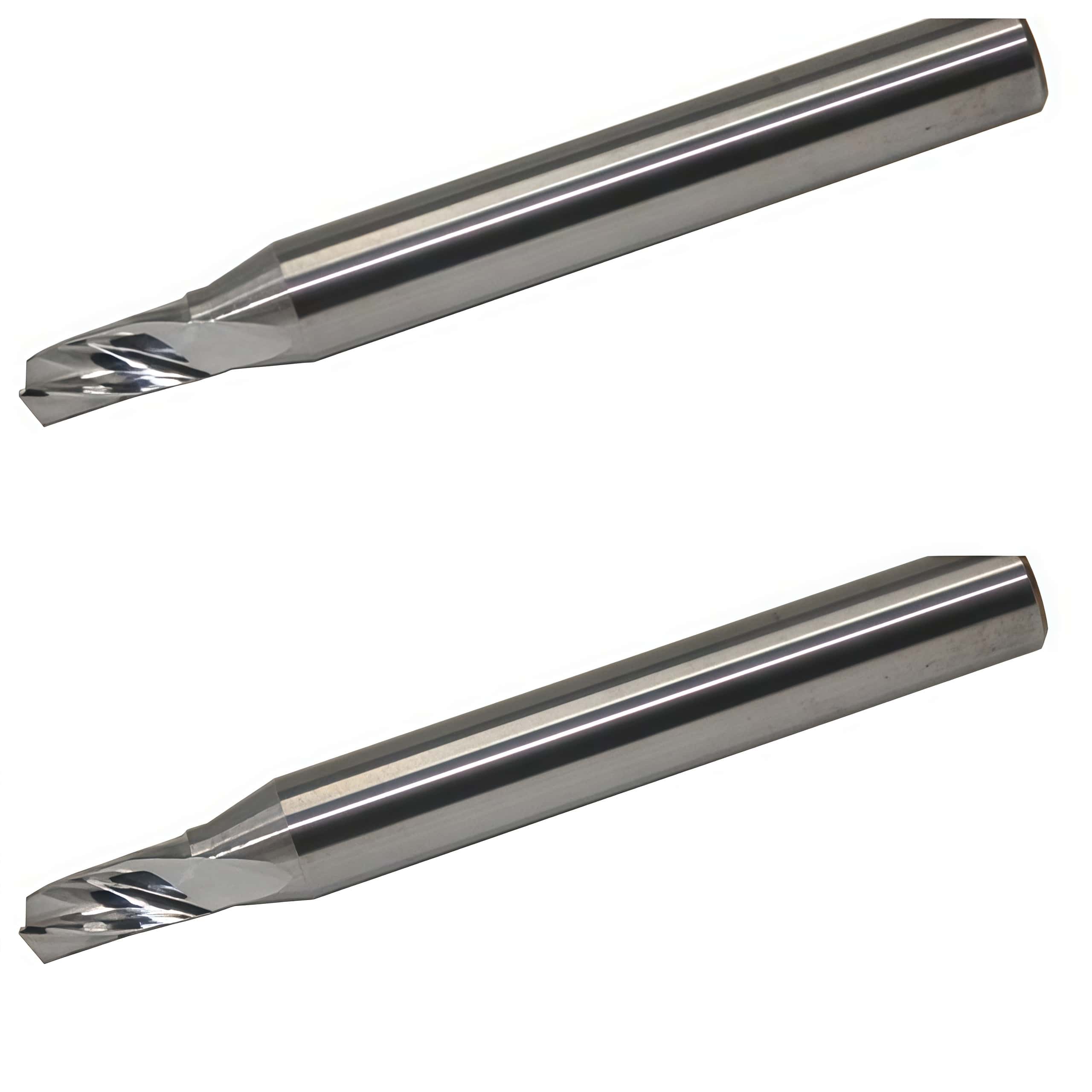

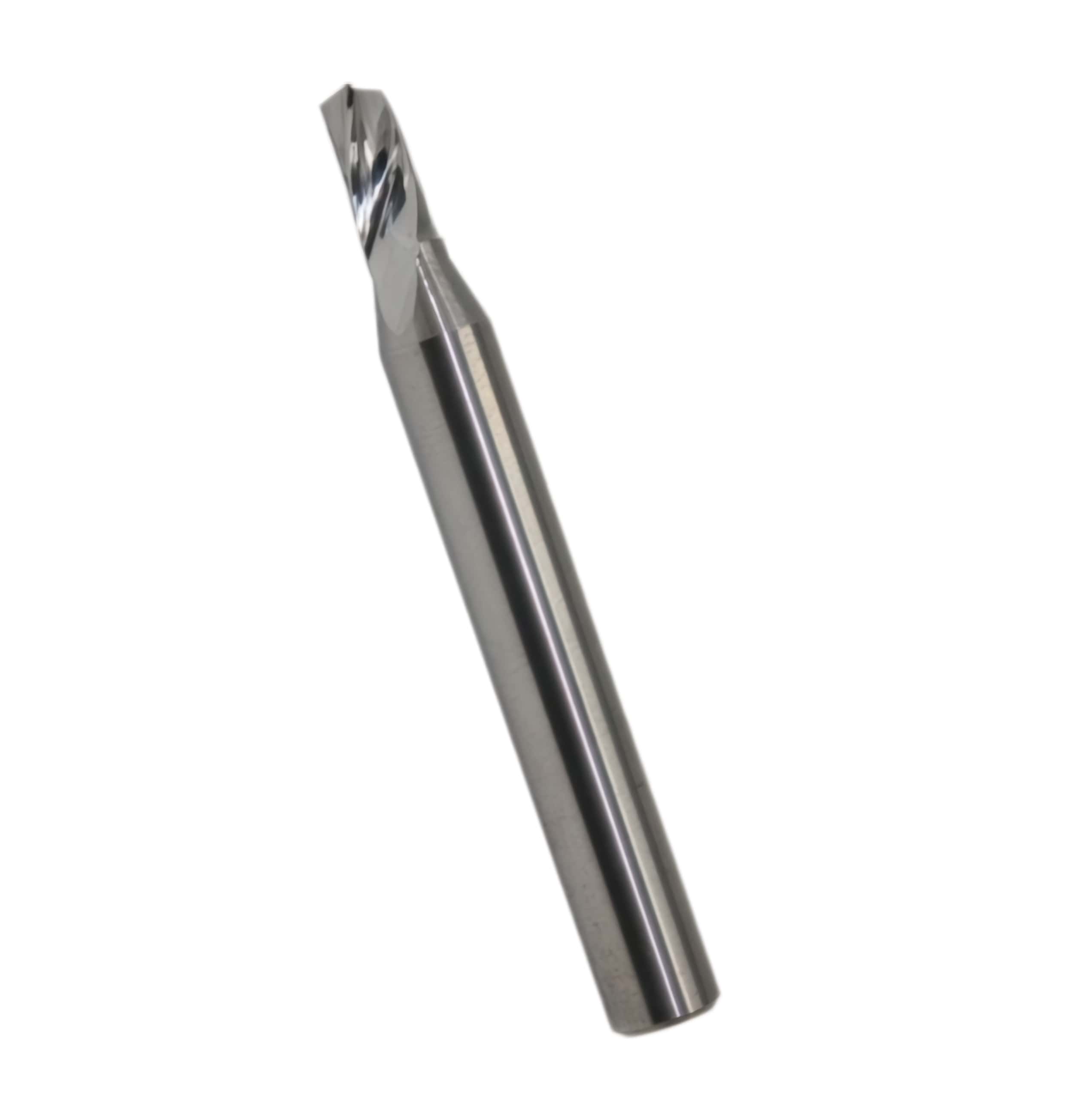

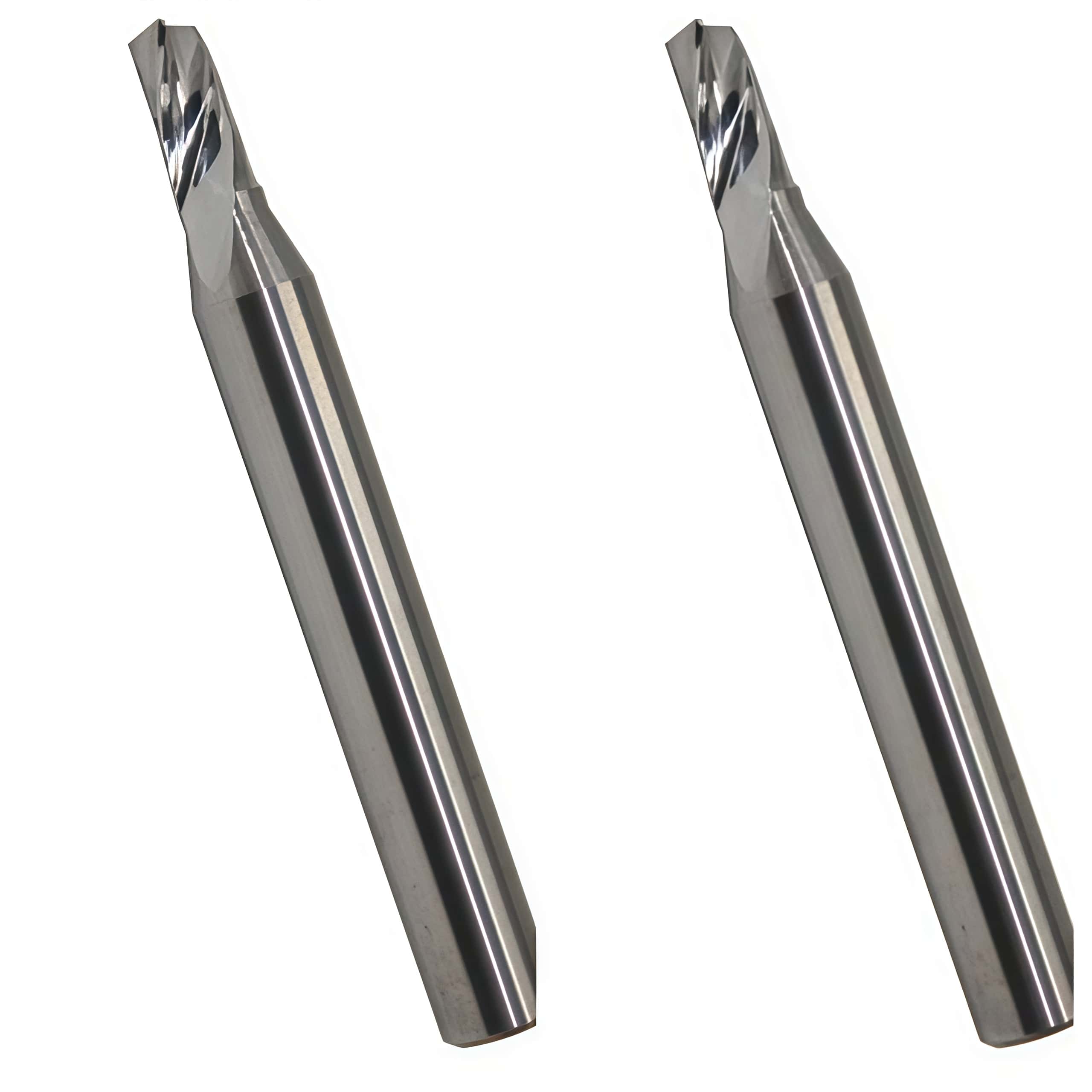

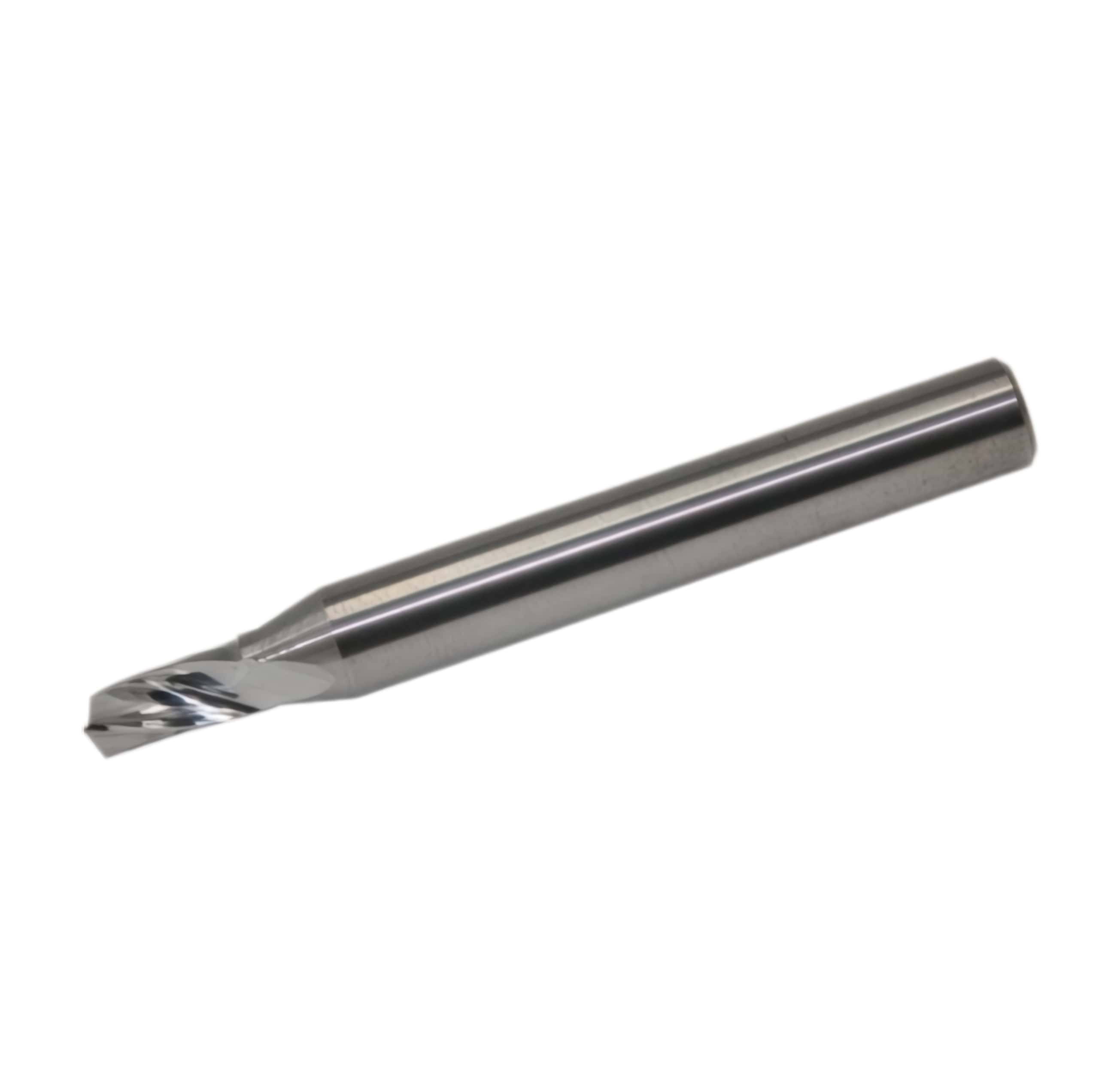

Colex T00538 Upcut Router Bit

Bit Type:
Upcut, 1 Flute
Cut Diameter:
3mm/ 0.118″ -approx 1/8″
Cut Length:
11mm/ 0.433″ -approx 7/16″
Shank Diameter:
6mm

Key Specifications & Applications

This bit is typically used for universal cutting across a variety of signage and industrial materials. While specific dimensions for the T00538 variant are often listed alongside similar models like the T00530 or T00529, its primary utility lies in its ability to handle both dry and wet cutting.

Recommended Materials: Soft and hard plastics, Acrylic, Wood, and Aluminum Composite Material (ACM/DiBond).
Design: Single-flute upcut spiral, which minimizes heat buildup and allows for faster feed rates compared to multi-flute bits.

Performance Benefits

Chip Clearing: The "augering" action clears debris from the cut path, preventing the bit from "re-cutting" chips, which extends tool life.
Surface Finish: Provides a clean cut on the bottom side of the workpiece, making it ideal for grooving or deep pocketing where the bottom face is the primary visible surface.
Plunge Capability: Unlike straight bits, the spiral geometry allows this tool to plunge straight down into material efficiently, similar to a drill bit
