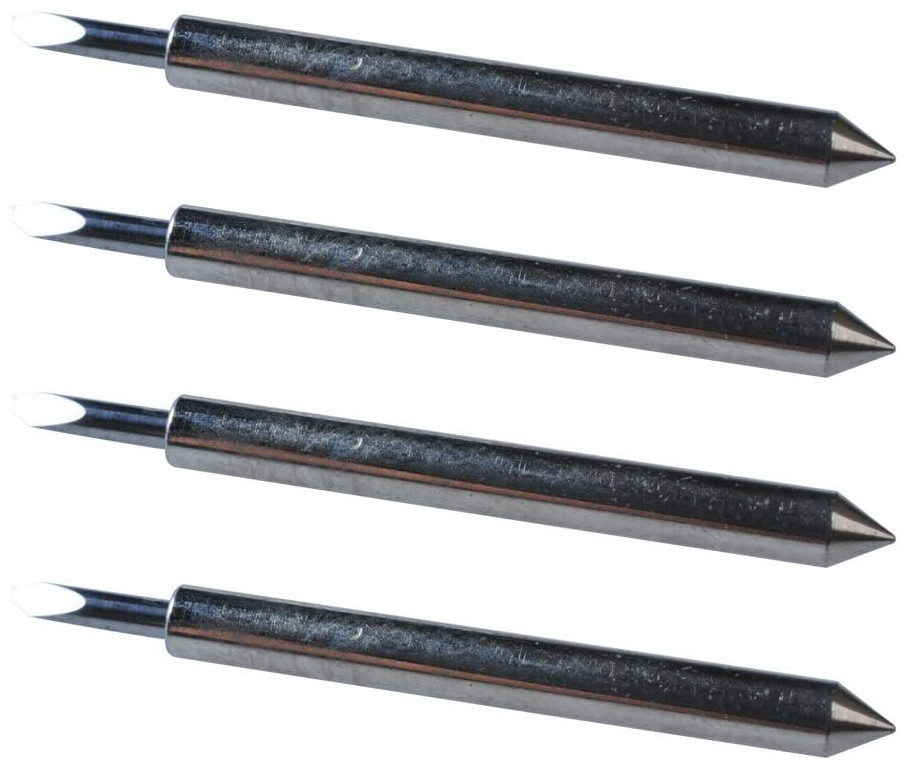

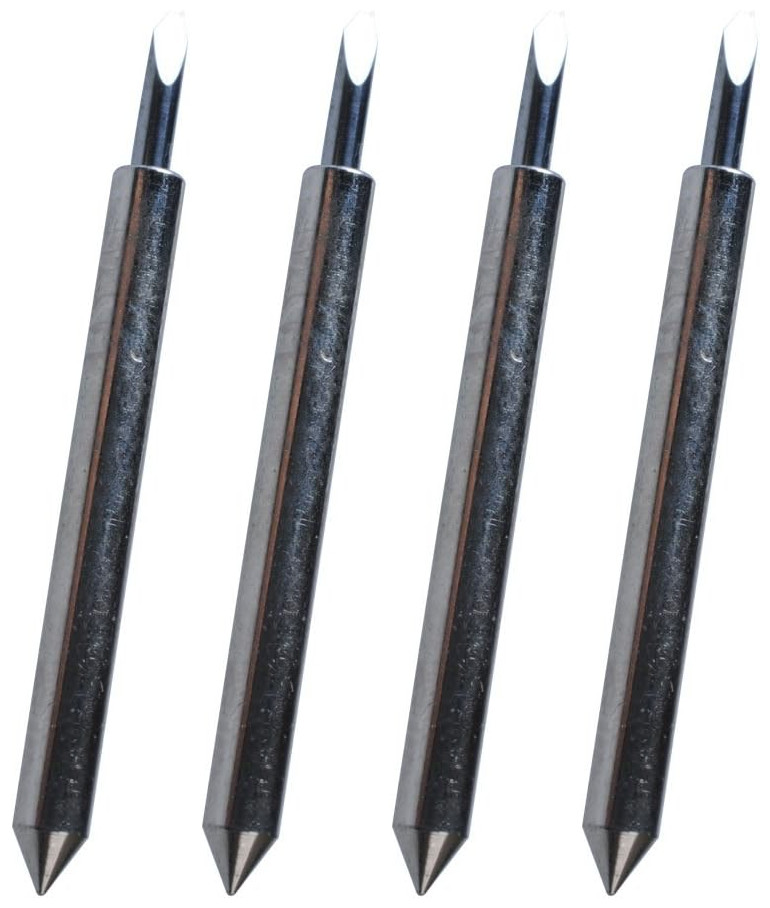

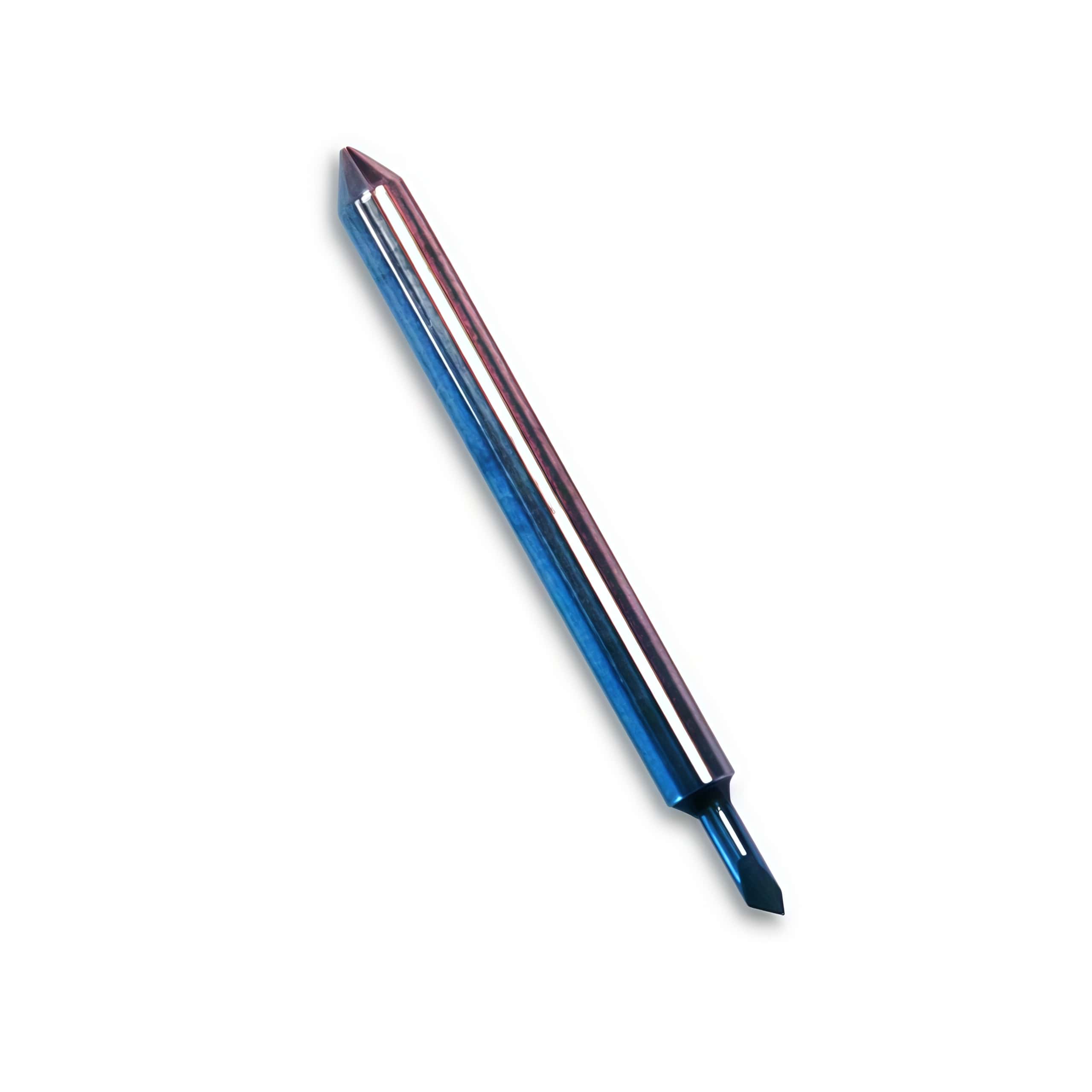

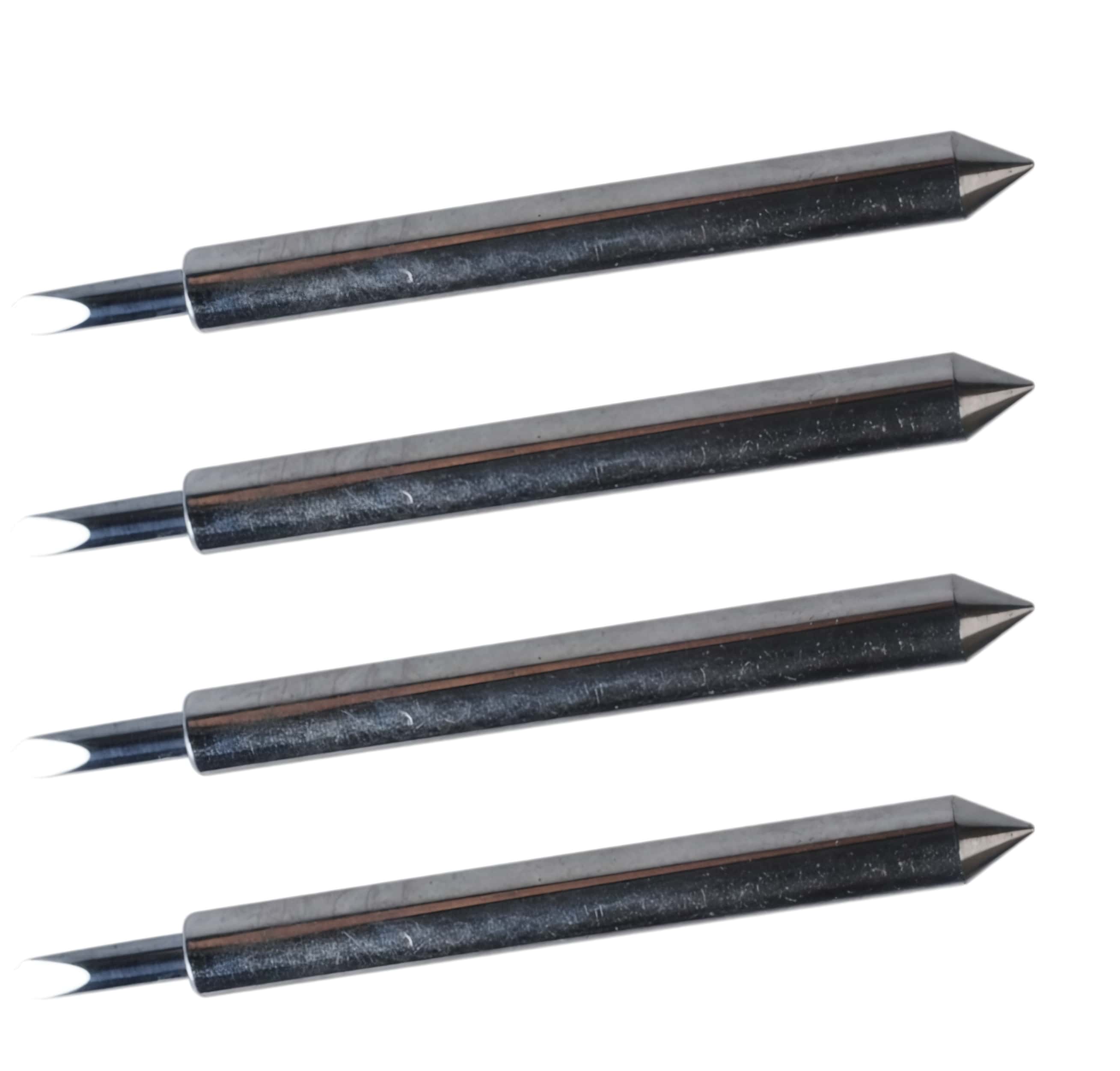

Axyz 22872 60-Degree Roland-Style Carbide Vinyl Plotters Drag Knife Blades

Axyz 22872 is a specialized, deep-cutting 60-degree Roland-style carbide drag knife blade designed for Axyz CNC routers and standard vinyl plotters Enquire now

Description

Axyz 22872 60-Degree Roland-Style Carbide Vinyl Plotters Drag Knife Blades

Axyz 22872 blades are 60-degree Roland-style drag knives specifically designed for detailed or deep cutting in materials like thick vinyl, reflective films, and sandblast masks. These carbide blades utilize a steeper angle to penetrate tougher substrates more effectively than standard 45-degree alternatives.

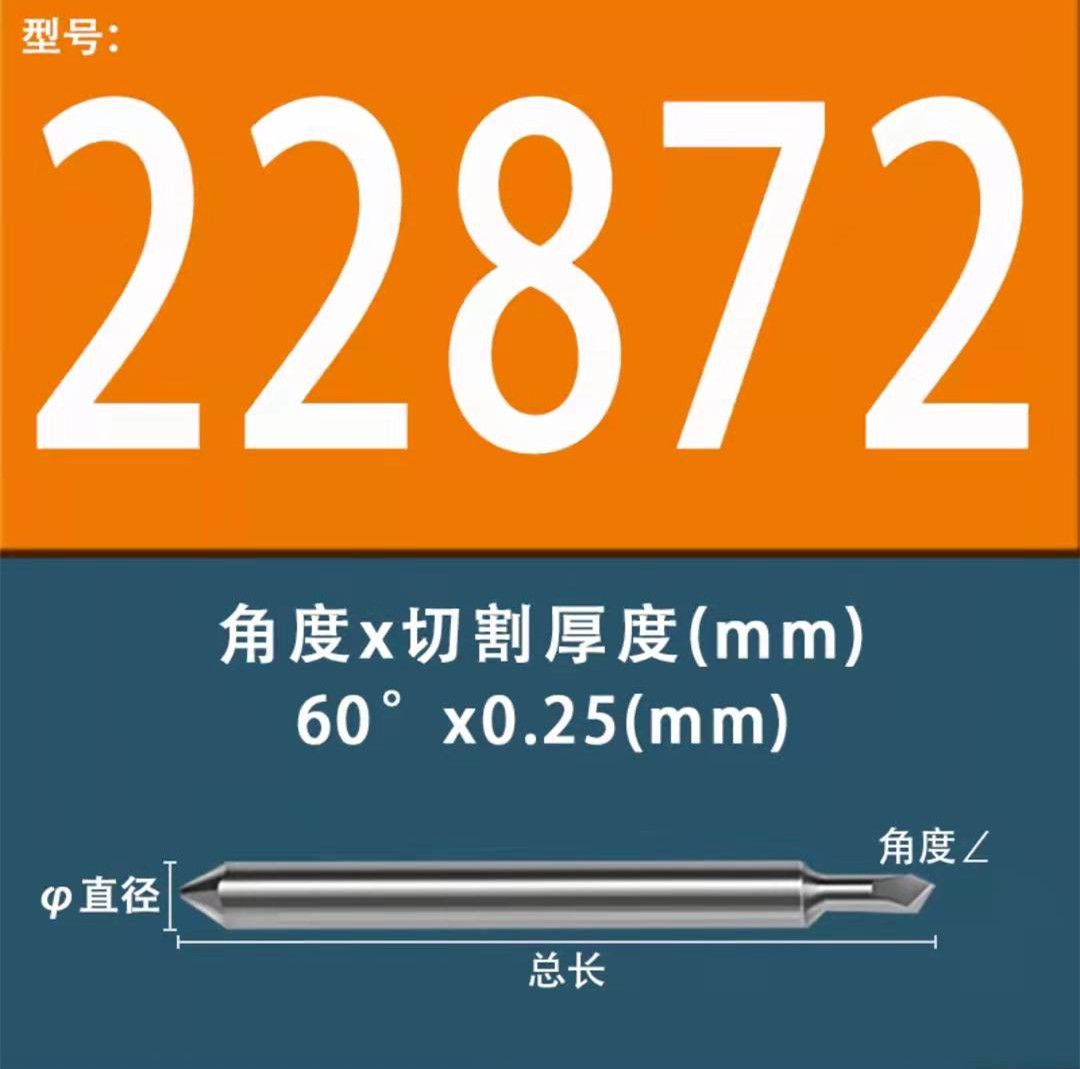

Roland Standard 60 Degree, Offset 0.25mm. Also compatible with Allen Datagraph, Copan, GCC, Refine, Secabo, Seiki and Vinyl Express except Q Series.
equivalent to Roland 60°, AXYZ 22872, GCC

Applicable Materials and Best Application Scenarios

Compared to common general-purpose 45-degree inserts, 60-degree inserts offer stronger vertical penetration and less lateral resistance when contacting materials. They are best suited for the following applications:

Cutting heavy materials : Due to its straighter cutting angle, it can easily penetrate materials that are thicker, harder, or denser than 0.5mm .
Typical materials processed include : thicker cardstock/cardboard, sandblast mask, magnetic sheets, reflective film, flock/glitter HTV, and certain thin rubber or sponge.
High precision in minute details : When engraving very small fonts, complex patterns, or sharp angles, the 60-degree blade causes minimal material warping (vinyl ear), providing cleaner, non-distorted edges.

Production and Usage Recommendations

Blade life management : If you mainly cut thin, ordinary sign vinyl, it is recommended to use a 45-degree blade (such as Axyz 20314) because the wear distribution of a 45-degree blade is more even on thin materials, resulting in a longer lifespan. Only switch to the 60-degree blade 22872 when dealing with thick materials or ultra-fine patterns .
Pressure and speed adjustment : When switching to a 60-degree blade in a CNC control system (such as Axyz A2MC or the new software), it is usually necessary to reduce the cutting speed appropriately and slightly reduce the mechanical downforce to prevent piercing the backing paper and extend the life of the fine blade tip.

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.

Axyz 20314 22872 Roland-Style Carbide Vinyl Plotters Drag Knife Blades Specifications and Size Selection Comparison Table

Technical Specifications Comparison

Technical Attribute	Axyz 20314 (Standard)	Axyz 22872 (Heavy Duty)
Blade Angle	45°	60°
Material Composition	Solid Tungsten Carbide	Premium Micro-grain Carbide
Shank Diameter	1.97 mm (0.078")	1.97 mm (0.078")
Overall Length	~23 mm	~23 mm
Standard Tool Offset	0.25 mm	0.25 mm to 0.50 mm (Check holder)
Blade Profile	Balanced / Diagonal	Steep / Pointed
Axyz System Match	Standard Vinyl Tooling	Heavy-Duty / Oscillating (Static Mode)

Size Selection & Application Matrix

Use this table to choose the correct blade based on your material properties and project requirements.

Selection Factor	Choose Axyz 20314 (45°)	Choose Axyz 22872 (60°)
Material Thickness	Thin to Medium (0.05 mm – 1.0 mm)	Thick / Multi-layered (1.0 mm – 2.5+ mm)
Vinyl Types	Standard Sign Vinyl, Calendar, HTV	Reflective, Fluorescent, Glitter HTV, Metallic
Specialty Materials	Paper, Cardstock, Masking Film	Sandblast Stencil, Magnetic Sheets, Gaskets
Design Intricacy	Large text, geometric shapes, straight cuts	Micro-text, complex logos, sharp corners
Pressure Settings	Low to Medium Downforce	High Downforce Required
CNC Feed Rate	High-speed production	Slow to Medium (To protect fine tip)
Tool Life Span	Long (Even wear distribution)	Shorter (High stress on pointed tip)
