Cartridge & Tool Compatibility

• Tool Holders: Compatible with the AXYZ 45° Knife Cartridge, Box Cutter Cartridge, and standard AXYZ Tangential Knife assemblies.

• Systems: AXYZ Trident Series, AXYZ Pacific/Z Series, and other CNC digital finishing tables equipped with tangential knife heads.



Key Applications & Substrates

• Heavy Paperboard & Packaging: Solid board, double/triple-wall corrugated cardboard, and heavy folding cartons.

• Gasketing & Rubber: Industrial rubber sheets, nitrile, neoprene, and fibrous gasket materials.

• Foams & Insulation: High-density foam core, expanded polystyrene (EPS), and acoustic felt panels.

• Plastics & Linoleum: Tough flexible PVC, vinyl flooring, and plastic corrugate (Coroplast).



Operational Advantages

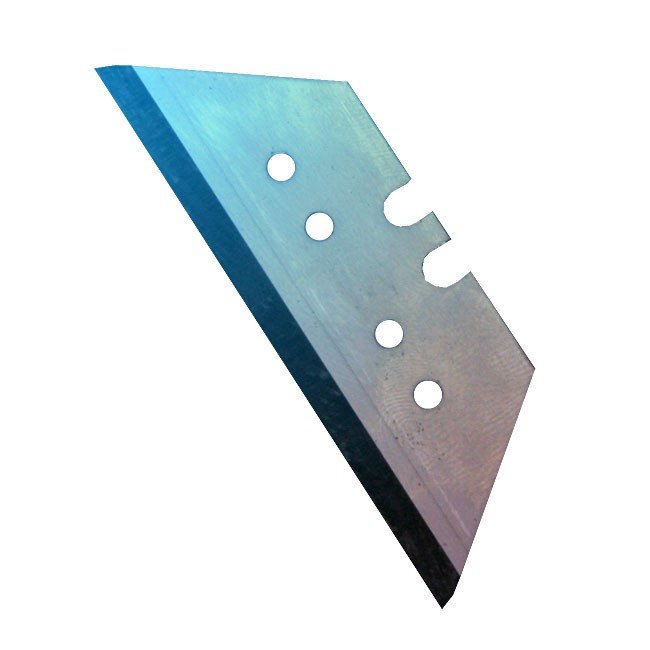

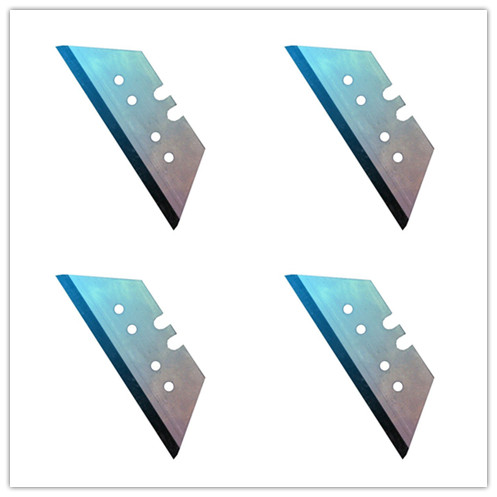

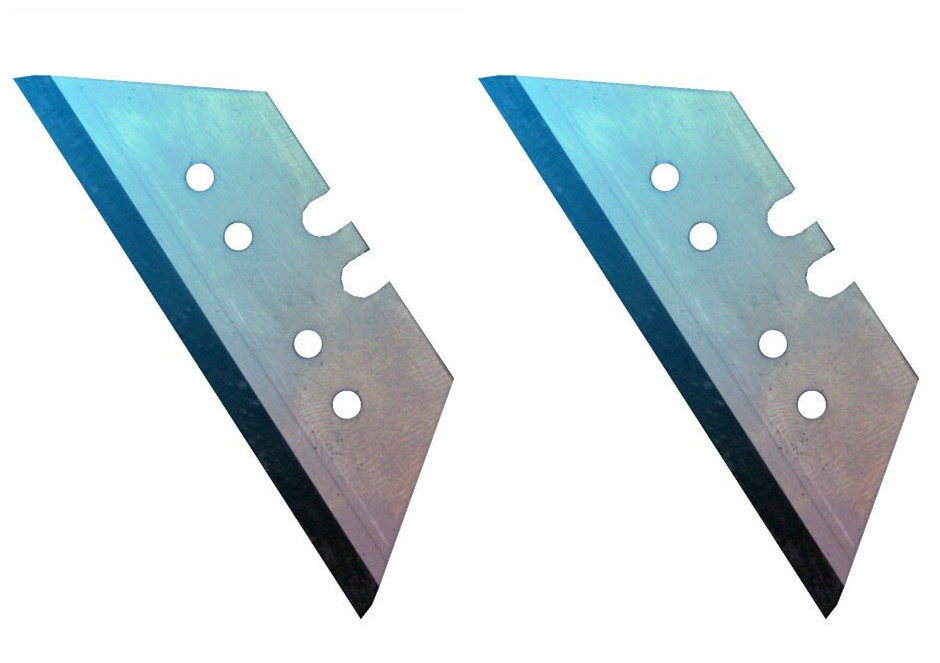

• Reversible Design: Features two sharp cutting tips on a single blade body, allowing operators to flip the blade 180° when one edge wears out, effectively doubling tool life.

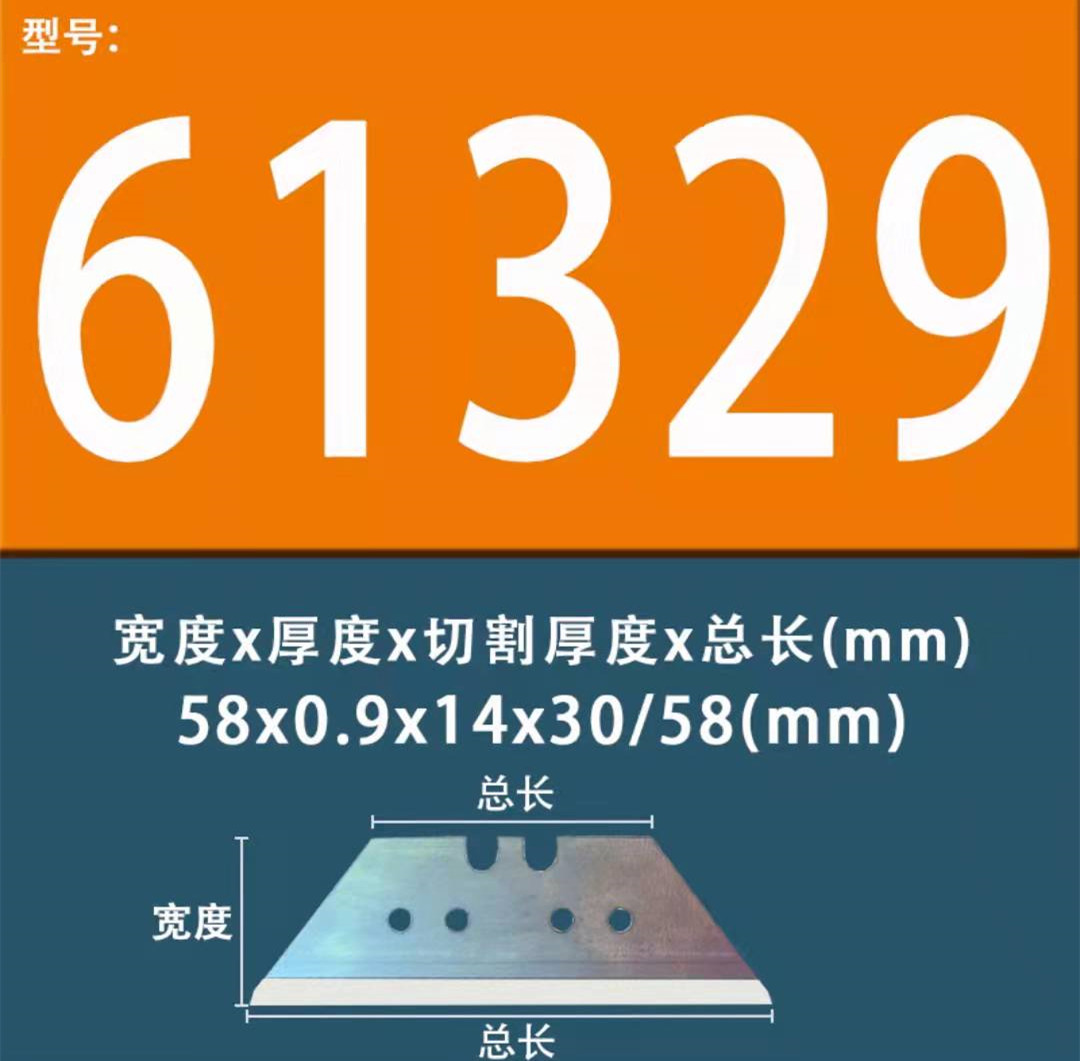

• Deep-Edge Geometry: The 0.9 mm thick, deep-body trapezoidal profile resists lateral flexing and bending under high lateral feed forces during straight-line drag cuts in dense media.
