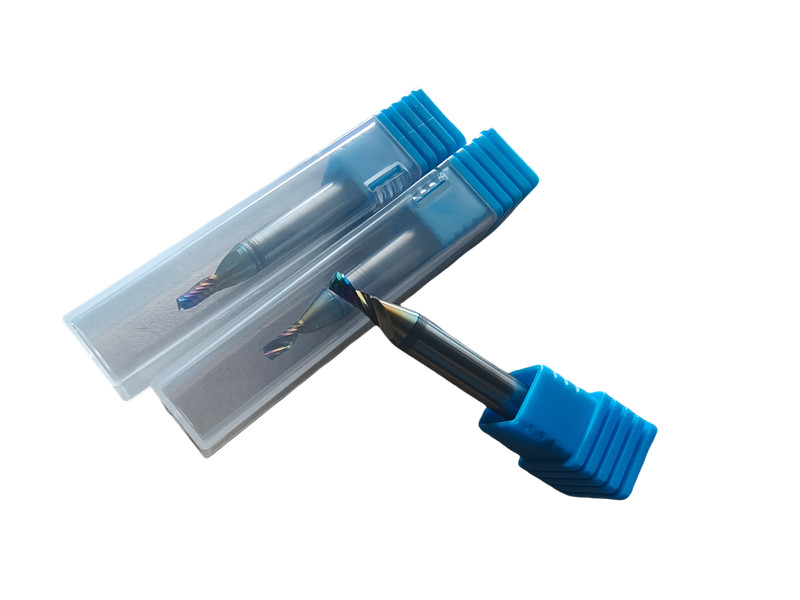

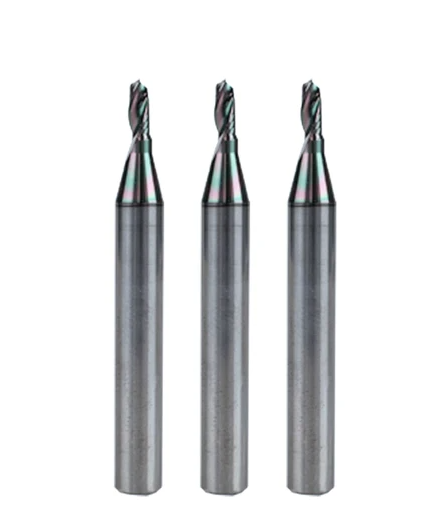

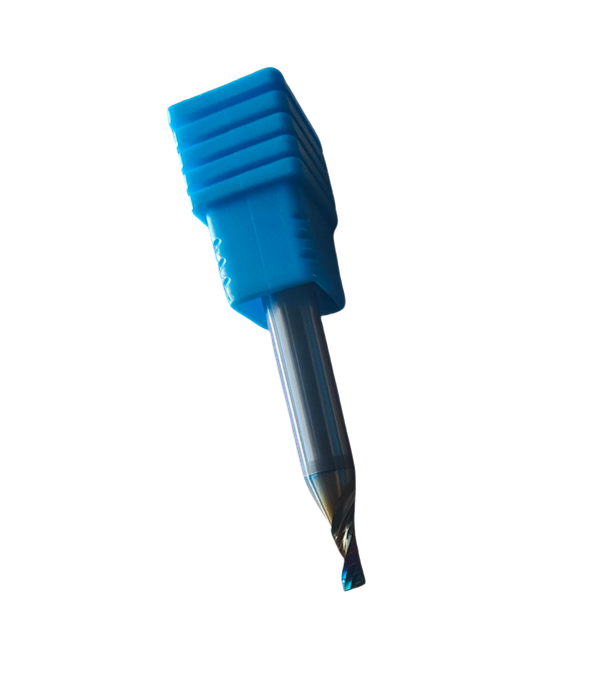

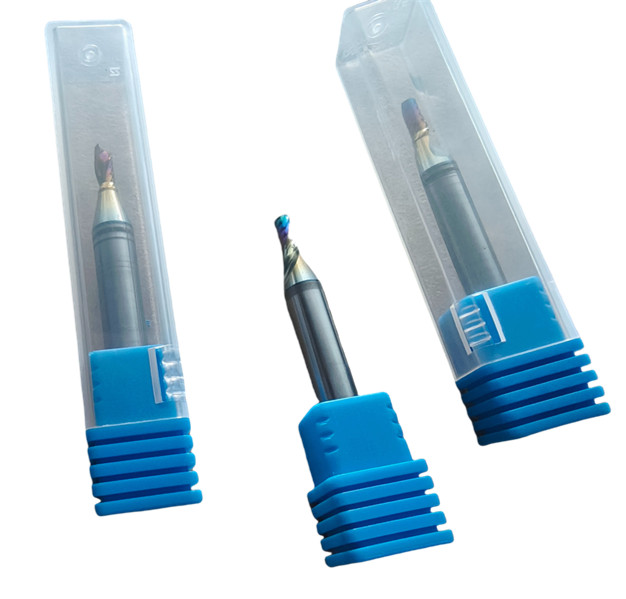

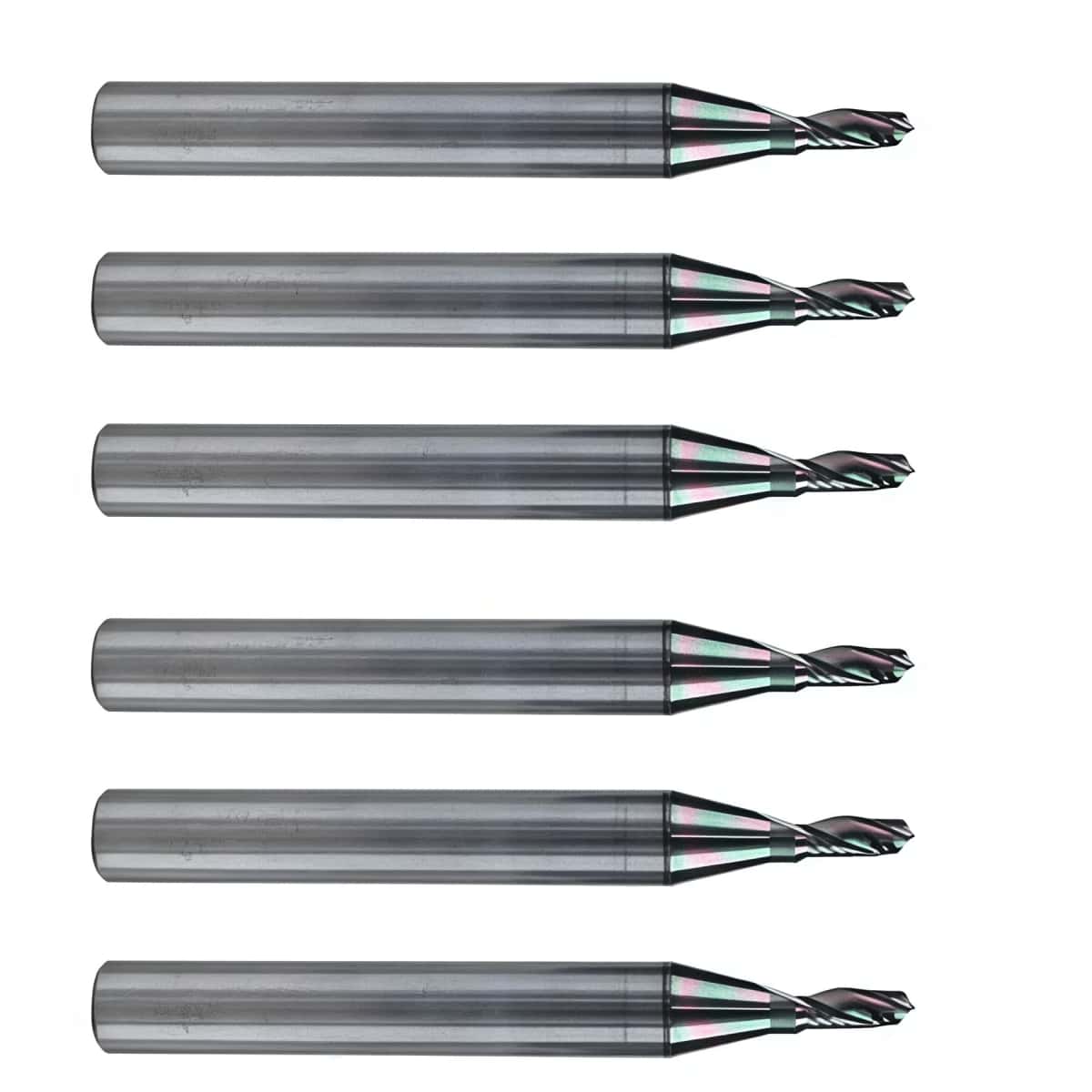

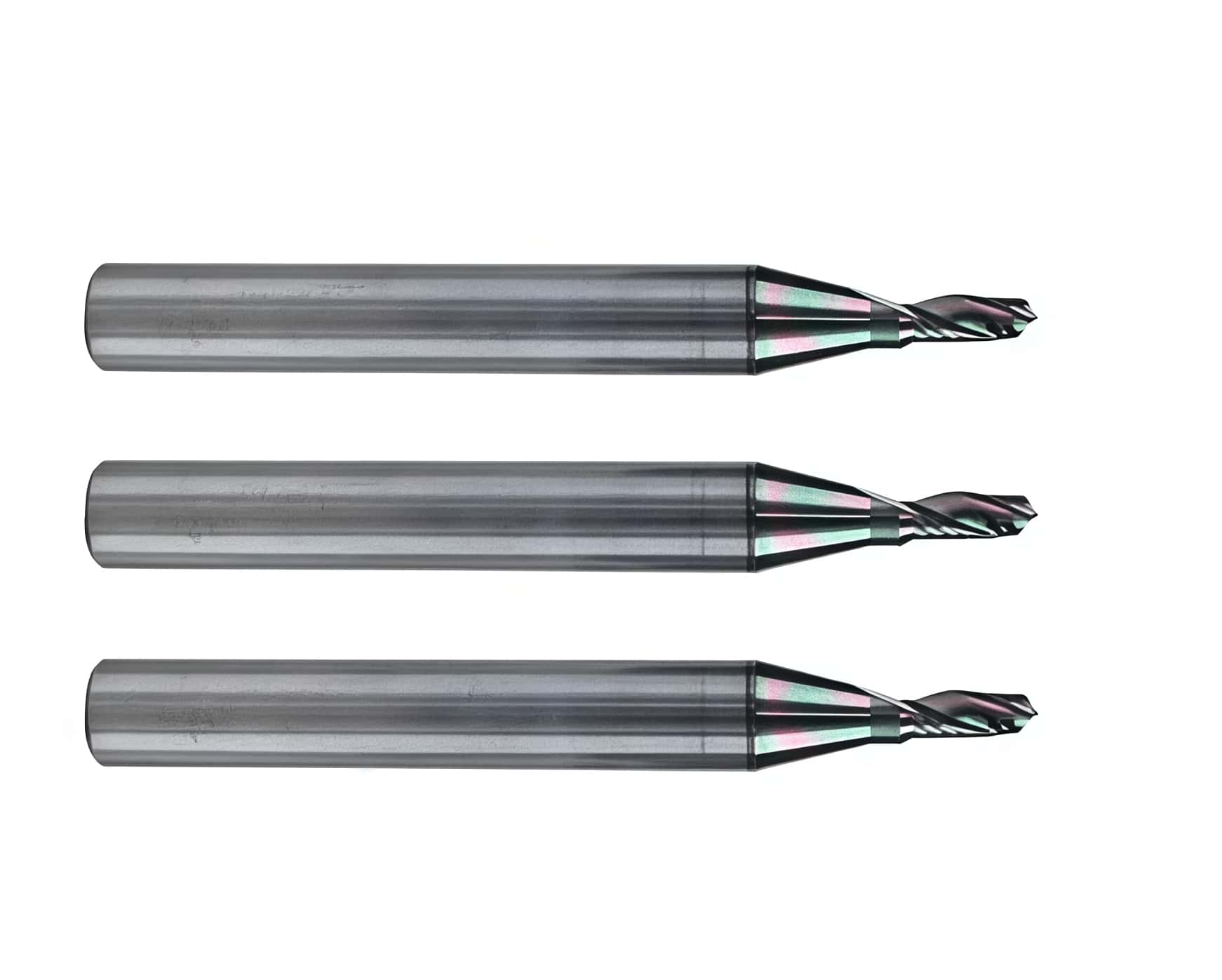

Summa 500-9867 Coated F Series Router Bit, D6/3 L50/6 1FL UC CT Compatible Summa Routing System

CHINA Summa 500-9867 is a small-diameter, hard-coated, general-purpose end mill engineered specifically for use with Summa F-series flatbed cutting machines. Enquire now

Description

Summa 500-9867 Coated F Series Router Bit, D6/3 L50/6 1FL UC CT Compatible Summa High Frequency Routing System

For use with the Summa F Series Standard Routing System and the Summa F Series High Frequency Routing System.

Details
Shank Diameter 6 mm
Routing Diameter 3 mm
Tool Length 50 mm
Max. Routing Depth 6 mm
Flutes 1
Up Cut Debris moves up with the blade rotation

Abbreviation Nomenclature
MP - Multi-Purpose
A - Acrylic
CT - Coated
UC - Up Cut
DC - Down Cut
BAL - Balanced (No Vibration - Only for HF Router System)
#Fl - Number of Flutes

Summa Coated Router Bit, D6/3 L50/6 1FL UC CT

Compatibility Chart
Compatible Equipment Summa F Series Flatbed Cutters
Compatible Router Summa F Series Standard Routing System, Summa F Series High Frequency Routing System

Recommended application scenarios

High-speed milling of the edges of small illuminated letters and complex signs made of 3-4mm aluminum composite panels (ACM/ACP) .
Fine lettering cutting of various rigid PVC and foamed PVC boards.
Shallow track engraving on hard non-ferrous metals (such as thin aluminum plates and copper plates).
Narrow grooves and perforations in MDF (medium-density fiberboard) for craft gift packaging.
