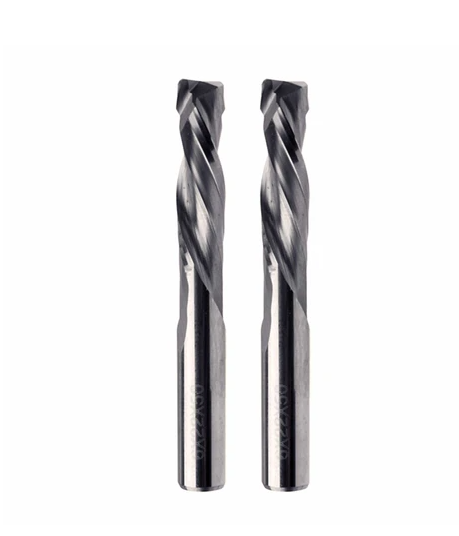

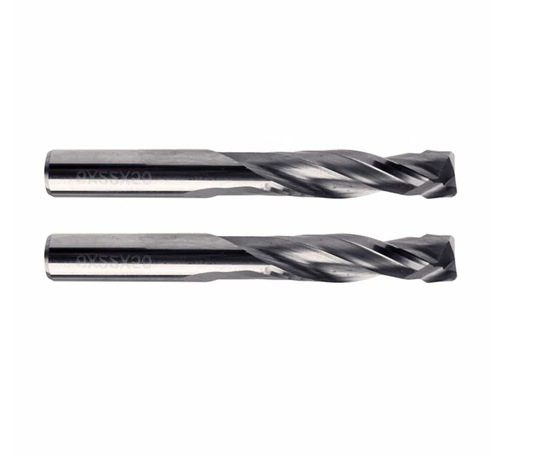

Summa 500-9864 Composite Compression Carbide End Mill Router Bit D6/6 L50/22 2FL UC DC

CHINA Summa 500-9864 industrial-grade carbide compression end mill designed specifically for Summa F-series flatbed cutting machines (including standard milling systems and high-frequency milling systems) for both forward and reverse (upper and lower cuts) Enquire now

Description

Summa Composite Compression Carbide End Mill Router Bit, D6/6 L50/22 2FL UC DC, 500-9864 For Summa F Series Flatbed Cutter

For use with the Summa F Series Standard Routing System and the Summa F Series High Frequency Routing System.

Details
Shank Diameter 6 mm
Routing Diameter 6 mm
Tool Length 50 mm
Max. Routing Depth 22 mm
Flutes 2
Up Cut/Down Cut Debris moves up with the blade rotation or down with the blade rotation

Abbreviation Nomenclature
MP - Multi-Purpose
A - Acrylic
CT - Coated
UC - Up Cut
DC - Down Cut
BAL - Balanced (No Vibration - Only for HF Router System)
#Fl - Number of Flutes
