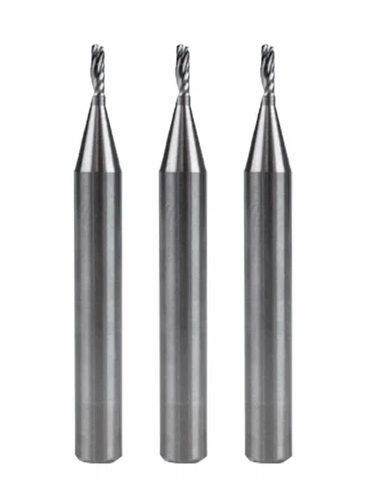

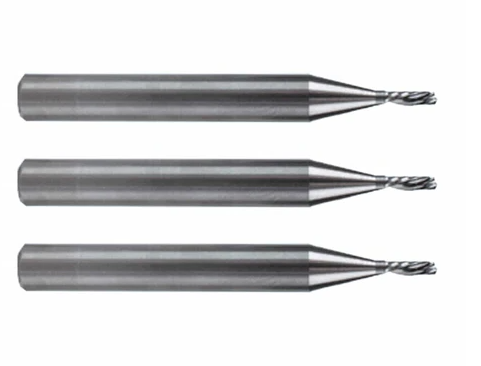

Summa 500-9882 Router Bit for Acrylics, D6/2 L50/6 1FL UC A For Summa F Series Flatbed Cutters

Summa 500-9882 router bit is a high-precision, authentic consumable designed specifically for cutting acrylic materials on Summa F Series flatbed cutters. Enquire now

Description

Summa 500-9882 Router Bit for Acrylics, D6/2 L50/6 1FL UC A For Summa F Series Flatbed Cutters

For use with the Summa F Series Standard Routing System and the Summa F Series High Frequency Routing System.

Details
Shank Diameter 6 mm
Routing Diameter 2 mm
Tool Length 50 mm
Max. Routing Depth 6 mm
Flutes 1
Up Cut Debris moves up with the blade rotation

Pro Tips for Operation

Acrylic Thickness: Because its maximum routing depth is 6 mm, do not attempt to cut materials thicker than 5.5 mm in a single pass to leave clear space for chip evacuation. rojects requiring optically clear, glass-like edges, use this bit for the initial cutout pass, then follow up with the specialized Summa 500-9859 Polishing Bit if your machine uses the HF spindle

System Compatibility

This bit seamlessly integrates into the automated tool management architecture of the following systems:
