H |
S |
Bit |
Description |
Picture |
|
|
|
|
D6/2 L50/6 1 |
FL UC A |
|
|
|
|
|
D6/3 L50/6 1 |
FL UC A |
|
|
|
|
|
D6/3 L50/11 A |
1FL UC |
|
|
|
|
|
D6/4 L50/8 1 |
FL UC A |
|
|
|
|
|
D6/4 L50/12 A |
1FL UC |
|
|
|
|
|
D6/6 L50/12 BAL A |
1FL UC |
|
|
|
|
|
D6/6 L58/22 BAL A |
1FL UC |
|
|

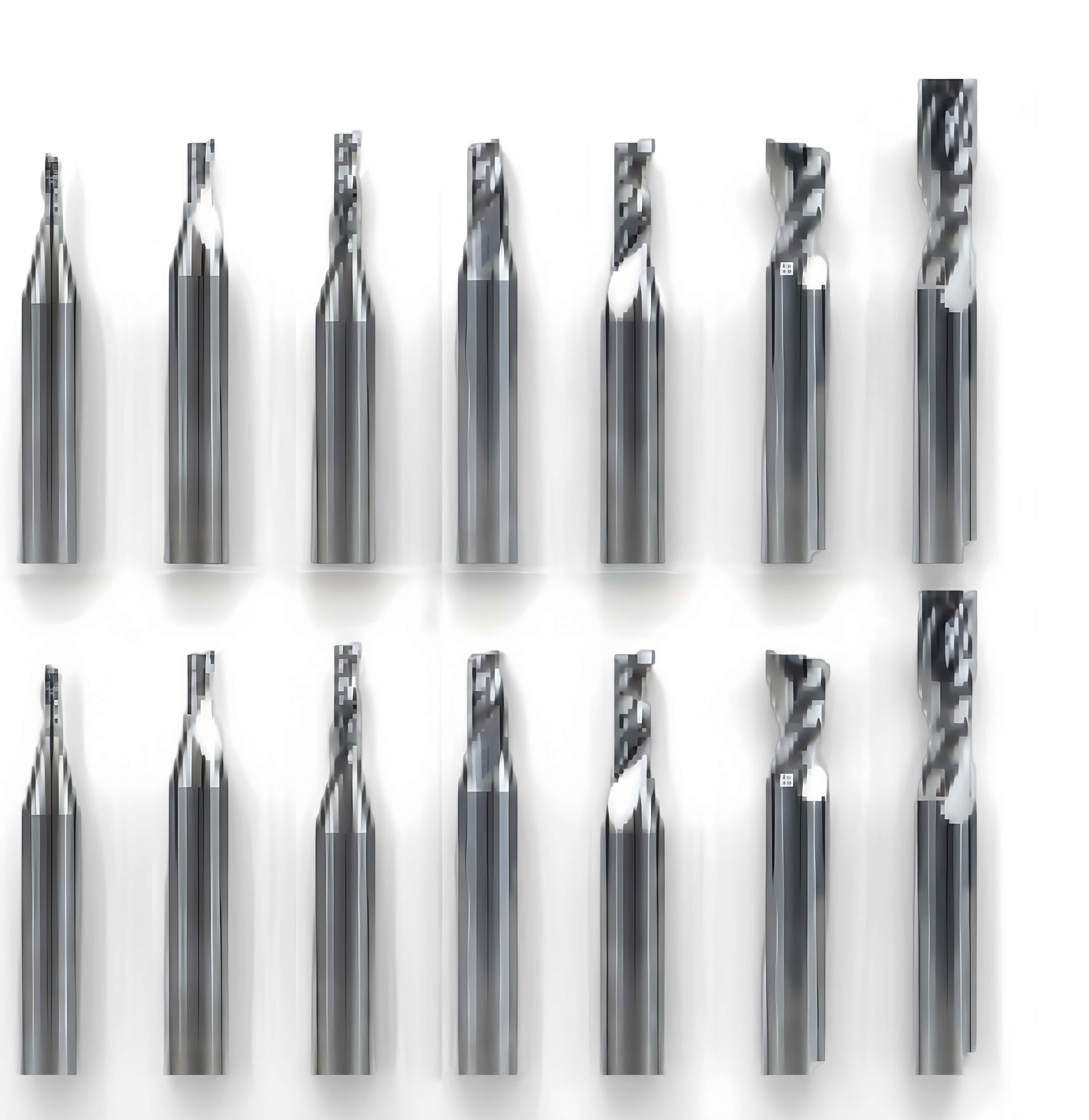

Summa CNC acrylic router bits 500-9882 through 500-9888 are a dedicated series of high-precision single-flute up-cut tools specifically engineered for acrylic routing on Summa F Series Flatbed Cutters. This series offers a progression of diameters and cutting depths to cover a wide range of acrylic cutting requirements.
Key Models and Specifications:
500-9882: 6 mm shank, 2 mm cutting diameter, 50 mm total length, 6 mm max routing depth, 1 flute, up-cut, for acrylic.
500-9883: 6 mm shank, 3 mm cutting diameter, 50 mm total length, 6 mm max routing depth, 1 flute, up-cut, for acrylic.
500-9884: 6 mm shank, 3 mm cutting diameter, 50 mm total length, 11 mm max routing depth, 1 flute, up-cut, for acrylic.
500-9885: 6 mm shank, 4 mm cutting diameter, 50 mm total length, 8 mm max routing depth, 1 flute, up-cut, for acrylic.
500-9886: 6 mm shank, 4 mm cutting diameter, 50 mm total length, 12 mm max routing depth, 1 flute, up-cut, for acrylic.
500-9887: 6 mm shank, 6 mm cutting diameter, 50 mm total length, 12 mm max routing depth, 1 flute, up-cut, balanced (for high-frequency HF router systems), for acrylic.
500-9888: 6 mm shank, 6 mm cutting diameter, 58 mm total length, 22 mm max routing depth, 1 flute, up-cut, balanced (for HF router), for acrylic.
Common Characteristics and Features:
Material: Tungsten carbide for high wear resistance and long-term use.
Flute type: Single-flute, up-cut geometry for fast chip removal and smooth edge finish in acrylic
Application: Optimized for cast and extruded acrylics, compatible with Summa F Series routers (both Standard and High Frequency models).
Balanced versions (BAL): 500-9887 and 500-9888 are specifically balanced for use with high-frequency (HF) routing spindles, reducing vibration and improving cut quality for thicker or larger panels.
Abbreviation Guide (per Oyea):
A: Acrylic (dedicated for acrylic materials)
UC: Up-Cut (removes debris upward along the flute)
BAL: Balanced (low vibration, for HF Router systems)
1FL: Single flute (maximum chip evacuation and edge quality in plastics/acrylics)
Compatibility:
These bits are specifically built for the Summa F Series Flatbed Cutters using Summa's Standard Routing System or High Frequency Routing System.
Industrial Relevance:
Designed for demanding industrial acrylic fabrication, such as signage, displays, and transparent panels, offering maximum precision and an improved finish over multi-purpose bits or general-use endmills.
The wide range of diameters and cutting lengths allow selection for both fine-detail work and heavy-duty, deep-through cutting in thick acrylic sheets.
Summa 500-9882, 500-9883, 500-9884, 500-9885, 500-9886, 500-9887, and 500-9888 CNC acrylic bits are specially engineered for routing acrylic on Summa F Series flatbed cutters. These tools are tailored to meet diverse requirements across production, manufacturing, wholesale, sales, and supply operations. Designed to support industries reliant on OEM and ODM services, these consumables excel in quality, reliability, and versatility, backed by a robust network of factory resources.
Shenzhen Oyea Machinery Co., Ltd. distinguishes itself through an unwavering commitment to serving global markets with wide-reaching expertise. Its comprehensive distribution network spans continents and includes key regions such as Europe, North America, the Middle East, and Asia. The company's international presence shines through exports to major economies like Germany, France, the United Kingdom, Poland, the United States, and Russia. Furthermore, it plays a vital role in thriving Asian markets such as Vietnam, Thailand, Indonesia, Singapore, South Korea, Japan, Turkey, the Philippines, Taiwan, and Hong Kong. The reach extends to other notable destinations like the Netherlands, Switzerland, Italy, Spain, Hungary, and the Czech Republic.
This extensive global footprint emphasizes the company’s dedication to establishing lasting partnerships with international collaborators. At its core is a commitment to delivering unmatched excellence in quality and innovation. By providing advanced manufacturing and supply solutions, Shenzhen Oyea Machinery Co., Ltd. ensures its ability to address the ever-evolving demands of industries worldwide.
