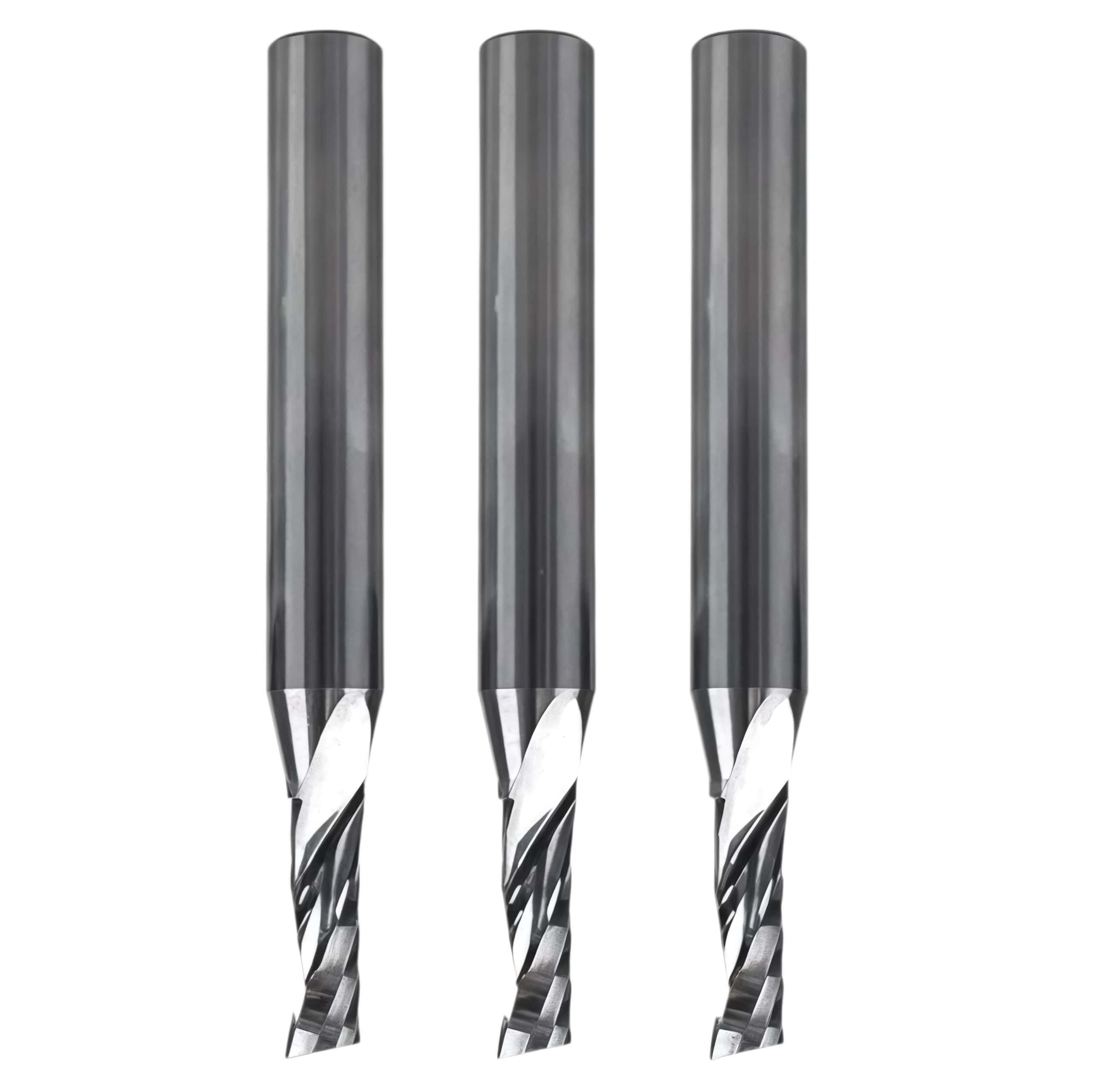

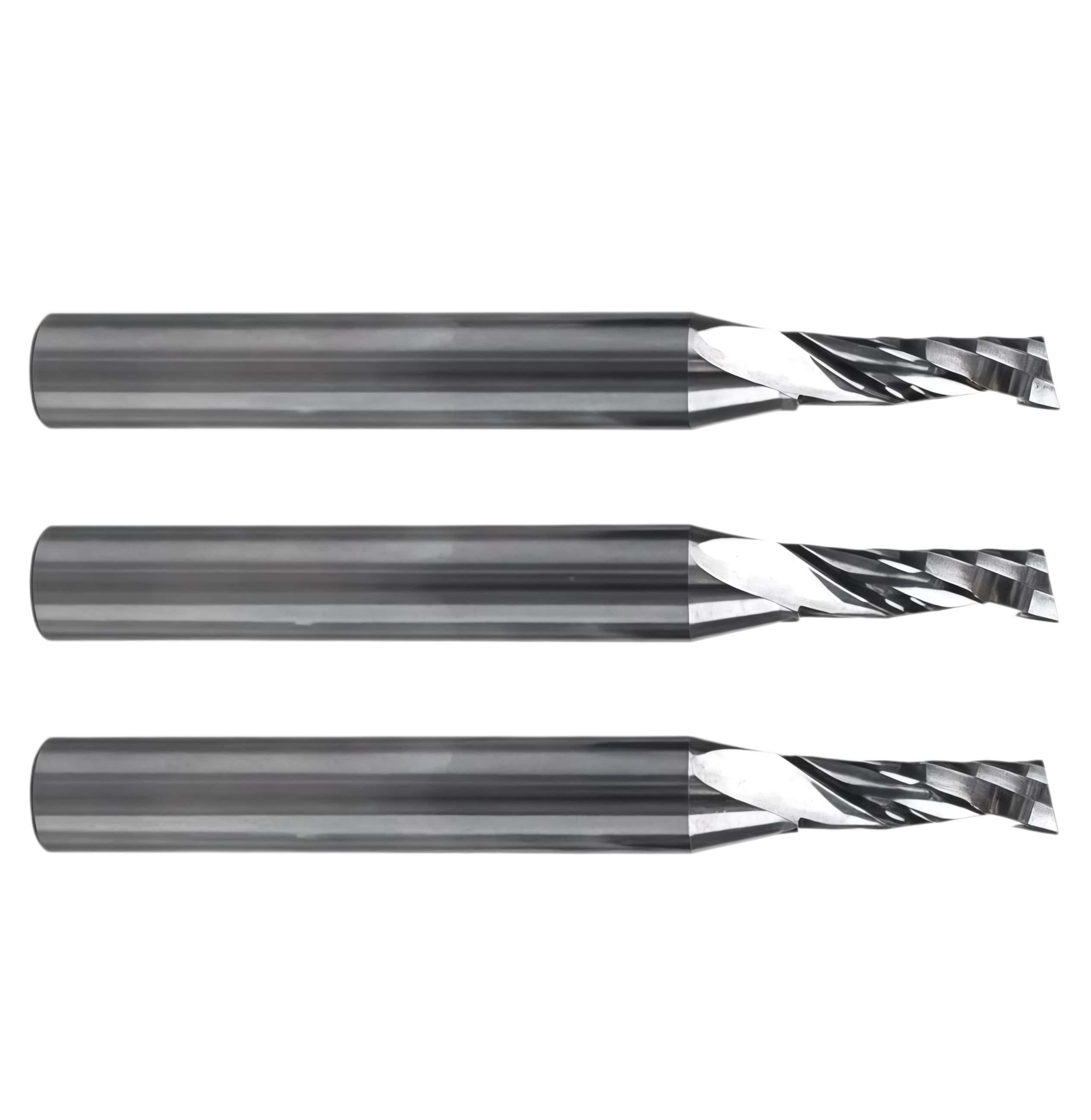

Summa 500-9886 F Series Router Bit for Acrylics, D6/4 L50/12 1FL For Summa Cutter

Summa 500-9886 is a genuine, high-precision router bit specifically engineered for cutting acrylics on Summa F Series Flatbed Cutters Enquire now

Description

Summa Router Bit for Acrylics, D6/4 L50/12 1FL UC A, 500-9886 For Summa Cutter

For use with the Summa F Series Standard Routing System and the Summa F Series High Frequency Routing System.

Details
Shank Diameter 6 mm
Routing Diameter 4 mm
Tool Length 50 mm
Max. Routing Depth 12 mm
Flutes 1

Up Cut Debris moves up with the blade rotation+

Abbreviation Nomenclature
MP - Multi-Purpose
A - Acrylic
CT - Coated
UC - Up Cut
DC - Down Cut
BAL - Balanced (No Vibration - Only for HF Router System)
#Fl - Number of Flutes

Performance Characteristics

Material Optimization: The single O-flute geometry prevents heat buildup and friction, delivering exceptionally clean, straight edges with no melted ridges on acrylic substrates.
Up-Cut Design: Intentionally forces waste material and debris upward out of the groove, preventing chip re-cutting and clogging.
System Compatibility: Fully compatible with the Summa F Series Standard Routing System.

Compatibility Chart
Compatible Equipment Summa F Series Flatbed Cutters
Compatible Router Summa F Series Standard Routing System, Summa F Series High Frequency Routing System
