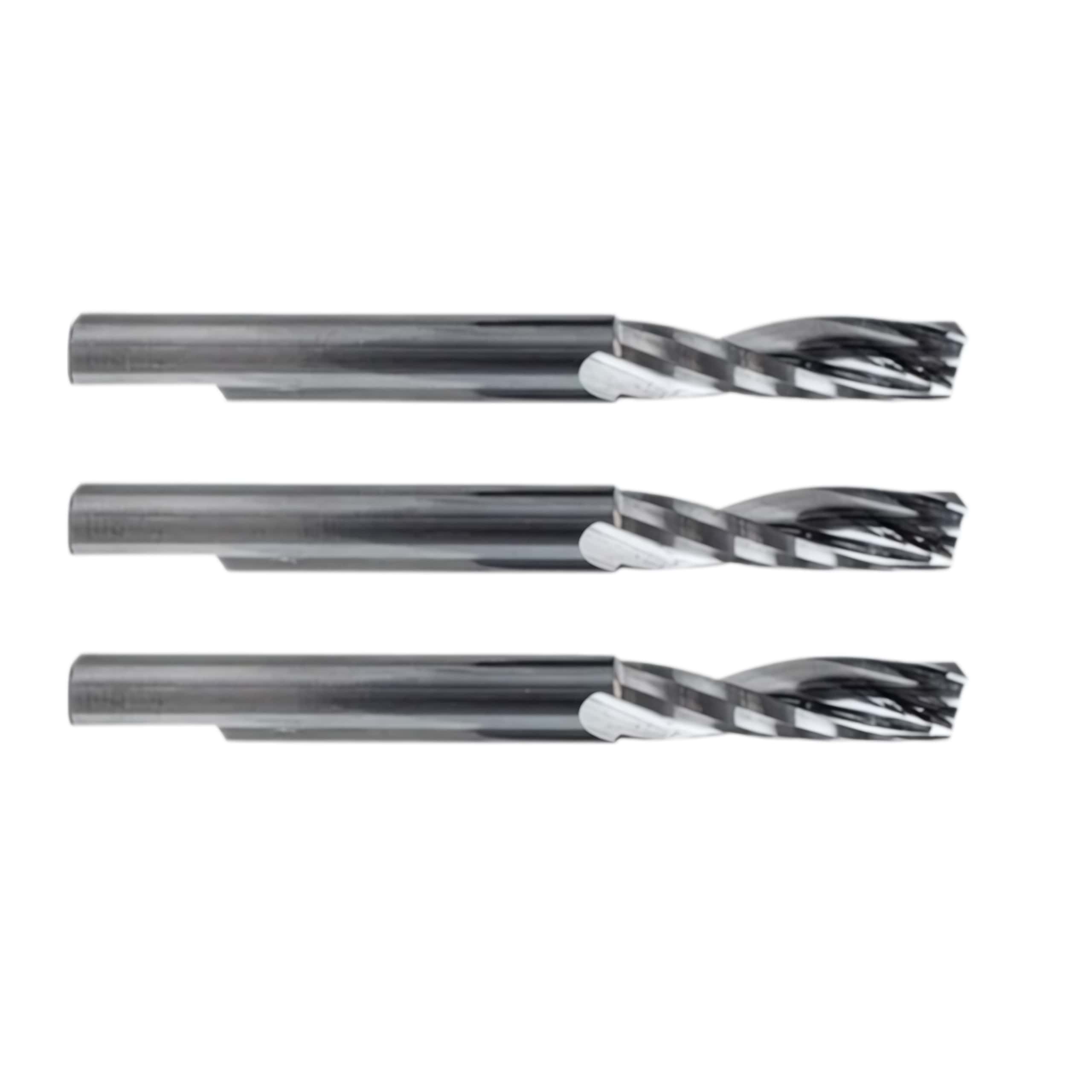

Summa 500-9888 Router Bit for Acrylics, D6/6 L58/22 1FL UC BAL A-Replacement Compatible

Summa 500-9888 is a high-precision balanced acrylic end mill, specifically engineered for use with the High Frequency Routing System of Summa's F-series flatbed cutting machines. Enquire now

Description

Summa 500-9888 Router Bit for Acrylics, D6/6 L58/22 1FL UC BAL A-Replacement Compatible

For use with the Summa F Series High Frequency Routing System.
Details
Shank Diameter 6 mm
Routing Diameter 6 mm
Tool Length 58 mm
Max. Routing Depth 22 mm
Flutes 1
Up Cut Debris moves up with the blade rotation
Abbreviation Nomenclature
MP - Multi-Purpose
A - Acrylic
CT - Coated
UC - Up Cut
DC - Down Cut
BAL - Balanced (No Vibration - Only for HF Router System)
#Fl - Number of Flutes

Core Design Advantages

Eliminating high-frequency vibration (BAL) : High-frequency routing systems (HF Routers) operate at extremely high speeds .500-9888The cutting tool undergoes precise balance testing, which can effectively suppress minute vibrations under high-speed rotation and prevent chatter marks from appearing on the acrylic cut surface, thereby achieving extremely high edge smoothness.

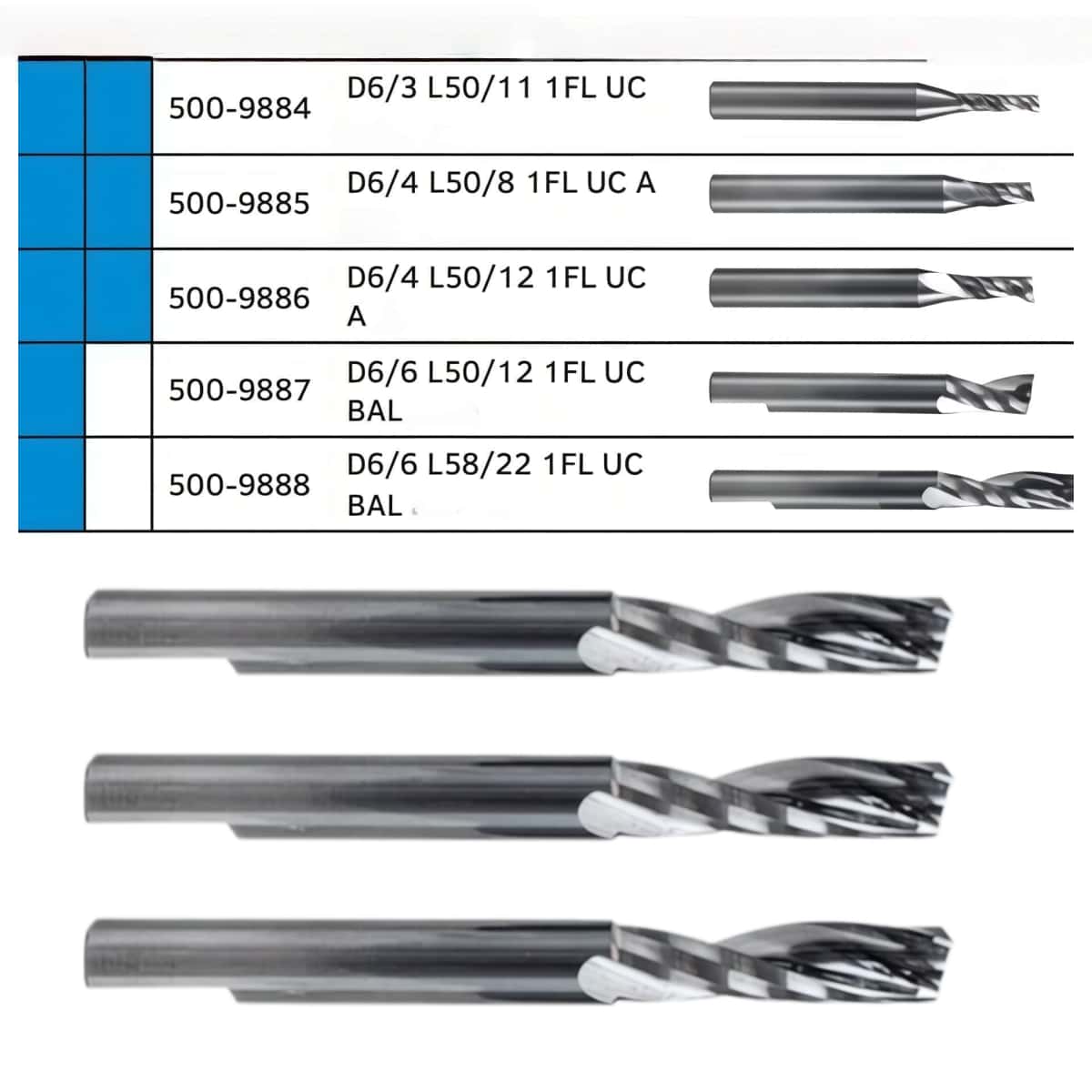

Ultra-deep cutting capability (22mm) : Compared to the 500-9887 in the same series (12mm depth of cut) ,500-9888 It offers an effective depth of cut of up to 22 mm . This makes it the core tool of choice for machining ultra-thick acrylic sheets, crystal lettering, and display stands of 15-20 mm.
Large chip removal single O-edge (1FL UC) : A single-edge O-groove spiral cutting structure optimized for plastic materials, with a huge chip removal space. It can quickly remove waste chips before the acrylic melts. Combined with the extremely high feed rate of the high-frequency system, it can significantly reduce "secondary sticking" or scorching of the cut edge caused by heat
