Summa 500-9887 F Series Router Bit for Acrylics, D6/6 L50/12 1FL UC BAL A,Review Pdf

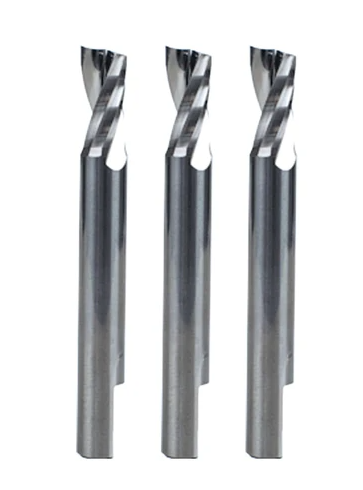

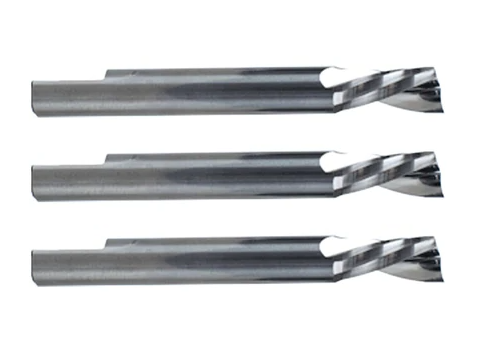

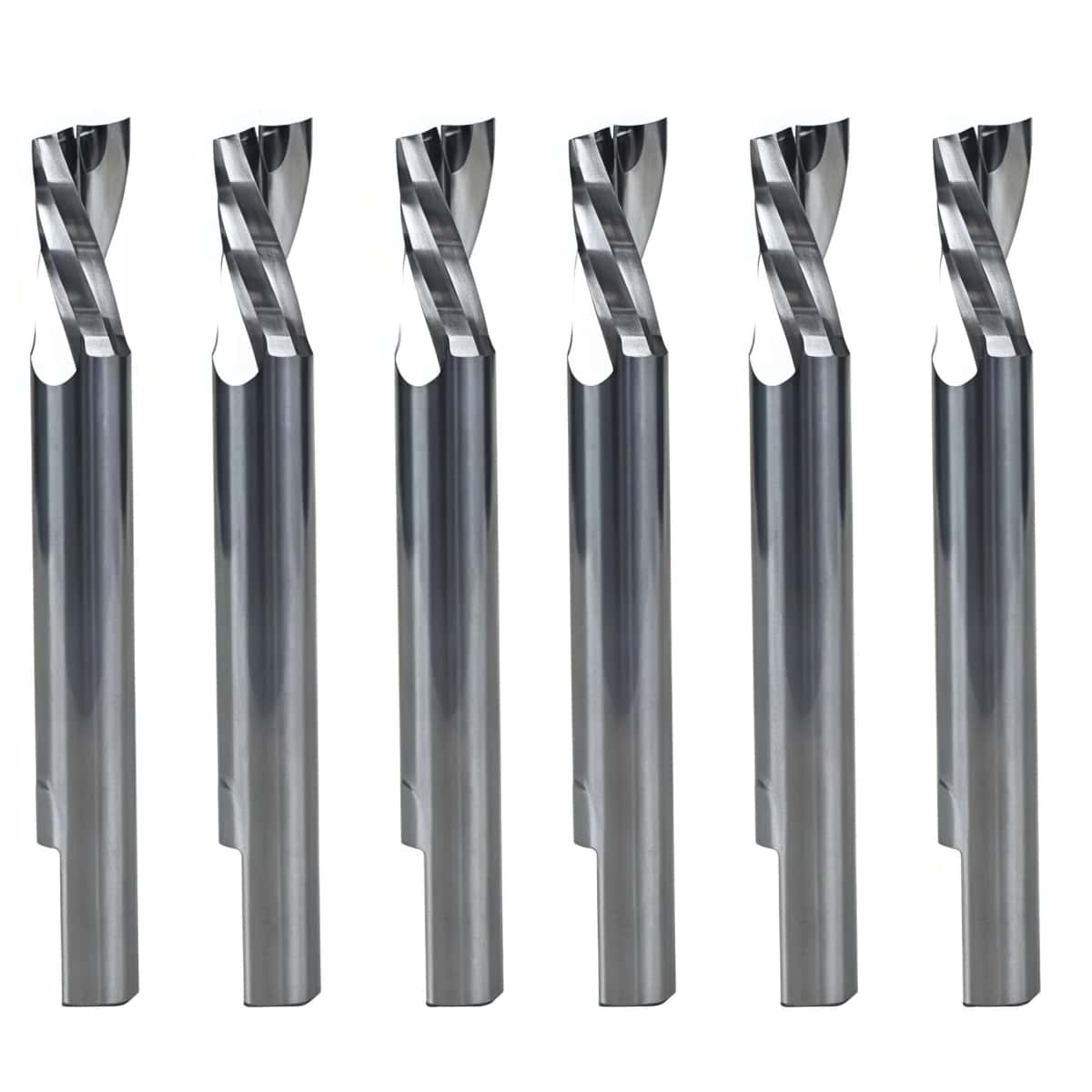

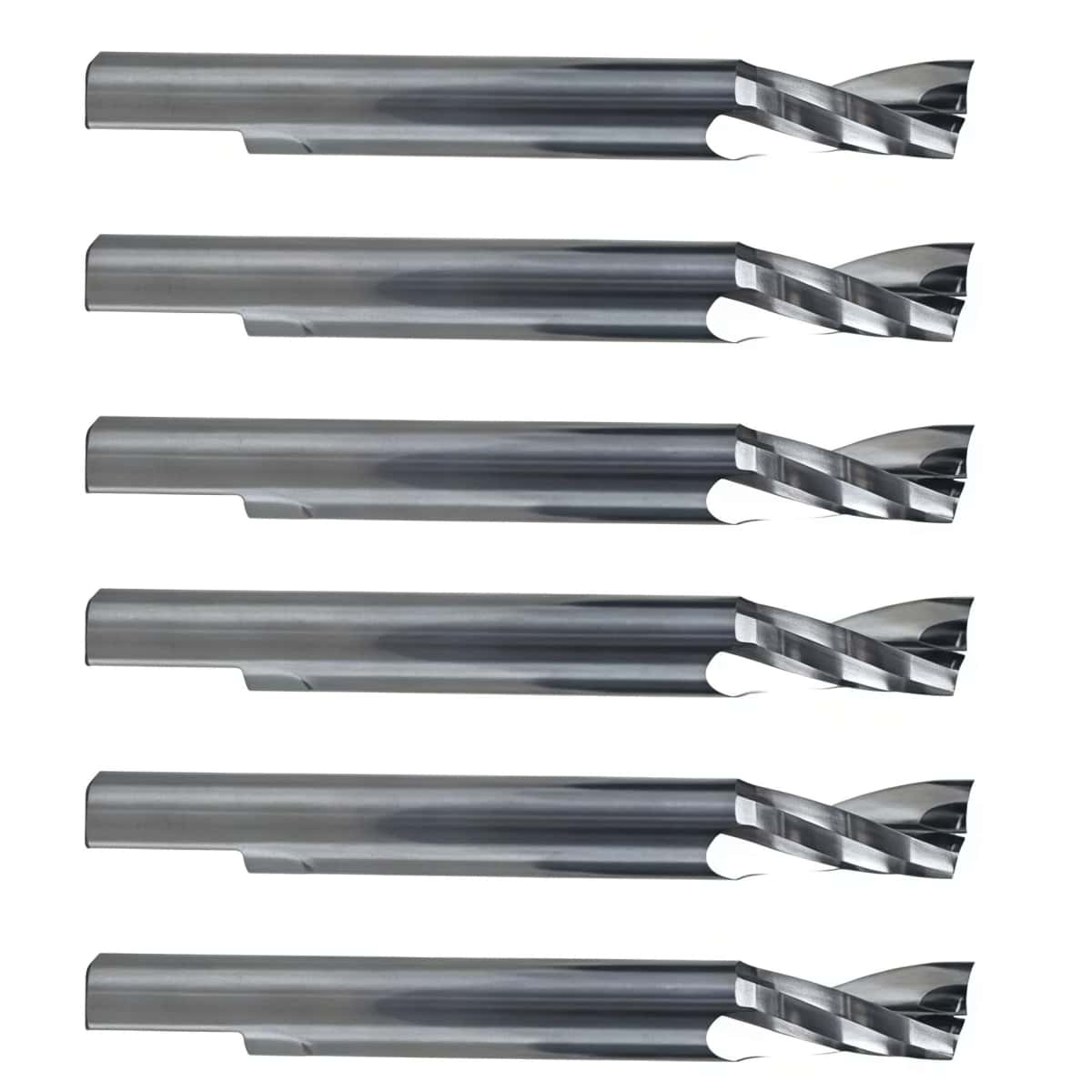

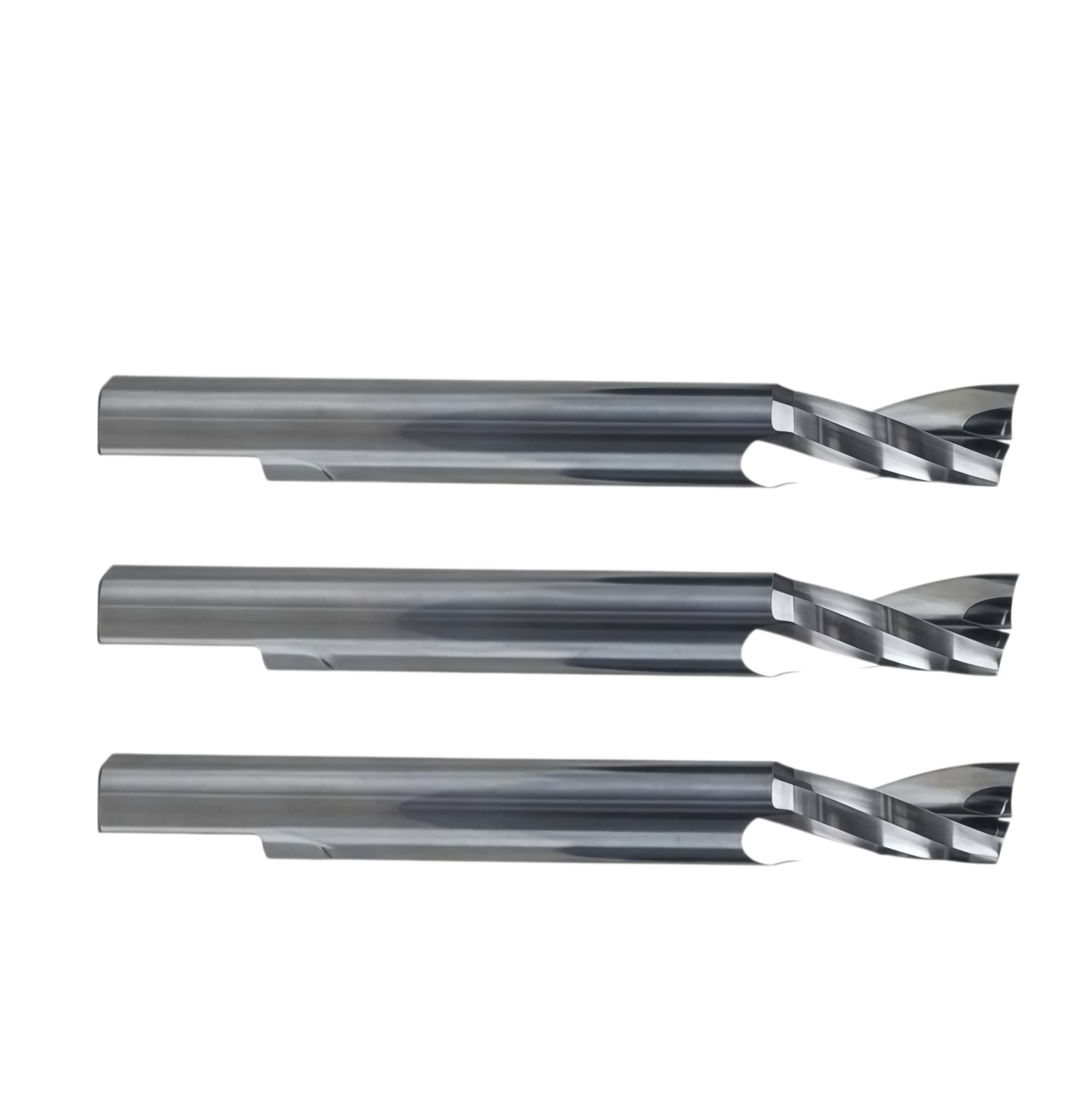

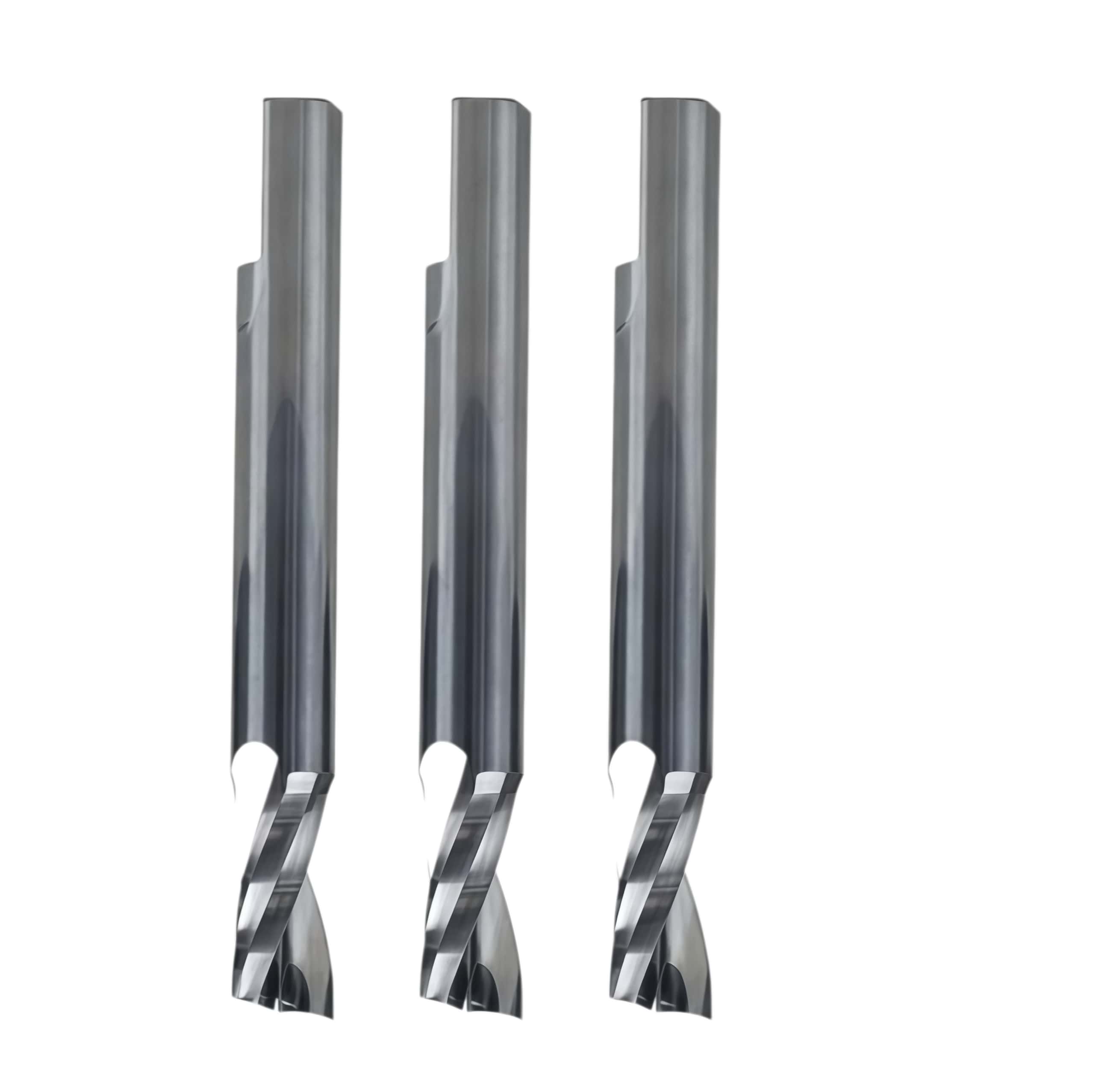

Summa 500-9887 is a high-quality acrylic end mill, expertly crafted for use with the High Frequency Routing System on the Summa F Series flatbed cutting machine. Enquire now

Description

Summa Router Bit for Acrylics, D6/6 L50/12 1FL UC BAL A,500-9887

For use with the Summa F Series High Frequency Routing System.

Details
Shank Diameter 6 mm
Routing Diameter 6 mm
Tool Length 50 mm
Max. Routing Depth 12 mm
Flutes 1
Up Cut Debris moves up with the blade rotation

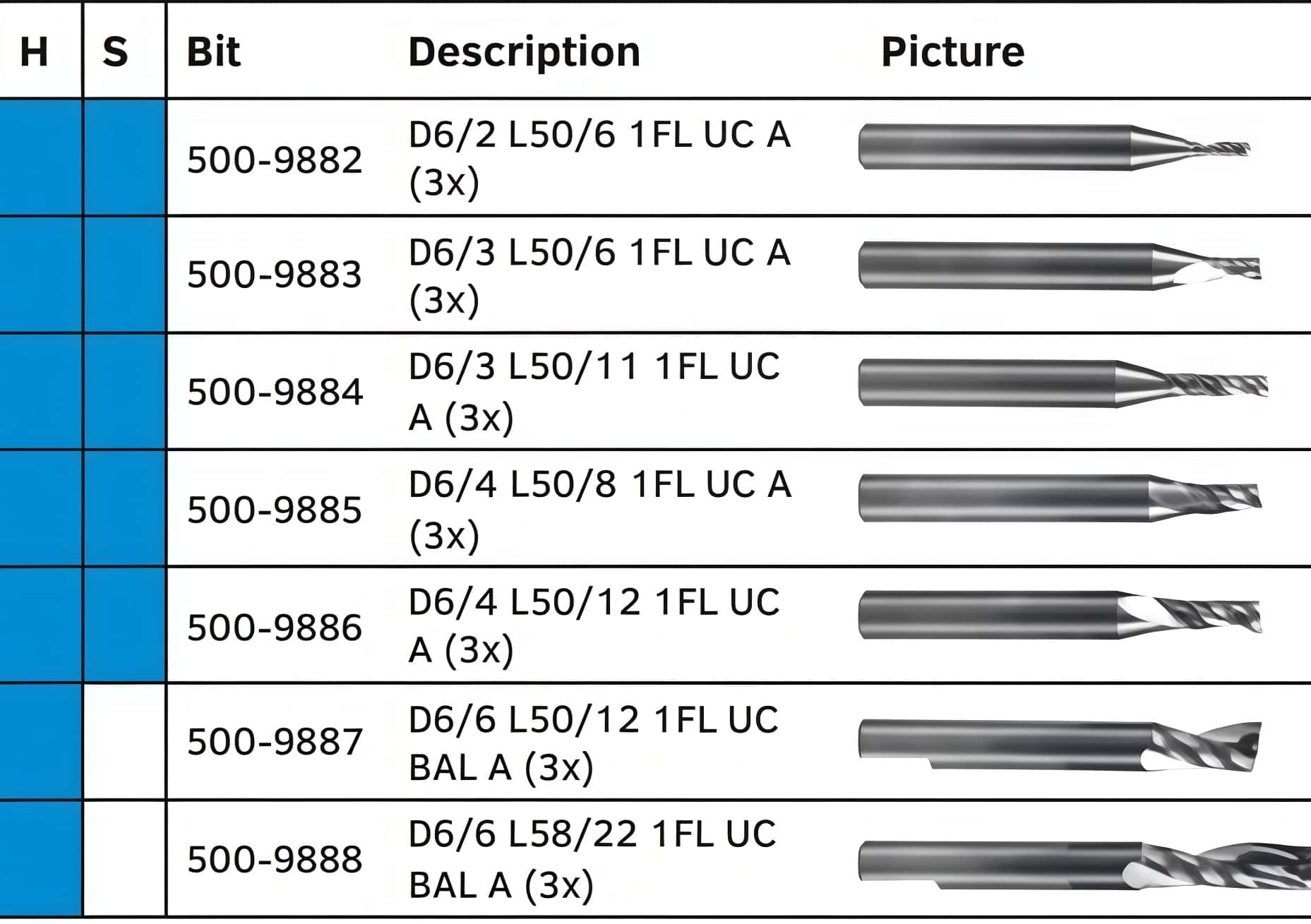

Abbreviation Nomenclature
MP - Multi-Purpose
A - Acrylic
CT - Coated
UC - Up Cut
DC - Down Cut
BAL - Balanced (No Vibration - Only for HF Router System)
#Fl - Number of Flutes

Here are machining recommendations for acrylic based on the Summa end mill usage guide provided by Shenzhen Oyea:

- Depth of Cut per Pass: For high-frequency milling systems (HF Routers), the depth of cut per pass should not exceed 1.5 times the cutting diameter of the milling cutter. For example, if the cutter diameter is 6mm, the maximum depth per pass would be 9mm.

- Material Thickness Limit: To maintain machining safety and quality, the material's maximum thickness should not exceed 3 times the milling cutter's diameter. This means a cutter with a 6mm diameter has an 18mm material thickness limit.

- Vibration-Resistant Cutting: To achieve a better surface finish and reduce the impact of vibrations on the machined acrylic, select a milling cutter with a cutting length that closely matches the actual thickness of the acrylic being processed.

- Dedicated Tools for Acrylic: Acrylic has varying levels of hardness and is susceptible to surface imperfections like whitening or scratches. To prevent such issues, it is recommended to use tools specifically designed for acrylic. Avoid using these tools interchangeably with those for other materials, such as PVC, to ensure the edges of the acrylic remain clear and smooth.

Compatibility Chart
Compatible Equipment Summa F Series Flatbed Cutters
Compatible Router Summa F Series High Frequency Routing System
