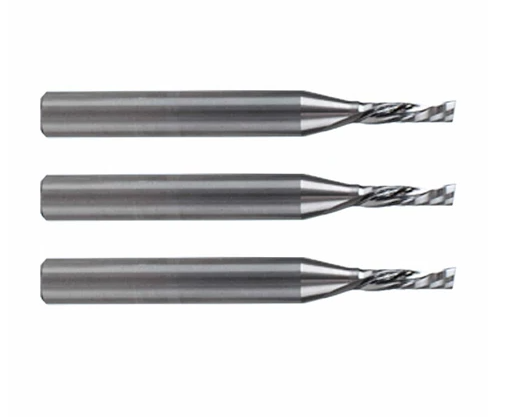

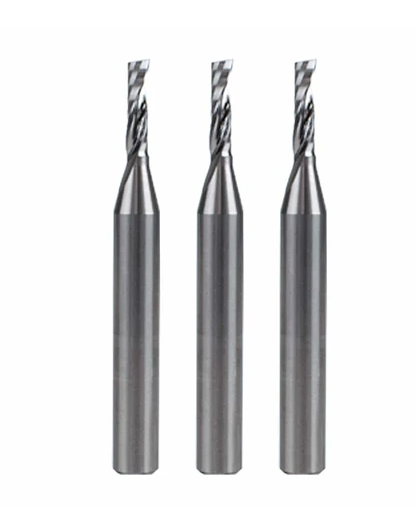

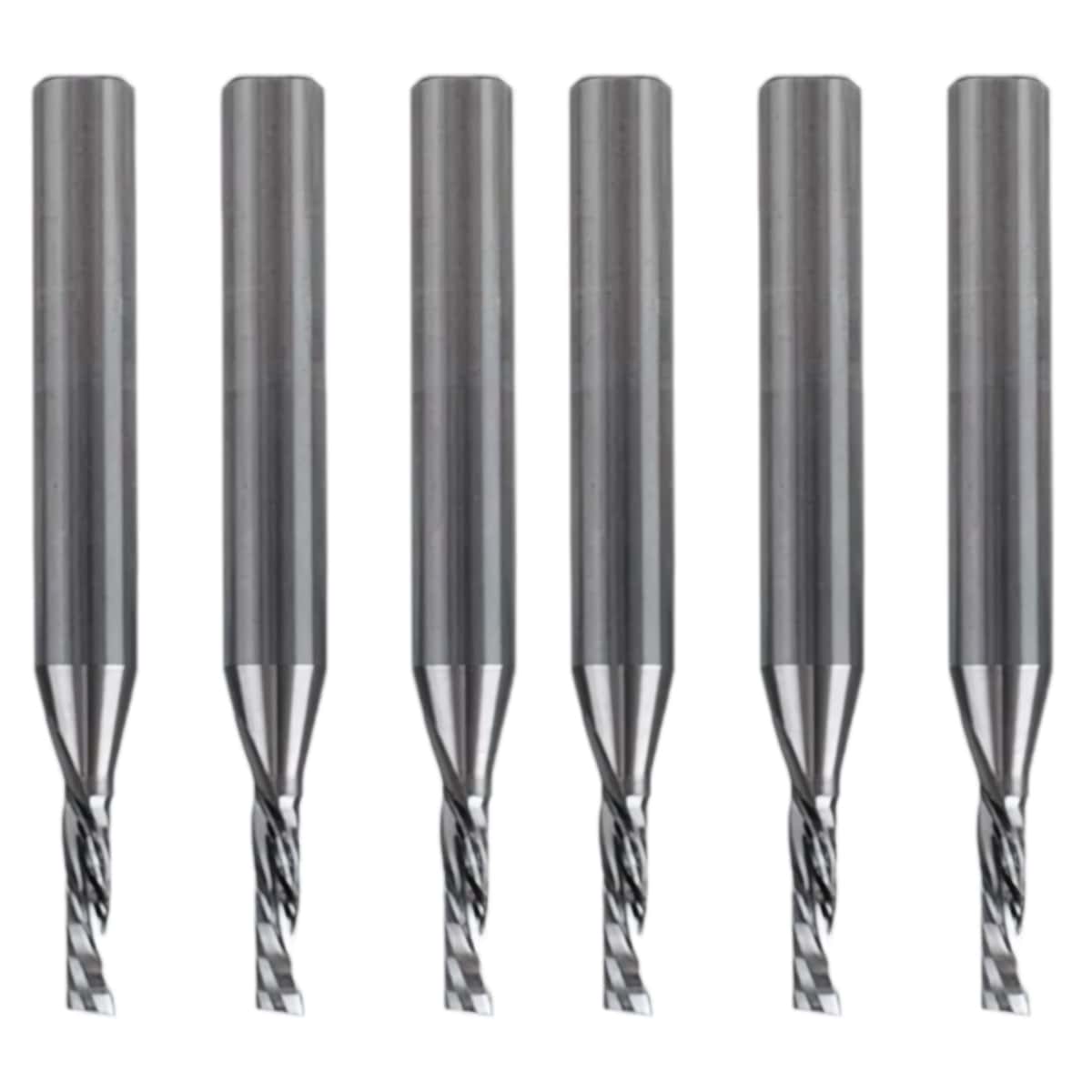

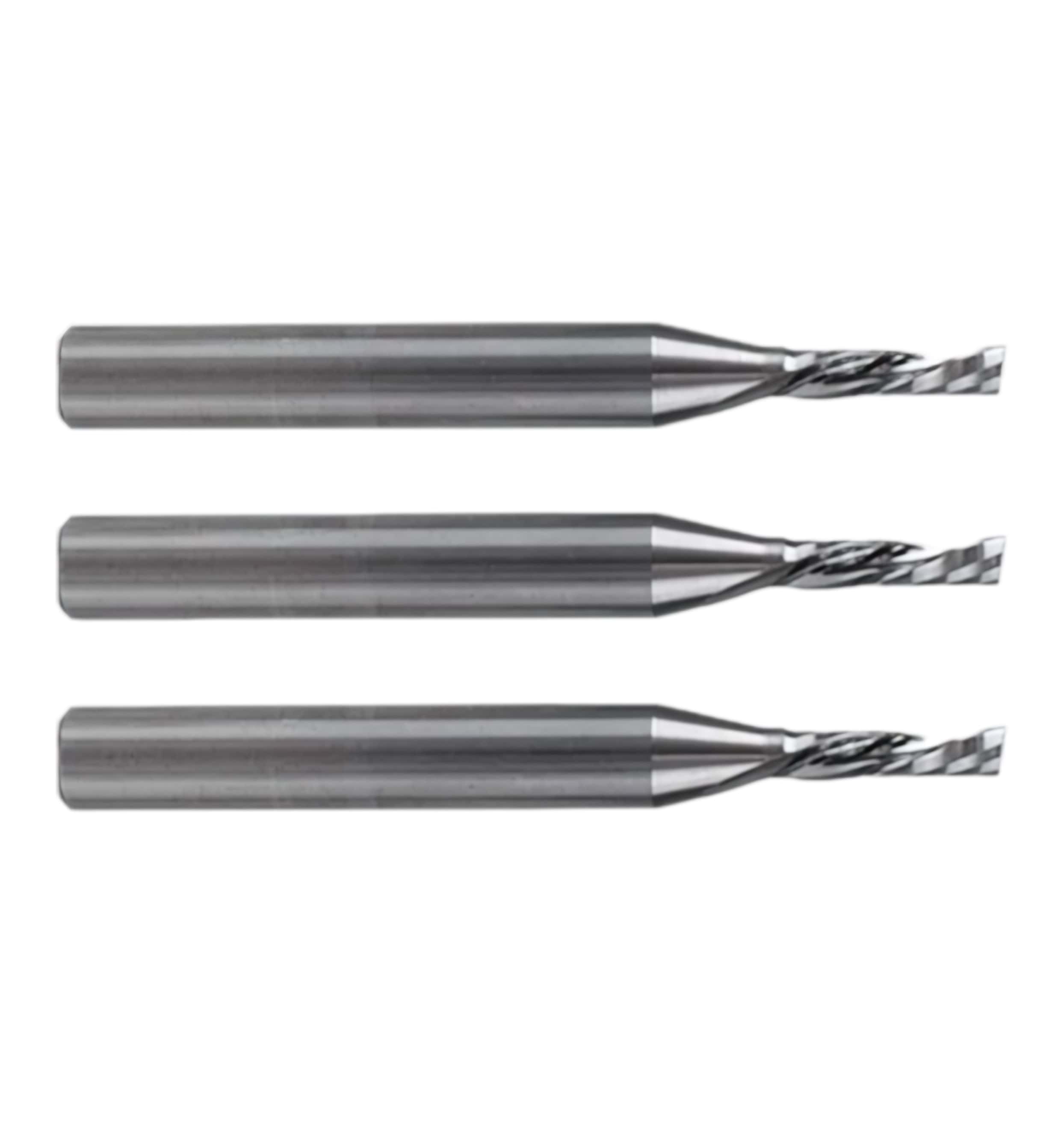

Summa 500-9884 F Series Router Bit for Acrylics, D6/3 L50/11 1FL UC For Summa F Series Flatbed Cutte

Summa 500-9884 is a genuine, high-precision router bit engineered for detailed cuts in medium-thickness acrylics on Summa F Series Flatbed Cutters Enquire now

Description

Summa 500-9884 F Series Router Bit for Acrylics, D6/3 L50/11 1FL UC A For Summa F Series Flatbed Cutters

For use with the Summa F Series Standard Routing System and the Summa F Series High Frequency Routing System.

Details
Shank Diameter 6 mm
Routing Diameter 3 mm
Tool Length 50 mm
Max. Routing Depth 11 mm
Flutes 1
Up Cut Debris moves up with the blade rotation

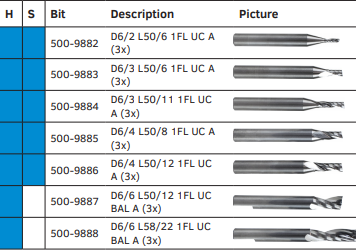

Key Differences from 500-9885 & 500-9886

Smaller Diameter: Features a 3 mm cutting diameter (instead of 4 mm) for tighter radiuses and finer detail work.
Mid-Range Depth: Offers an 11 mm maximum routing depth, balancing thickness capability with tool rigidity.

Performance Characteristics

Clean Edges: The single O-flute geometry minimizes friction and heat, preventing melted ridges on acrylic substrates.
Efficient Clearing: The up-cut design pulls chips upward out of the groove to prevent clogging and chip re-cutting.

Compatibility Chart
Compatible Equipment Summa F Series Flatbed Cutters
Compatible Router Summa F Series Standard Routing System, Summa F Series High Frequency Routing System
