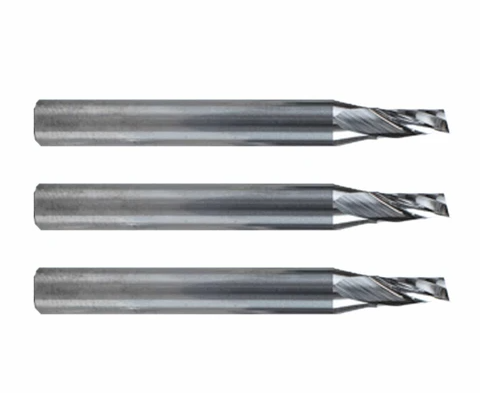

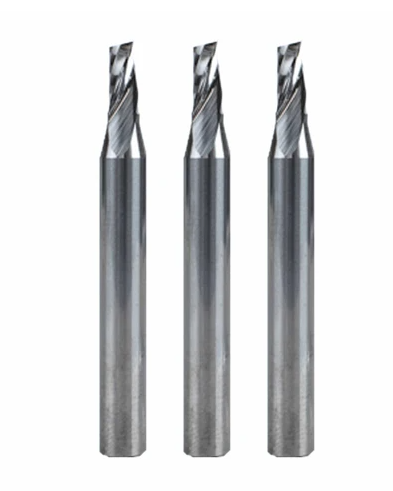

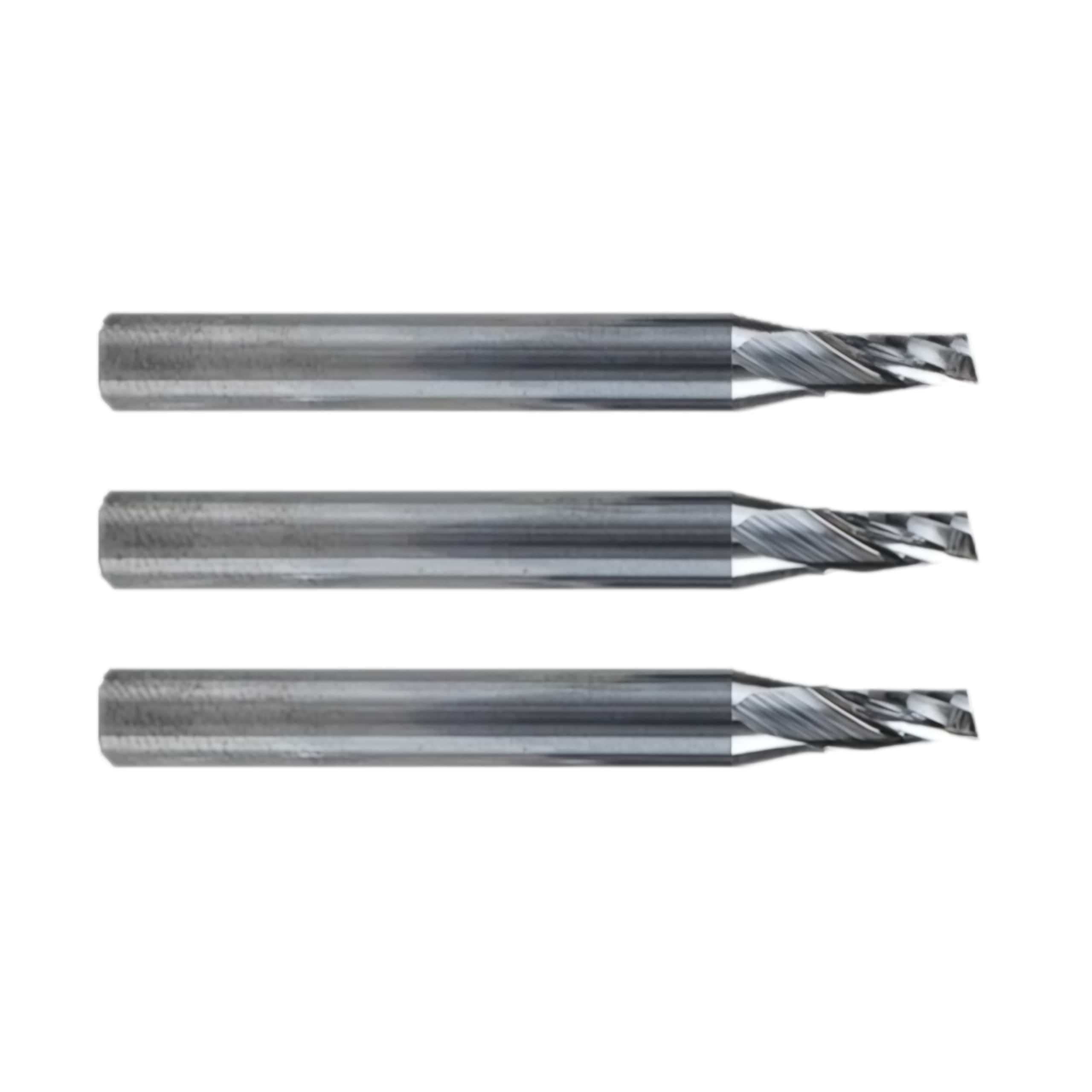

Summa 500-9885 Router Bit for Acrylics, D6/4 L50/8 1FL UC A For Summa F Series Routing System

Summa 500-9885 is a genuine, high-precision router bit optimized for thinner acrylics on Summa F Series Flatbed Cutters. Enquire now

Description

Summa 500-9885 Router Bit for Acrylics, D6/4 L50/8 1FL UC A For Summa F Series Routing System

For use with the Summa F Series Standard Routing System and the Summa F Series High Frequency Routing System.

Details
Shank Diameter 6 mm
Routing Diameter 4 mm
Tool Length 50 mm
Max. Routing Depth 8 mm
Flutes 1
Up Cut Debris moves up with the blade rotation

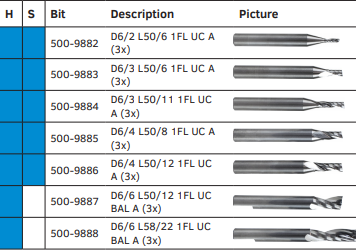

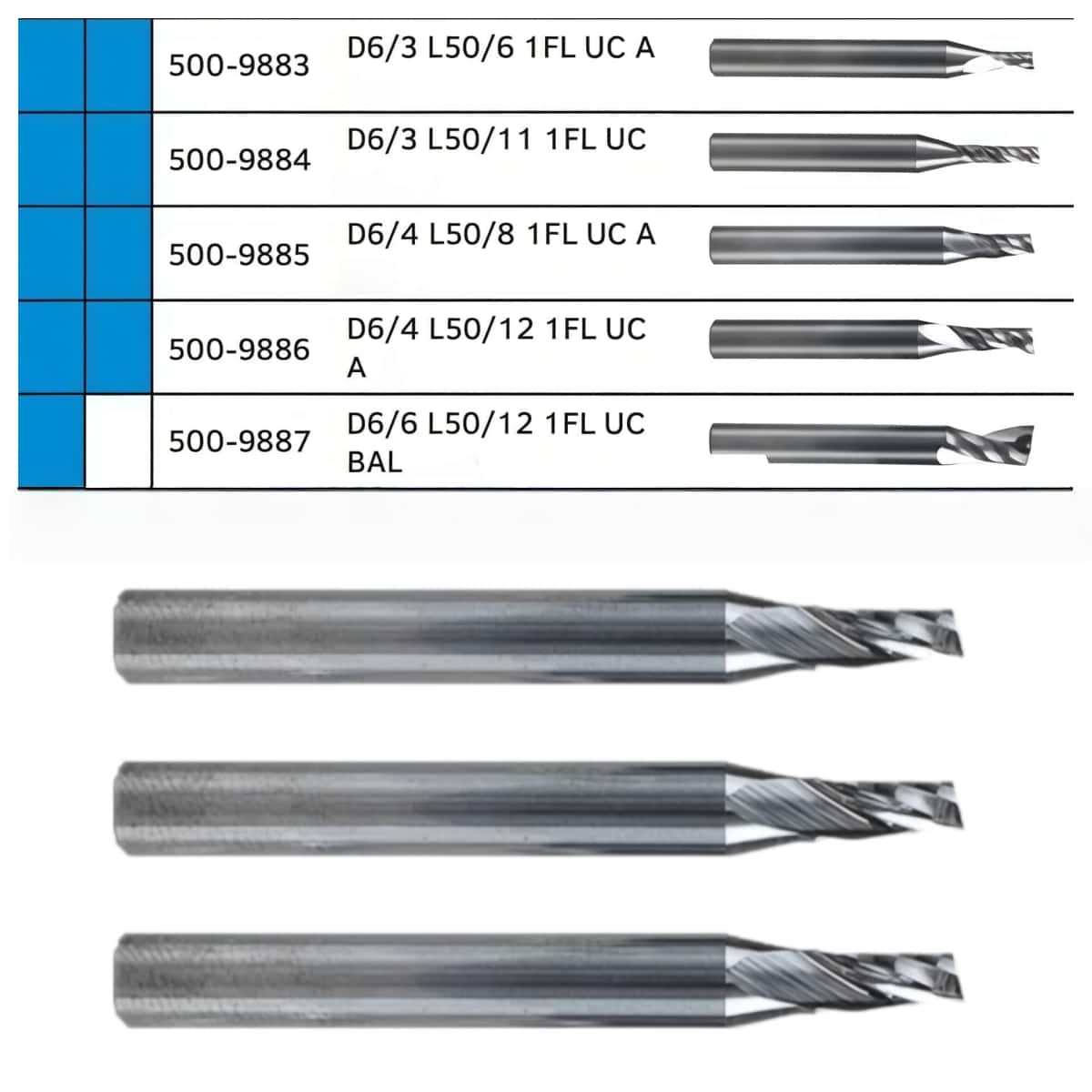

Key Differences from the 500-9886

Shorter Cutting Length: Features an 8 mm maximum routing depth instead of 12 mm.
Higher Rigidity: The shorter cutting flute reduces tool deflection, offering superior edge finishes on thinner materials.

Performance Characteristics

Flute Geometry: The single O-flute prevents friction and heat buildup, eliminating melted edges on acrylic sheets.
Debris Removal: The up-cut design forces chips and waste material upward out of the channel to avoid re-cutting.

Compatibility Chart
Compatible Equipment Summa F Series Flatbed Cutters
Compatible Router Summa F Series Standard Routing System, Summa F Series High Frequency Routing System
